Item Specifications
Category
Condition
Used
Item Number
#1288
Make
case
Model
580n
Year
2020
Industry
construction
Equipment Type
backhoe loaders
Location
Corpus Christi, TX
Serial
JJGN58EPHKC7*****
Also Available In
TX
Item Description

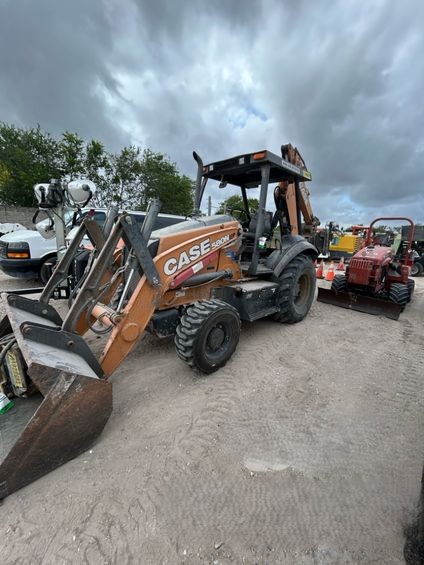

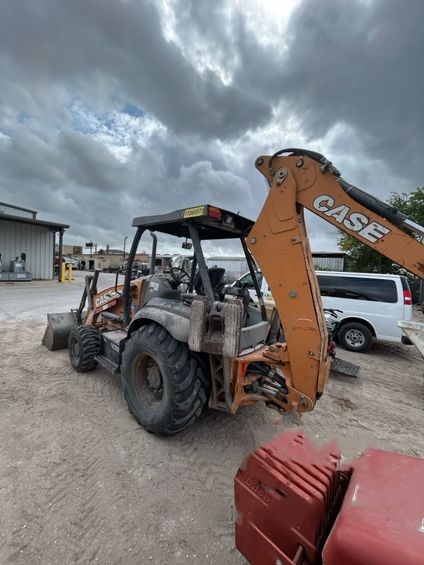

This 2020 CASE 580N EP backhoe loader handles digging, loading, and utility work. Its front bucket moves material, while the rear backhoe excavates trenches and four-wheel drive supports jobsite travel. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2020 |
| Make | case |
| Model | 580n |
| Hours | 1,761 |
| Serial Number | JJGN58EPHKC7***** |
| Condition | Used |
| Load Height - Std | 11.78 ft in |
| Reach From Swivel - Std | 18.28 ft in |
| Dig Depth - Std | 14.77 ft in |
| Reach At Load Height - Std | 6.7 ft in |
| Load Height - Ext | 14.11 ft in |
| Dig Depth - Ext | 18.21 ft in |
| Reach From Swivel - Ext | 21.66 ft in |
| Reach At Load Height - Ext | 9.32 ft in |
| Clearance At Max Dump Height | 8.83 ft in |
| Reach At Max Dump Height | 2.63 ft in |
| Dig Depth | 175.6 in |
| Lift Capacity At Full Height | 6803.47 lb |
| Bucket Width | 82 in |
| Bucket Capacity | 0.88 yd3 |
| Bucket Breakout Force | 10622 lb |
| Backhoe Flow- Gallons | 28.6 gal/min |
| Arm Breakout Force | 9487 lb |
| Operating Weight 2wd | 14564 lb |
| Operating Weight 4wd | 15862 lb |
| Fuel Capacity | 42.1 gal |
| Max Weight | 17454 lb |
| Hydraulic System Fluid Capacity | 28.1 gal |
| Oil System Fluid Capacity | 3.6 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Transmission Fluid Capacity | 5.1 gal |
| Front Axle Fluid Capacity | 2.1 gal |
| Rear Axle Fluid Capacity | 3.6 gal |
| Turning Radius | 11.4 ft in |
| Tire Size Front - 2wd / 4wd | 11L x 16 / 12x 16.5 |
| Rear Tires Size 2wd/4wd | 19.5L x 24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
| Max Speed | 24.6 mph |
| Transmission Type | Power shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.3 mph |
| Max Speed Reverse | 29.1 mph |
| Front | 12L x 16.5 (4WD) |
| Pump Type | Parker P330 Single Selection Gear |
| Pump Flow Capacity | 28.5 gal/min |
| Relief Valve Pressure | 3350 psi |
| Service Brake | Wet Multi Disc |
Engine & Powertrain
| Emissions Certification | Tier 4 Final |
| Fuel Tank | 34.9 gal |
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | FPT F5BFL413C |
| Net Power | 83.2 hp |
| Gross Power | 89.9 hp |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 306.1 lb ft |
| Aspiration | Turbocharged |
| Displacement | 207.5 cu in |
Working Range
| Loader Bucket Heaped Capacity | 1.1 yd3 |
| Dipper Stick Digging Force | 6628.3 lb |
| Bucket Digging Force (Iso) | 113 lb |
| Bucket Breakout Force, Sae | 11516511.6 lb |
Dimensions
| Transport Length | 23.43 ft in ft |
| Transport Width | 6.8 ft in ft |
| Transport Height | 10.83 ft in ft |
| Wheelbase | 6.99 ft in |
| Ground Clearance | 1.25 ft in |
| Height To Top Of Cab | 107.09 in |
| Tailswing Radius | 11.32 ft in |
| Operating Weight | 17751 Ibs (8052) kg (4WD) lb |
2020 Case 580N Backhoe Loader
BUY NOW OR MAKE OFFERAvailable
