Item Specifications
Category
Condition
Used
Item Number
#1286
Make
jlg
Model
e450aj
Year
2017
Industry
aerial
Equipment Type
aerial lifts articulating boom
Location
Ingleside, TX
Serial
03002*****
Also Available In
TX
Item Description
This 2017 JLG E450AJ electric articulating boom lift reaches elevated work areas around obstacles. Its articulated boom and jib help position the platform, while electric drive operates without exhaust at the machine. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2017 |
| Make | jlg |
| Model | e450aj |
| Hours | 1,137 |
| Serial Number | 03002***** |
| Condition | Used |
| Jib Range of Articulation (Vertical) | 141 Degrees (+86, -55) |
| Power Source | 48V DC |
| Batteries | 8 x 6V, 375 amp-hr |
Engine & Powertrain
| Electrical System | Dual Electric Traction |
Working Range
| Horizontal Outreach | 23-ft 9-in / 7.24-m |
| Swing | 360 Degrees Non-Continuous |
| Platform Capacity | 500-lb / 227-kg |
| Platform Rotator | 180 Degrees Hydraulic |
| Max Drive Speed | 4.5 mph / 7.2 km/h |
| Gradeability | 30% |
| Hydraulic System Capacity | 4 gal / 15.14 L |
| Hydraulic System Motor/Pump | Permanent Magnet Motor/Gear Pump |
| D. Tailswing | 0-in / 0-cm |
Undercarriage & Attachments
| Tires | 240/55 x 17.5 Foam-filled; 26 x 7 x 20 Non-marking; In240/55D17.5 Foam-Filled Non-marking |
Dimensions
| Platform Height | 45-ft / 13.72-m |
| Up and Over Clearance | 25-ft 3-in / 7.7-m |
| Weight | 14,400-lb / 6,532-kg |
| Ground Bearing Pressure | 110 psi / 7.6 kg/cm2 |
| Turning Radius Inside (2WS/4WS) | 2-ft / .61-m |
| Turning Radius Outside (2WS/4WS) | 10-ft 4-in / 3.15-m |

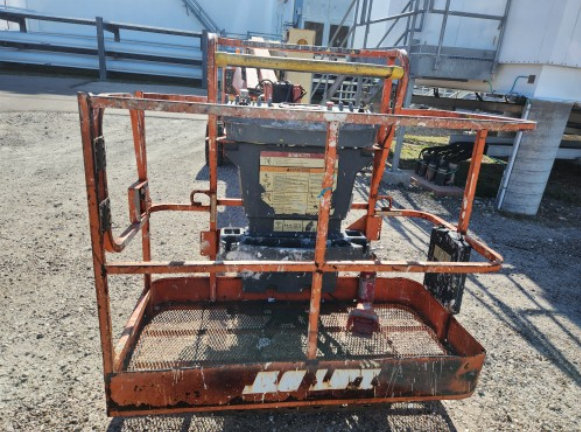

| A. Platform Width | 30-in / 76-cm |
| B. Platform Length | 60-in / 1.52-m |
| C. Machine Width | 5-ft 9-in / 1.75-m |
| E. Machine Height | 6-ft 7-in / 2.01-m |
| F. Machine Length | 21-ft 2-in / 6.45-m |
| G. Wheelbase | 6-ft 7-in / 2.01-m |
| H. Ground Clearance | 8-in / 20-cm |

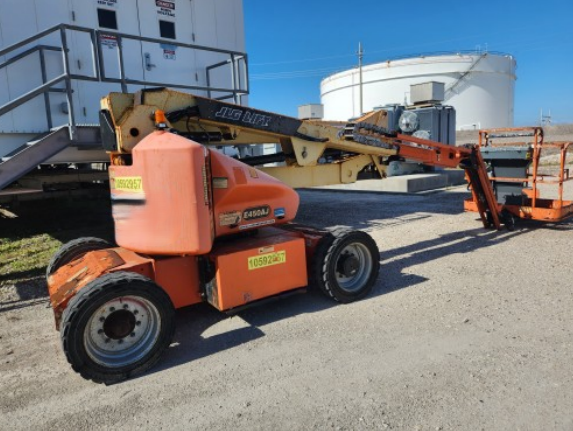

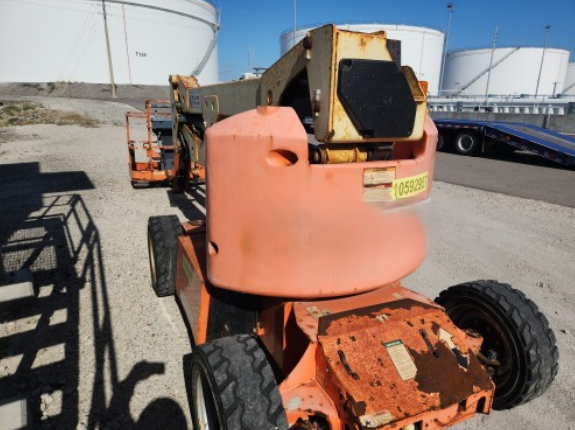

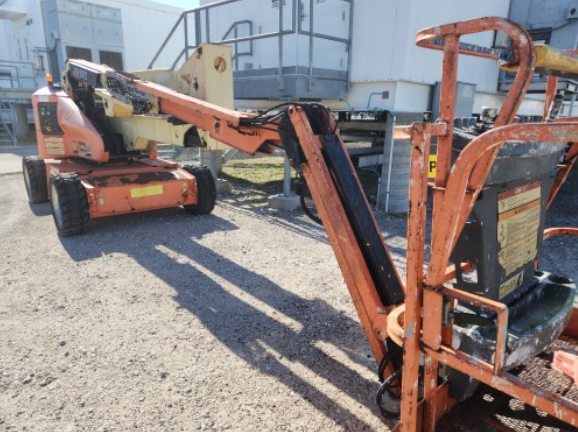

2017 JLG E450AJ Articulating Boom Lift
