Financing 1 / 4
Item Specifications
Category
Condition
Used
Item Number
#1285
Make
mec
Model
1330se
Year
2019
Industry
aerial
Equipment Type
scissor lifts electric
Location
Brownsville, TX
Serial
163*****
Item Description
This 2019 MEC 1330SE electric scissor lift supports overhead work in narrow aisles and confined spaces. Its compact layout helps it maneuver indoors, while the roll-out deck extends the platform work area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | mec |
| Model | 1330se |
| Hours | 251 |
| Serial Number | 163***** |
| Condition | Used |
| Power Source | 24v DC, 85Ah AGM Battery Pack |
| Controls | Proportional Drive & Lift Controls |
Working Range
| Total Lift Capacity | 530 lbs. (240 kg) |
| Personnel Capacity | 2 |
| Roll-Out Deck Capacity | 250 lbs. (113 kg) |
| Raise/Lower Speed | 20 s |
| Drive Speed (Stowed) | 2.5 mph (4.0 km/h) |
| Drive Speed (Elevated) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
Undercarriage & Attachments
| Tires | 9 in. (23 cm) |
Dimensions
| Indoor Working Height | 19 ft. (6 m) |
| Outdoor Working Height | 16 ft. (5 m) |
| Indoor Platform Height | 13 ft. (4 m) |
| Outdoor Platform Height | 10 ft. (3 m) |
| Platform Height | 13 ft. (4 m) |
| Stowed Height (Top Guardrail) | 80 in. (203 cm) |
| Stowed Height (Platform Floor) | 35 in. (89 cm) |
| Guardrail Height | 39 in. (99 cm) |
| Toeboard Height | 6 in. (15 cm) |
| Ground Clearance (Stowed) | 2.5 in. (6 cm) |
| Ground Clearance (Elevated) | 0.6 in. (1.5 cm) |
| Length-Stowed (Overall) | 57 in. (145 cm) |
| Length-Stowed (Ladder Removed) | 51 in. (130 cm) |
| Chassis Width | 31.5 in. (80 cm) |
| Platform Length (Extended) | 75 in. (191 cm) |
| Platform Length (Retracted) | 51 in. (130 cm) |
| Roll-Out Deck Length | 24 in. (61 cm) |
| Platform Width | 27.5 in. (70 cm) |
| Wheelbase | 41 in. (104 cm) |
| Turning Radius (inside) | 18 in. (46 cm) |
| Weight | 2,066 lbs. (937 kg) |

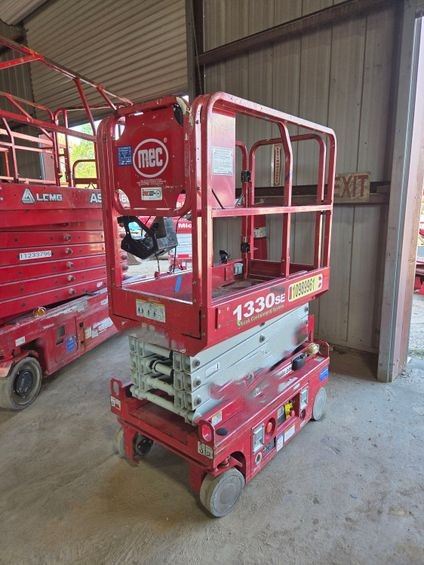

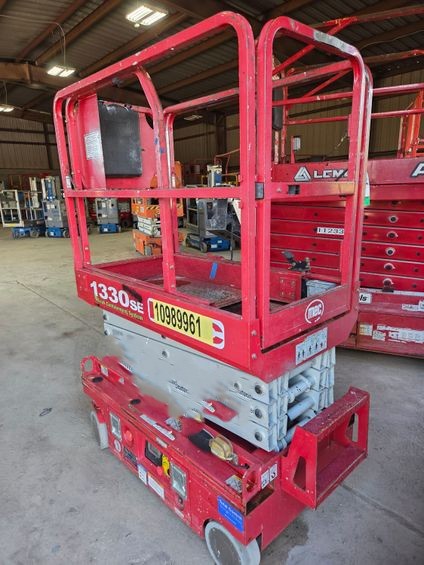

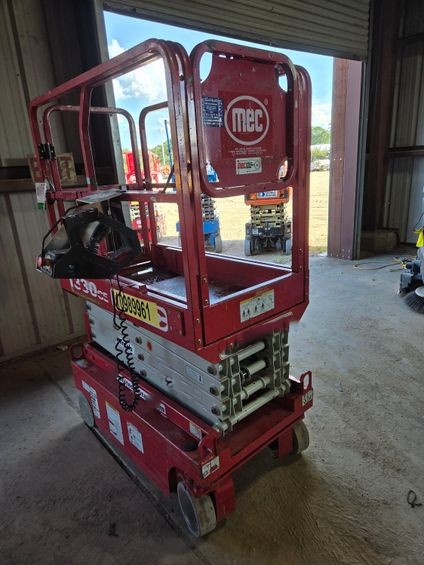

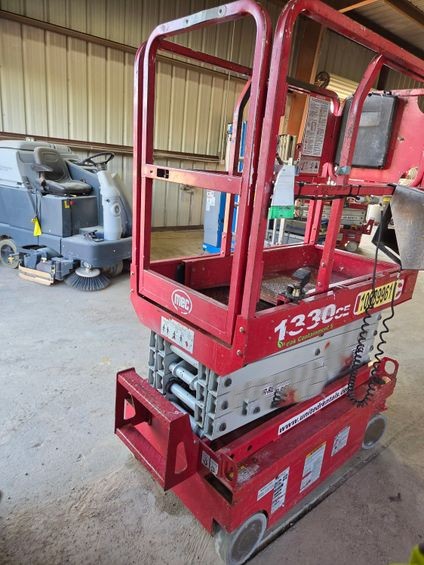

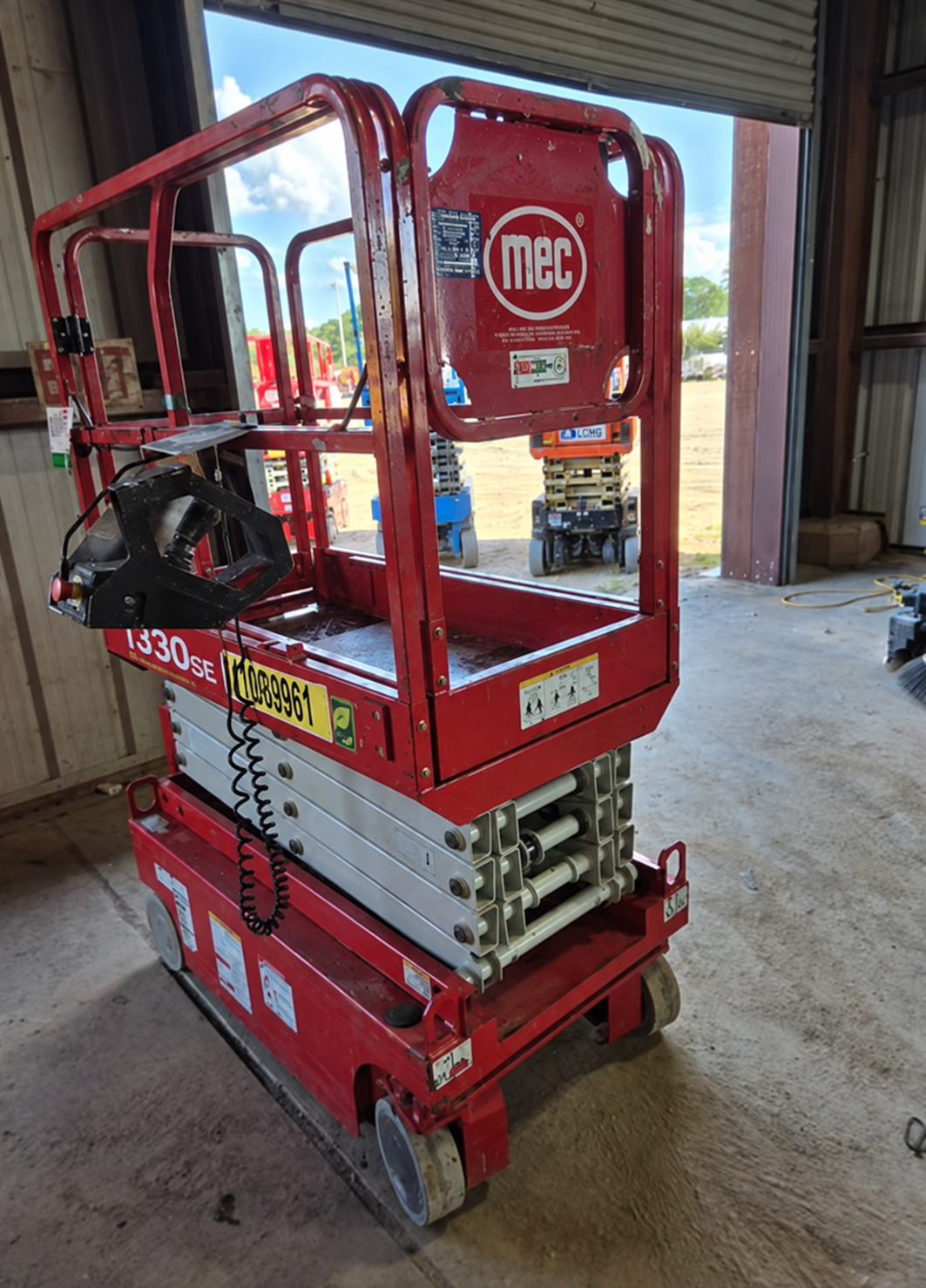

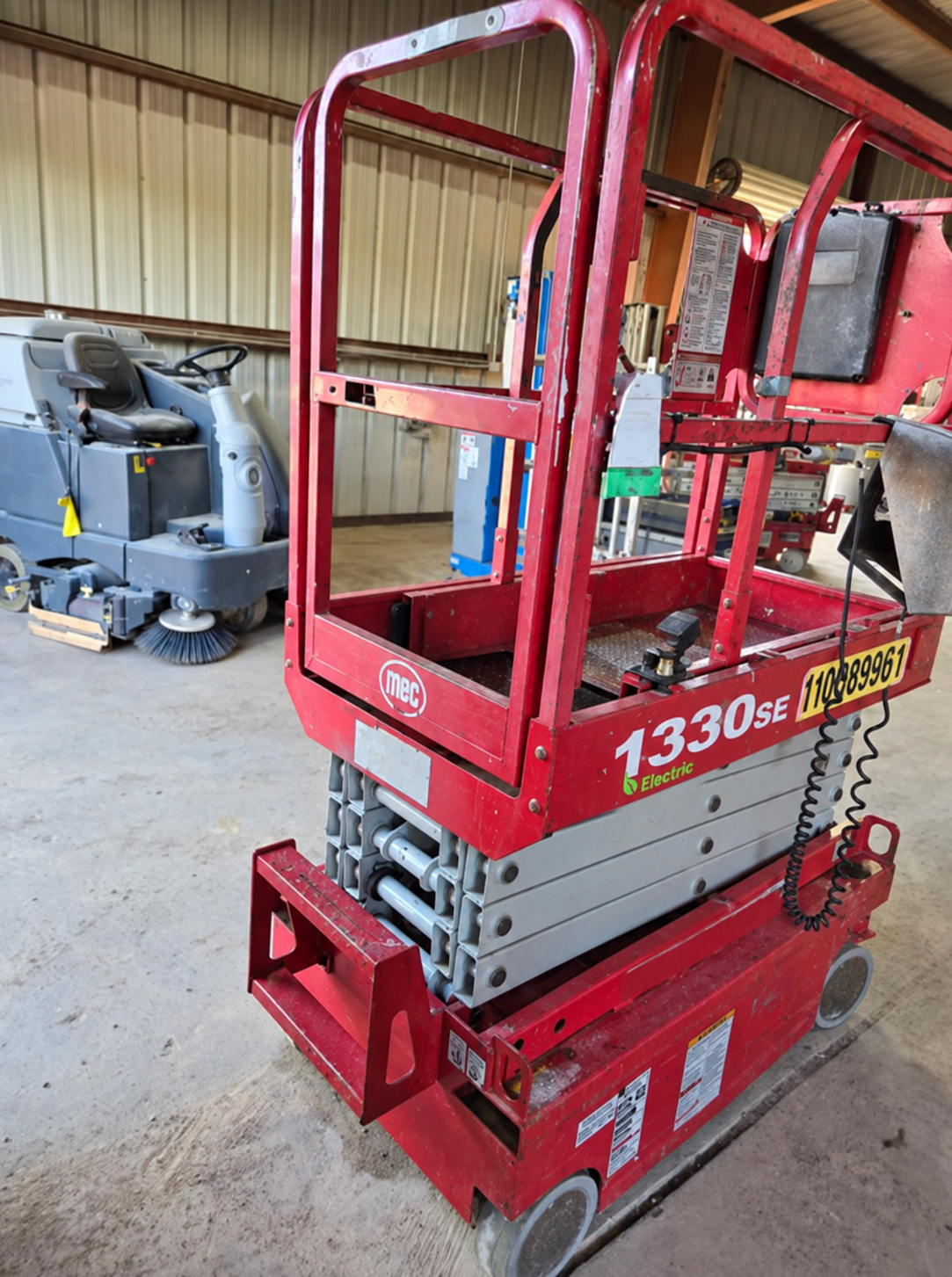

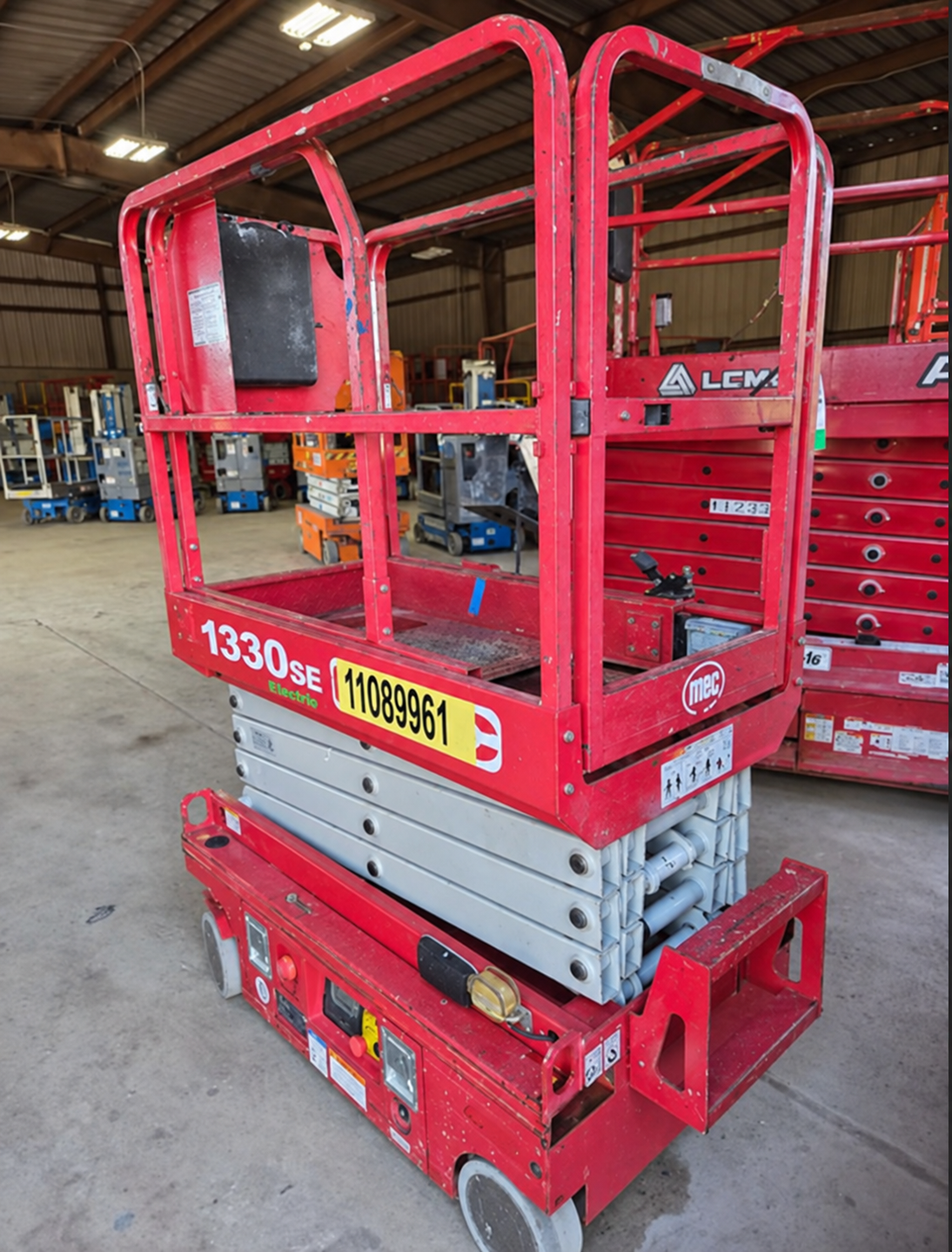

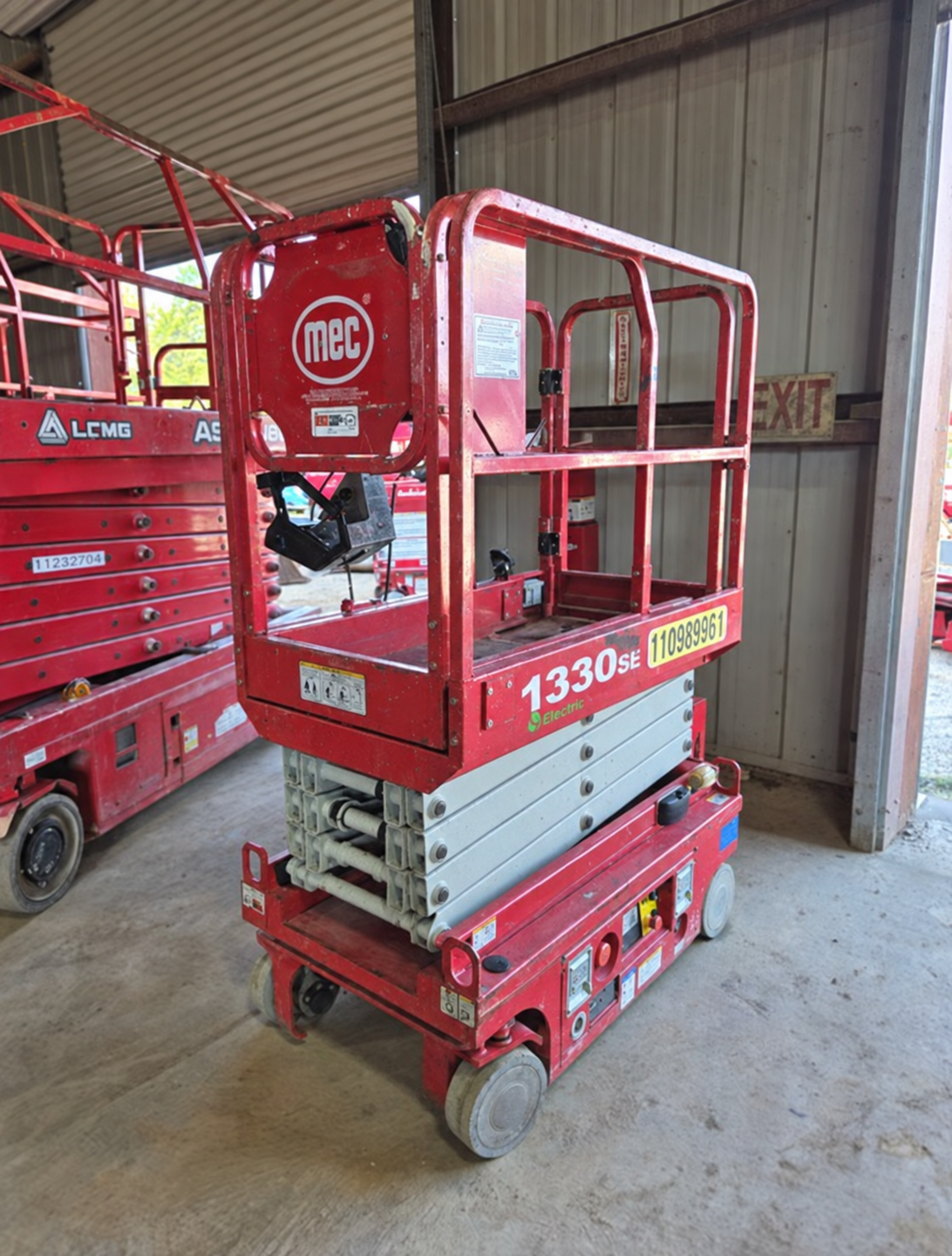

2019 MEC 1330SE Electric Scissor Lift
BUY NOW OR MAKE OFFERAvailable
