Item Specifications
Category
Condition
Used
Item Number
#1281
Brand
JLG
Make
jlg
Model
430lrt
Year
2019
Industry
aerial
Equipment Type
scissor lifts rough terrain
Location
Pharr, TX
Also Available In
TX
Item Description

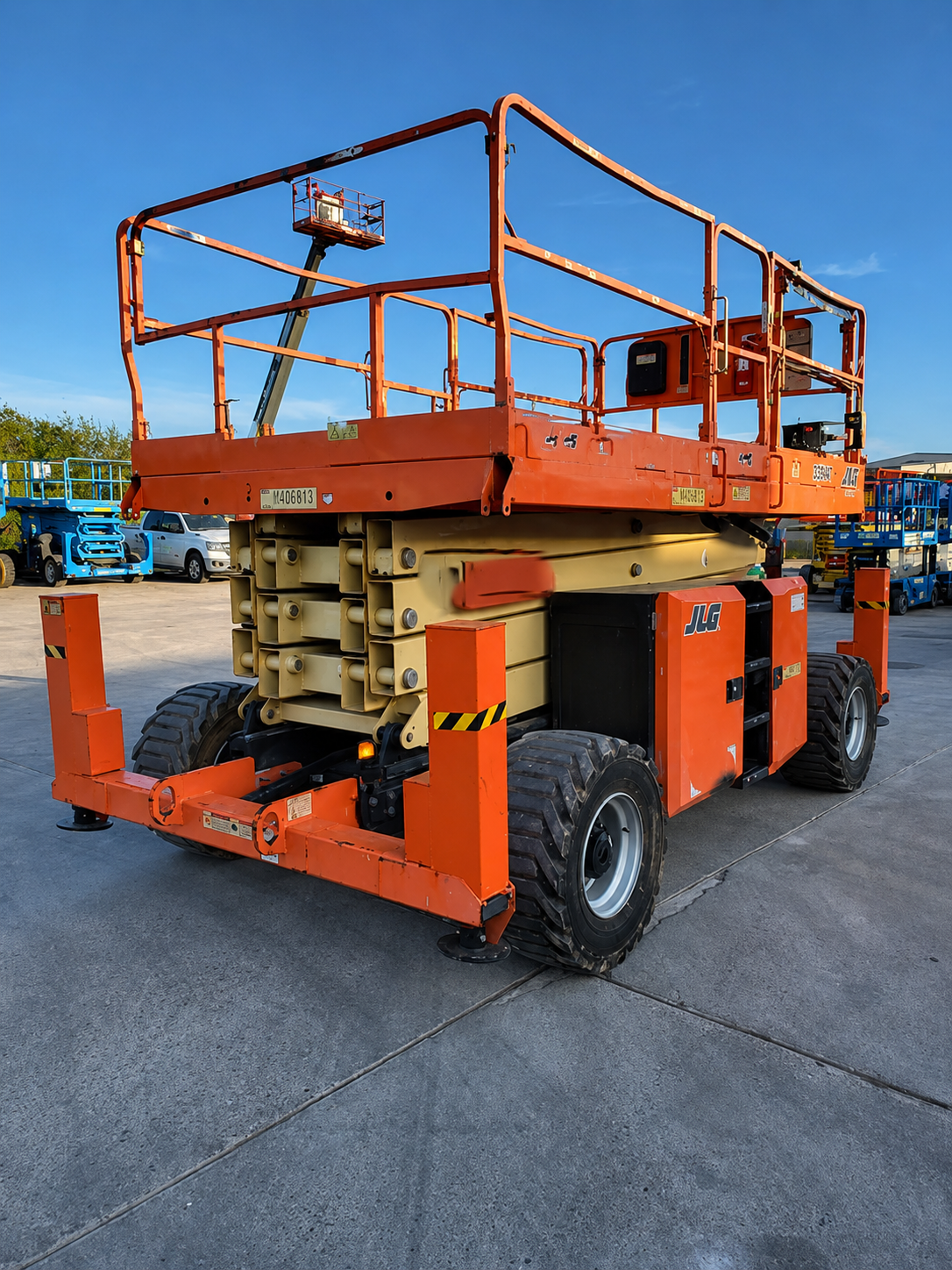

This 2019 JLG 430LRT rough terrain scissor lift provides vertical access on outdoor jobsites. Its extension deck adds platform space, while four-wheel drive and an oscillating axle help it travel on uneven ground. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | jlg |
| Model | 430lrt |
| Hours | 2,157 |
| Condition | Used |
| Number of Occupants | 6 |
| Tilt Rating | 3.0 degrees |
| Brakes, Rear Wheel | Spring Applied |
Engine & Powertrain
| Engine Make and Model (Diesel) | Kubota D1305 |
| Engine Power (Diesel) | 24.8 hp / 18.5 kW |
| Fuel Tank Capacity | 22 gal / 83.3 L |
Working Range
| Platform Capacity | 1,500 lb / 680 kg |
| Capacity on Platform Extension | 1,250 lb / 567 kg |
| Lift/Lower Time | 45/42 seconds |
| Drive Speed | 3.5 mph |
| Gradeability | 45% |
| Hydraulic System Capacity | 32 gal / 121.4 L |
| Platform Size | 70.5 x 149.8 in / 1.8 x 3.8 m |
Undercarriage & Attachments
| Standard Tires | 33 x 15.5 Superwide / 12 x 16.5 Foam-filled |
Dimensions
| Platform Height - Elevated | 43 ft (13.11 m) |
| Maximum Drive Height | Full Height |
| Weight w/One Extension | 14,300 lb / 6,486 kg |
| Ground Bearing Pressure | 83 psi / 5.8 kg/cm2 |
| Turning Radius (Inside) | 8 ft 10.5 in |
| Turning Radius (Outside) | 19 ft 5.5 in |
| Platform Height - Lowered | 6 ft 0.5 in / 1.8 m |
| Overall Length | 12 ft 10 in / 3.9 m |
| Overall Width | 7 ft 9 in / 2.4 m |
| Ground Clearance | 13.6 in / 34.5 cm |
2019 JLG 430LRT Rough Terrain Scissor Lift
