Item Specifications
Category
Condition
Used
Item Number
#1280
Make
mec
Model
4069rt
Year
2019
Industry
aerial
Equipment Type
aerial lifts scissor rt
Location
San Benito, TX
Serial
138*****
Also Available In
TX
Item Description
This 2019 MEC 4069RT rough terrain scissor lift raises workers for outdoor installation and maintenance. Its extension deck adds working space, while four-wheel drive, rough terrain tires, and an oscillating axle support travel across the site. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | mec |
| Model | 4069rt |
| Hours | 1,340 |
| Serial Number | 138***** |
| Condition | Used |

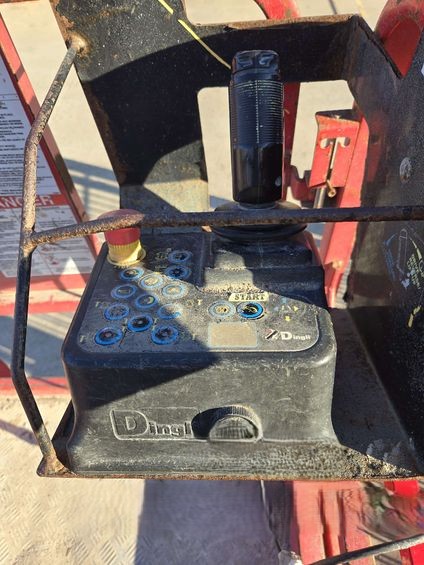

| Controls | Proportional |
| Power Source - RT | Kubota D1105 Tier 4 Final |
Working Range
| Personnel Capacity | 2 Persons (Outdoors) |
| Roll-Out Deck Capacity | 300 lbs./136 kg |
| Sheet Rack Capacity | 300 lbs./136 kg |
| Gradeability | 40% |
| Drive Speed (Stowed) | 3.75 mph/6.02 km/h |
| Drive Speed (Elevated) | .40 mph/.65 km/h |
| Total Lift Capacity | 1,000 lbs./454 kg |
| Raise/Lower Speed | 40/40 sec |
Undercarriage & Attachments
| Tires | 26 in x 12-16.5 in./58 cm x 30.5-42 cm |
Dimensions
| Working Height | 46 ft./14 m |
| Platform Height | 40 ft./12.2 m |
| Maximum Drive Height | 40 ft./12.2 m |
| Stowed Height (Top Guardrail) | 108 in./2.74 m |
| Stowed Height (Rails Folded) | 78 in./1.98 m |
| Stowed Height (Platform Floor) | 65 in./1.65 m |
| Guardrail Height | 43 in./1.09 cm |
| Toeboard Height | 6 in./15 cm |
| Ground Clearance | 10 in./25 cm |
| Length-Stowed (Overall) | 10 ft. 6 in./3.2 m |
| Chassis Width | 69 in./1.75 m |
| Platform Length (Extended) | 14 ft. 1 in./4.29 m |
| Platform Length (Retracted) | 9 ft. 5 in./2.87 m |
| Roll-Out Deck Length | 4 ft. 8 in./1.42 m |
| Platform Width (Outside) | 60 in./1.52 m |
| Sheet Rack Width | 4 in/10.16 cm |
| Wheelbase | 90 in./2.29 m |
| Turning Radius (Inside) | 7 ft./2.15 m |
| Weight | 11,133 lbs./5050 kg |

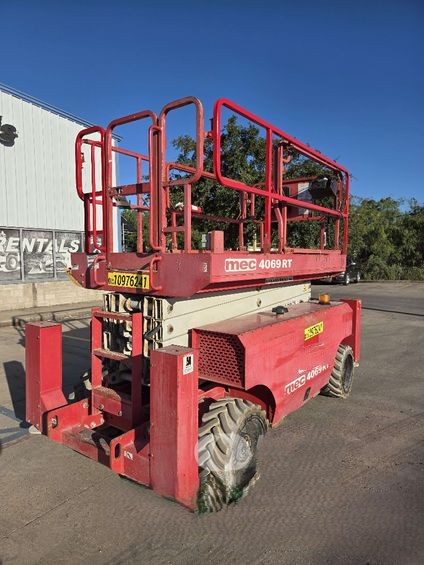

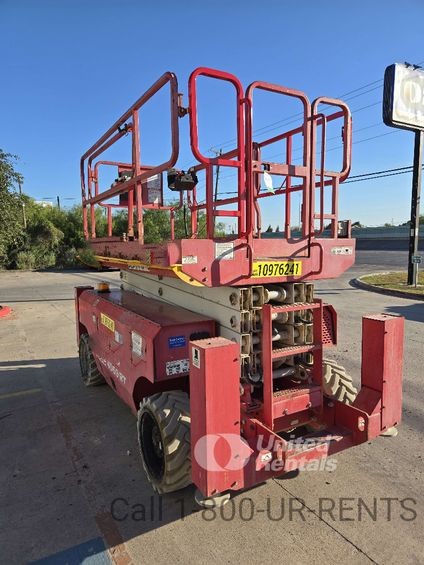

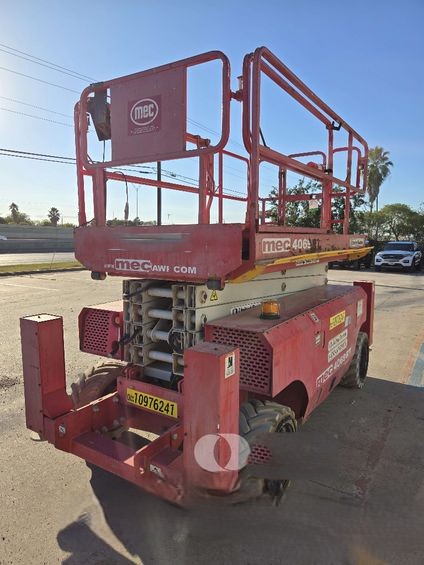

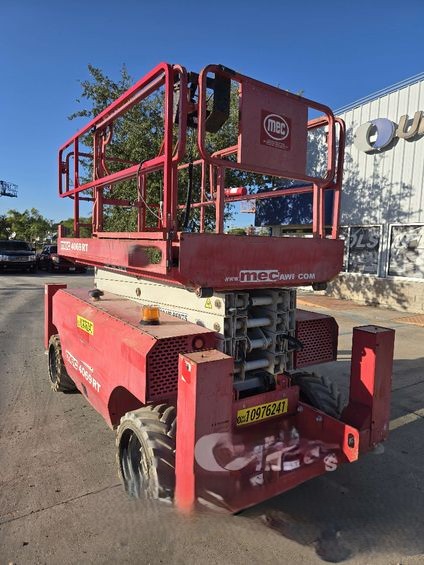

2019 MEC 4069RT Rough Terrain Scissor Lift
