Item Specifications
Category
Condition
Used
Item Number
#1270
Make
jlg
Model
10042
Year
2019
Industry
aerial
Equipment Type
telehandlers
Location
Orlando, FL
Also Available In
FL
Item Description

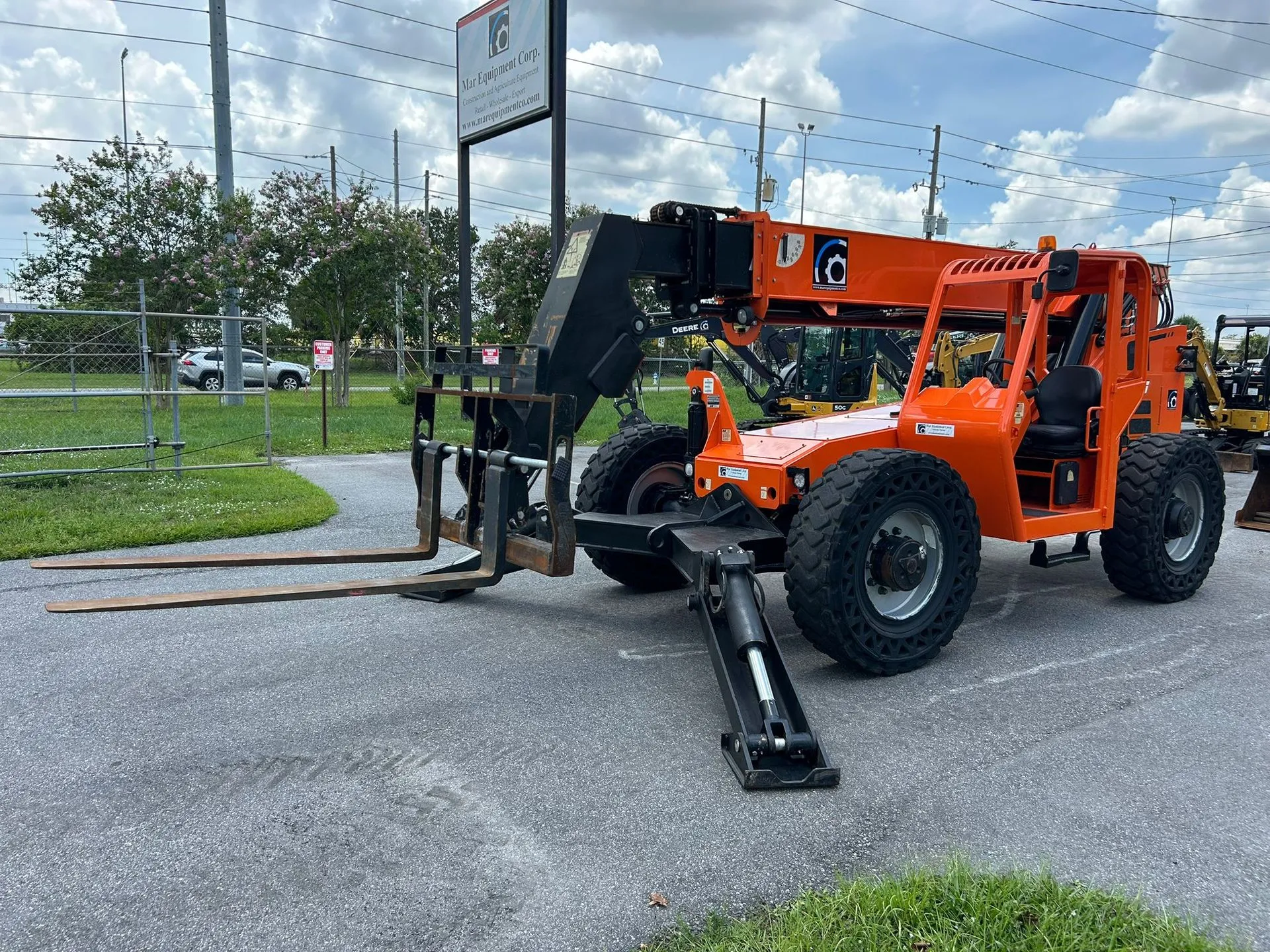

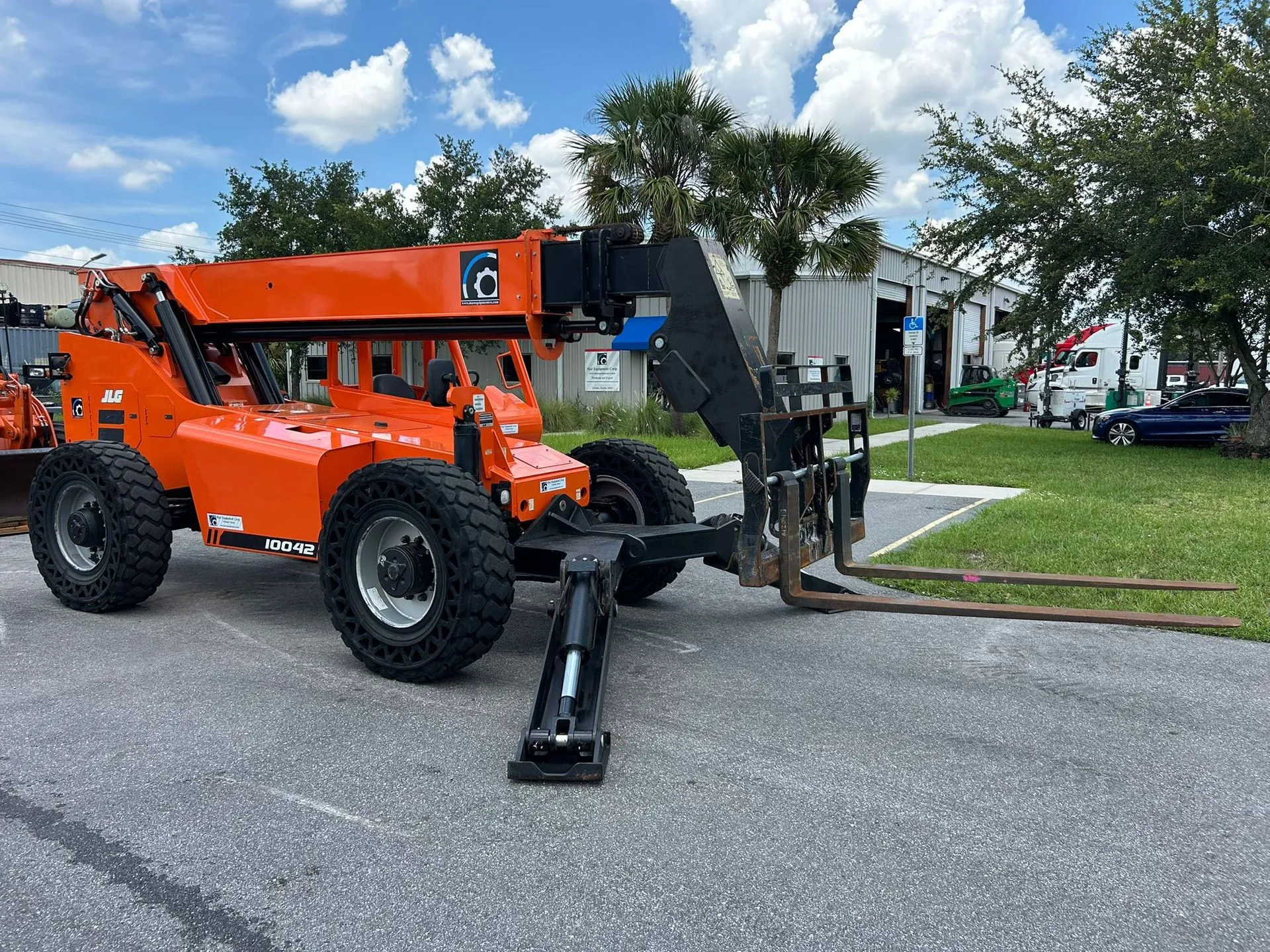

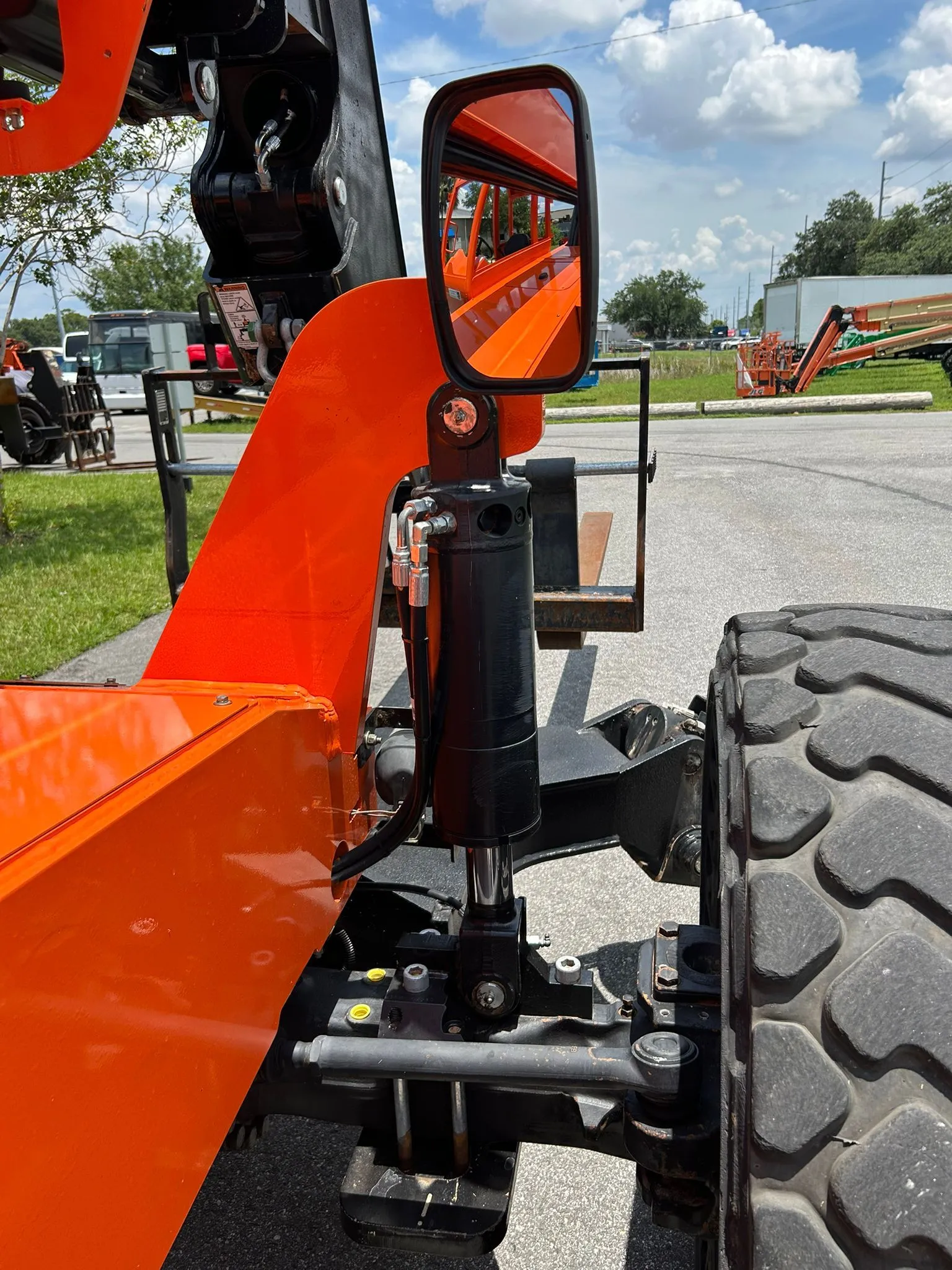

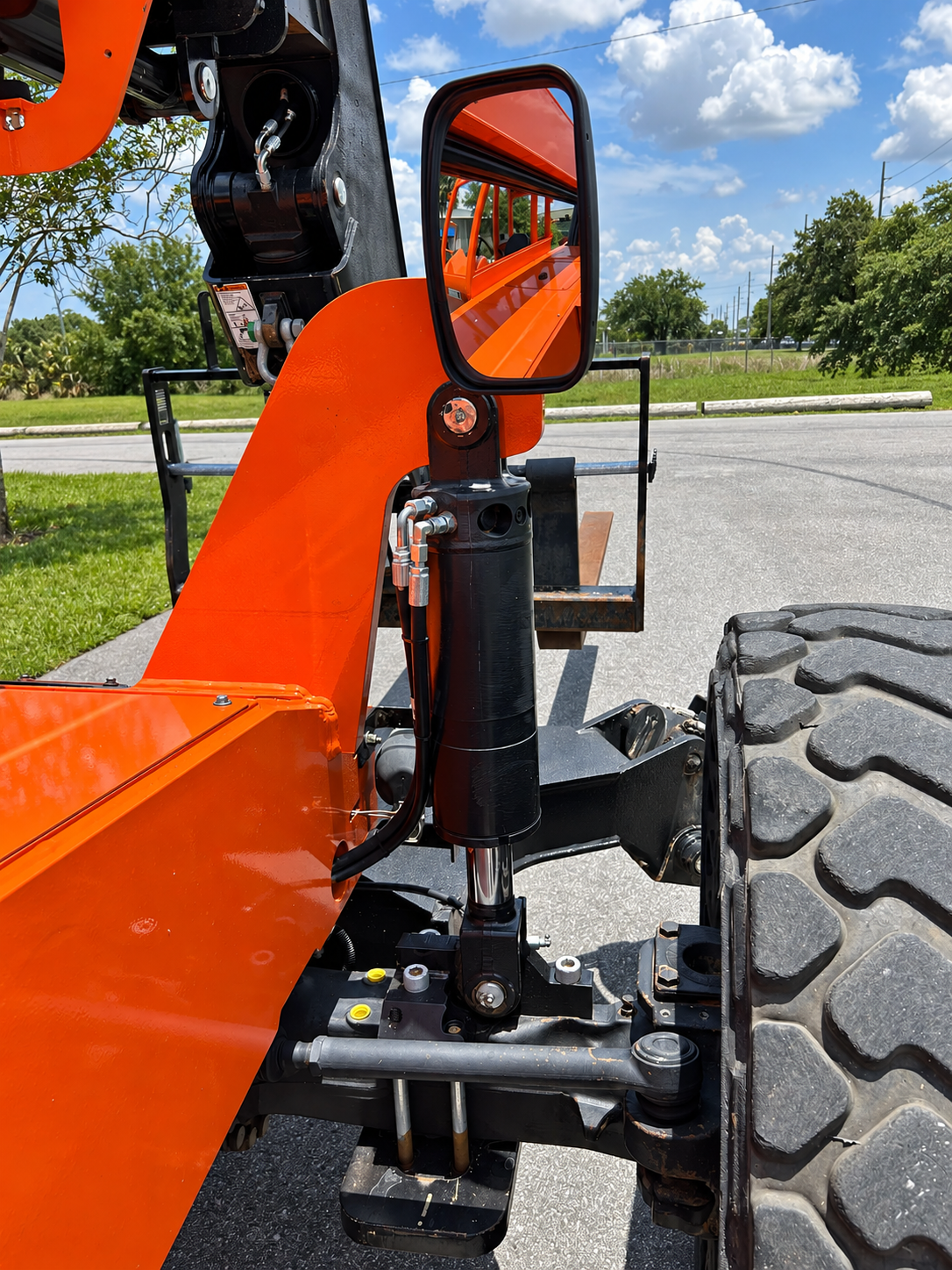

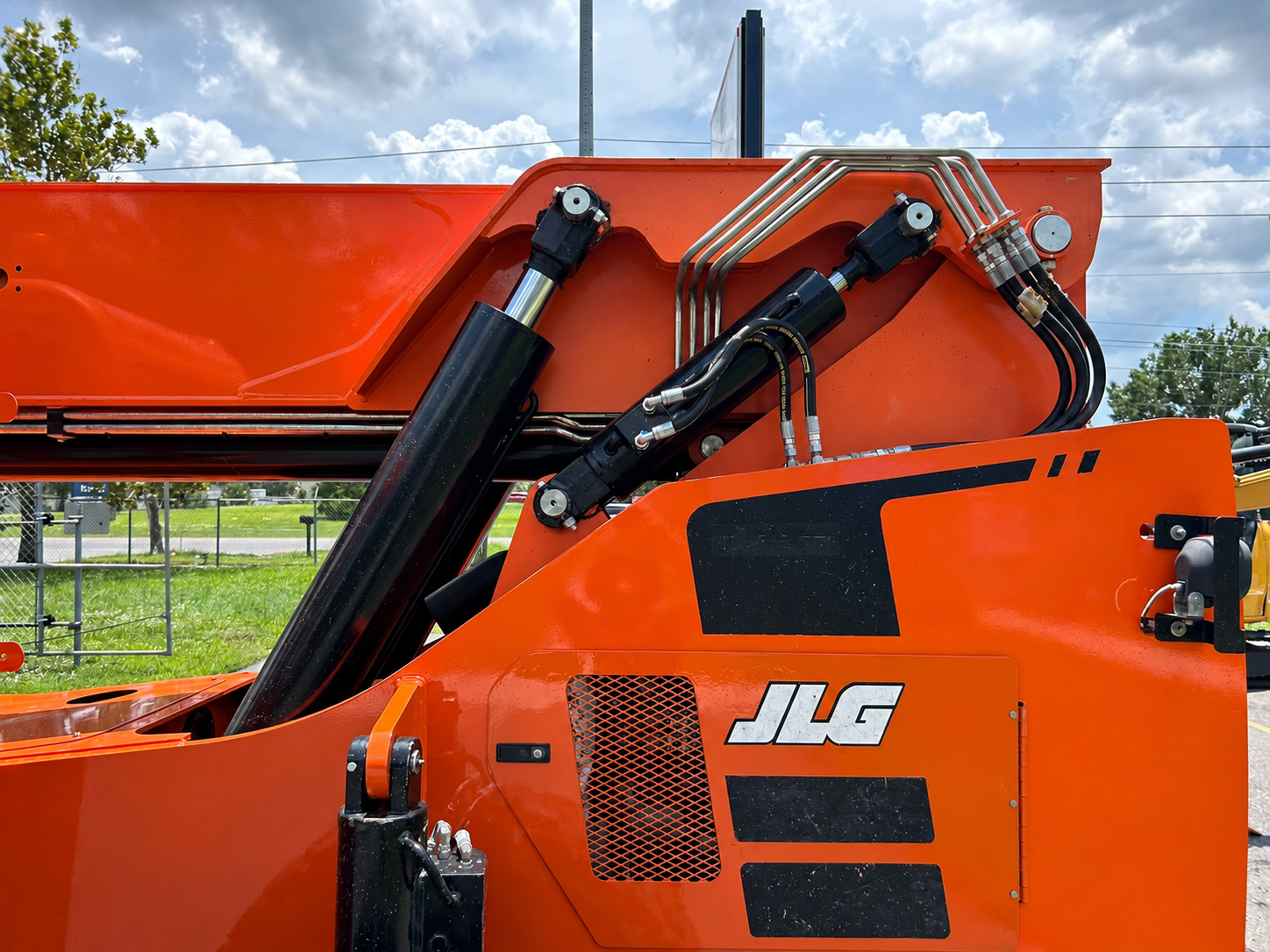

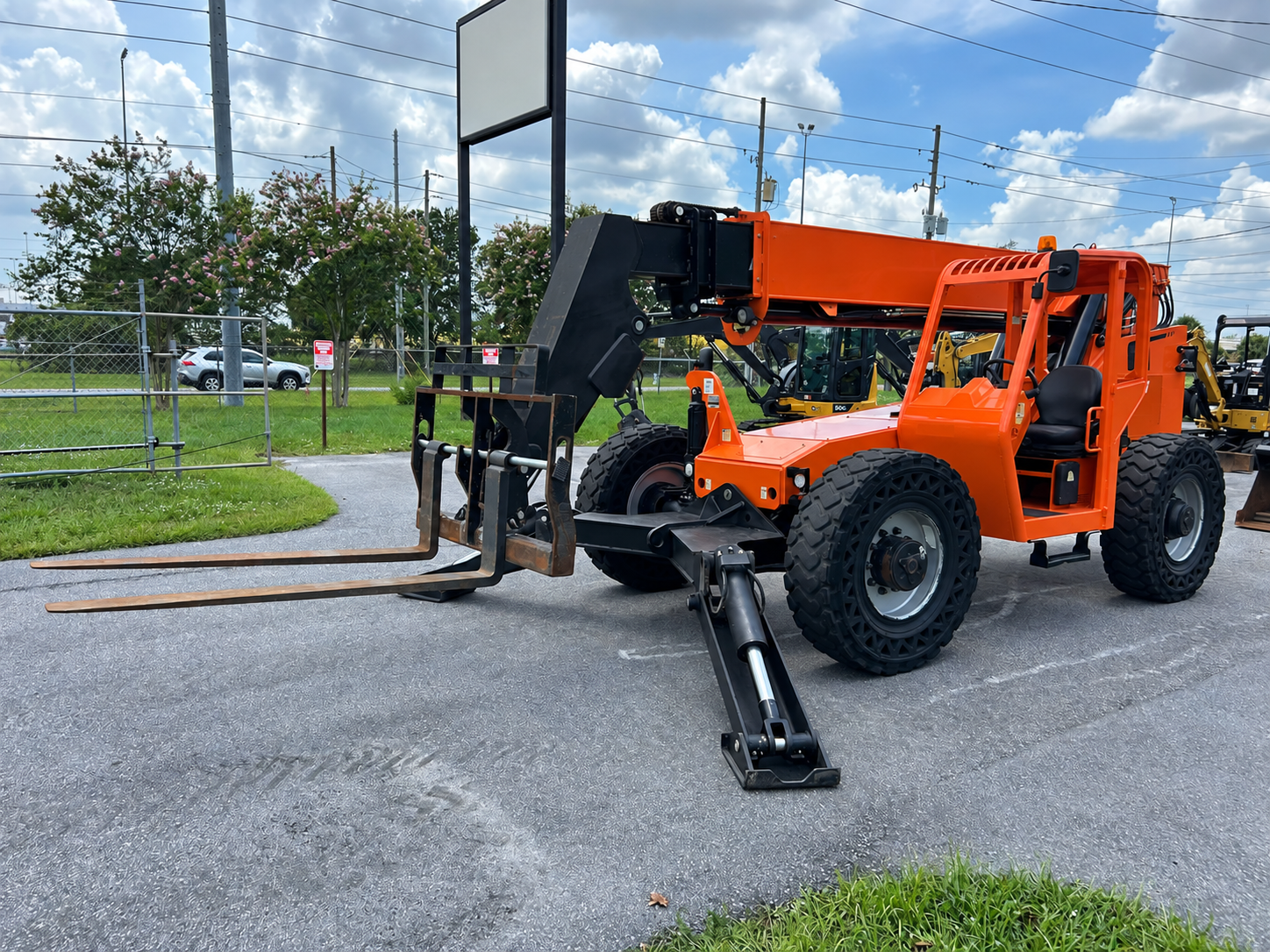

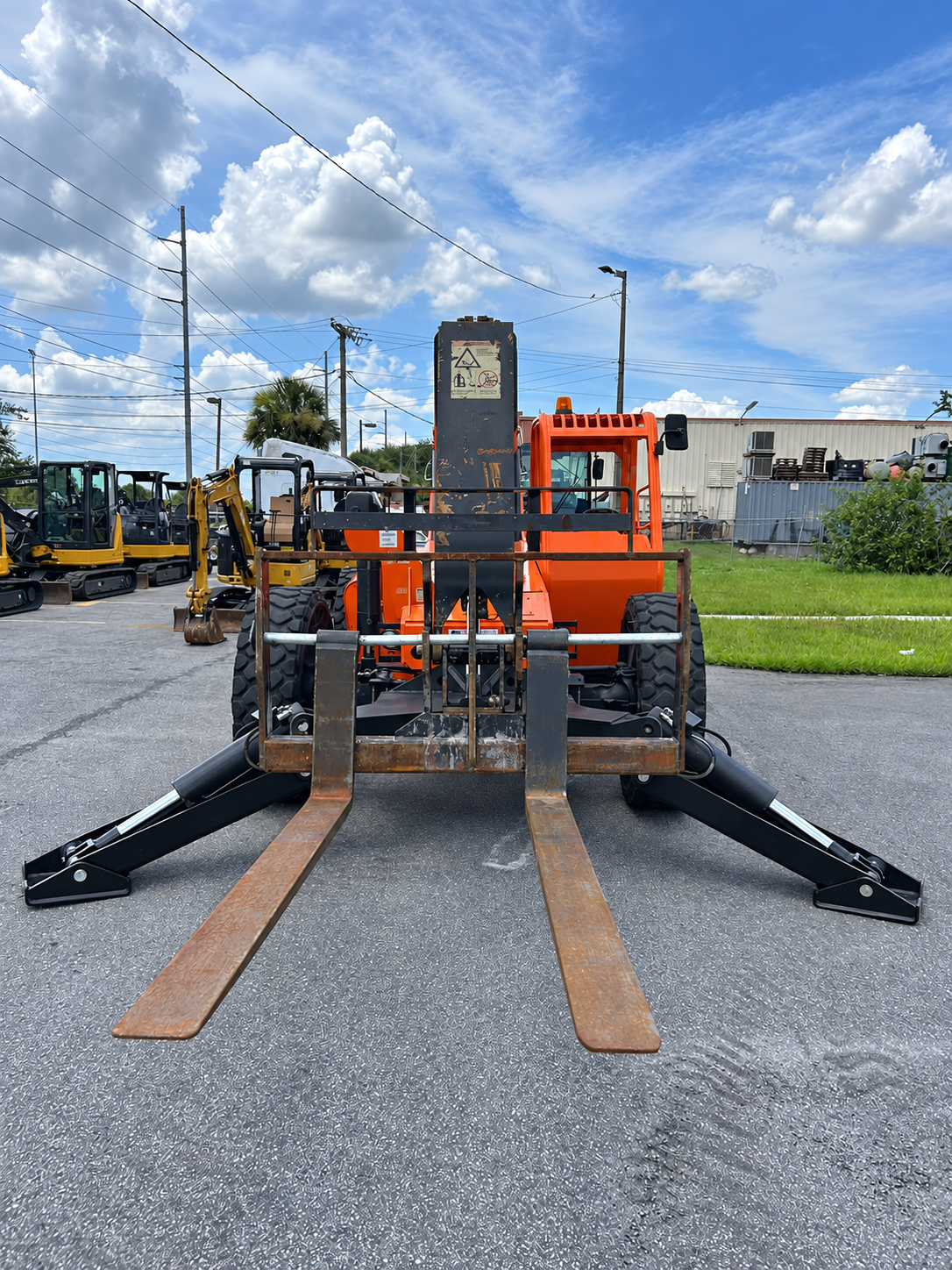

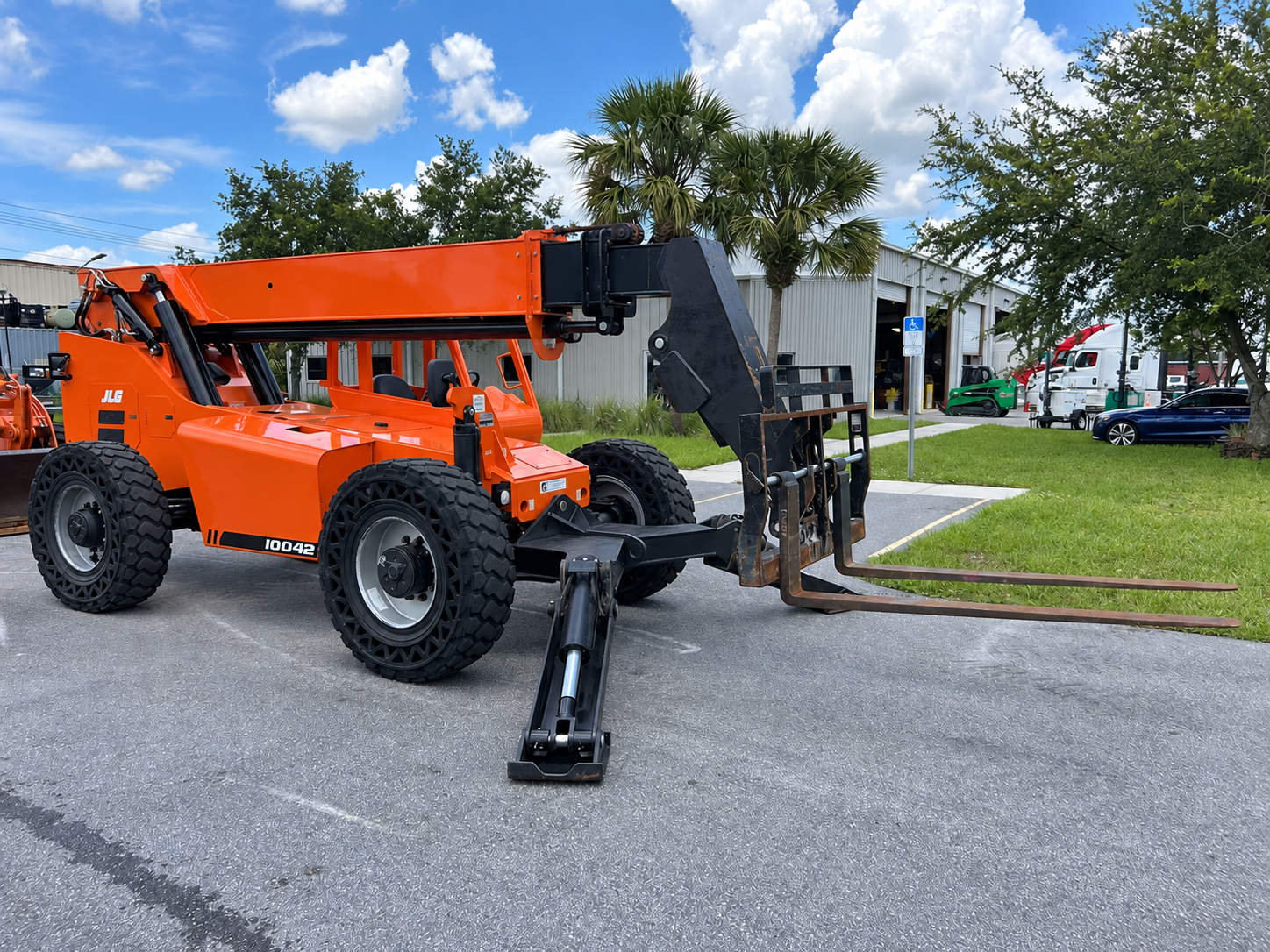

This 2019 JLG/SkyTrak 10042 telehandler lifts and places construction materials. Its extending boom provides forward reach, while four-wheel drive and frame leveling help it position loads on uneven ground. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | jlg |
| Model | 10042 |
| Hours | 3,785 |
| Condition | Used |
| Frame Leveling | 10 degrees |
| Gross Power | 110 hp (82 kW) |
Engine & Powertrain

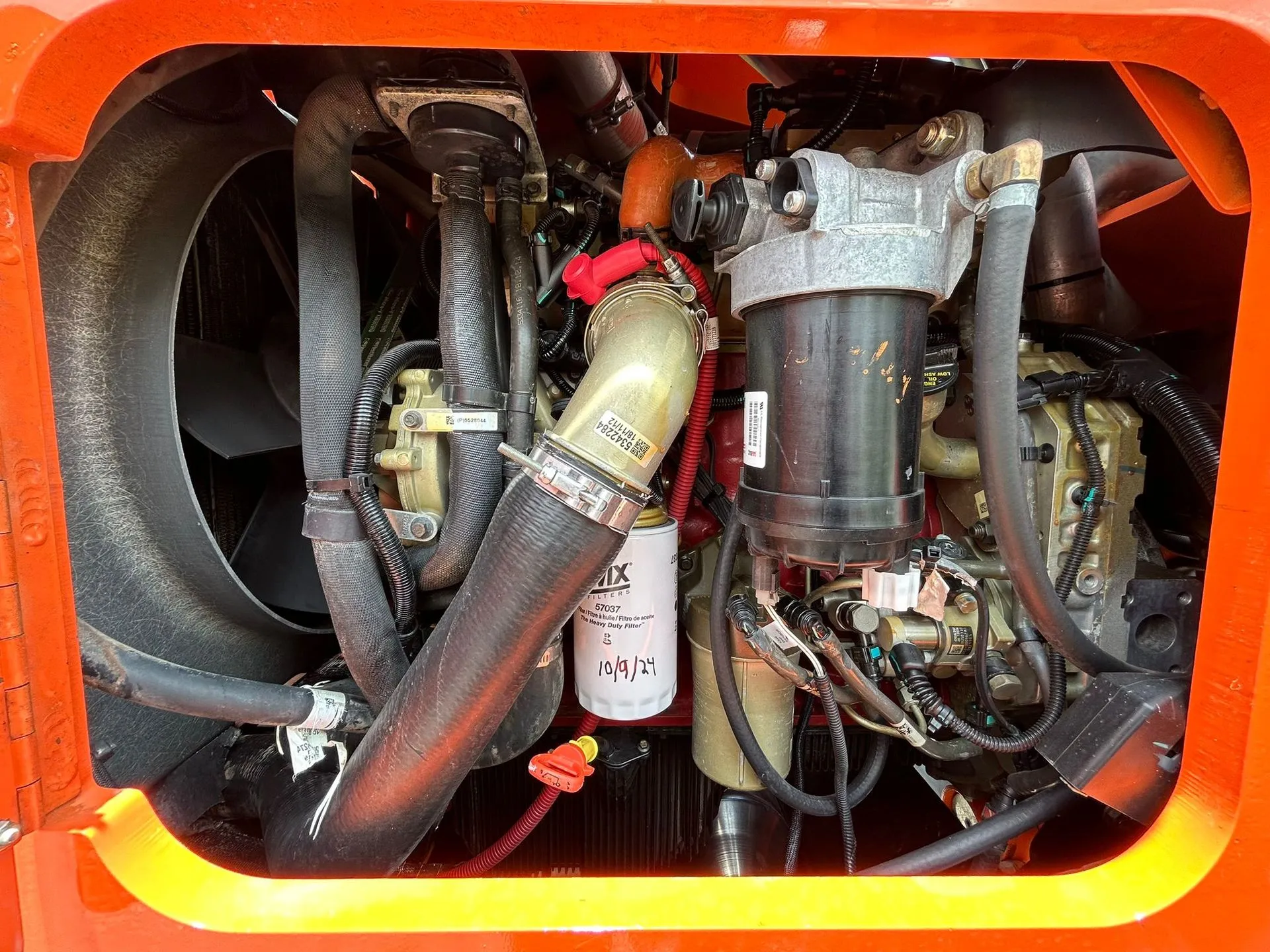

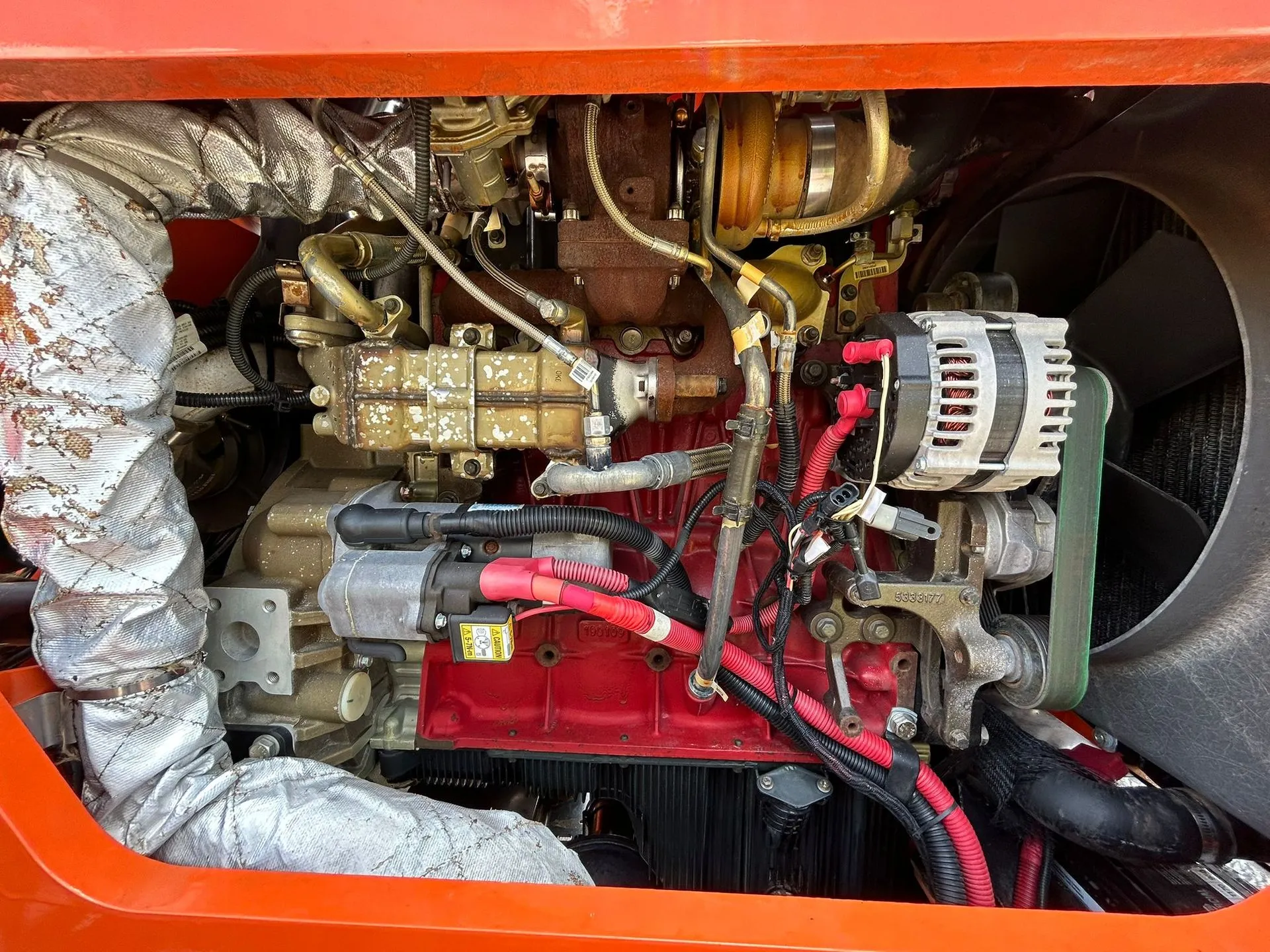

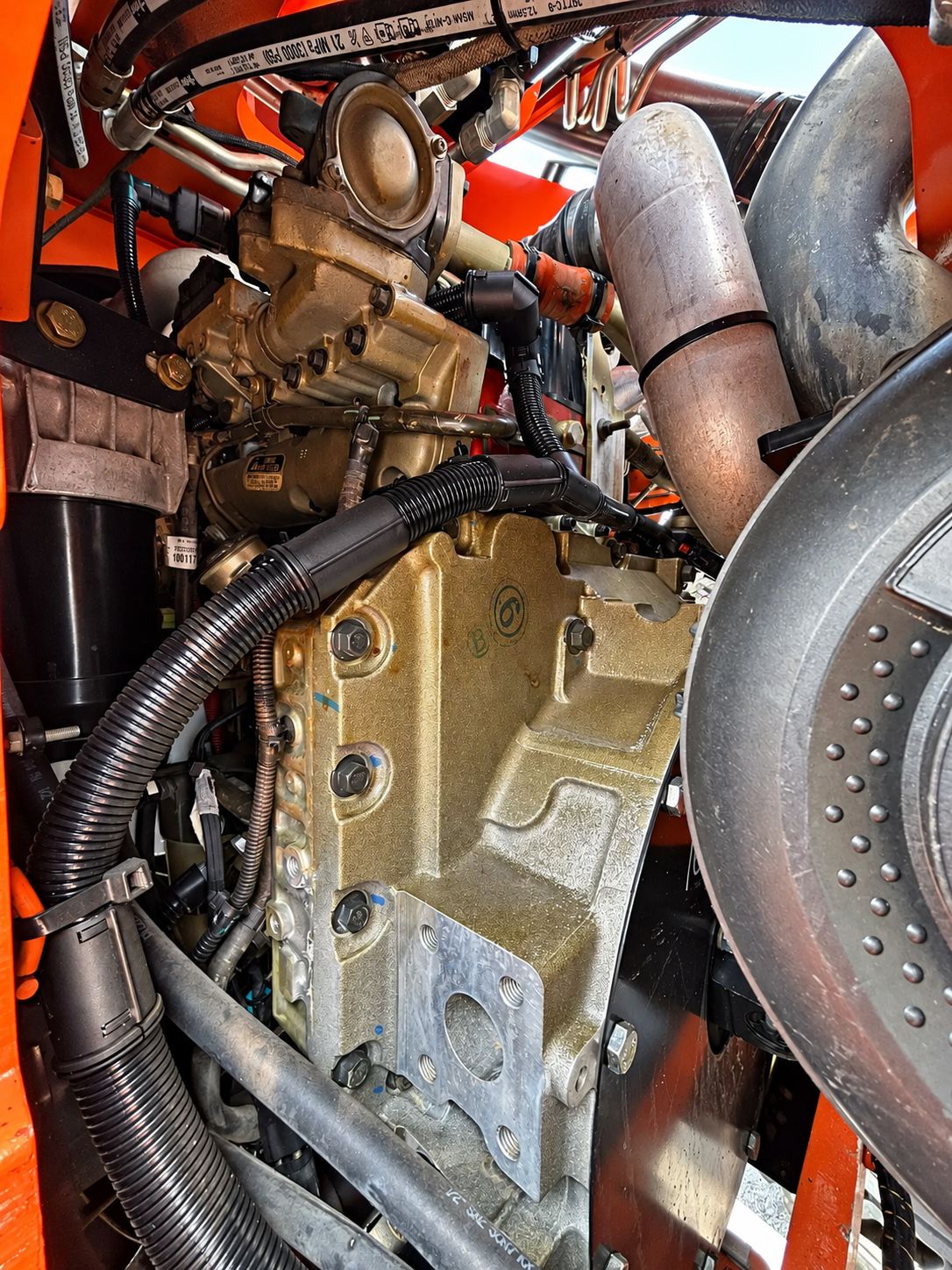

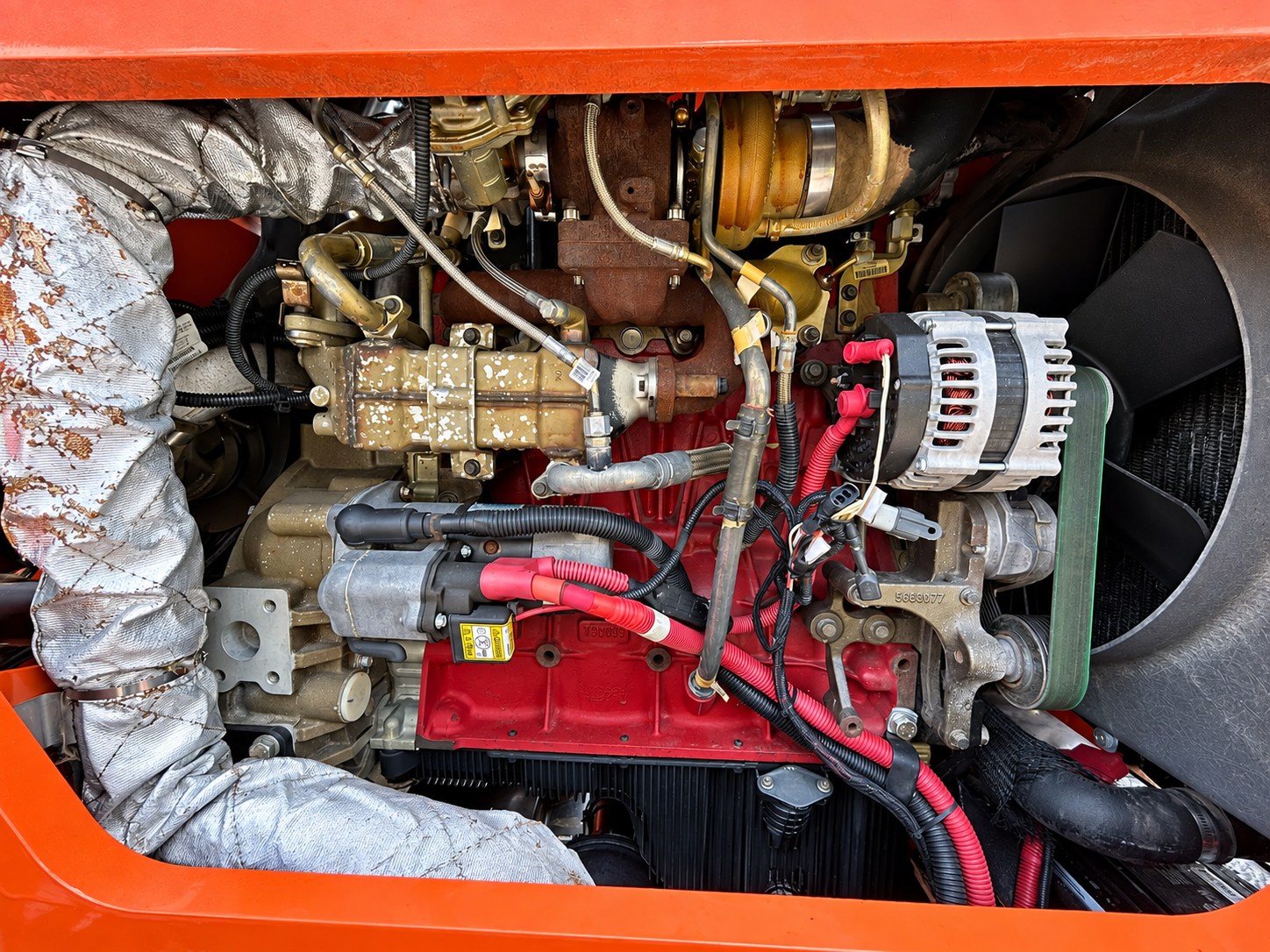

| Engine Make and Model | Cummins QSB3.8L Tier 4 Final |
| Engine No. of Cylinders | 4 |
| Engine Displacement | 229 cu in (3.8 L) |
| Basic Maximum Torque @ 1500 rpm | 348 lb-ft (472 Nm) |
| Fuel Tank Capacity | 35 gal (132.5 L) |

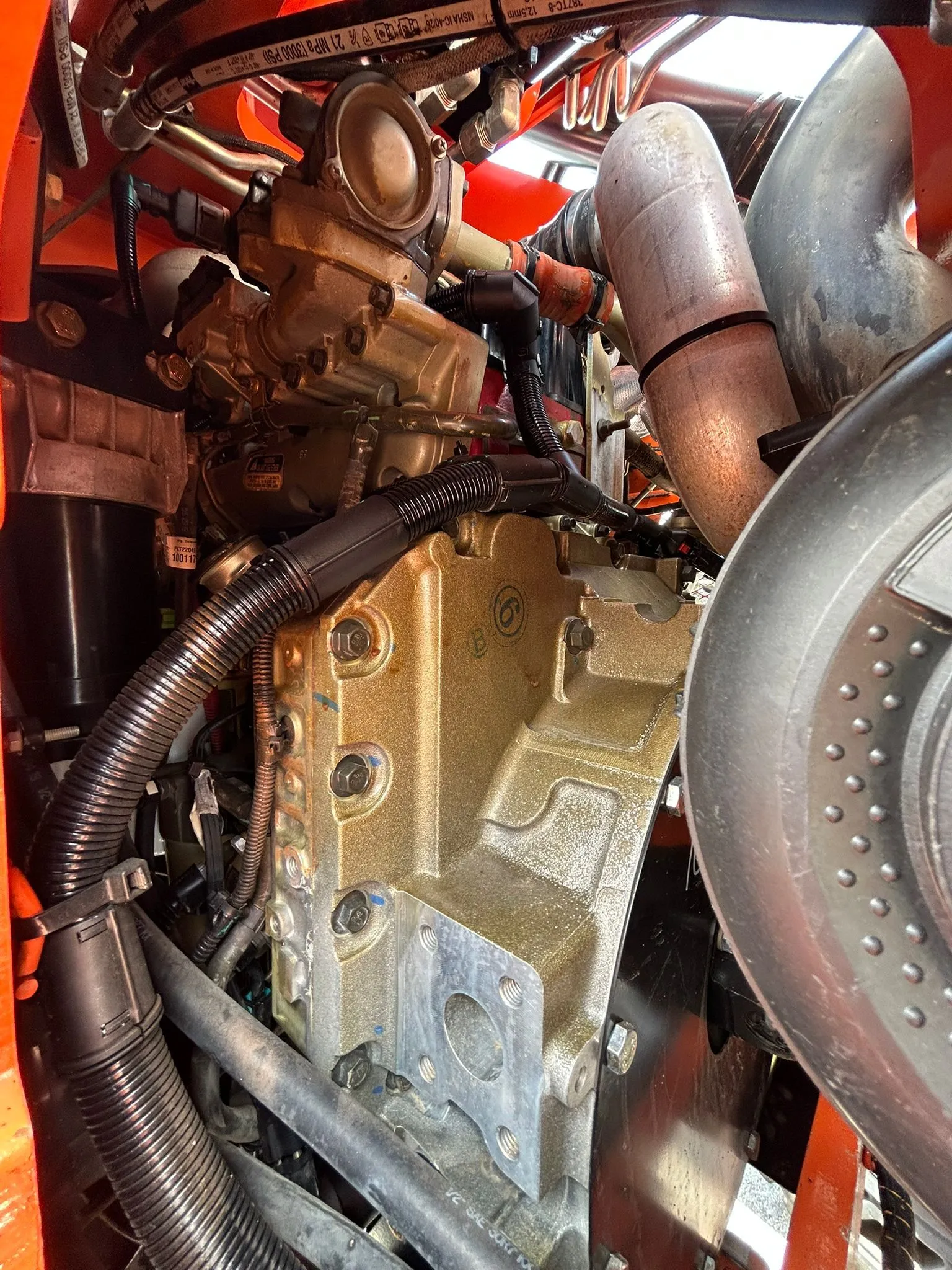

| Transmission | Powershift, 4-speed forward and 3-speed reverse |
| Axles | Full-time planetary 4-wheel drive; oscillating rear axle with Stabil-Trak system |
Working Range
| Rated Capacity | 10,000 lb (4,536 kg) |
| Maximum Forward Reach | 26 ft 7 in (8.10 m) |
| Load at Max Reach | 6,000 lb (2,722 kg) |
| Top Travel Speed (4-Speed) | 20 mph (32 kph) |
| Drawbar Pull (loaded) | 24,500 lb (109 kN) |
| Hydraulic System Capacity | 52 gal (196.8 L) |
Undercarriage & Attachments
| Lift Speed (boom retracted) Up/Down | 16.4 sec / 15 sec |
| Boom Speed Extend/Retract | 17.2 sec / 15.1 sec |

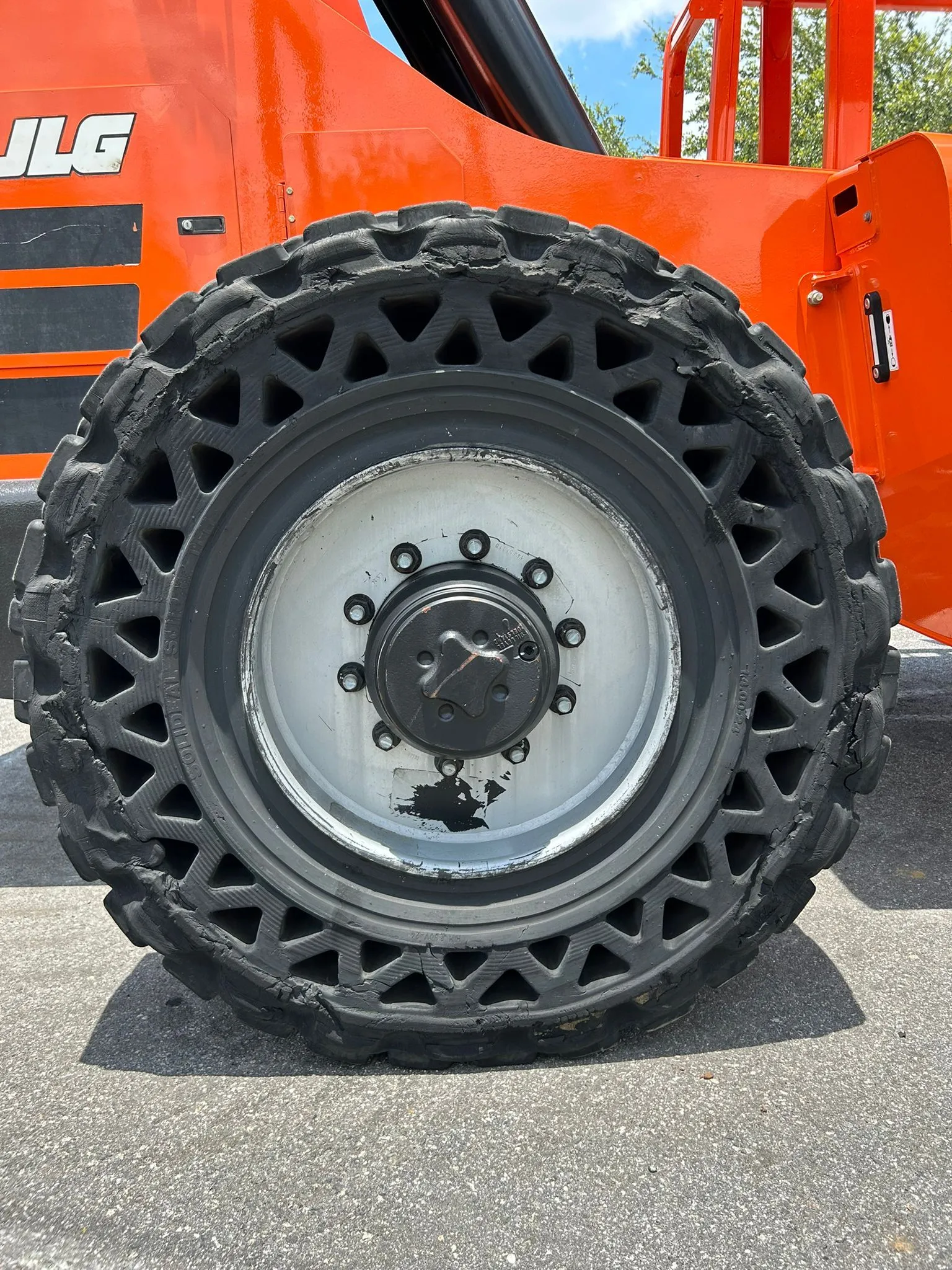

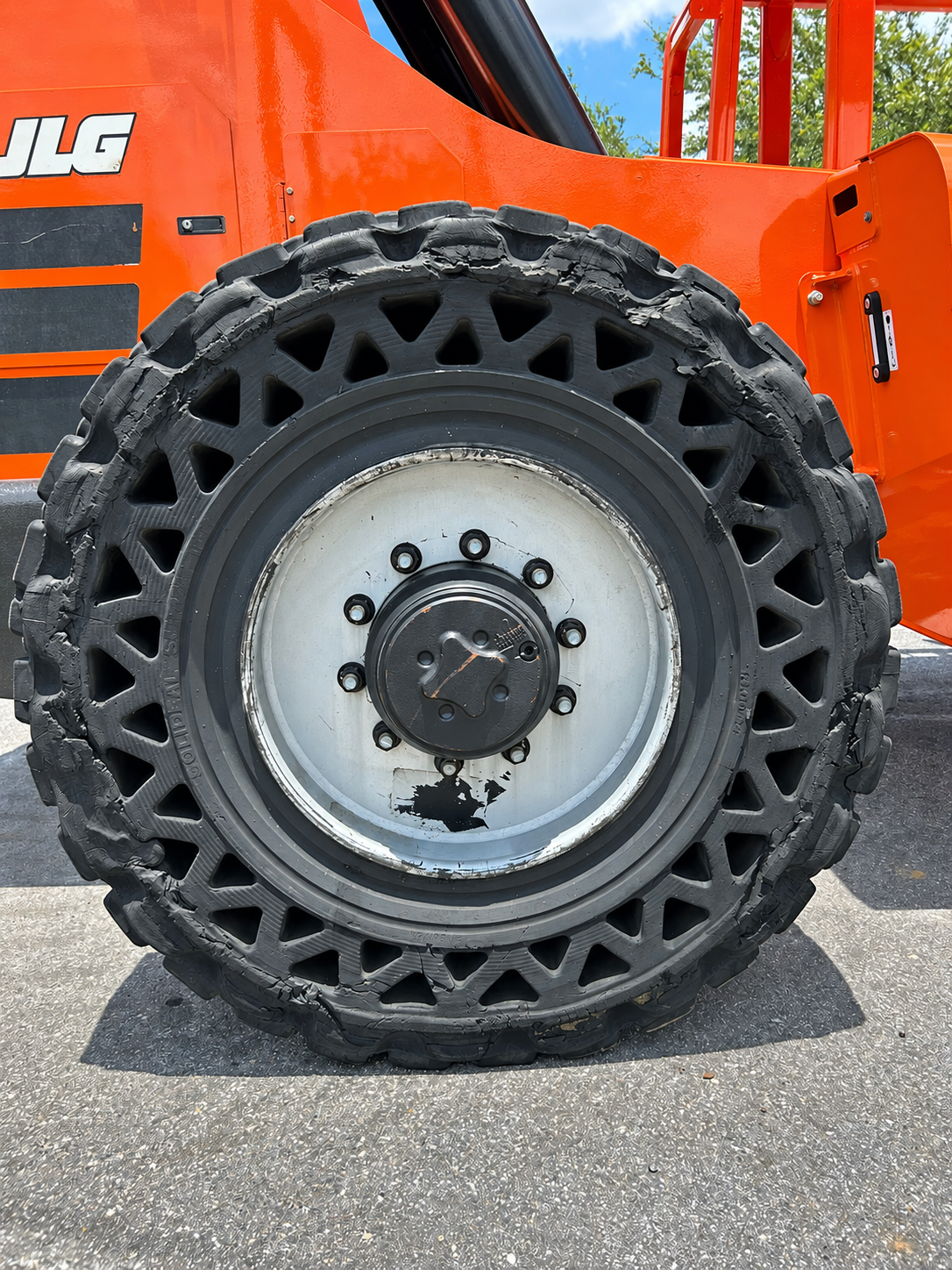

| Standard Tires | 400/75-28 |
Dimensions
| Maximum Lift Height | 42 ft 1 in (12.8 m) |
| Load at Max Height | 6,000 lb (2,722 kg) |
| Outside Turning Radius | 170 in (4.32 m) |
| Operating Weight | 27,300 lb (12,383 kg) lb |

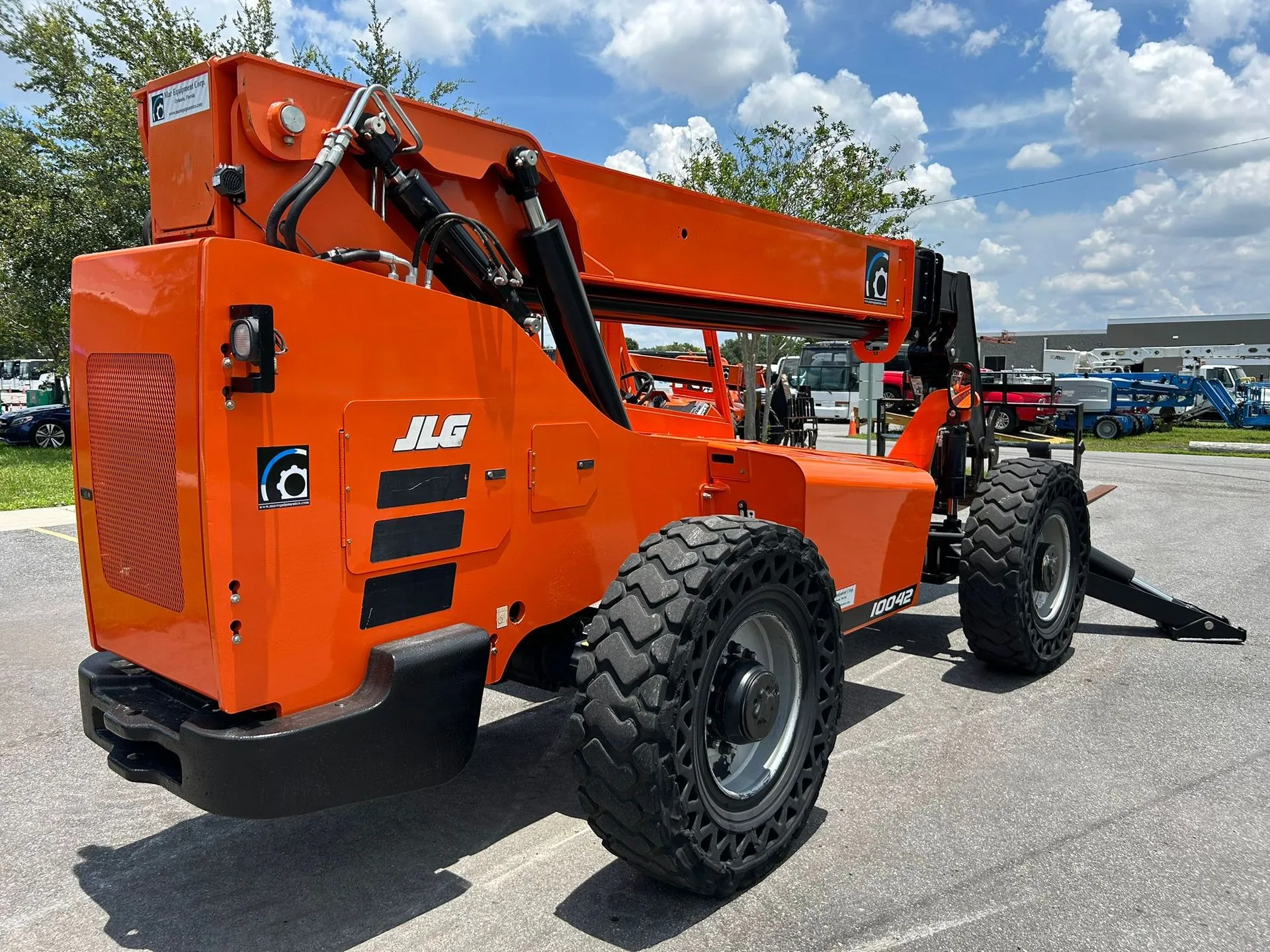

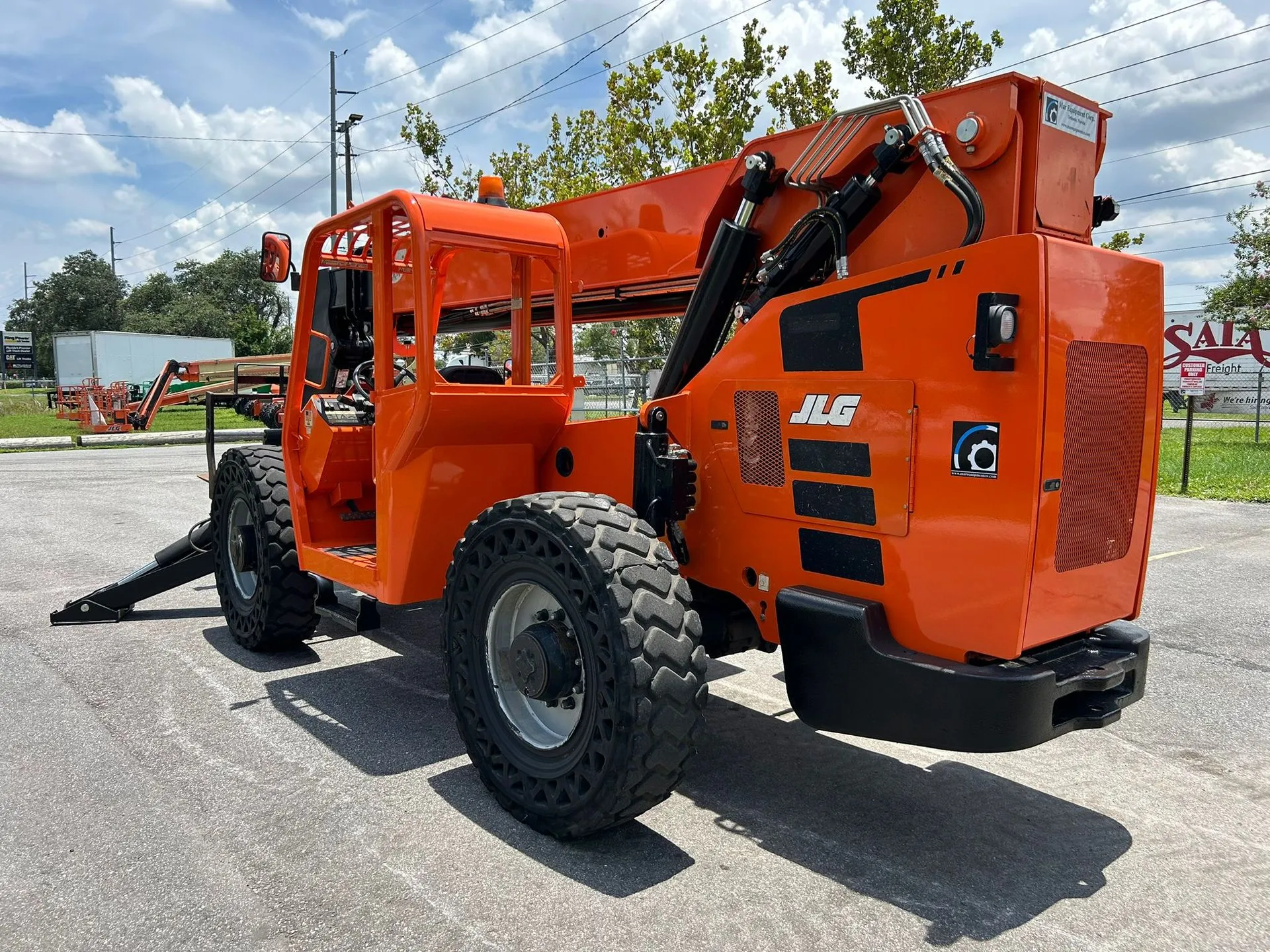

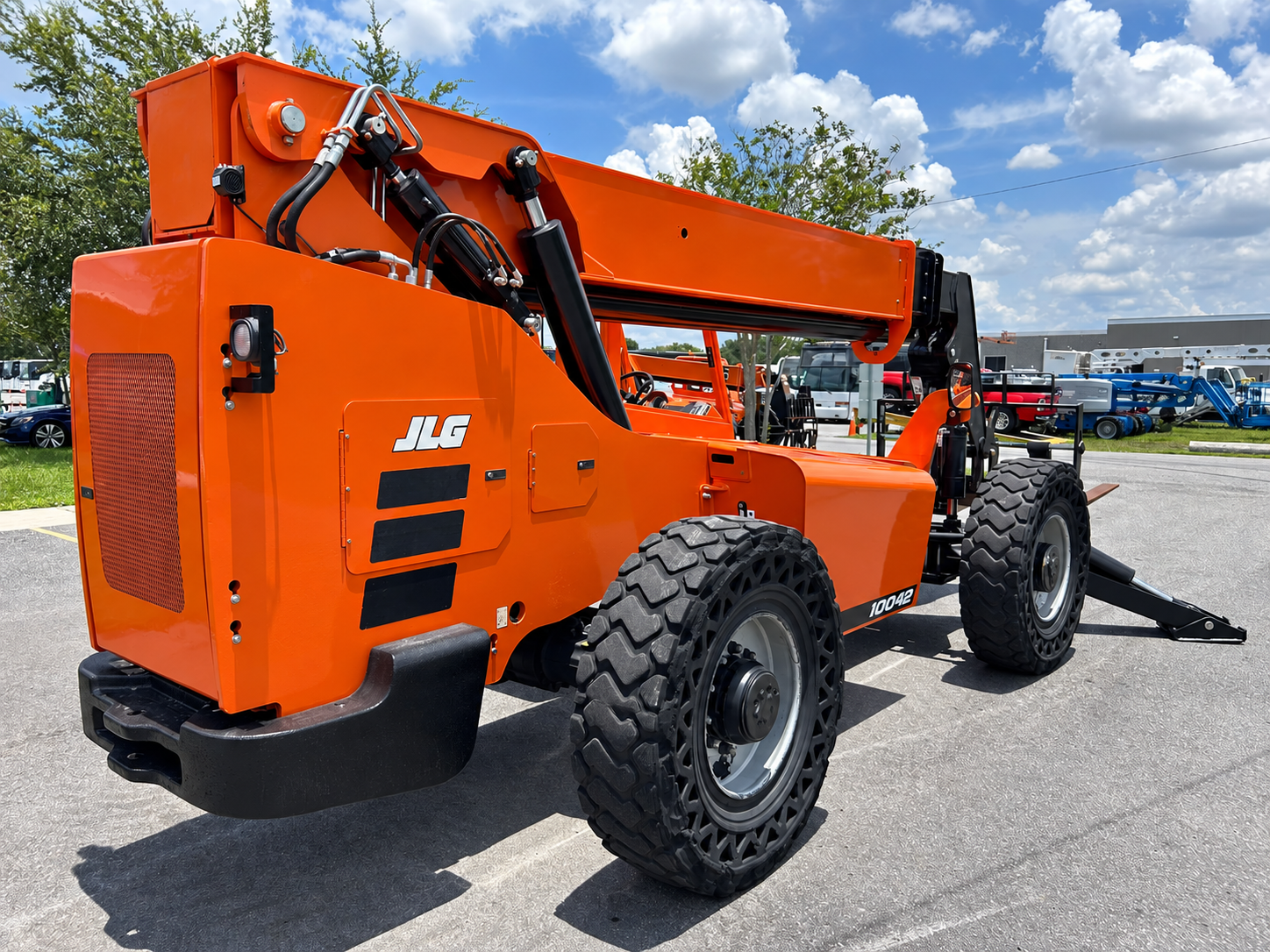

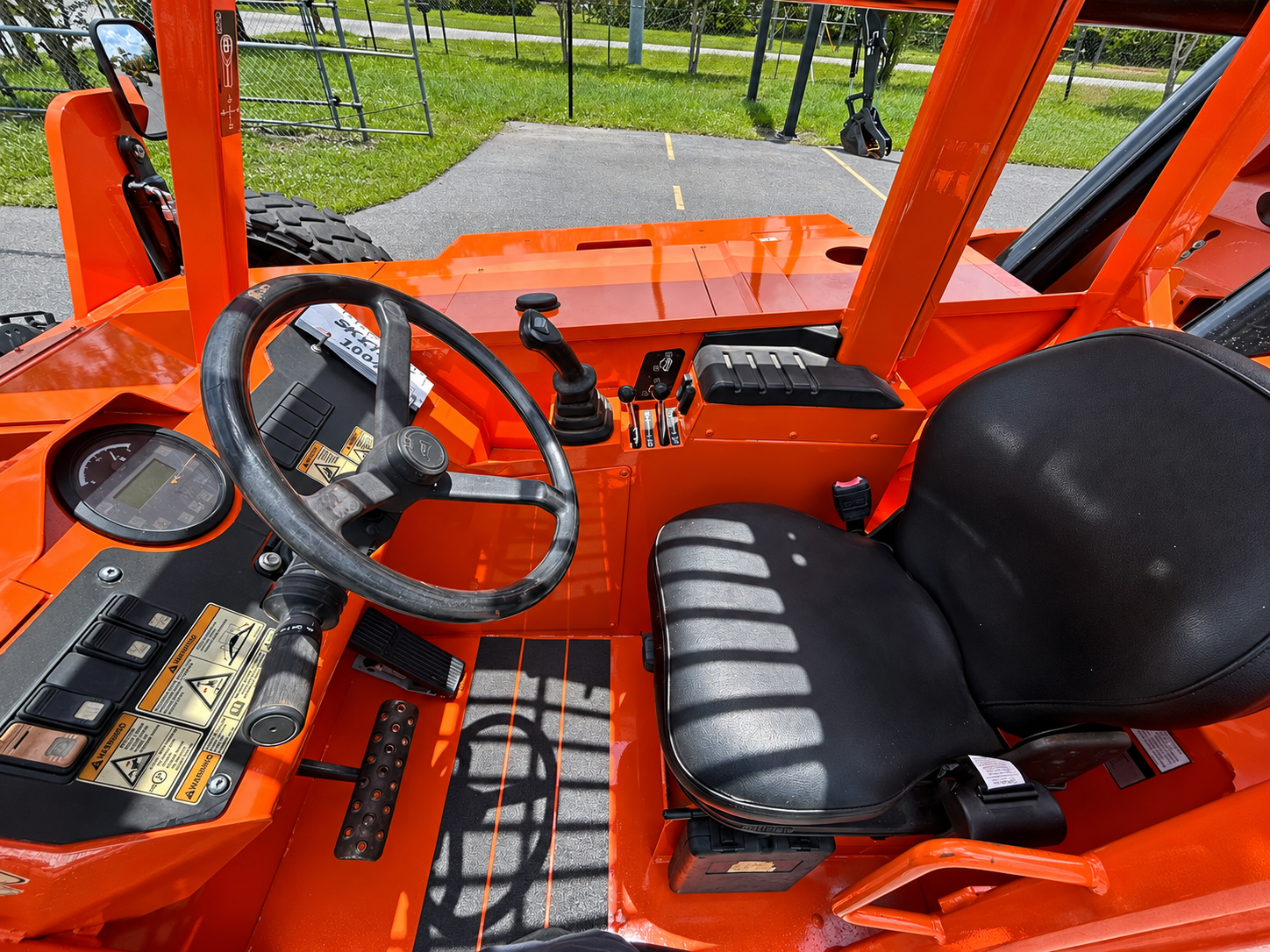

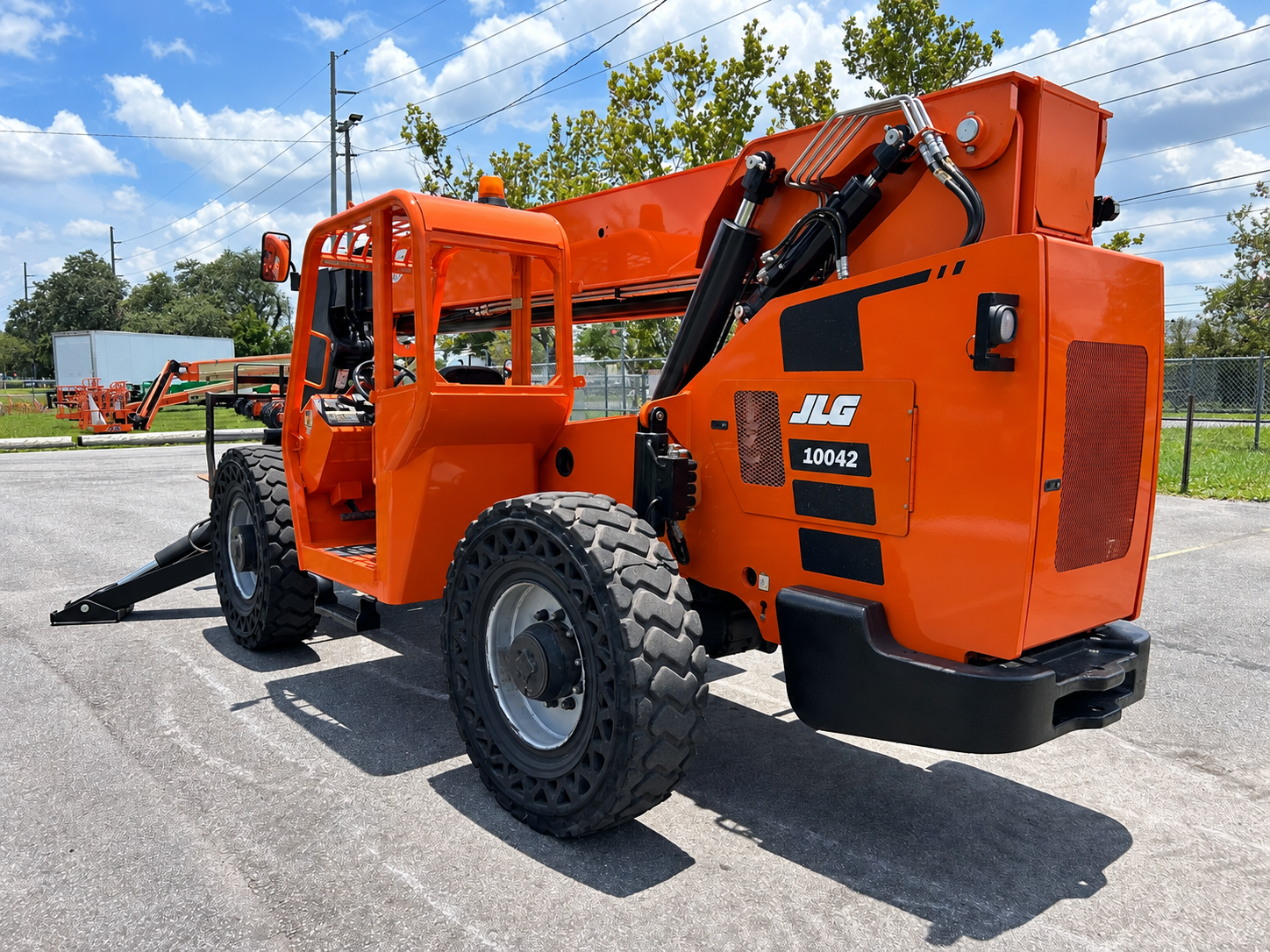

2019 JLG 10042 Telehandler
