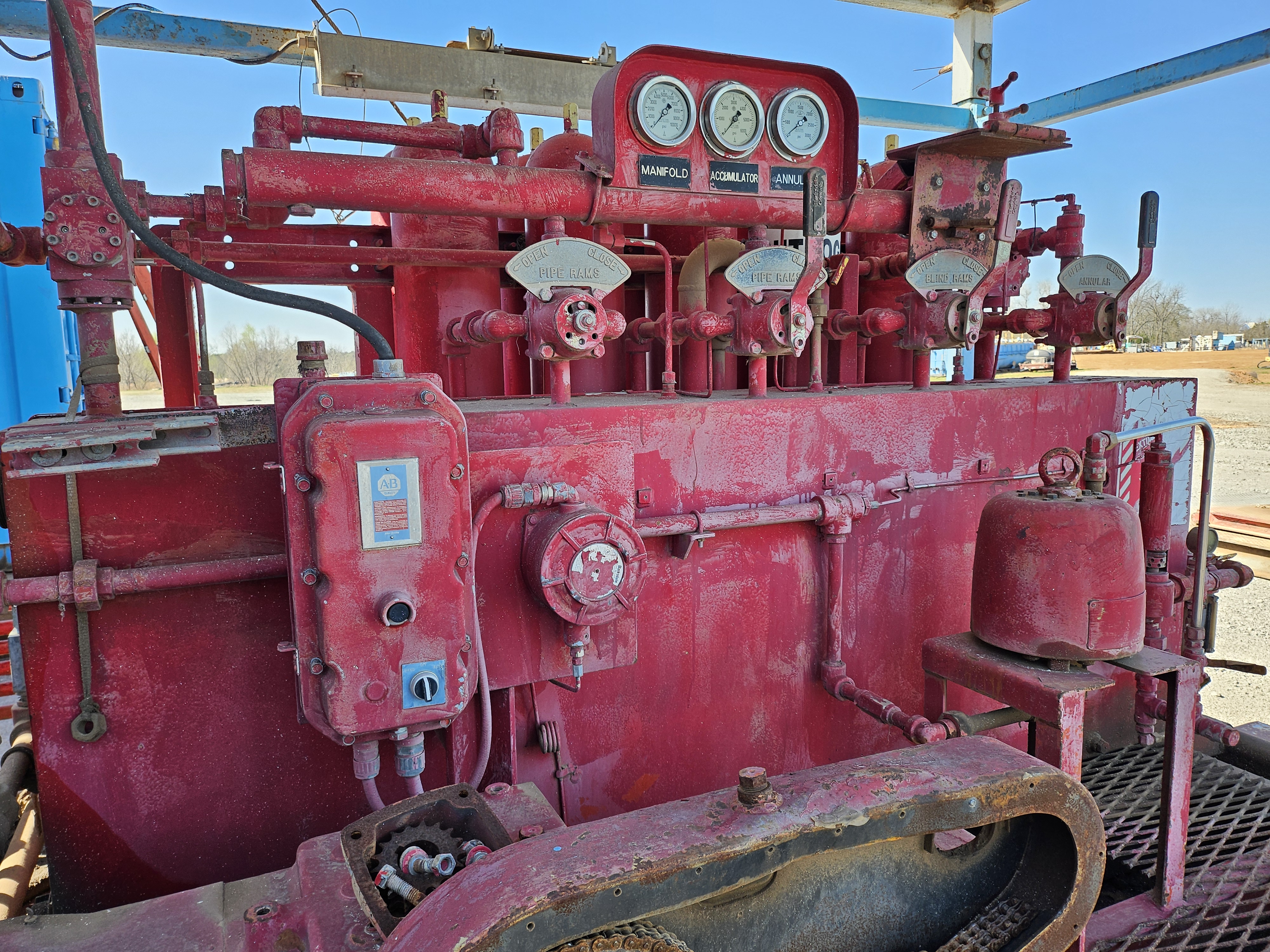

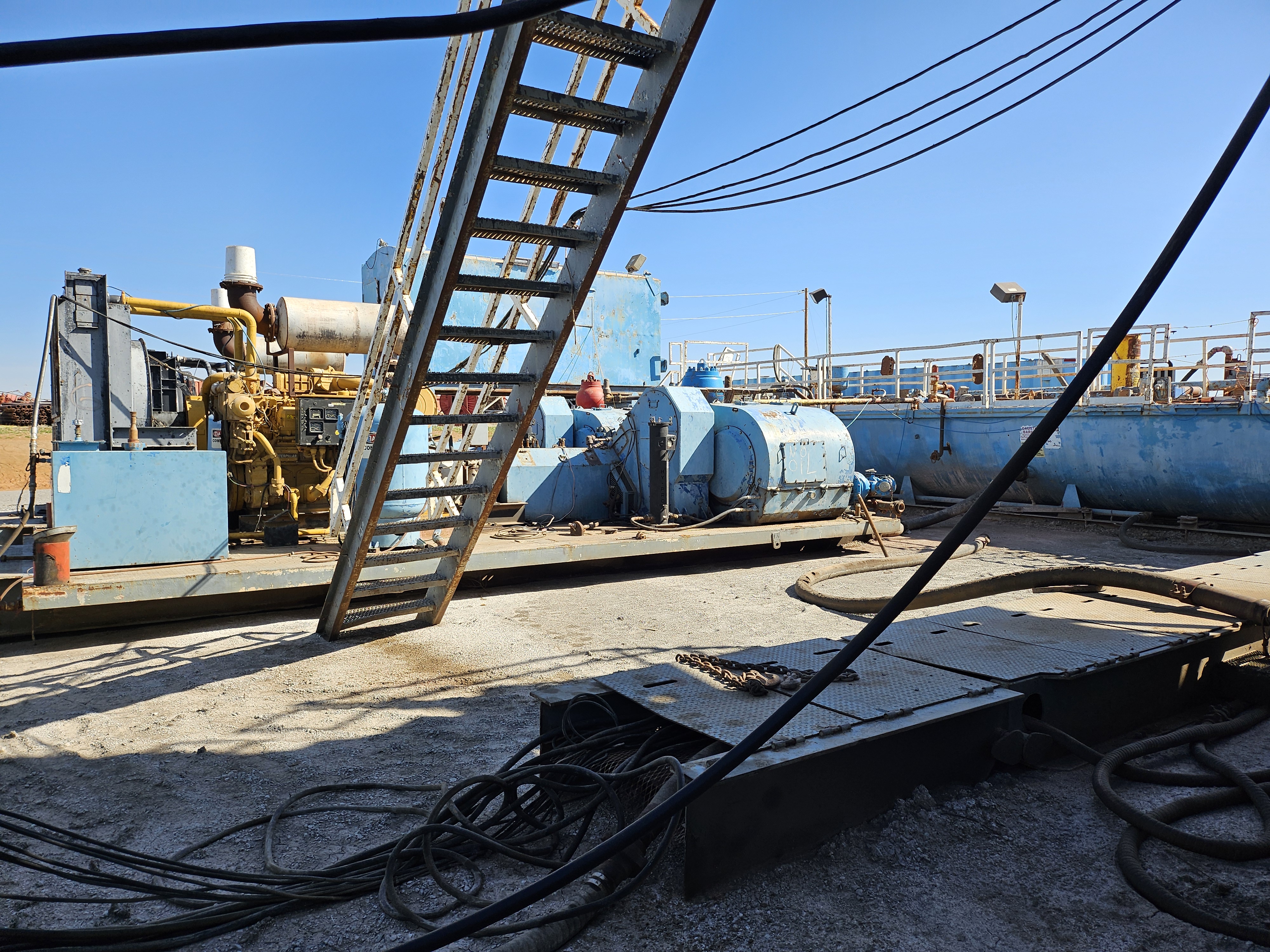

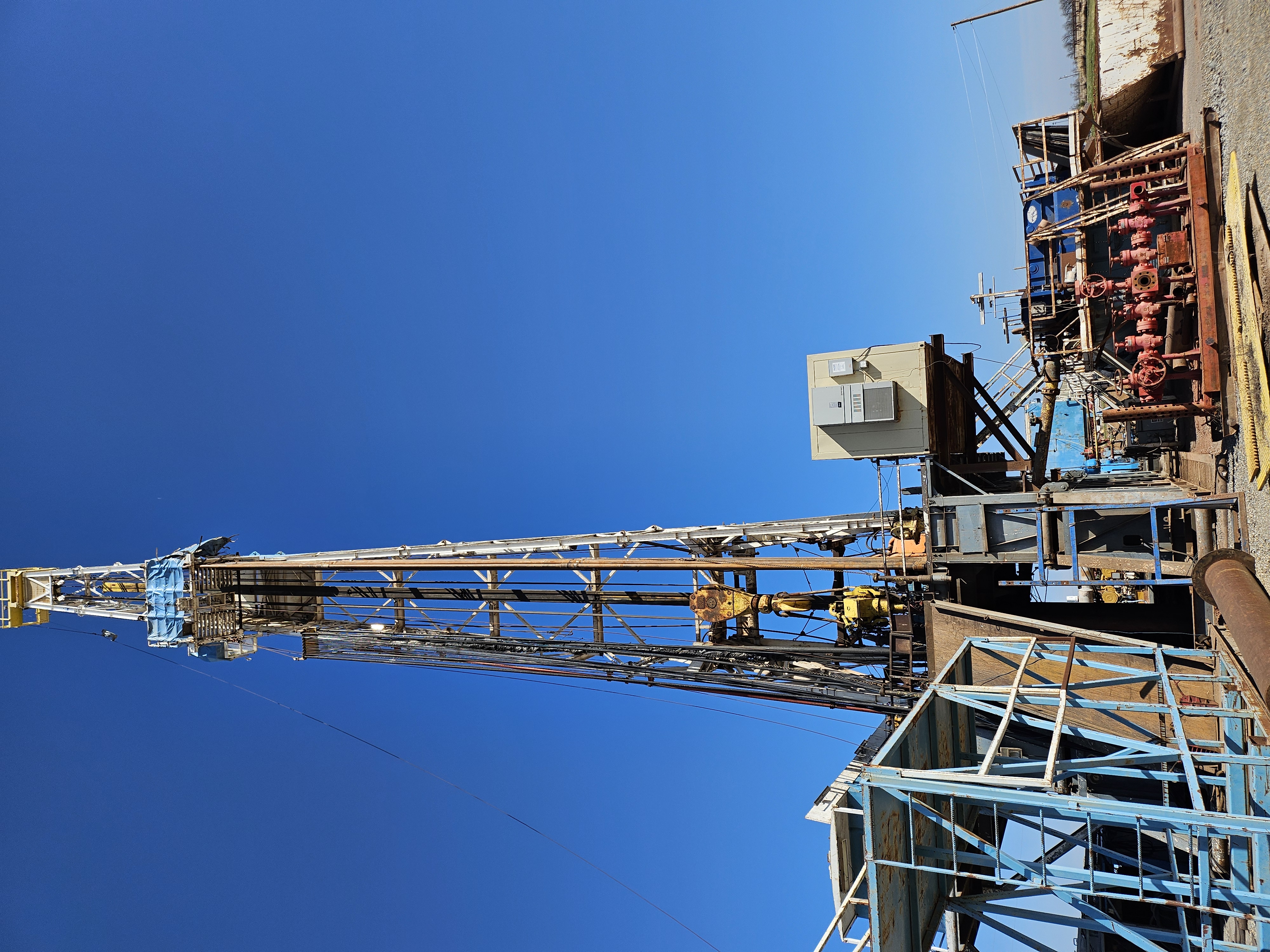

Drilling Rig Specifications HOISTING & STRUCTURE Drawworks OIME SD-7 1500HP, Elmagco 6032 Brake, p/b (2) GE 752 DC Motors Auxiliary Brake Elmagco 6032 Hoisting Capacity 500 Ton (10 lines) Mast Type DSI 136' x 21' Hook Load 750,000# Static Racking Capacity Substructure Type DSI 20' Box on Box Clear Height 20.5' KB Load Ratings 550,000# Rotary / 300,000# Setback Rig Walking System Stealthwalker Walking System Pad Capacity ROTATING & TRAVELING EQUIPMENT Rotary Table National C-275 27.5" Travelling Block NOV 500 Ton Top Drive NOV TDS11 500 Ton AC Iron Roughneck NOV ST-80 Torque Wrench Hydraulic Catwalk Automated Power Catwalk 3000 POWER PACKAGE Engines (3) Cat 3512C Diesel Diesel Yes Bi-Fuel No Generators (3) Kato 1365 KW 1950 KVA SCR Systems GCI 3 Generator x 4 SCR (9'W x 35'L x 9'H) BOP EQUIPMENT Annular Shaffer 13 5/8" 5000# Single Ram Double Ram LWS Type 13 5/8" Double 5000# Accumulator Koomey 5 Station Choke Manifold Horn Equipment 5000# Mud/Gas Separator TUBULARS Drill Pipe 650 Joints R2 5" S-135 Drill Collars (24) 6-1/4"OD x 2-1/4"ID x 30' + (6) 8" Collars MUD SYSTEM Mud Pumps (3) RSF 1600HP Triplex 7500 PSI Fluid Ends / Delivery 7500 PSI Charging Pumps (2) 6x5 60HP Process Pit Suction Pit 2 Working Pits 1100 BBL Trip Tank Trip Tank Pump Drilling Water 2x500 BBL SOLIDS CONTROL Shale Shakers (3) Derrick Linear Motion Degasser Desander Derrick 2 Cone Desander Pump Desilter Derrick 10 Cone Desilter Pump Mud Mixing Pumps TRANSPORT Estimated Loads
