Item Specifications
Category
Condition
Used
Item Number
#1250
Brand
Caterpillar
Make
caterpillar
Model
ap655d
Year
2011
Industry
construction
Equipment Type
paving equipment
Location
Tulsa, OK
Serial
CATAP655CGNN*****
Also Available In
OK
Item Description

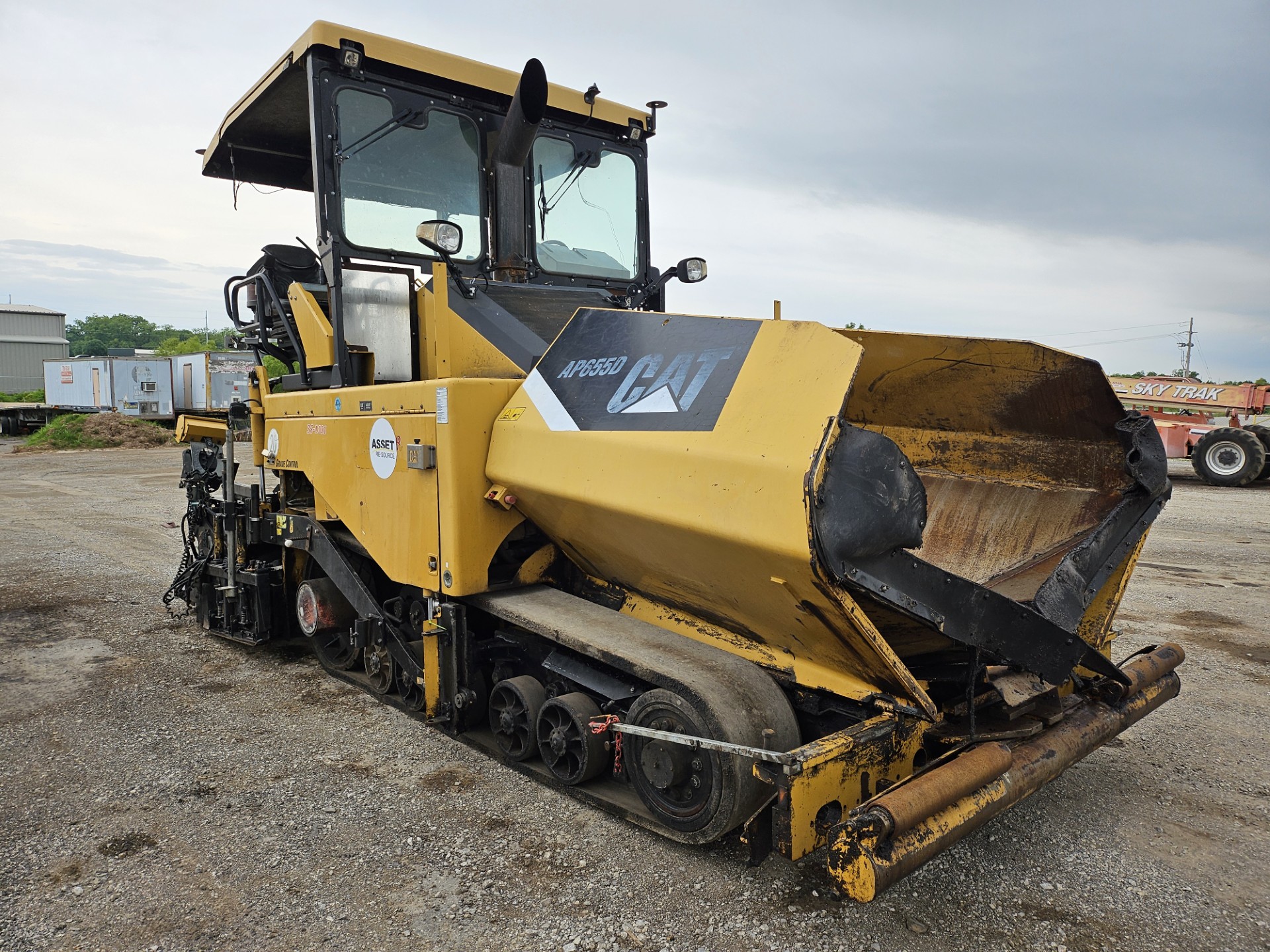

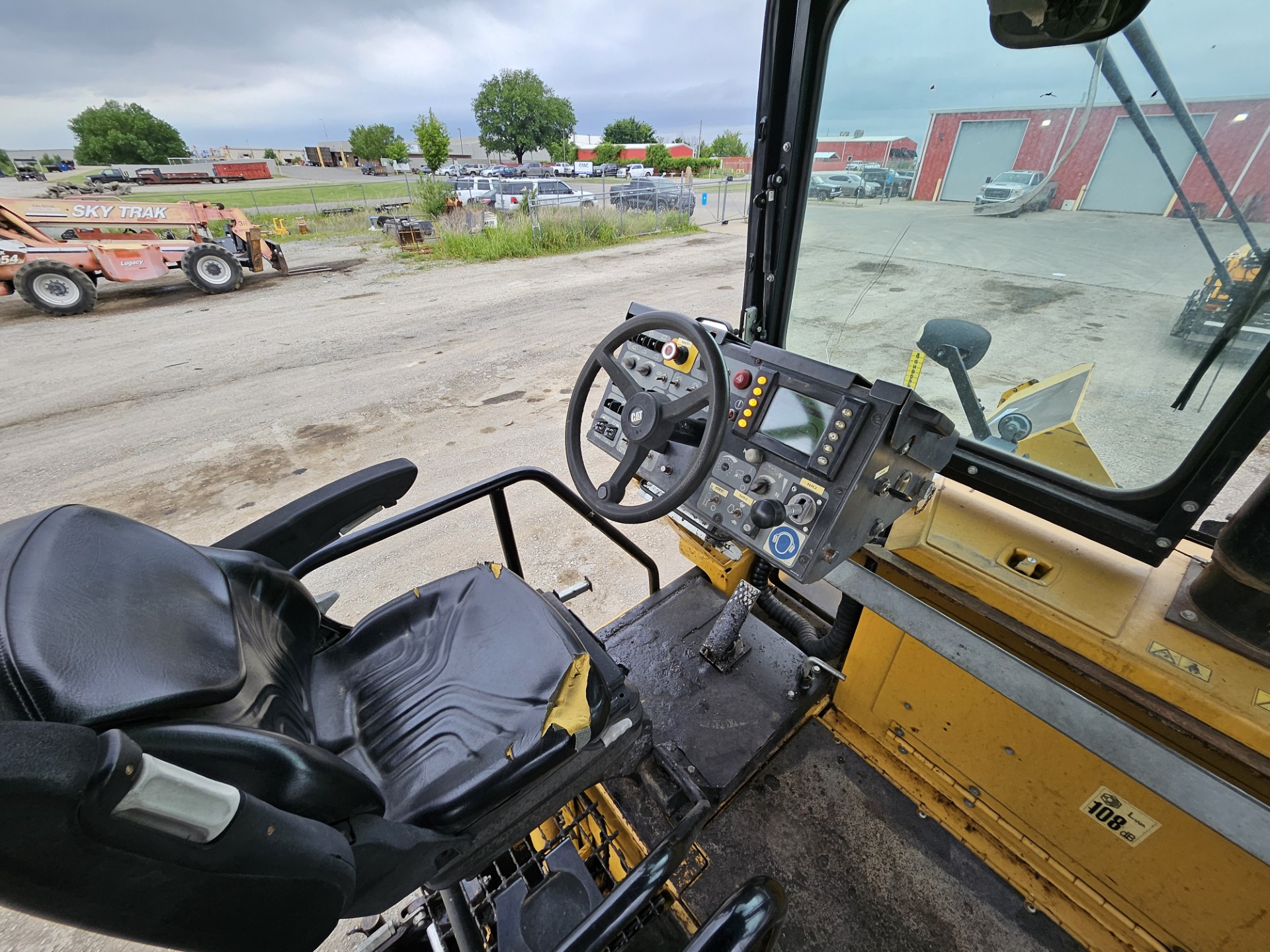

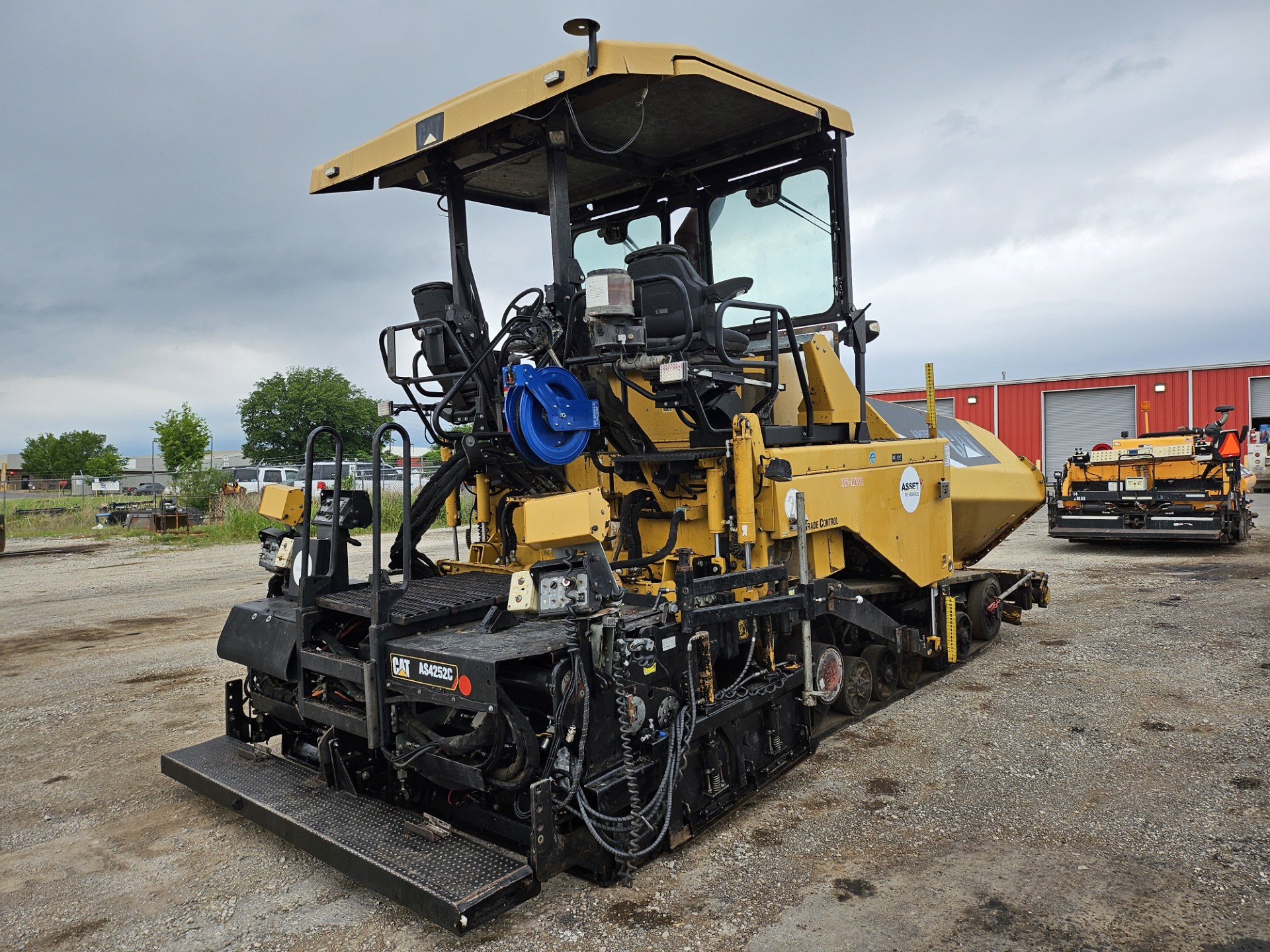

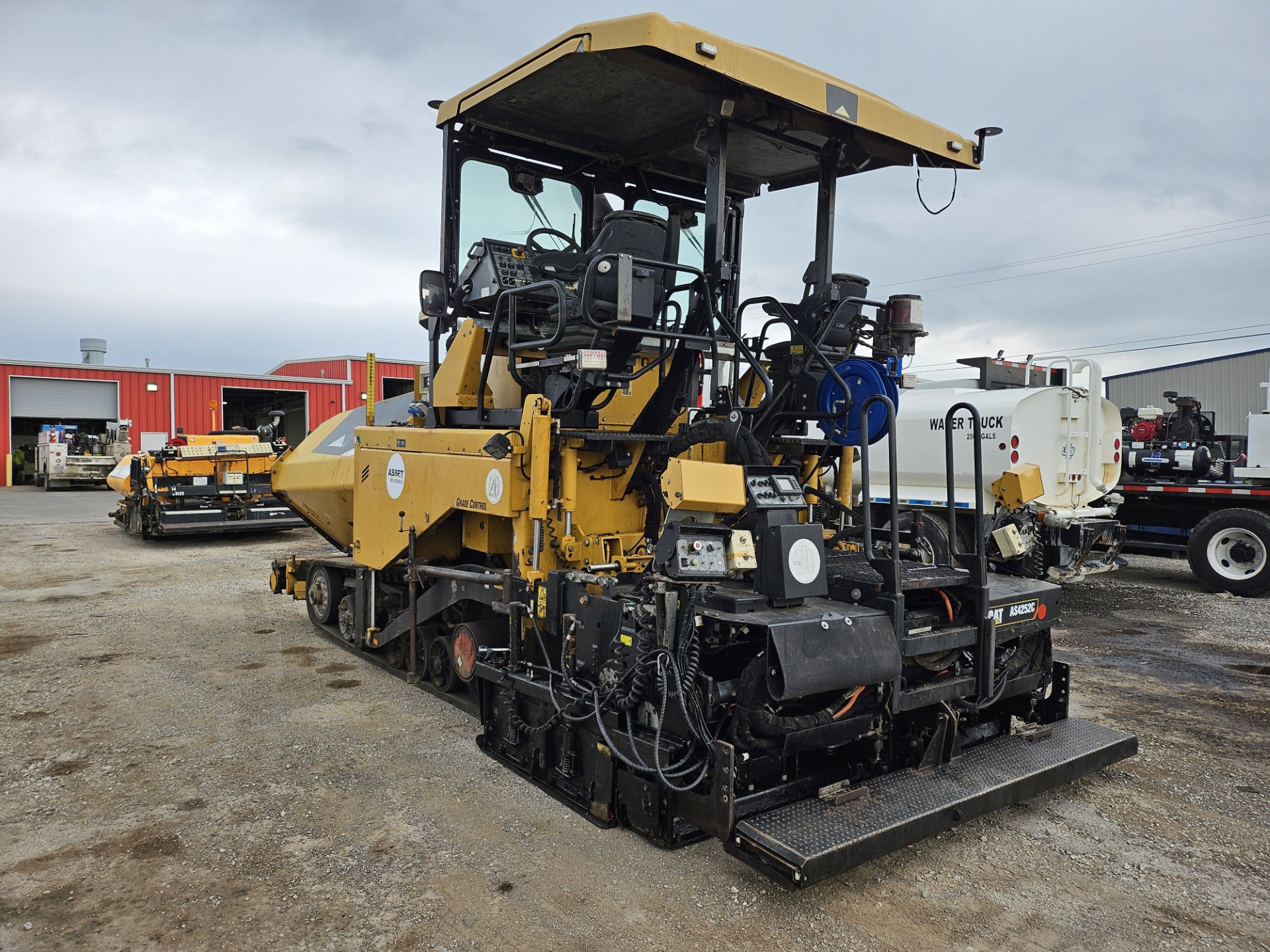

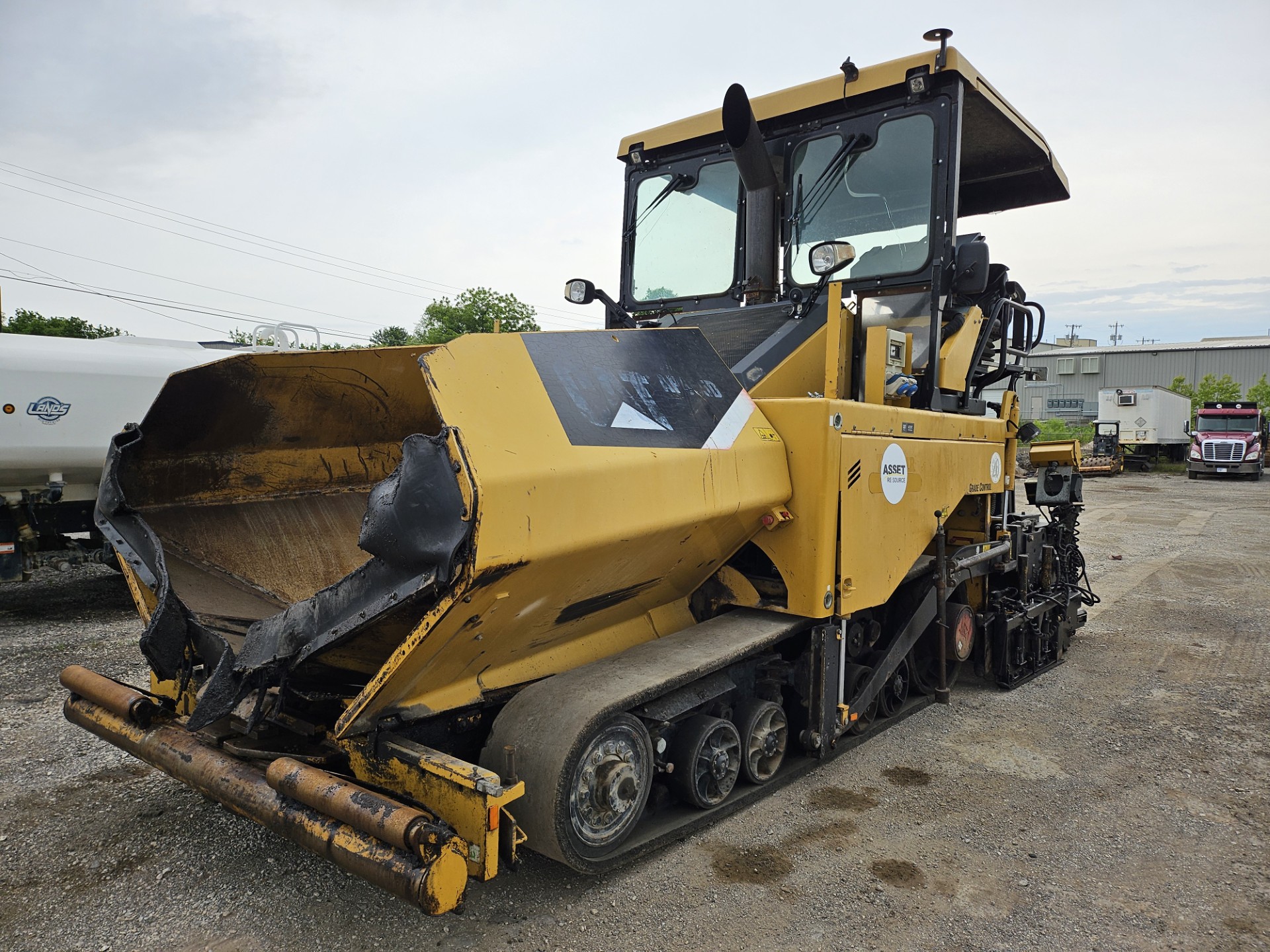

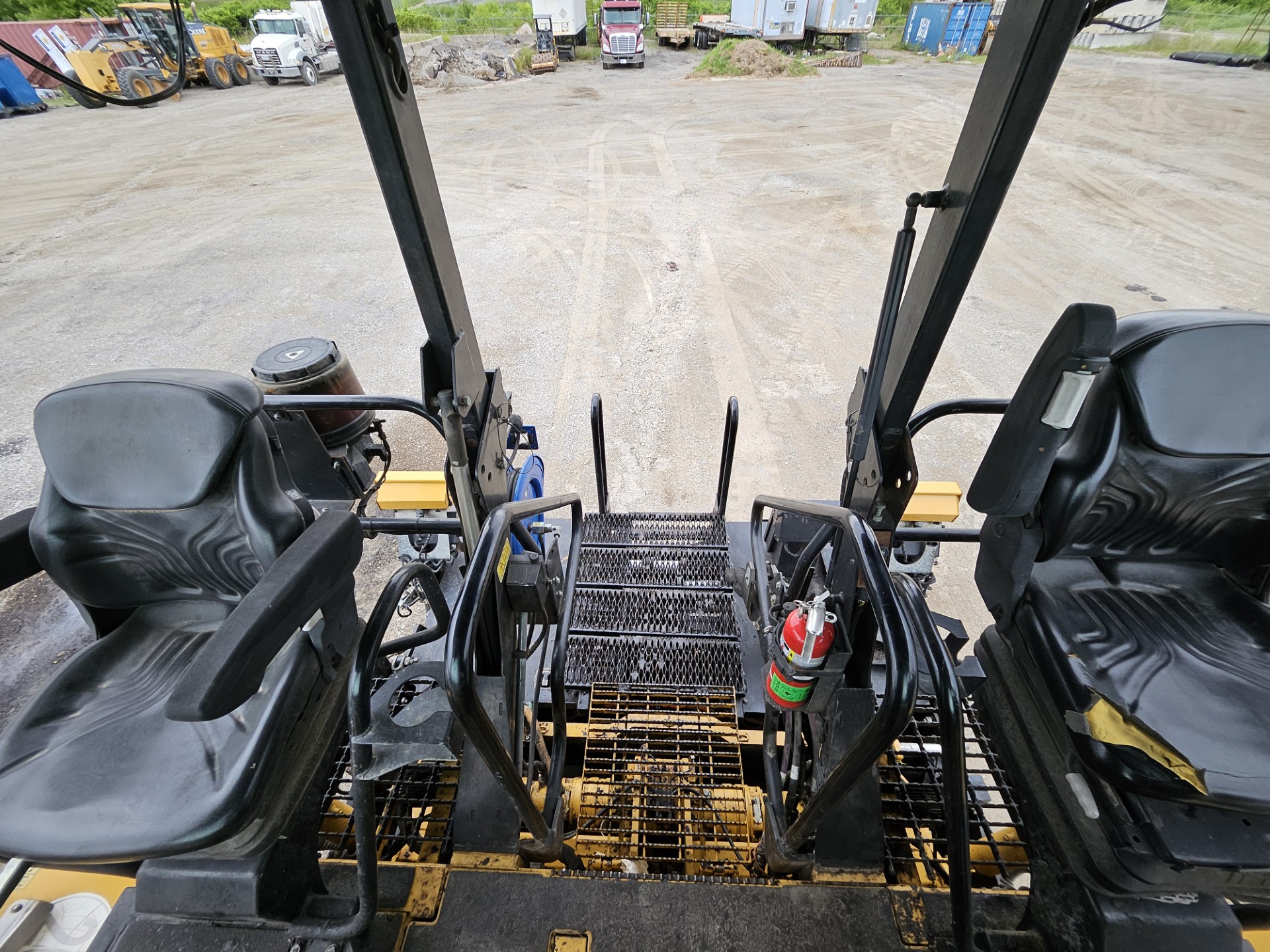

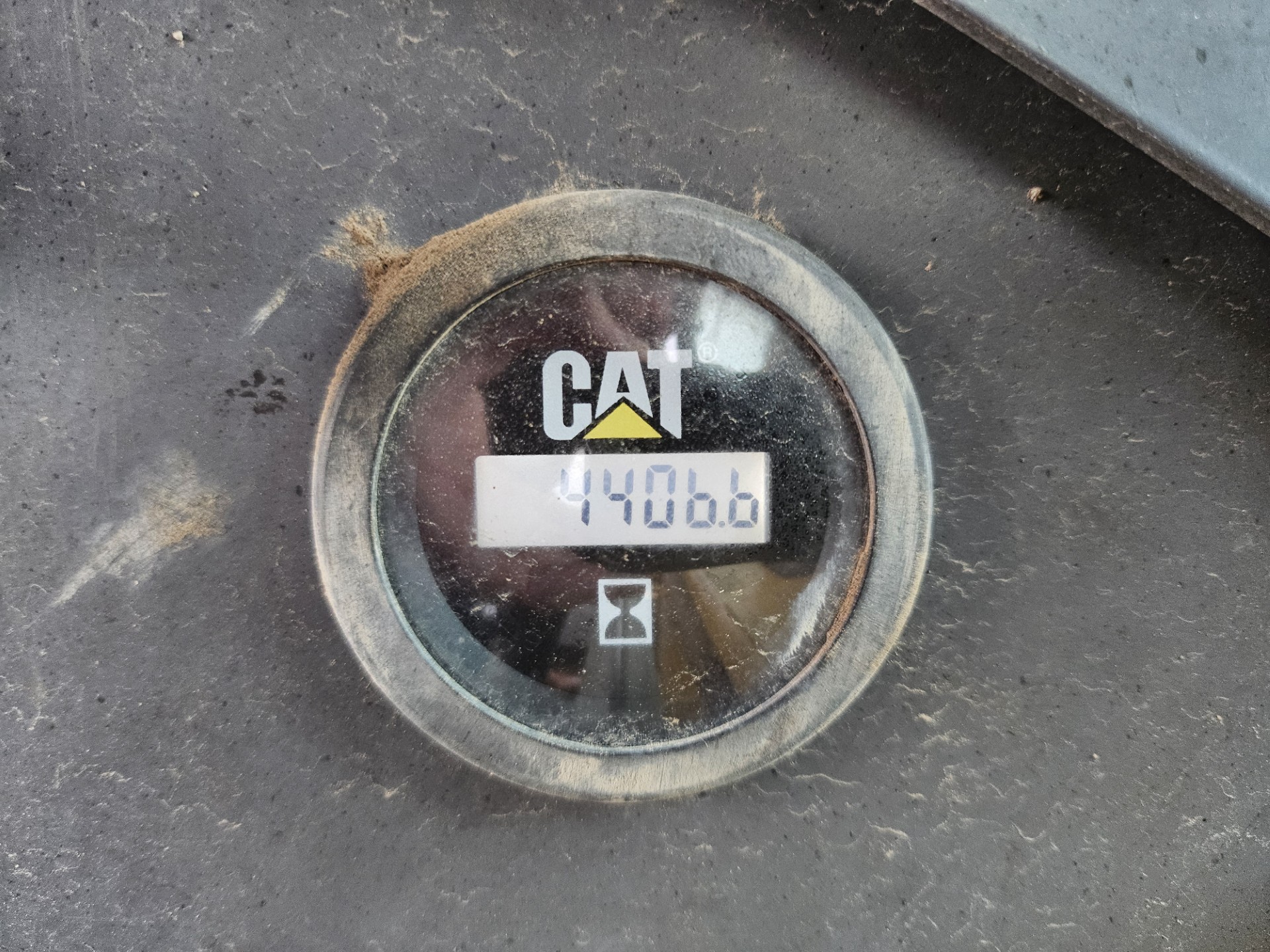

This 2011 CAT AP655D asphalt paver lays material for roads, parking areas, and other paved surfaces. Its extendable vibratory screed shapes the mat, while dual operator stations help control paving from either side. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2011 |
| Make | caterpillar |
| Model | ap655d |
| Serial Number | CATAP655CGNN***** |
| Condition | Used |
| Gross Power (SAE J1995) at 2200 rpm | 129.5 kW/176 hp |
| Net Power (ISO 9249) at 2200 rpm | 121.9 kW/165.8 hp |
| Standard Paving Range | 2550-5000 mm |
| Bore | 105 mm |
| Stroke | 127 mm |
| Augers diameter (mm) | 406 |
| Washdown spray system (Liters) | 38 |
Engine & Powertrain
| Engine Gross Power SAE J1995 (2200 rpm) | 129.5 kW/176 hp |
| Engine Net Power ISO 9249 (2200 rpm) | 121.9 kW/165.8 hp |
| Engine Net Power EEC 80/1269 (2200 rpm) | 121.9 kW/165.8 hp |
| Displacement | 6.6 liters |
| Fuel tank (Liters) | 290 |
| Cooling system (total) (Liters) | 30 |
| Engine oil w/filter (Liters) | 14 |
Working Range

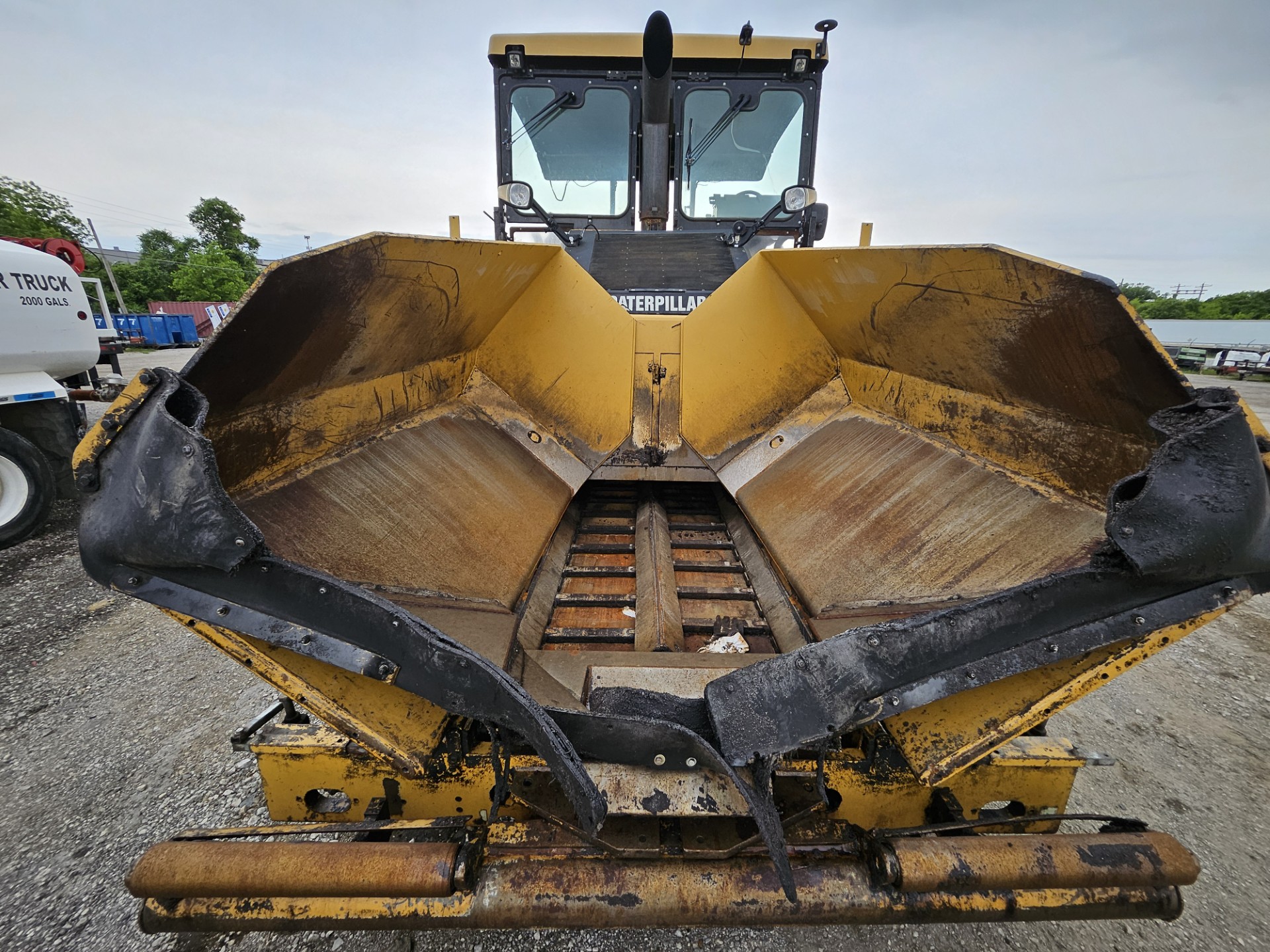

| Hopper Capacity | 6.5 m3 (14.1 tonne) |
| Paving speed, Mobil-trac | 0-25 mpm |
| Travel speed, Mobil-trac | 14.8 km/h |
| Hopper capacity (with conveyor tunnels) (m3) | 6.5 |
| Hydraulic oil tank (Liters) | 218 |
Undercarriage & Attachments
| Paving speed, Steel Track | 0-25 mpm |
| Travel speed, Steel Track | 5.3 km/h |
| Track Base, Steel Track undercarriage | 3020 mm |
Dimensions
| Maximum Paving Width (AS4251C Screed) | 8000 mm |
| Operating Weight with AS4251C Screed | 19 165 kg |
| A Tractor length with push roller (mm) | 4950 |
| B Length with push roller and screed (mm) | 6160 |
| C Transport width with screed end gates (hopper raised) (mm) | 2720 |
| Transport width without screed end gates (hopper raised) (mm) | 2500 |
| D Tractor operating width (hopper lowered) (mm) | 3306 |
| E Track gauge width (mm) | 2200 |
| F Operating height with canopy (mm) | 3840 |
| G Transport height with canopy, fumes stack and seat lowered (mm) | 2920 |
| H Truck dump height (at hoppers), MTS undercarriage (mm) | 605 |
| H Truck dump height (at hoppers), Steel Track undercarriage (mm) | 593 |
| I Truck entry width (at hoppers) (mm) | 3200 |
| J Hopper length (mm) | 1960 |
| K Push roller height (mm) | 533 |
| L Clearance (mm) | 260 |
| Discharge height at center, MTS undercarriage (mm) | 577 |
| Discharge height at center, Steel Track undercarriage (mm) | 566 |
| Operating Weight, MTS/Steel Track undercarriage (kg) | 19 165 |
| Shipping Weight, Tractor only (kg) | 15 050 |
| Shipping Weight, Tractor with screed (kg) | 18 890 |
2011 Caterpillar AP655D Paving Equipment
