Financing 1 / 5
Item Specifications
Category
Condition
Used
Item Number
#1237
Make
takeuchi
Model
tl12r2_cr
Year
2021
Industry
construction
Equipment Type
compact track loaders
Location
Corpus Christi, TX
Serial
4121*****
Also Available In
TX
Item Description
This 2021 Takeuchi TL12R2-CR compact track loader can load, grade, and move material. Its tracked chassis provides traction on soft ground, and auxiliary hydraulics support attachment work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2021 |
| Make | takeuchi |
| Model | tl12r2_cr |
| Hours | 3,402 |
| Serial Number | 4121***** |
| Condition | Used |
| Traction Force | 14,010 lb (6,353 kg) |
| D Dump Angle | 42° |
| E Rollback Angle | 30° |
| J Departure Angle | 30° |
Engine & Powertrain
| Engine Make / Model | Kubota / V3800TIF4B - Turbo Intercooled |
| Engine Displacement | 230 cu in (3.8 L) |
| Horsepower @ 2,400 rpm | 111.3 hp (83.0 kW) |
| Maximum Torque @ 1,500 rpm | 276 ft-lb (374 Nm) |
Working Range
| Tipping Load | 8,629 lb (3,915 kg) |
| Rated Operating Capacity, SAE J818* | 2,975 lb (1,349 kg) |
| Operating Load at 50% of Tipping Load | 4,315 lb (1,957 kg) |
| Travel speed - Low | 5.0 mph (8.1 km/hr) |
| Travel speed - High | 7.3 mph (11.8 km/hr) |
| Fluid Capacities - Engine Lubrication | 13.9 qt (13.2 L) |
| Fluid Capacities - Cooling System | 19.0 qt (18.0 L) |
| Fluid Capacities - Fuel Tank Capacity | 31.6 gal (119.5 L) |
| Fluid Capacities - DEF Fluid Tank Capacity | 4.8 gal (18.0 L) |
| Fluid Capacities - Fuel Consumption (65% of Full Load) | 3.8 gal/hr (14.4 L/hr) |
| Fluid Capacities - Hydraulic Reservoir Capacity | 13.2 gal (50.0 L) |
| Fluid Capacities - Hydraulic System Capacity | 20.9 gal (79.0 L) |
| Hydraulic System - Auxiliary Flow - Primary Circuit | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Auxiliary Flow - High Flow (optional) | 40.4 gpm (153.0 Lpm) |
| Hydraulic System - Auxiliary Flow - Secondary Circuit (optional) | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Hydraulic System Pressure | 3,481 psi (24.0 MPa) |
| C Dump Reach Fully Raised | 3 ft 1.8 in (960 mm) |
Undercarriage & Attachments
| Bucket Breakout Force | 8,210 lb (3,722 kg) |
| Lift Arm Breakout Force | 8,075 lb (3,663 kg) |
Dimensions
| Operating Weight - Canopy | 12,300 lb (5,580 kg) |
| Operating Weight - Cab | 12,590 lb (5,710 kg) |
| Ground Pressure - Canopy | 4.58 psi (31.6 kPa) |
| Ground Pressure - Cab | 4.68 psi (32.3 kPa) |
| A Max. Lift Height to Bucket Pin | 10 ft 6.0 in (3,200 mm) |
| B Dump Height Fully Raised | 7 ft 10.5 in (2,400 mm) |
| F Track Ground Contact Length | 5 ft 7.5 in (1,716 mm) |
| G Machine Length | 10 ft 6.2 in (3,205 mm) |
| H Transport Length | 13 ft 3.3 in (4,045 mm) |
| I Transport Height | 7 ft 7.0 in (2,311 mm) |
| K Clearance Circle with Bucket | 8 ft 4.6 in |
| L Clearance Circle without Bucket | 5 ft 4.4 in |
| M Clearance Circle Rear | 6 ft 0.0 in |
| N Track Width | 17.7 in (450 mm) |
| O Ground Clearance | 12.5 in (320 mm) |
| P Overall Width without Bucket | 6 ft 5.2 in (1,960 mm) |

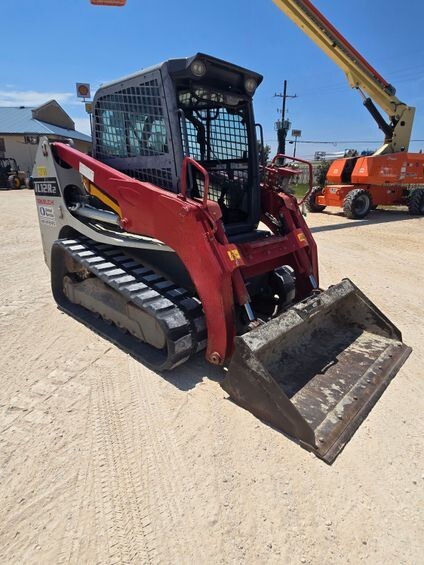

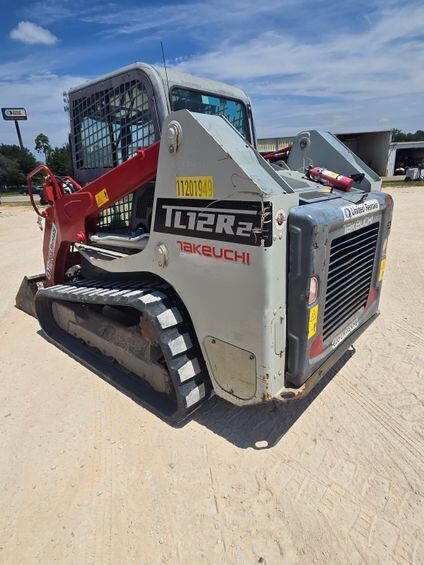

2021 Takeuchi TL12R2-CR Compact Track Loader
