Item Specifications
Category
Condition
Used
Item Number
#1233
Brand
Case
Make
case
Model
cx210d
Year
2019
Industry
construction
Equipment Type
excavators
Location
Corpus Christi, TX
Serial
DAC210K7NKS7*****
Hours
4,730
Also Available In
TX
Item Description

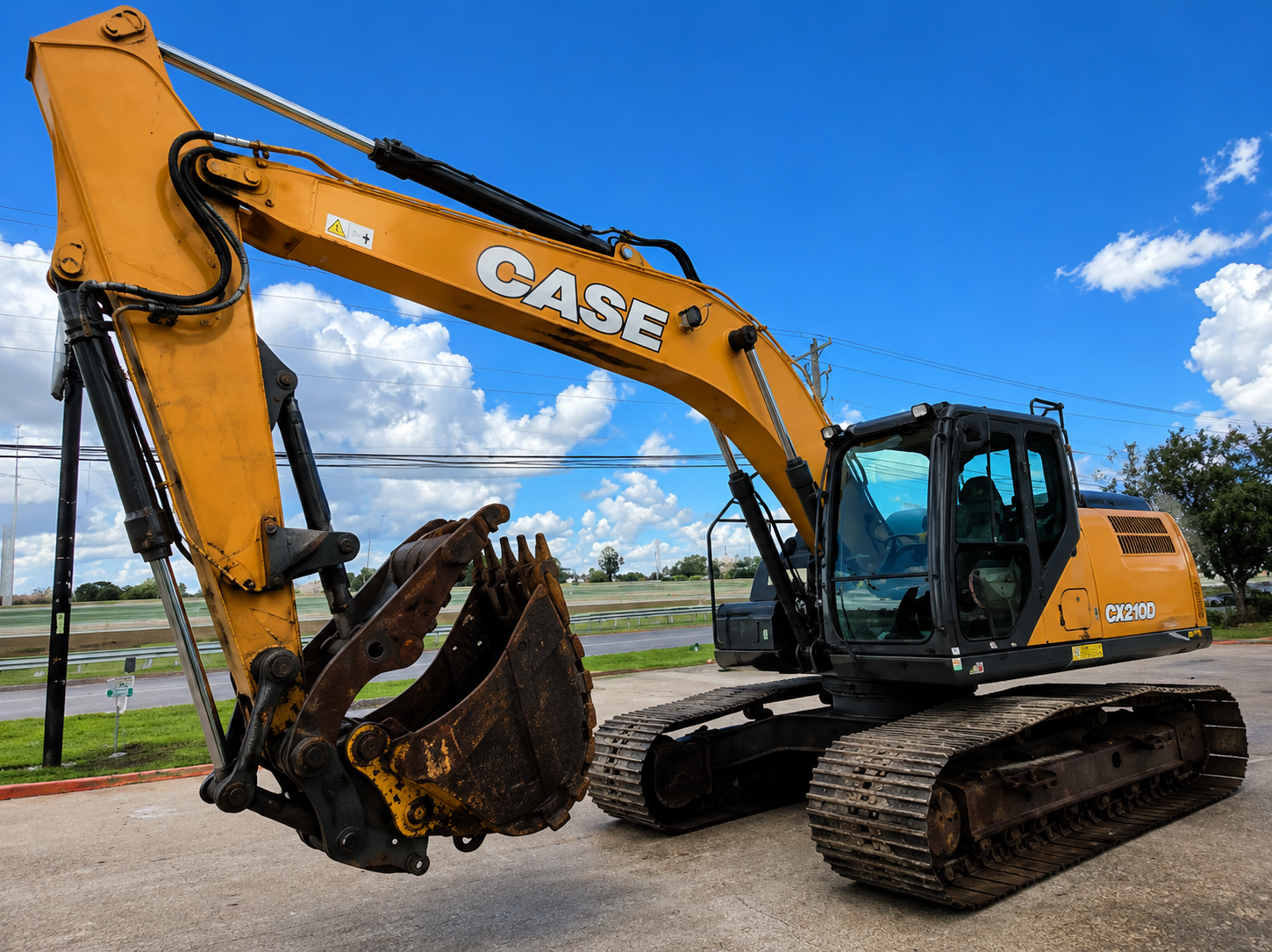

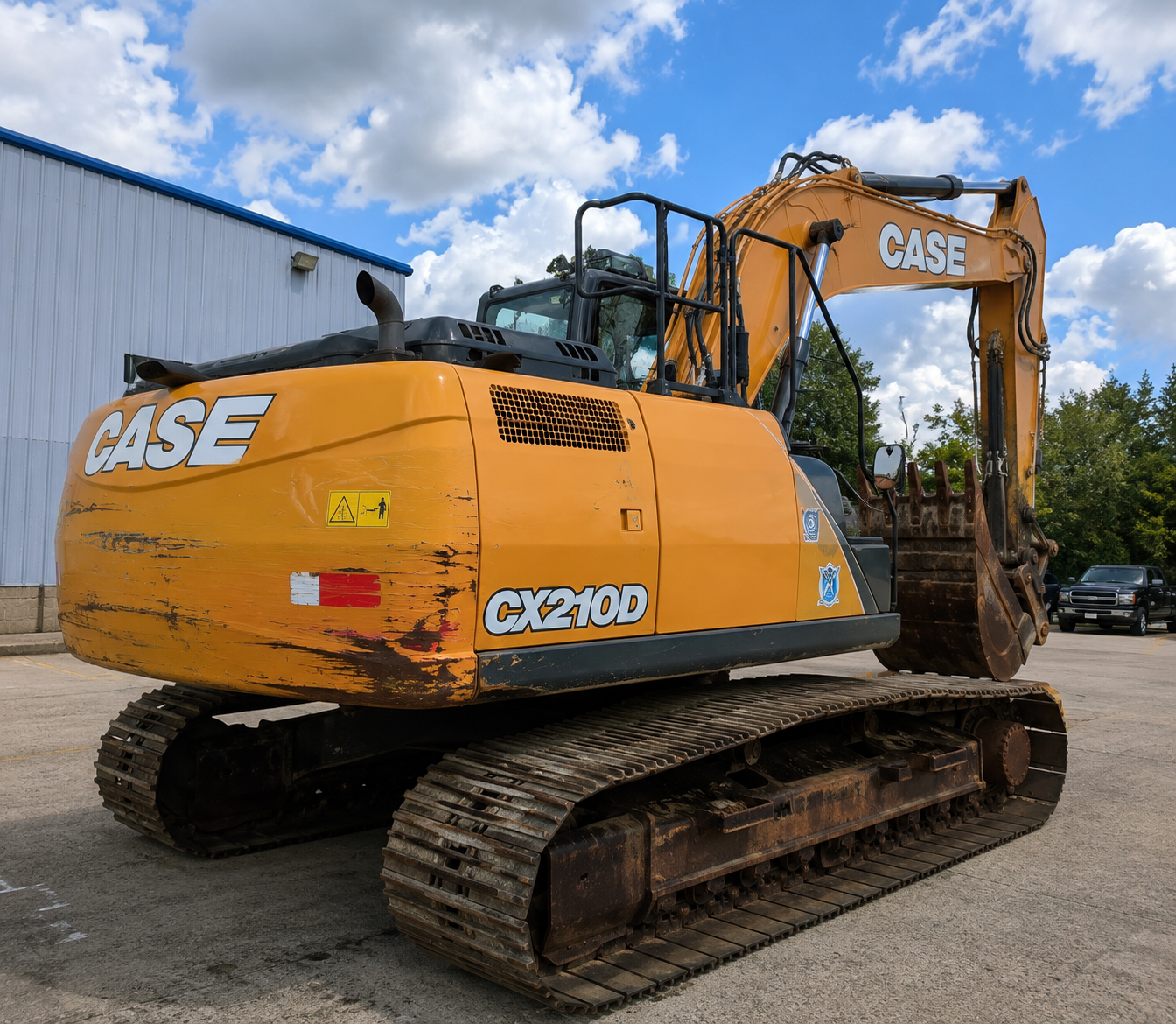

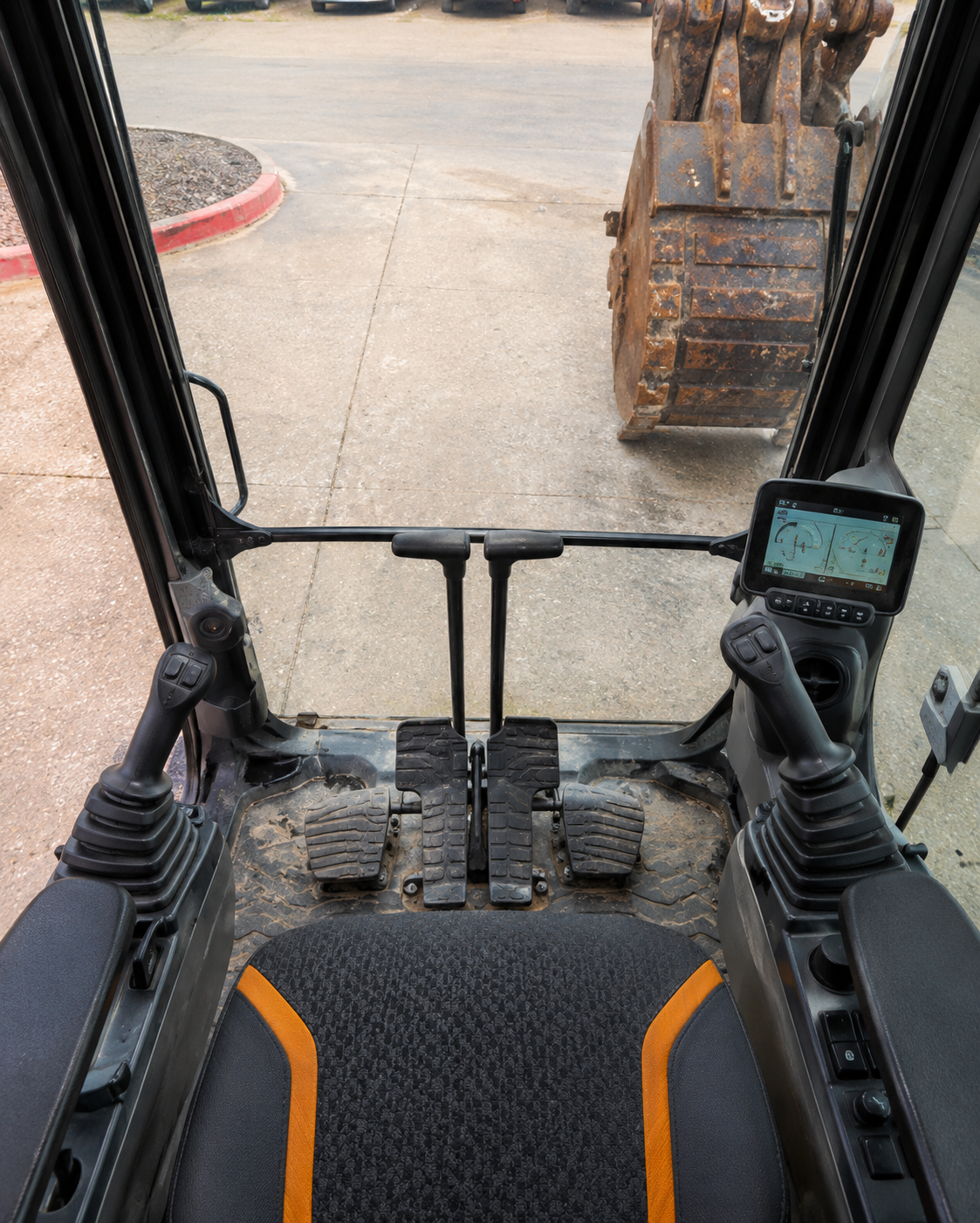

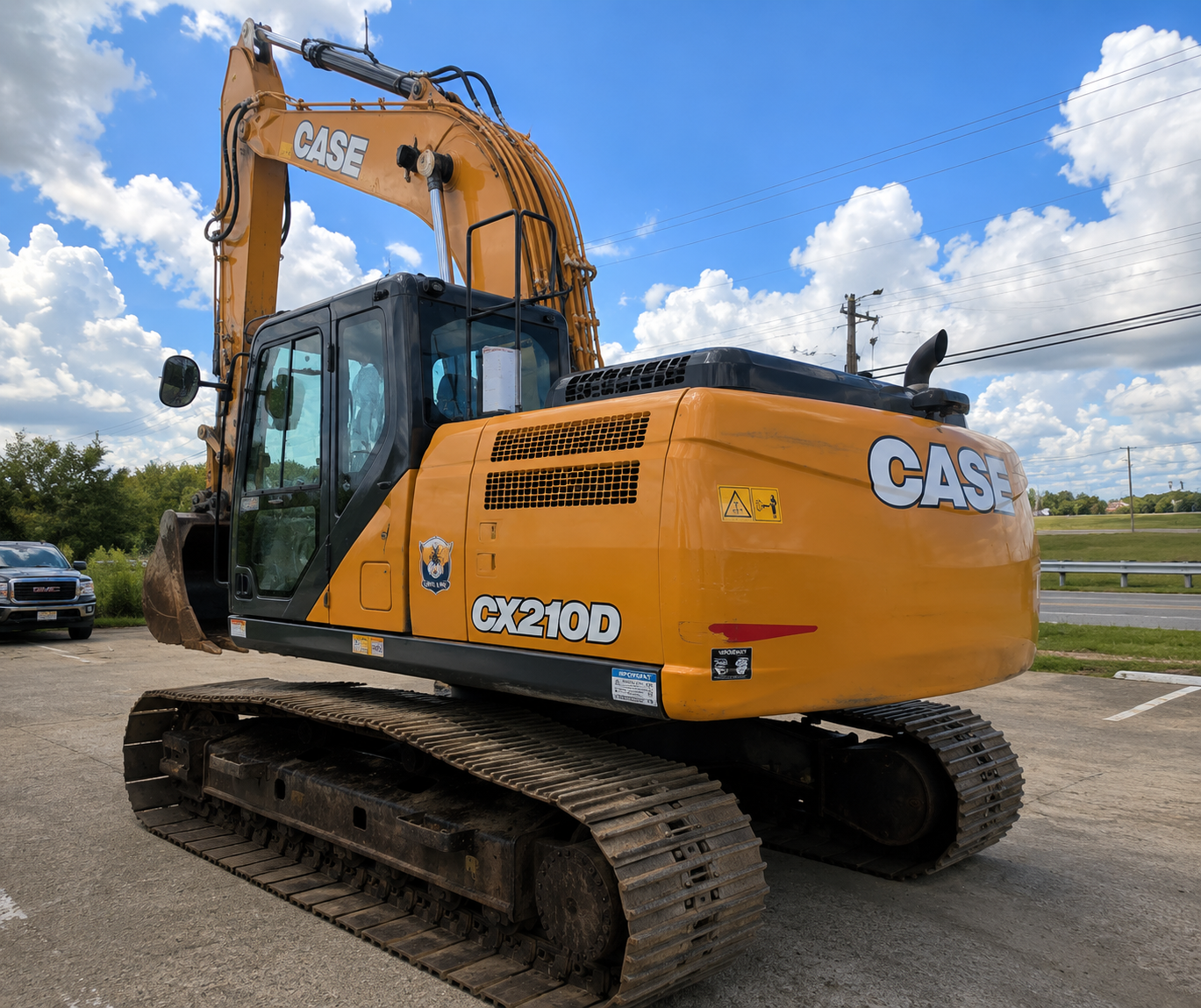

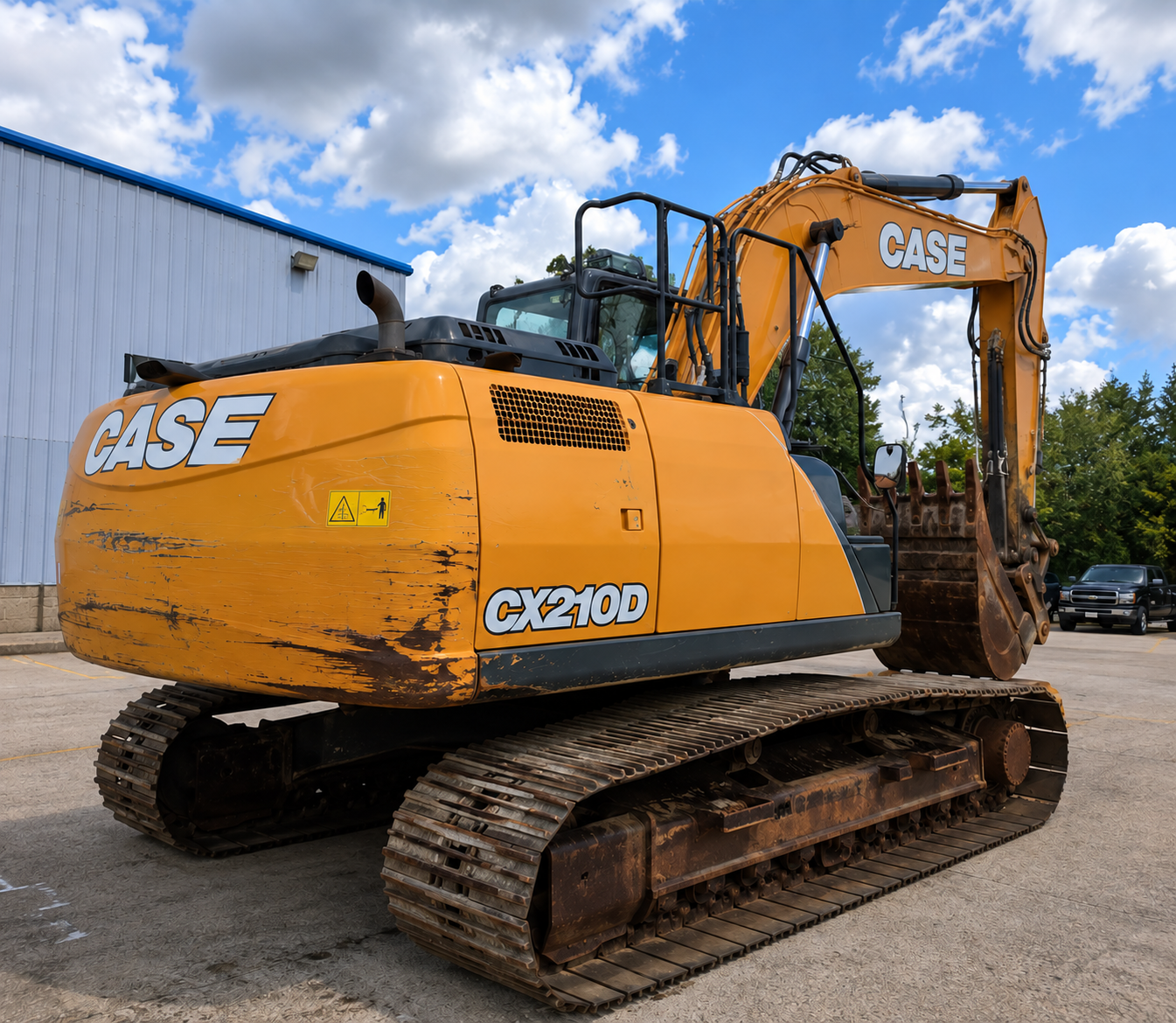

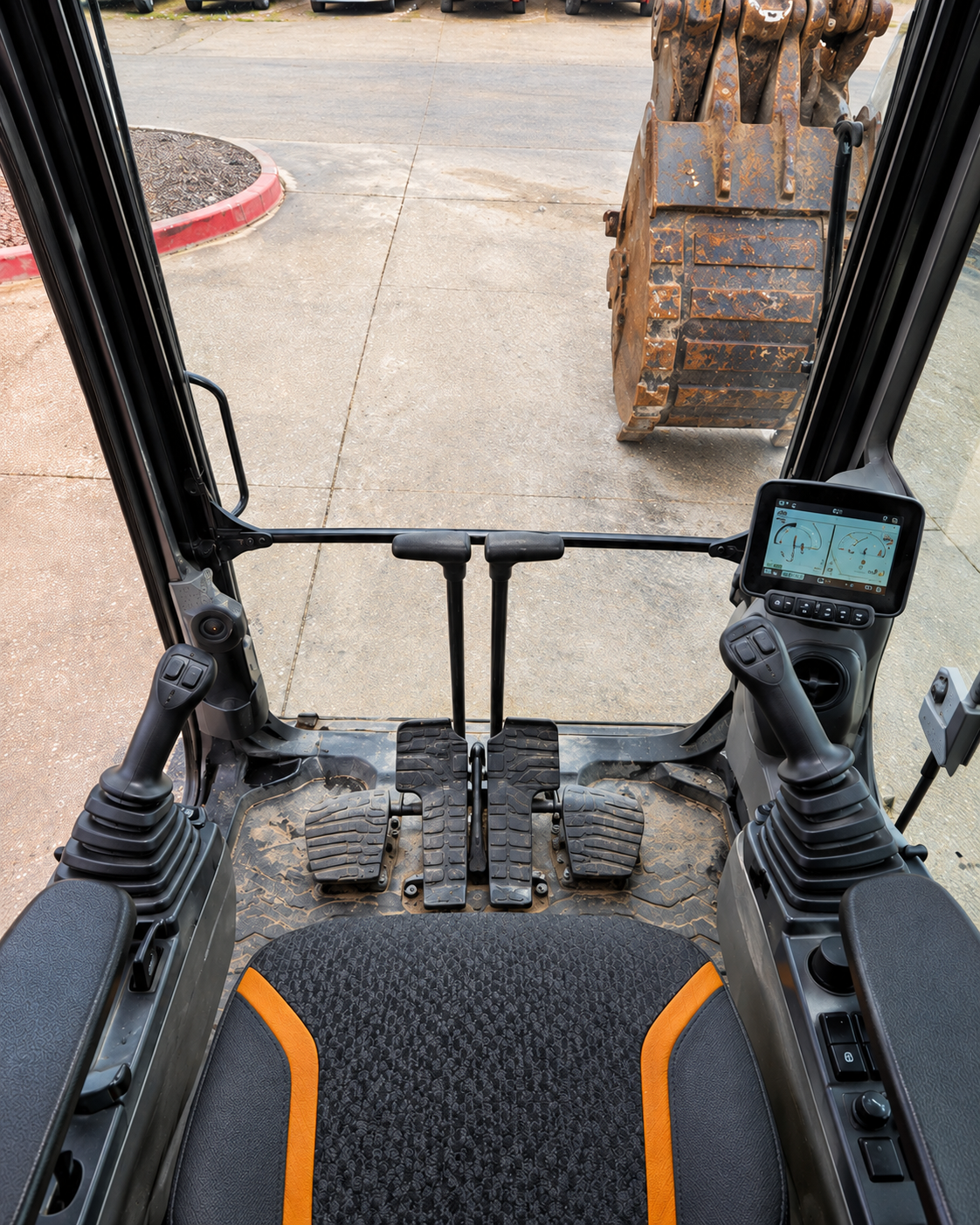

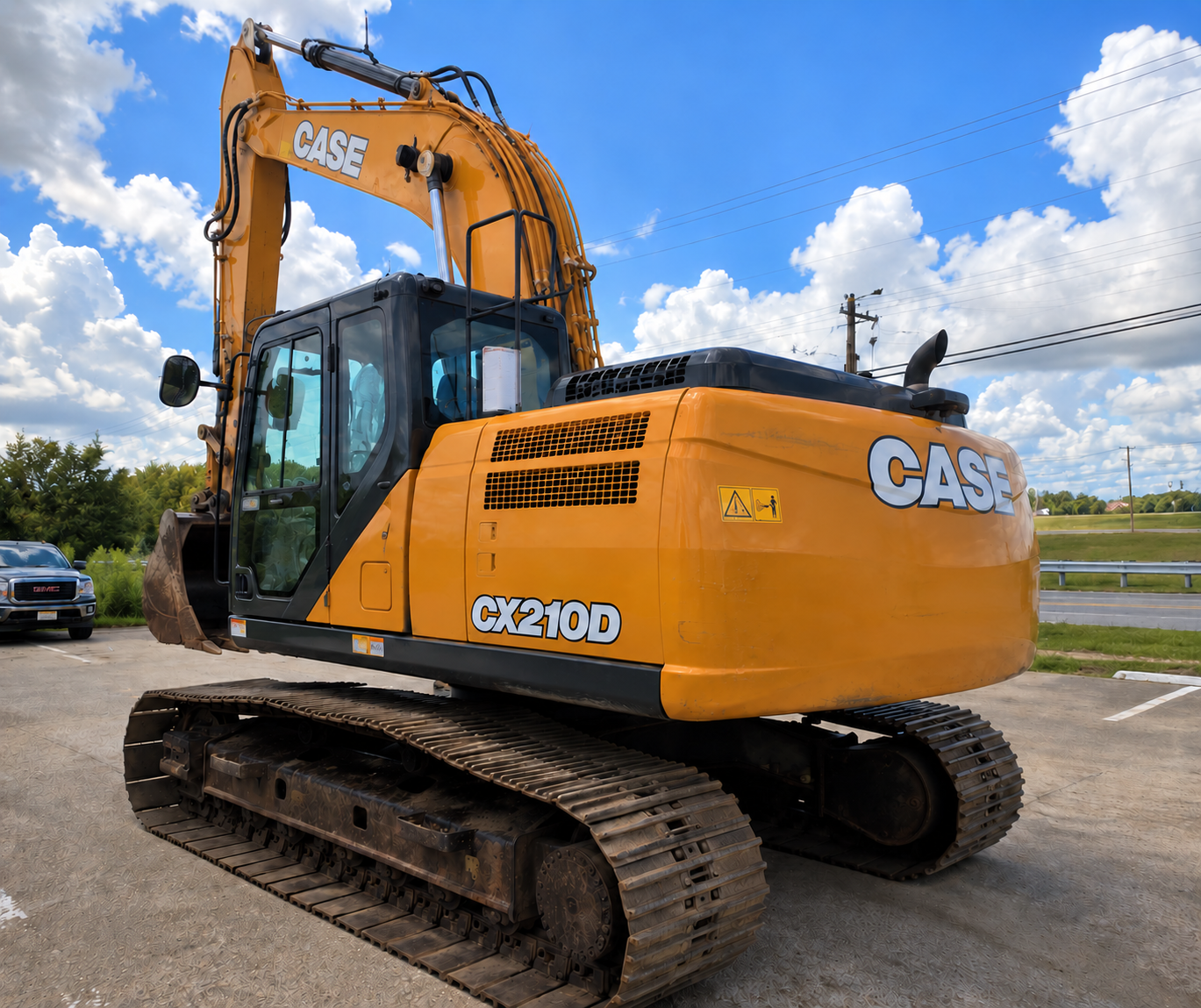

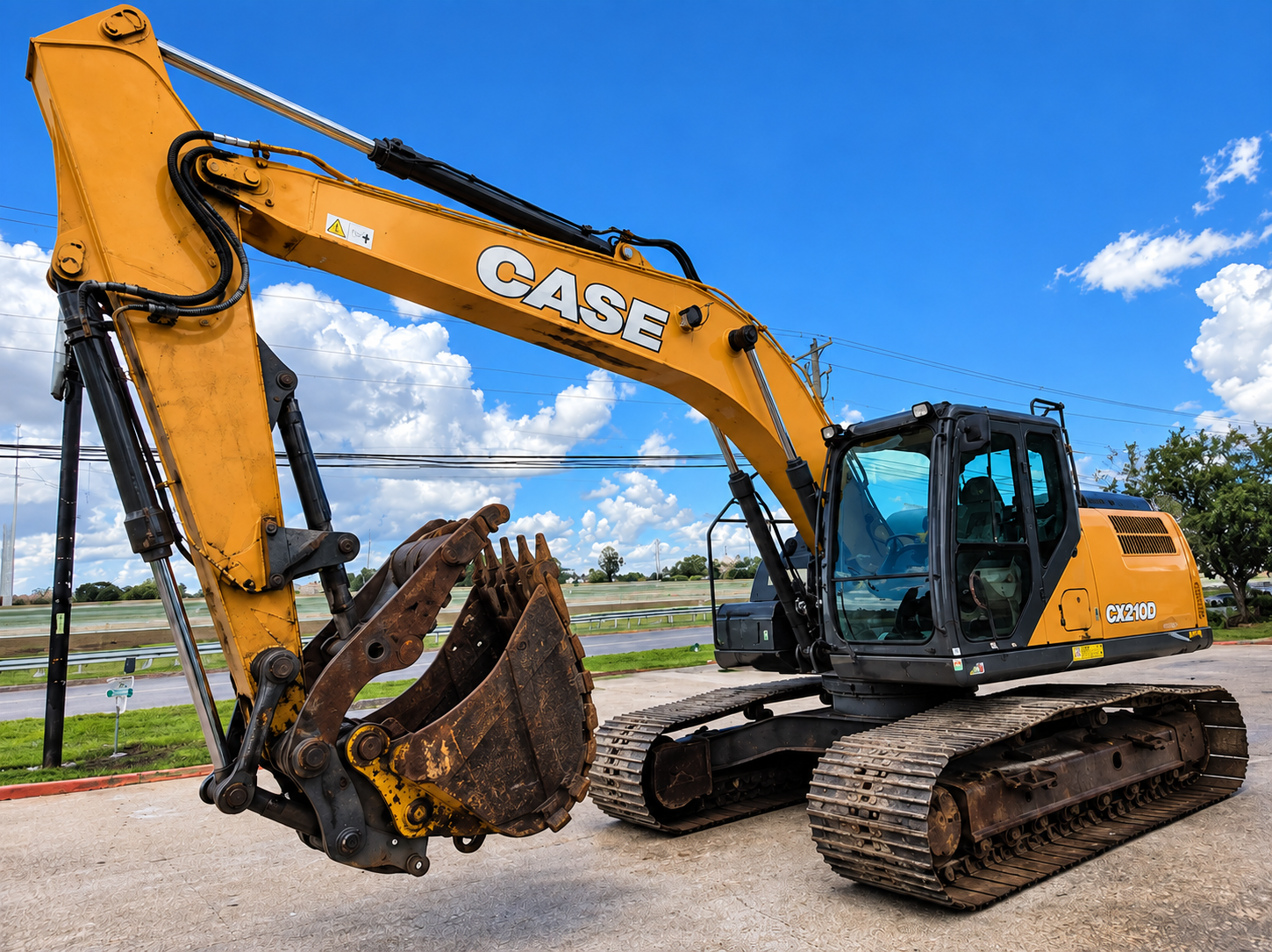

This 2019 CASE CX210D excavator handles trenching, excavation, and loading. Its steel tracks support travel over jobsite ground, while auxiliary hydraulics and an enclosed cab support daily digging work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | case |
| Model | cx210d |
| Hours | 4,730 |
| Serial Number | DAC210K7NKS7***** |
| Condition | Used |
| Oil | Requires low-ash oil CJ-4 |
| Operator Environment - Air conditioner output | 18,100 BTU/hr |
| Operator Environment - Heater output | 20,150 BTU/hr |
| Operator Environment - Sound level inside cab, ISO6396 | 70 dBA |
| Operator Environment - Cab interior light | 10 watt |

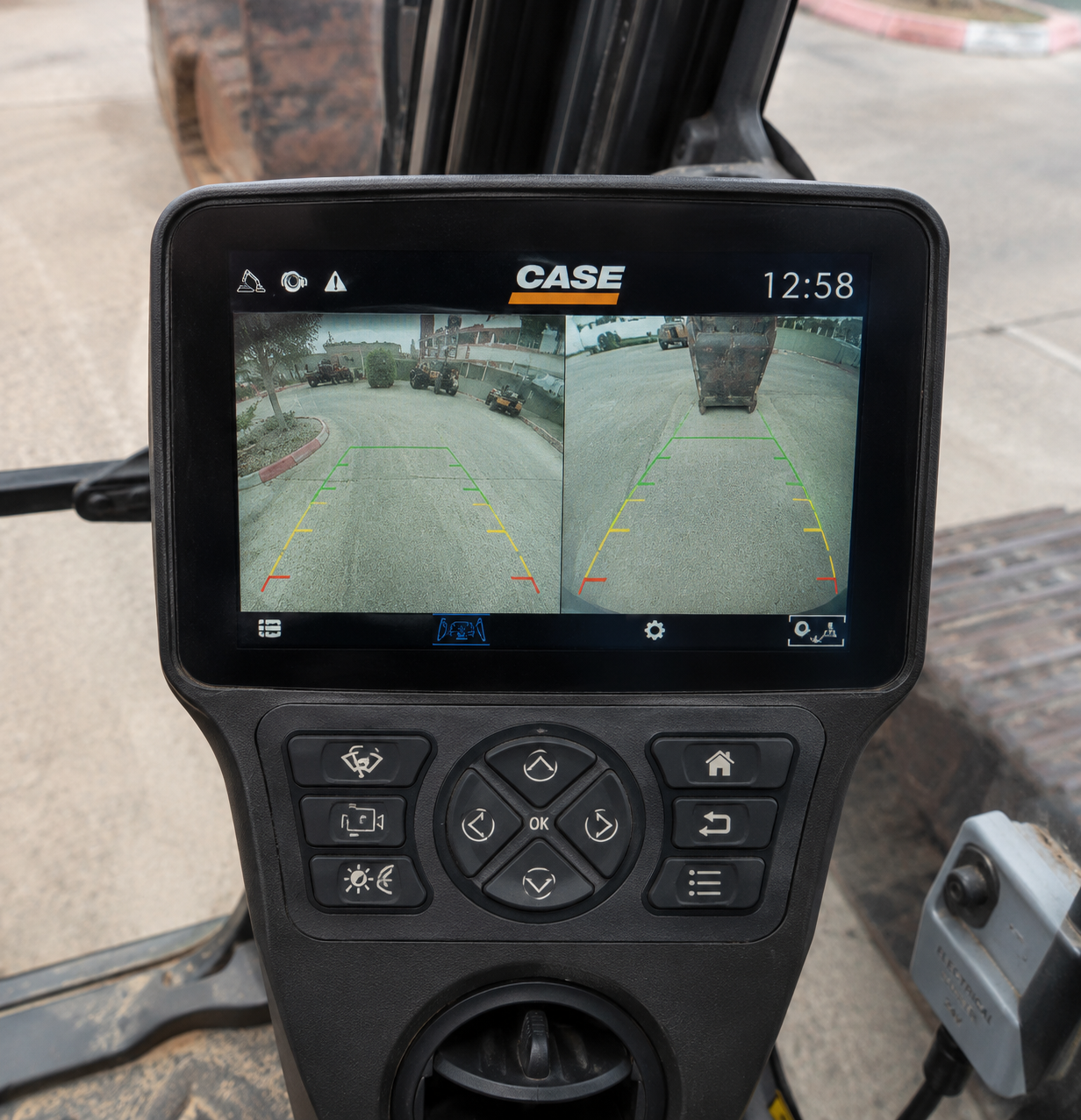

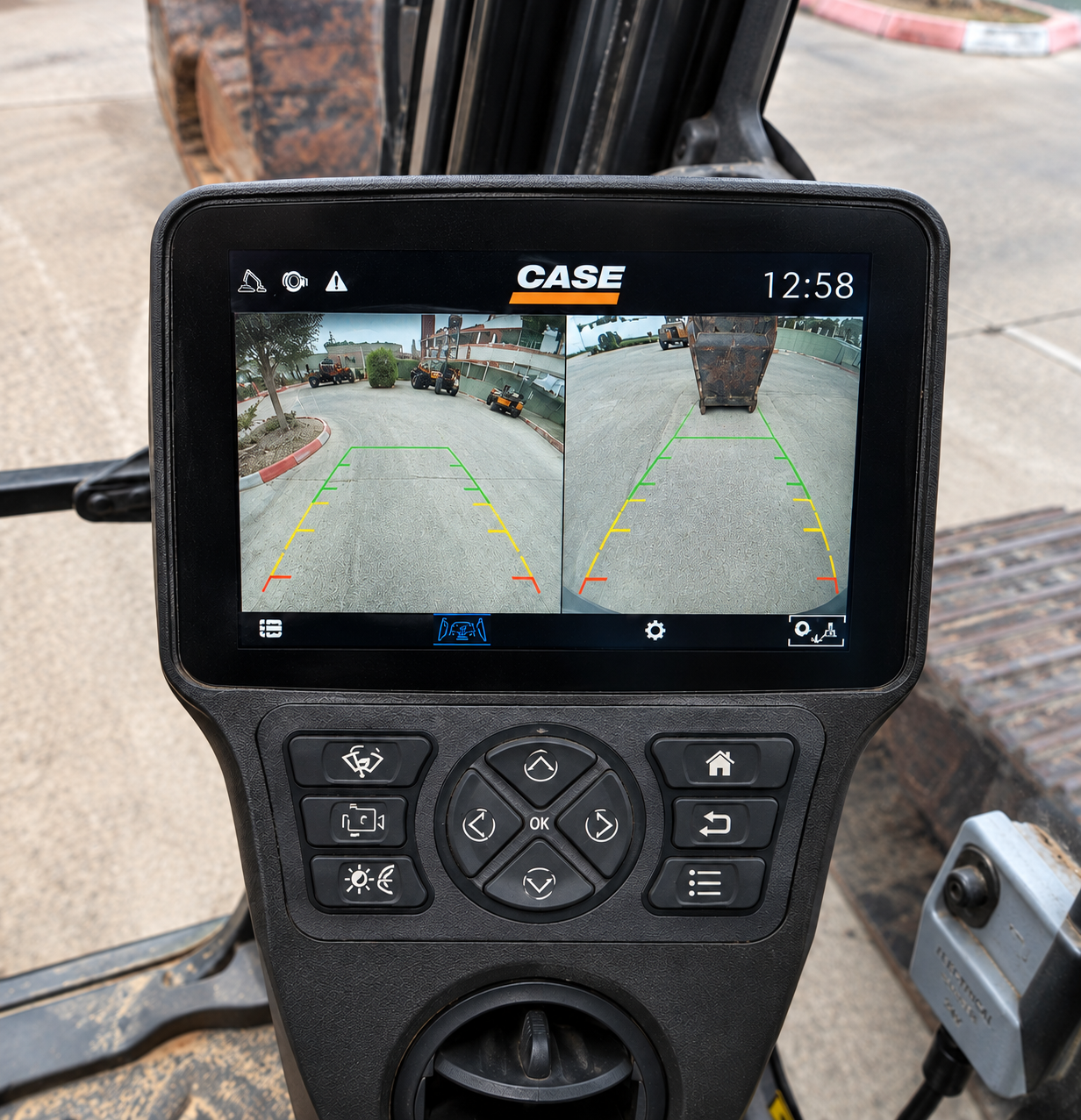

| Operator Environment - Rear view camera | Standard |
Engine & Powertrain
| Engine - Model | Isuzu AR-4HK1X |
| Emissions Certification | Tier 4 Final |
| Fuel | Requires ultra-low sulfur fuel, B5 biodiesel tolerant |
| Engine - Type | Water-cooled, 4-cycle diesel, high pressure common rail system - electric control, VGT Turbocharger w/ air cooled intercooler, SCR system |
| Engine - Cylinders | 4-cylinder in-line |
| Engine - Displacement | 317 in3 (5.2 L) |
| Engine - Bore/Stroke | 4.53 x 4.92 in (115 x 125 mm) |
| Engine gradeability - Side-to-side | 35° |
| Engine gradeability - Fore and aft | 35° |
| Net horsepower - SAE J1349 @ 1800 RPM | 160 hp (119.3 kW) |
| Net max. torque - SAE J1349 @ 1600 RPM | 458 lbf·ft (621 N·m) |
| Cooling operating range | 113 to -4 F (45 to -20 C) |
| Drivetrain - Brakes | Mechanical disc |
| Electrical - Voltage | 24 Volts |
| Electrical - Alternator rating | 50 amp |
| Electrical - Batteries | 2 x 12 Volt |
| Electrical - Battery reserve capacity | 92 Ah/5 hour |
| Electrical - Work lights - 4 | 24 Volt/70 watt (1 boom, 1 upper, 2 cab) |
| Operator Environment - Electrical outlet | 12 Volt |
Working Range
| Two speed travel - Max. high speed | 3.5 mph (5.6 km/h) |
| Two speed travel - Max. low speed | 2.1 mph (3.4 km/h) |
| Drawbar pull | 42,264 lbf (188 kN) |
| Gradeability | 70% – 35° Slope |
| Hydraulics - System design | Open center |
| Hydraulics - Max. rated flow x 2 | 55.7 gpm (211 L/min) |
| Hydraulics - System pressures, Boom/arm/bucket w/ Power Boost | 4,975 psi (343 bar) |
| Hydraulics - System pressures, Travel circuits | 5,410 psi (373 bar) |
| Hydraulics - System pressures, Swing circuits | 4,975 psi (343 bar) |
| Hydraulics - Pilot pump | 1 x gear design, Max. capacity 4.8 gpm (18 L/min) |
Undercarriage & Attachments
| Attachment - Boom | 18 ft 8 in (5.70 m) |
| Attachment - Arm options, Standard | 9 ft 8 in (2.94 m) |
| Attachment - Arm options, Heavy-duty | 7 ft 10 in (2.40 m) |
| Attachment - Bucket digging force, Standard | 31,923 lbf (142 kN) |
| Attachment - Bucket digging force, w/ Auto Power-Boost | 34,621 lbf (154 kN) |
Dimensions
| Operating weight - w/ shoes | 2 ft 6.25 in (800 mm) |
| Operating weight - w/ boom | 18 ft 8 in (5.7 m) |
| Operating weight - w/ arm | 9 ft 8 in (2.94 m) |
| Operating weight - w/ bucket | 1,433 lb (650 kg) |
| Ground Pressure @ Standard operating weight | 4.9 psi (0.34 bar), w/ 31.5 in (800 mm) triple semi-grouser shoes |
2019 Case CX210D Excavator
BUY NOW OR MAKE OFFERAvailable
Listing Price
BUY NOW OR MAKE OFFER
$93,349.00
Plus Buyer Fee ($9,334.90)
est. $1,547.06/mo
