Financing 1 / 6
Item Specifications
Category
Condition
Used
Item Number
#1230
Make
jlg
Model
400s
Year
2018
Industry
aerial
Equipment Type
telescopic boom lifts
Location
Corpus Christi, TX
Serial
03002*****
Also Available In
TX
Item Description
This 2018 JLG 400S telescopic boom lift provides elevated access for construction and maintenance. Its extending boom reaches outward from the machine, while four-wheel drive and an oscillating axle support travel across uneven ground. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2018 |
| Make | jlg |
| Model | 400s |
| Hours | 3,383 |
| Serial Number | 03002***** |
| Condition | Used |
| Max Platform Height | 40.36 ft in |
| Max Horizontal Reach | 34.13 ft in |
| Platform Inner Length | 96.07 in |
| Max Platform Weight Capacity | 992.09 lb |
| Platform Inner Width | 35.83 in |
| Platform Rotation | 180 degrees |
| Operating Weight | 12524.5 lb |
| Fuel Capacity | 26.1 gal |
| Hydraulic System Fluid Capacity | 42.1 gal |
| Max Speed | 4.5 mph |

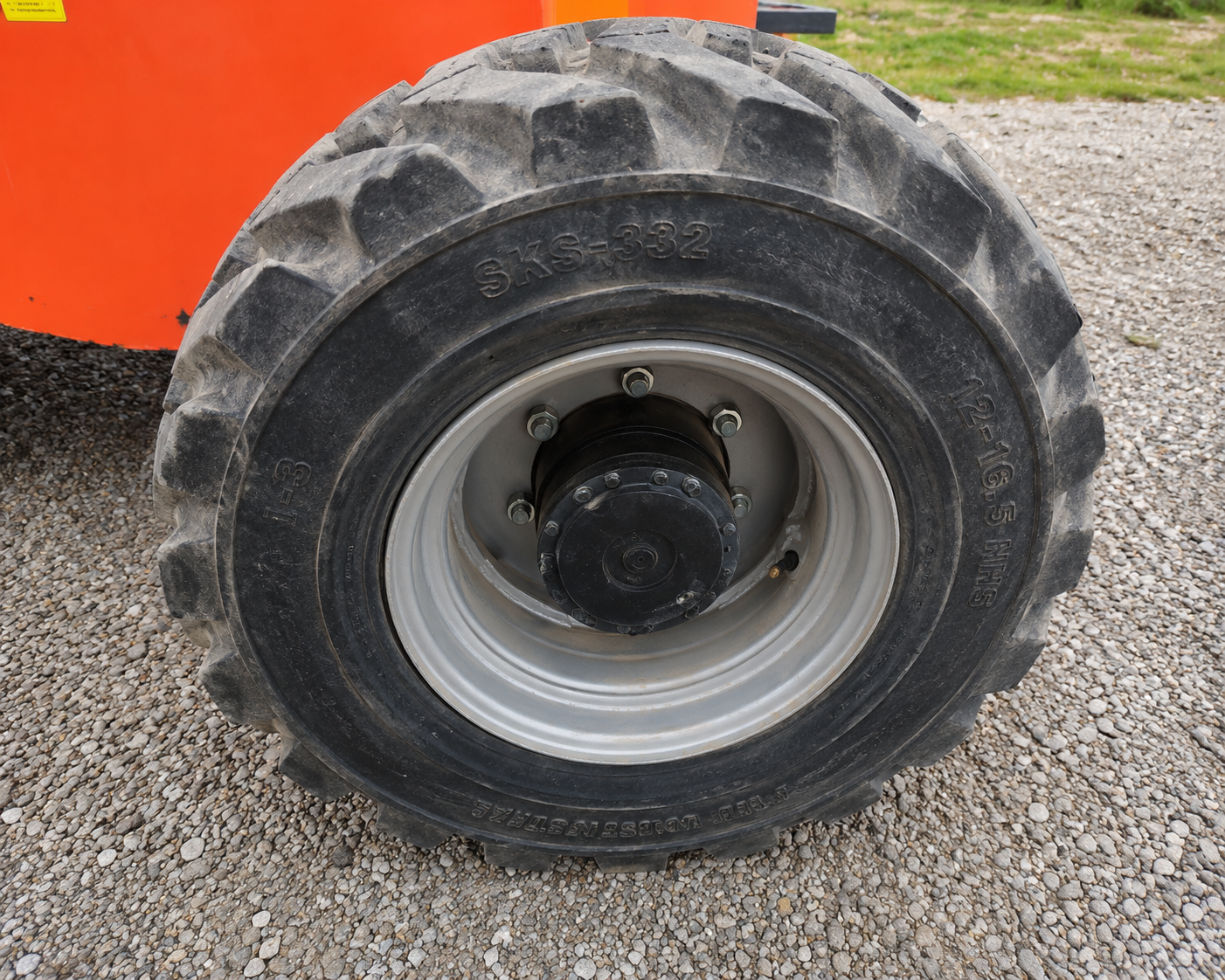

| Tire Size | 12 x 16.5 |
| Tire Fill/Type | Pneumatic Lug Tread Tires |
Engine & Powertrain
| Diesel Engine Type | Deutz D2.9L4 Tier 4 Final |
| Diesel Engine Power | 49 hp |
| Dual Fuel Engine Type | GM Vortec 3000 MPFI |
| Maximum Ground Bearing Pressure | 60 psi |
| Dual Fuel Engine Power | 82 hp |
| Engine Make | 2349 |
| Engine Model | F3M1011 |
| Gross Power | 48.1 hp |
| Displacement | 177 cu in |
| Fuel Type | Diesel |
| System Voltage | 12 V |
Working Range
| Drive Speed | 4.5 mph |
| Swing | 360 degrees |
| Swing Type | Continuous |
| Gradeability | 45 % |
Dimensions
| Overall Length | 24.74 in |
| Overall Width | 7.55 ft in |
| Overall Height - Mast Lowered | 7.85 ft in |
| Wheelbase | 7.68 ft in |
| Ground Clearance | 12.6 in |
| Platform Dimension A | 3 ft in |
| Platform Dimension B | 8 ft in |
| Turning Radius | 16.41 ft in |

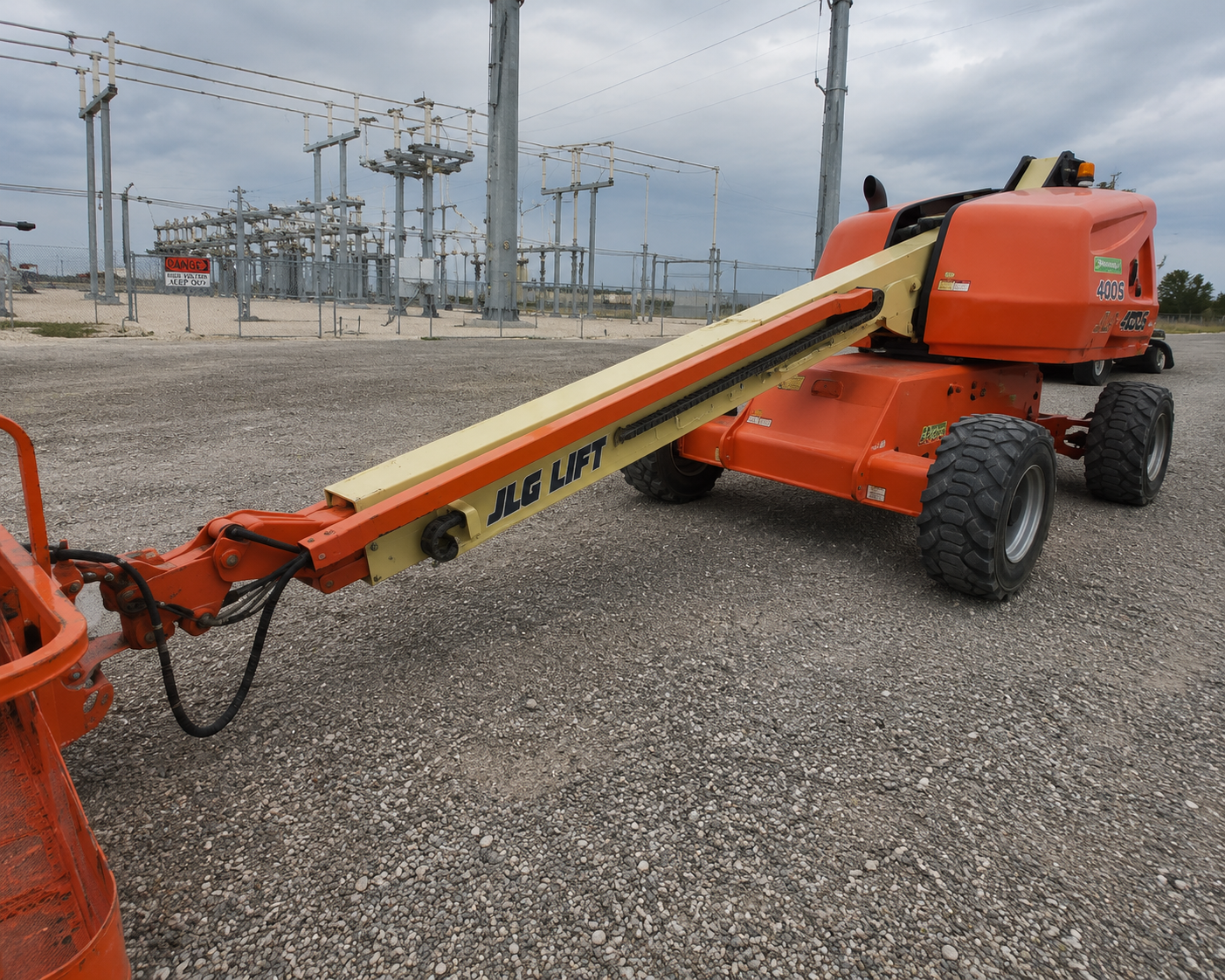

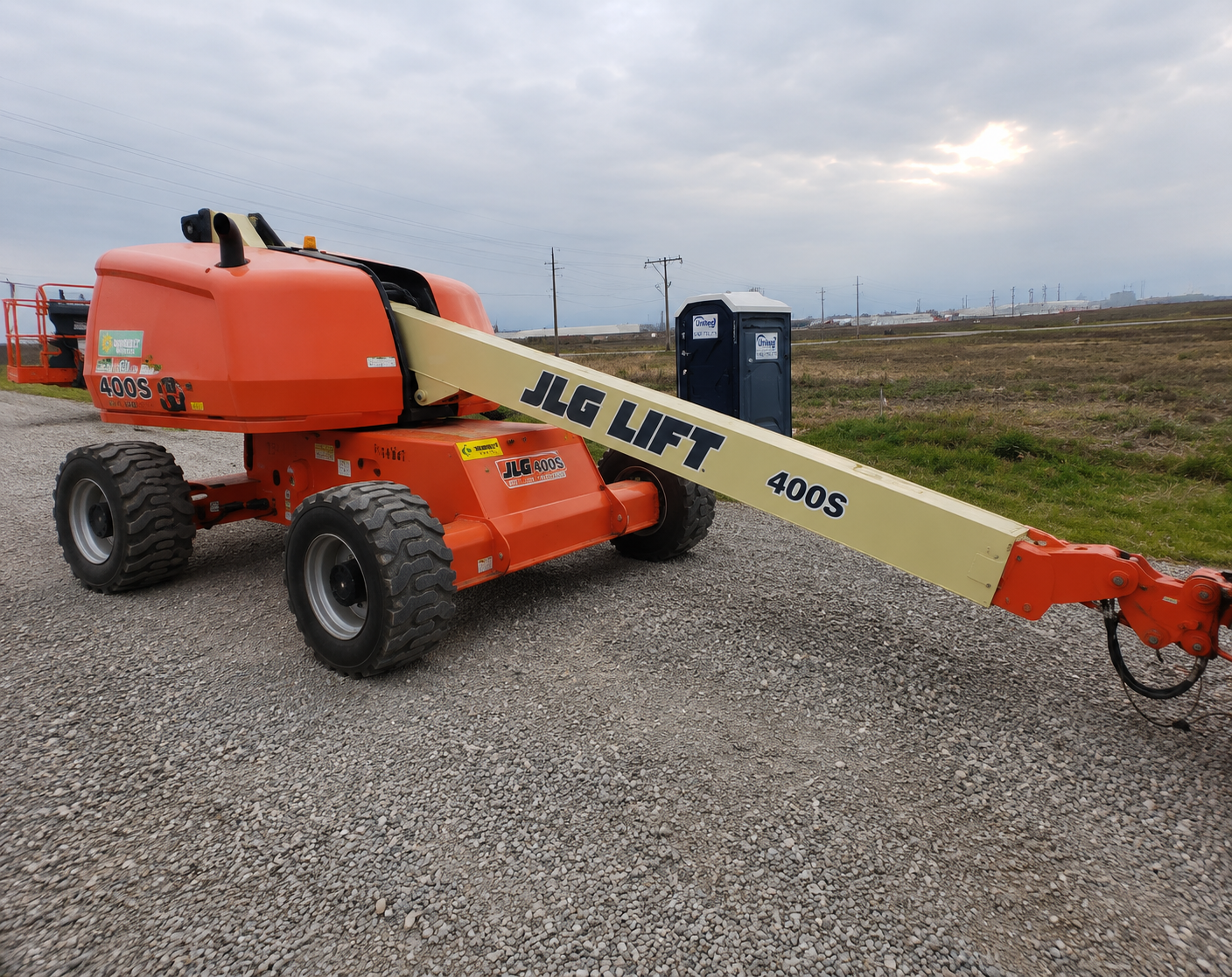

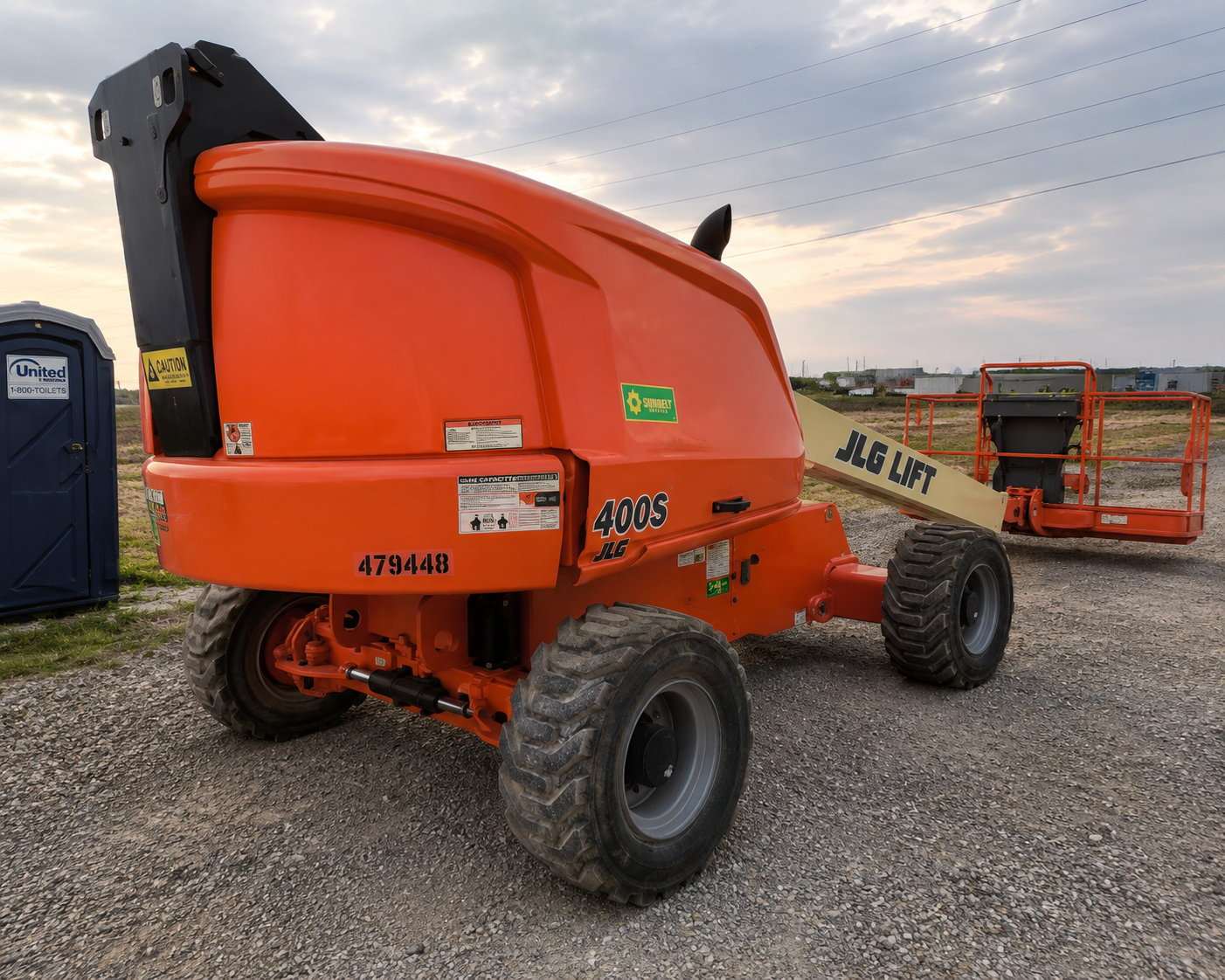

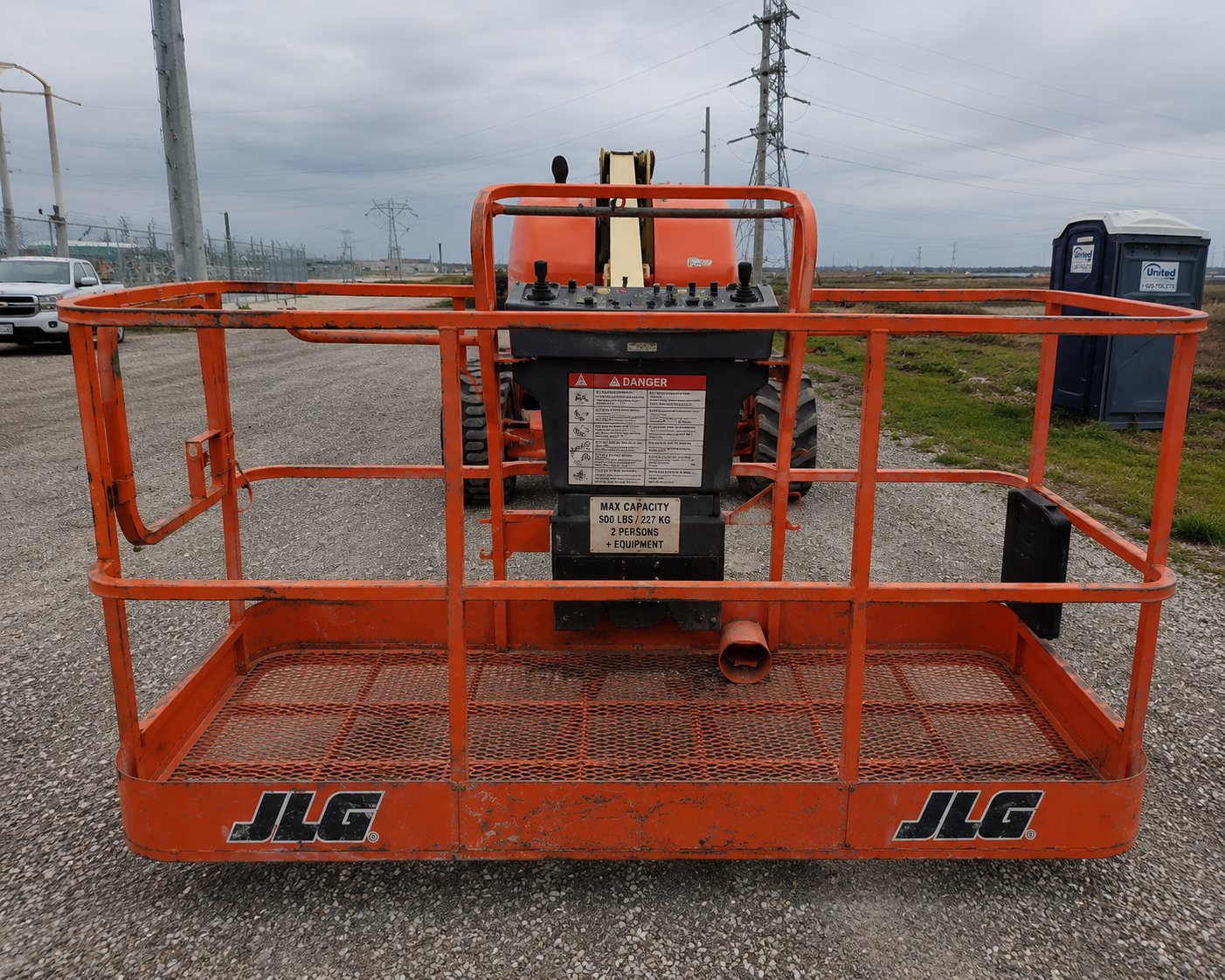

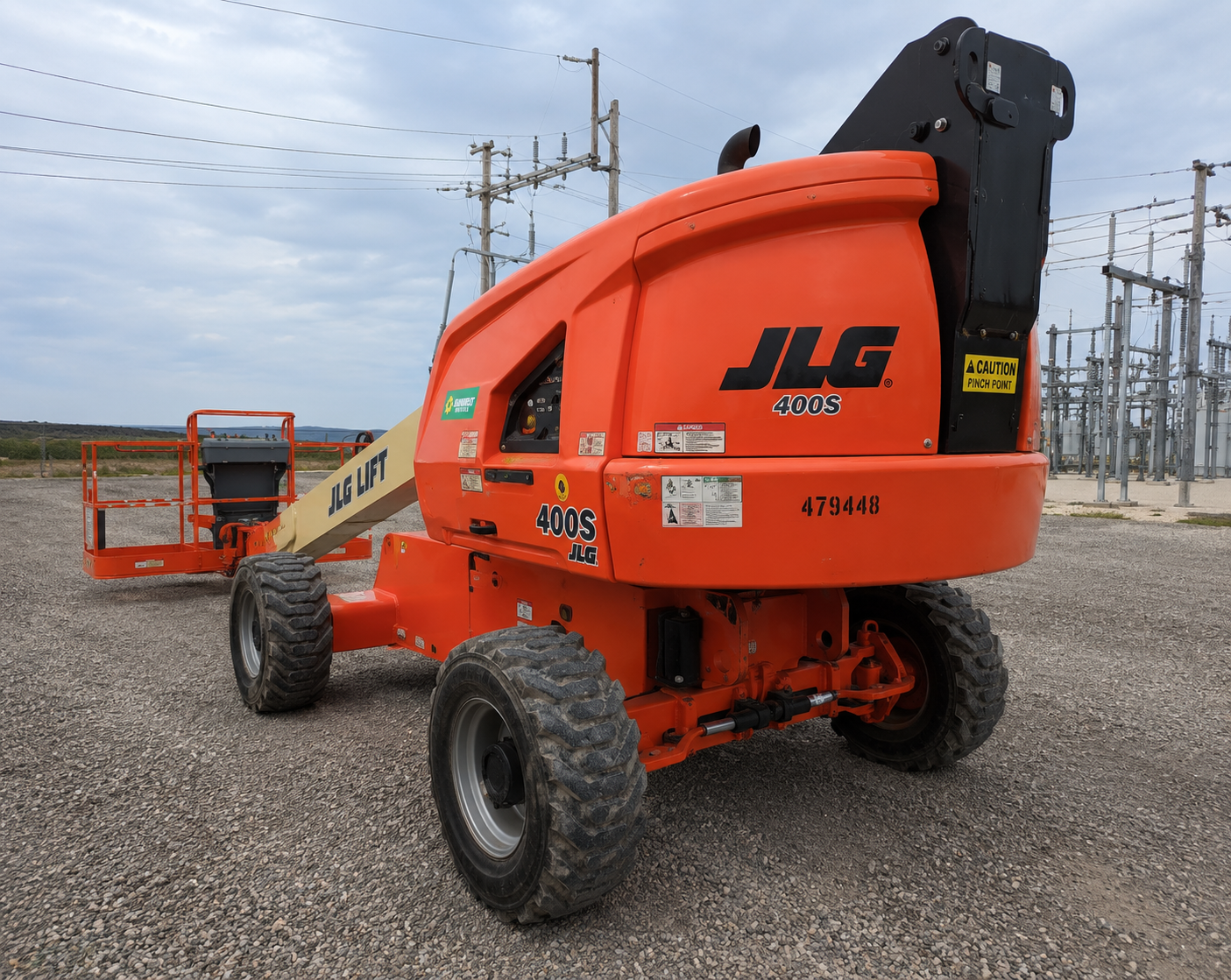

2018 JLG 400S Telescopic Boom Lift
BUY NOW OR MAKE OFFERAvailable
