Item Specifications
Category
Condition
Used
Item Number
#1218
Make
doosan_develon
Model
dl200tc
Year
2012
Industry
construction
Equipment Type
wheel loaders
Location
Owasso, OK
Serial
DHKCWLADCB00*****
Hours
3961
Also Available In
OK
Item Description
This 2012 Doosan DL200TC wheel loader can move material, load trucks, and support yard work. Its tool-carrier design supports material handling, and the enclosed cab shelters the operator. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2012 |
| Make | doosan_develon |
| Model | dl200tc |
| Hours | 3961 |
| Serial Number | DHKCWLADCB00***** |
| Condition | Used |
| Gross Power | 143 hp |
| Net Power | 137 hp |
| Aspiration | turbo compressor and air to air cooling |
| Operating Voltage | 24 V |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Relief Valve Setting | 2900.8 psi |
| Raise Time | 5.8 sec |
| Dump Time | 1.1 sec |
| Lower Time | 4.1 sec |
Engine & Powertrain
| Engine Model | DL06 |
| Max Torque | 506 lb ft |
| Displacement | 360 cu in |
| Fuel Capacity | 64.2 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Engine Oil Capacity | 7.2 gal |
| Transmission Fluid Capacity | 8 gal |
| Rear Axle Oscillation | 11 degrees |
| Transmission Type | powershift |
Working Range
| Front Diff Fluid Capacity | 5.2 gal |
| Rear Diff Fluid Capacity | 4.9 gal |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Static Tipping Load - Bucket | 19092 lb |
| Static Tipping Load - Forks | 14310 lb |
| Max Speed Forward | 21.8 mph |
| Max Speed Reverse | 15.6 mph |
| Pump Type | gear type |
| Breakout Force | 23149 lb |
Undercarriage & Attachments
| Tire Size | 20.5R25 |
| Bucket Capacity - Struck | 2.5 yd3 |
Dimensions
| Length W/ Bucket On Ground | 24.07 ft in |
| Width Over Tires | 8.08 ft in |
| Height To Top Of Cab | 10.63 ft in |
| Wheelbase | 9.52 ft in |
| Ground Clearance | 1.46 ft in |
| Dump Clearance At Max Lift | 8.7 ft in |
| Max Lift Height | 11.49 ft in |
| Reach At Max Height And Dump | 3.25 ft in |
| Length With Out Forks On Ground | 25.17 ft in |
| Operating Weight | 25530 lb |
| Turning Radius | 17.1 ft in |

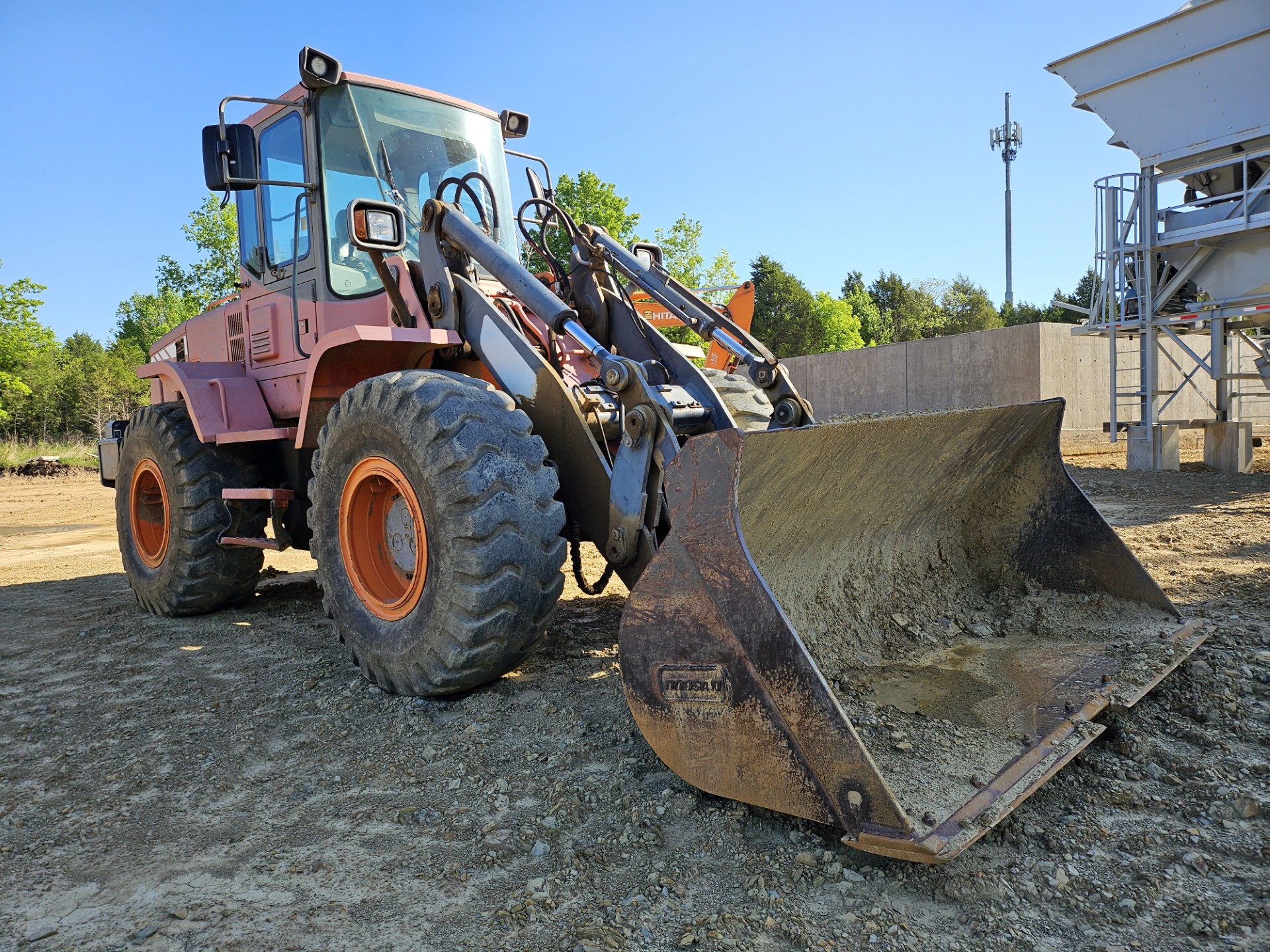

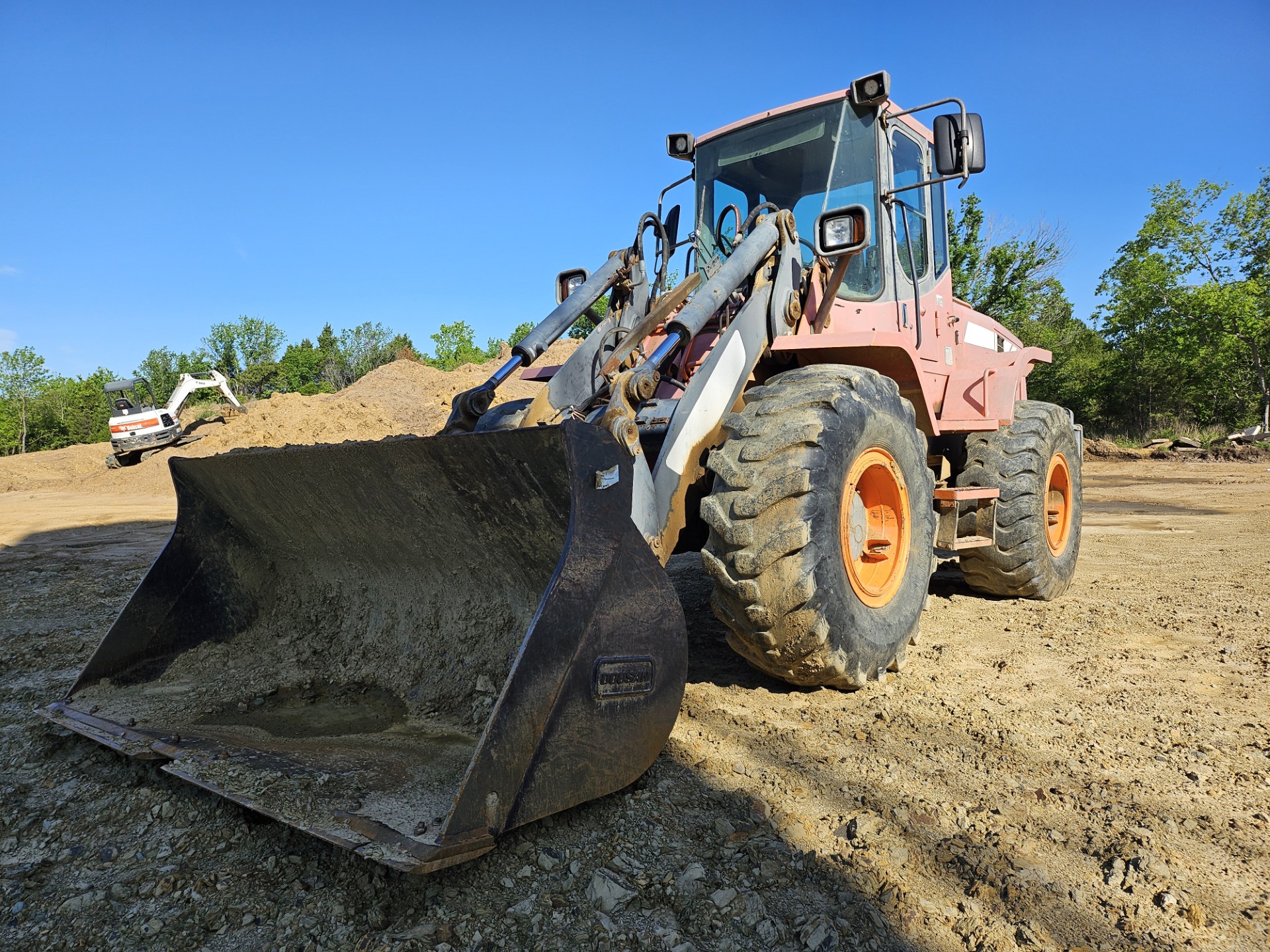

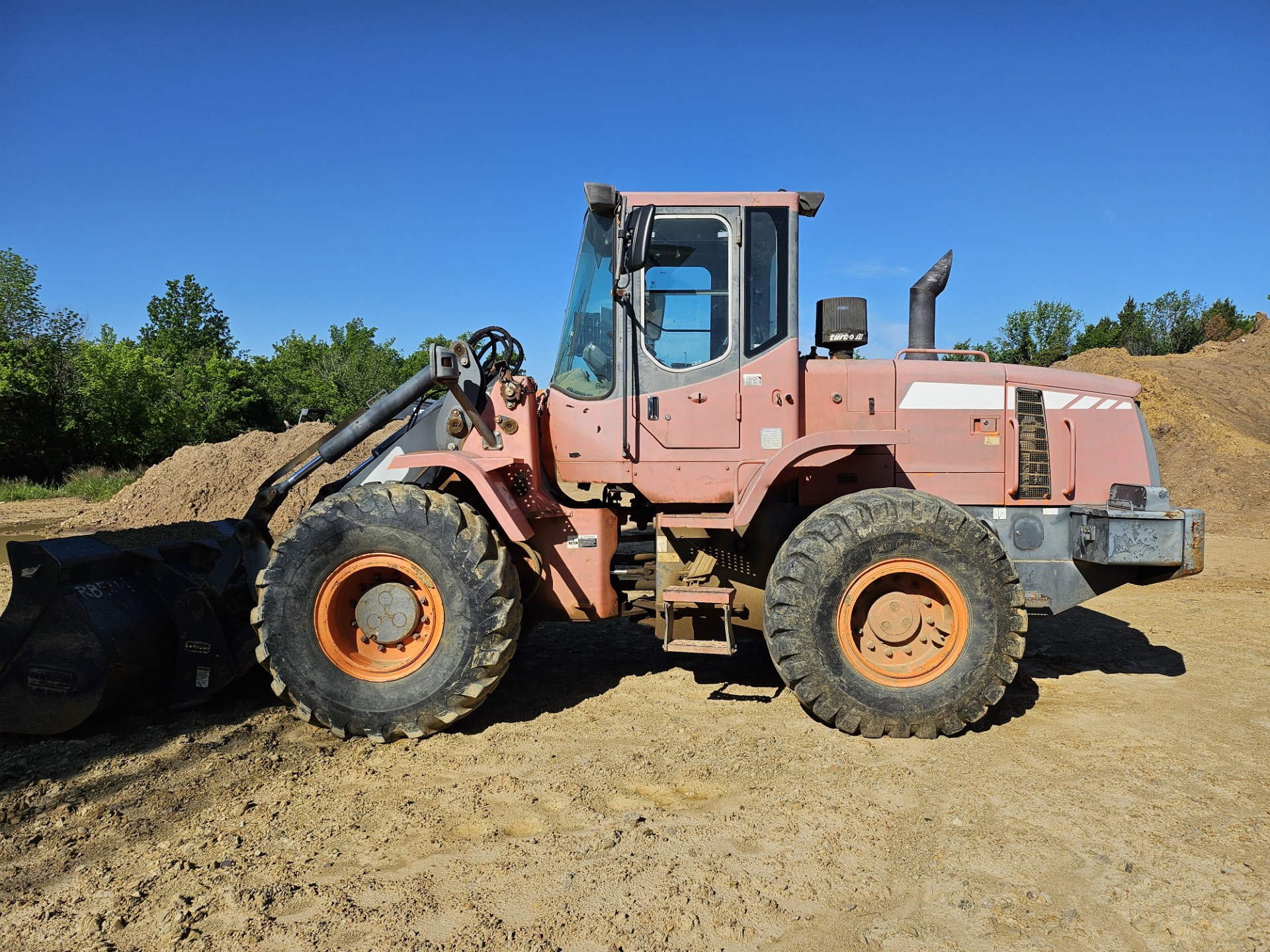

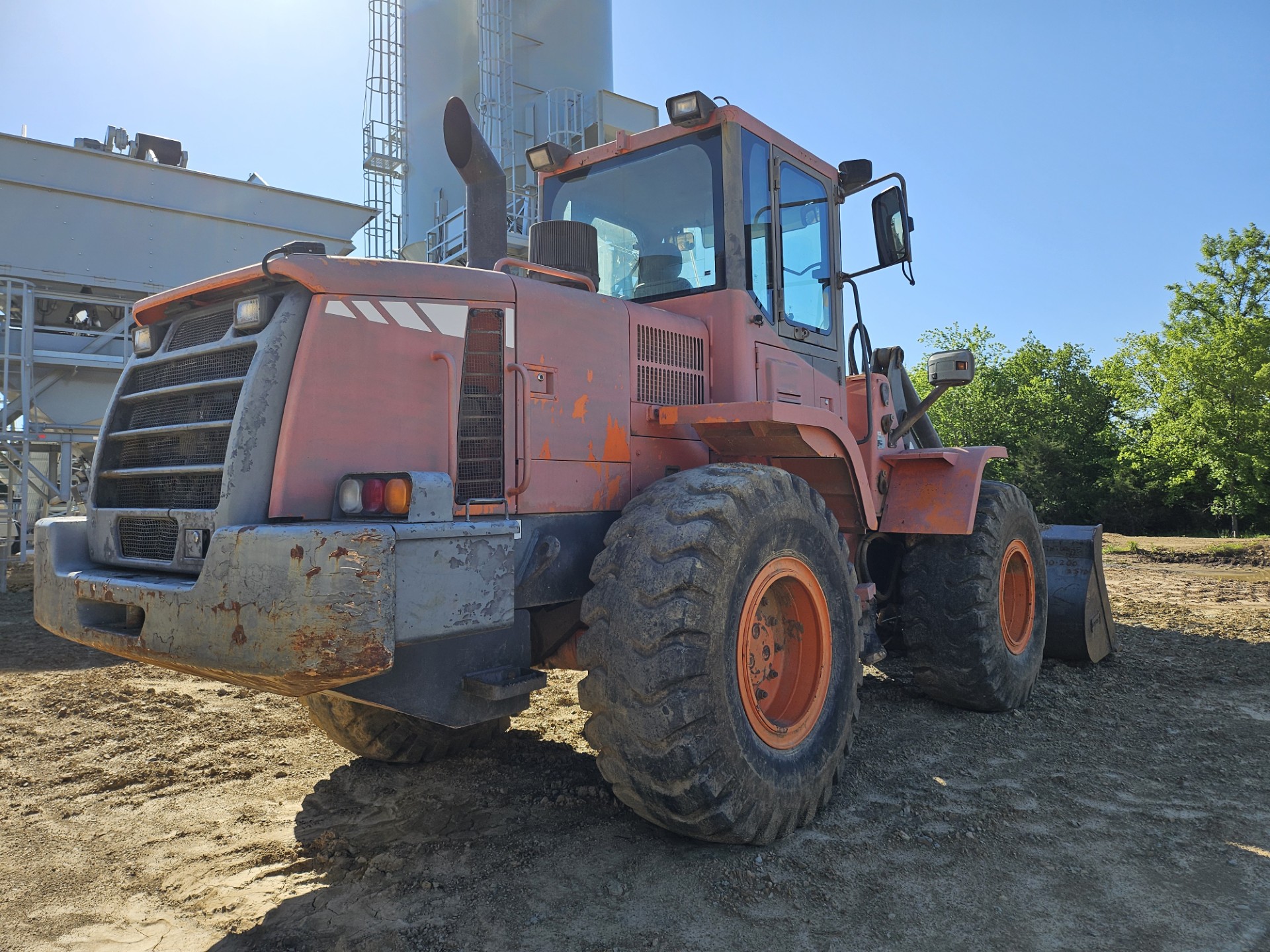

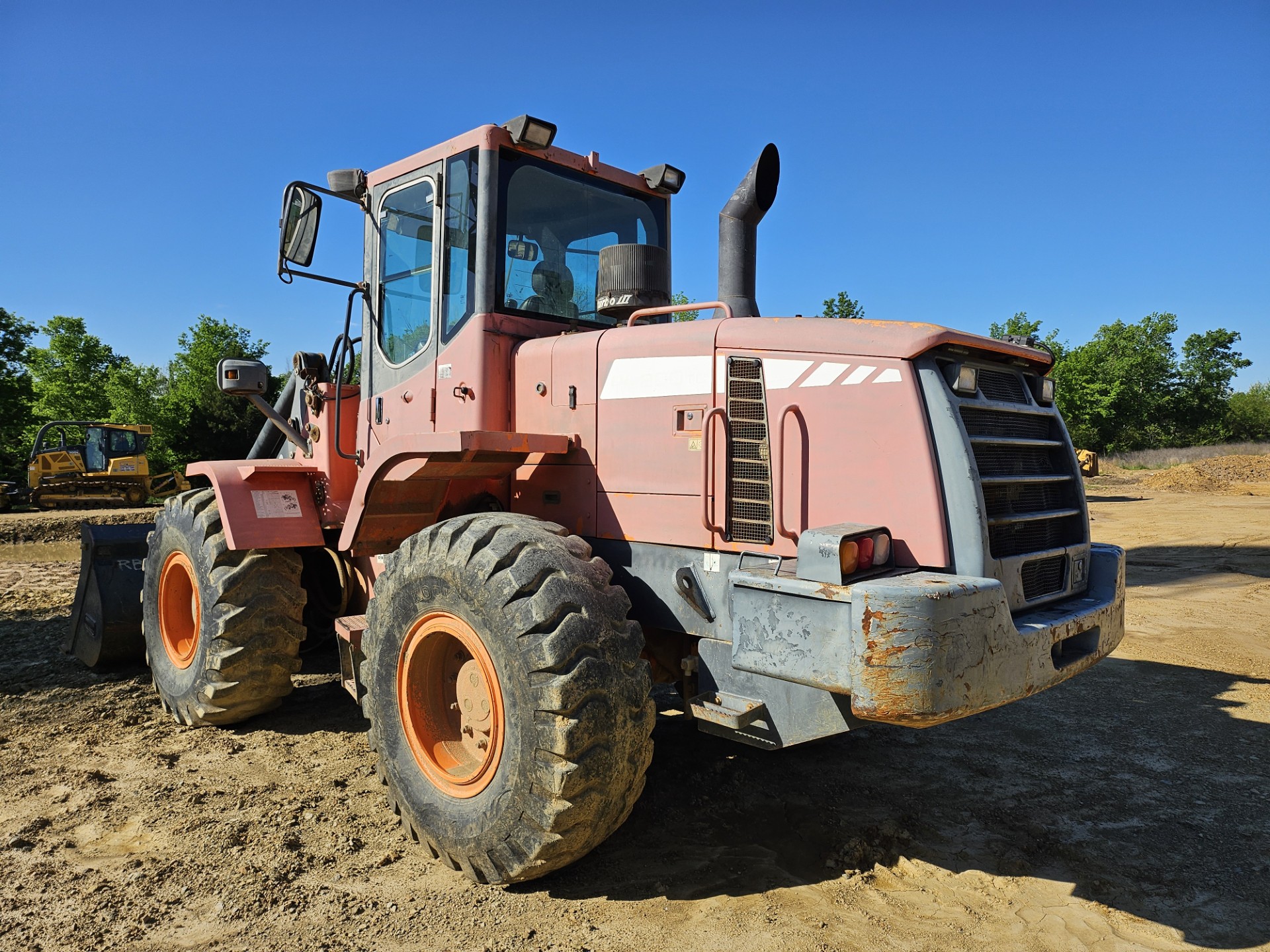

2012 Doosan / Develon DL200TC Wheel Loader
BUY NOW OR MAKE OFFERAvailable
