Item Specifications
Category
Condition
Used
Item Number
#1212
Make
hamm
Model
hd12vv
Year
2014
Industry
construction
Equipment Type
compactors rollers
Location
Sapulpa, OK

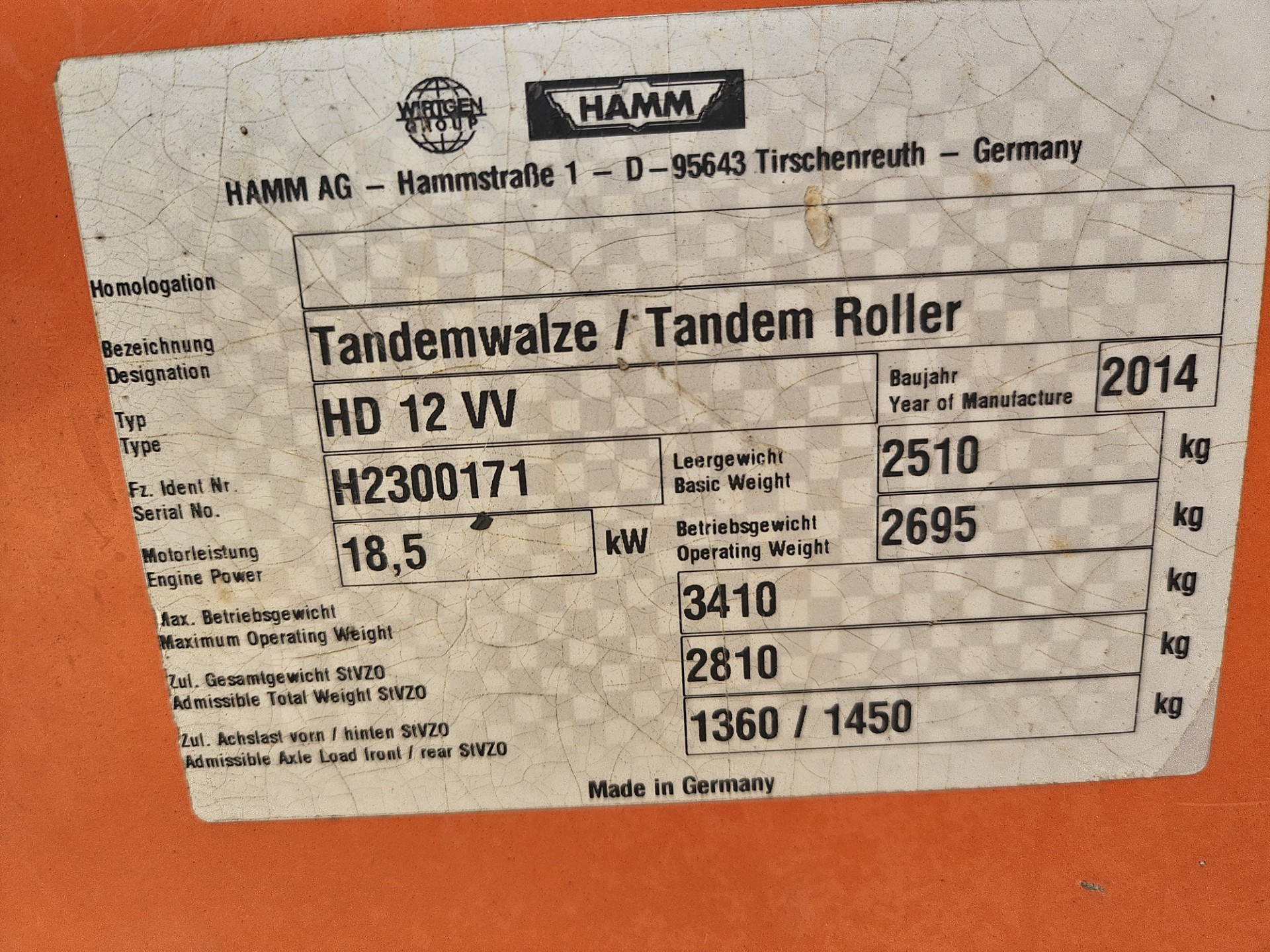

Serial
H23*****
Also Available In
OK
Item Description

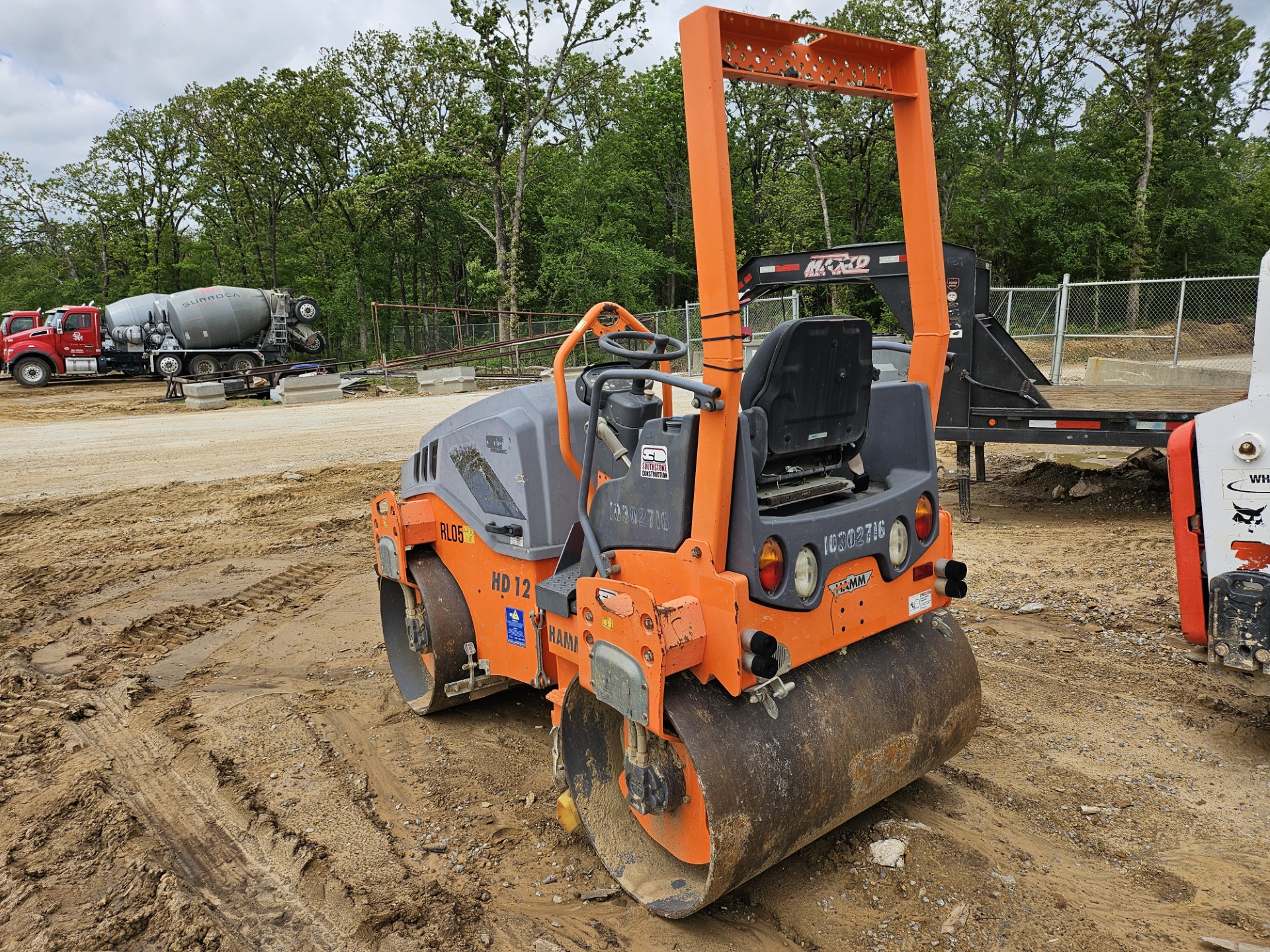

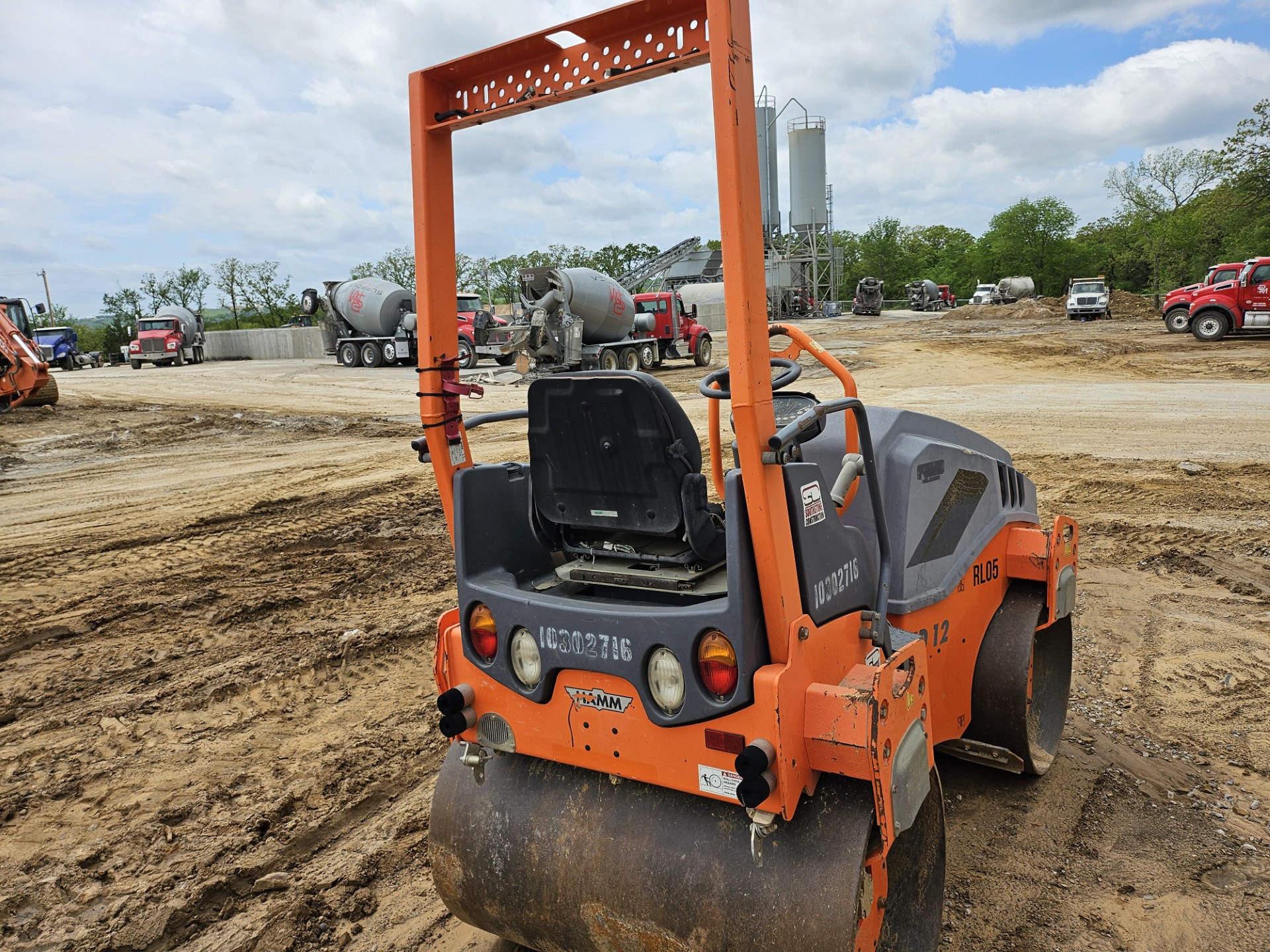

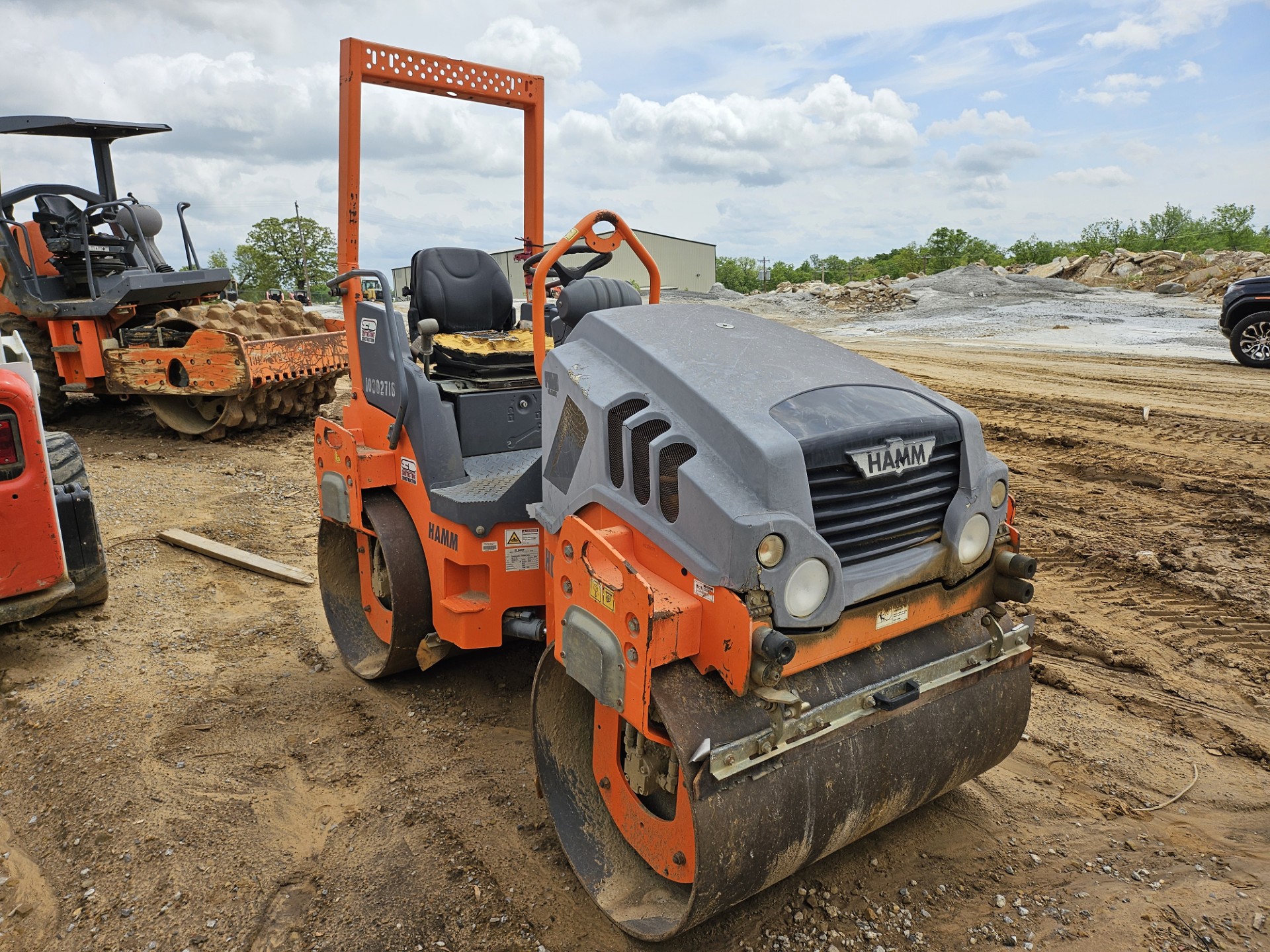

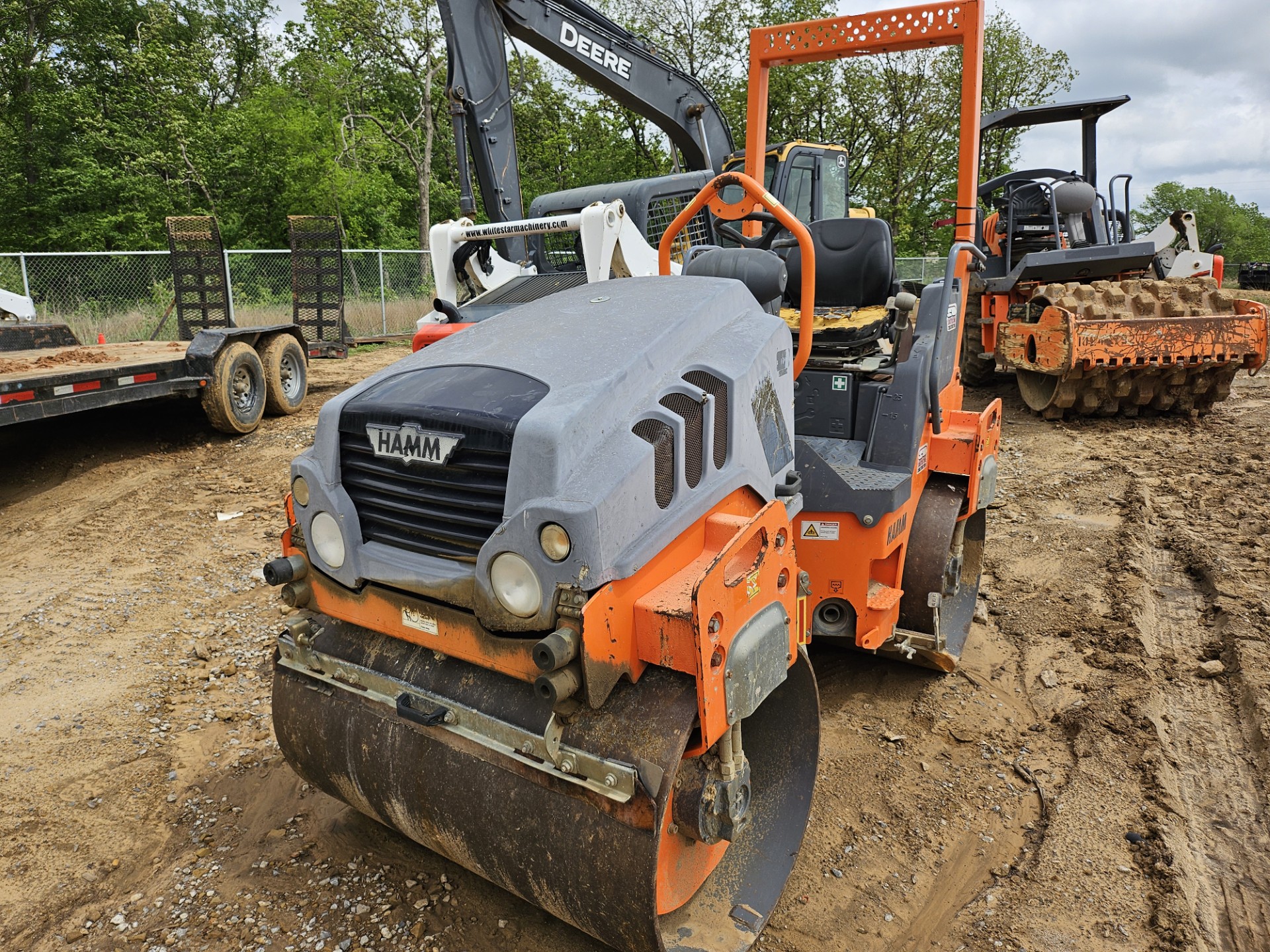

This 2014 Hamm HD12VV vibratory compactor rolls asphalt and other prepared surfaces. Its dual smooth drums compact as the machine travels, while articulated steering helps it follow turns and edges. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2014 |
| Make | hamm |
| Model | hd12vv |
| Hours | 519 |
| Serial Number | H23***** |
| Condition | Used |
| Center distance | 1700 mm / 66.9 in |
| Drum diameter, front/rear | 720/720 mm / 28.3/28.3 in |
| Power ISO 14396, kW/PS/rpm | 18,2/24,8/2200 |
| Vibration frequency, front, I/II | 65/51 Hz |
| Centrifugal force, front, I/II | 38/23 kN / 8,550/5,175 lbs |
Engine & Powertrain
| Diesel engine - Manufacturer | Kubota |
| Diesel engine - Model | D1703-M-DI-E4B |
| Diesel engine - Cylinders, quantity | 3 |
| Exhaust emission standard | EU Stage V / EPA Tier 4 |
| Fuel tank, capacity | 42 L / 11.1 Gal |
Working Range
| Static linear load, front/rear | 11,1/11,3 kg/cm / 62.2/63.3 lbs/in |
| Speed, infinitely variable | 10,2 km/h / 6.3 mph |
| Water tank, capacity | 180 L / 47.6 Gal |
Dimensions
| Operating weight with ROPS | 2695 kg / 5,942 lbs |
| Max. operating weight | 3410 kg / 7,519 lbs |
| Total length | 2530 mm / 99.6 in |
| Total height with ROPS | 2475 mm / 97.4 in |
| Height loading, min. | 1752 mm / 69.0 in |
| Total width | 1310 mm / 51.6 in |
| Maximum working width | 1250 mm / 49.2 in |
| Turning radius, inside | 2370 mm / 93.3 in |
| Drum width, front/rear | 1200/1200 mm / 47.2/47.2 in |
