Item Specifications
Category
Condition
Used
Item Number
#1208
Brand
Kubota
Make
kubota
Model
kx040_4
Year
2019
Industry
construction
Equipment Type
mini excavators
Location
Sapulpa, OK

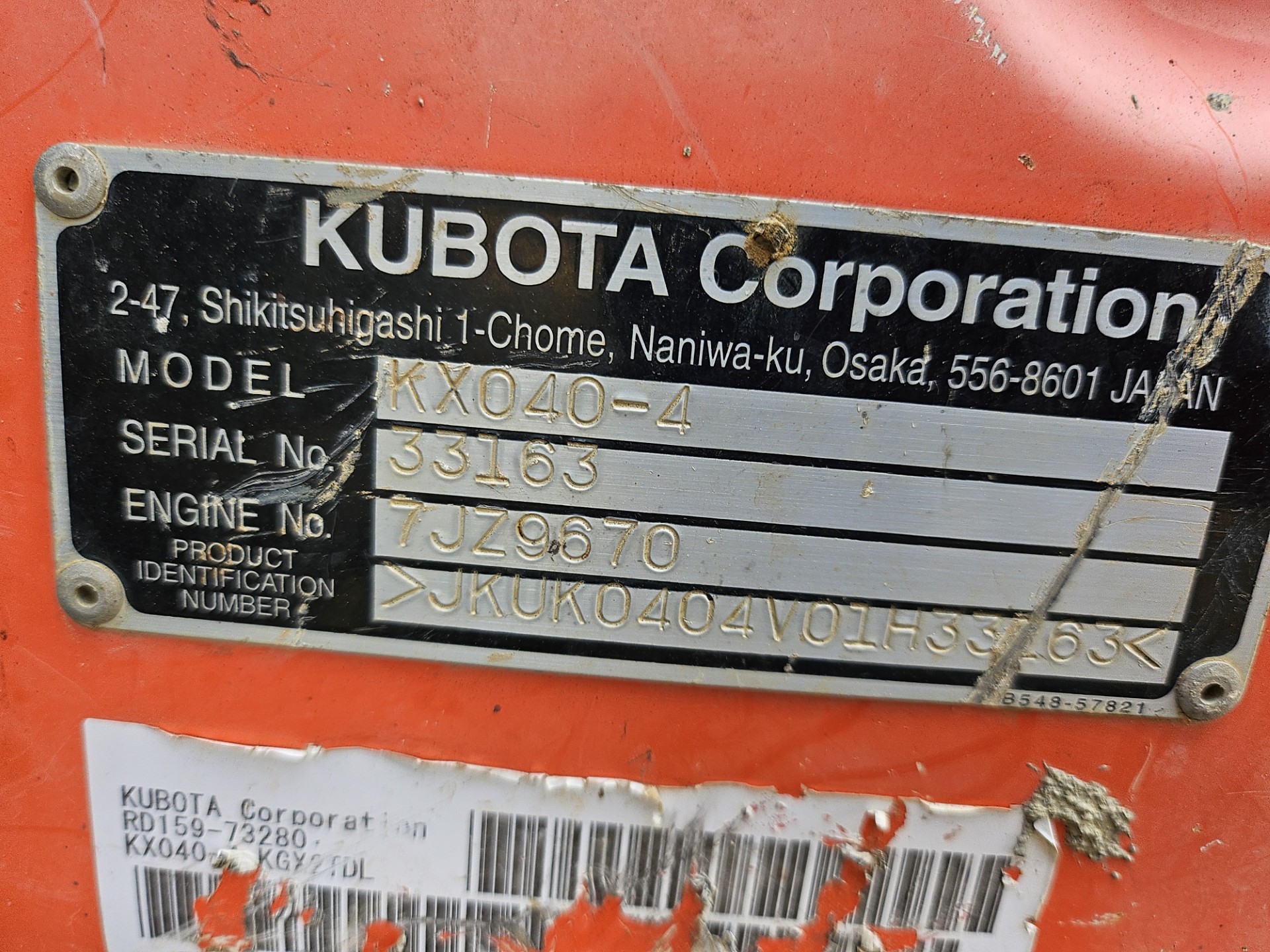

Serial
JKUK0404V01H*****
Also Available In
OK
Item Description

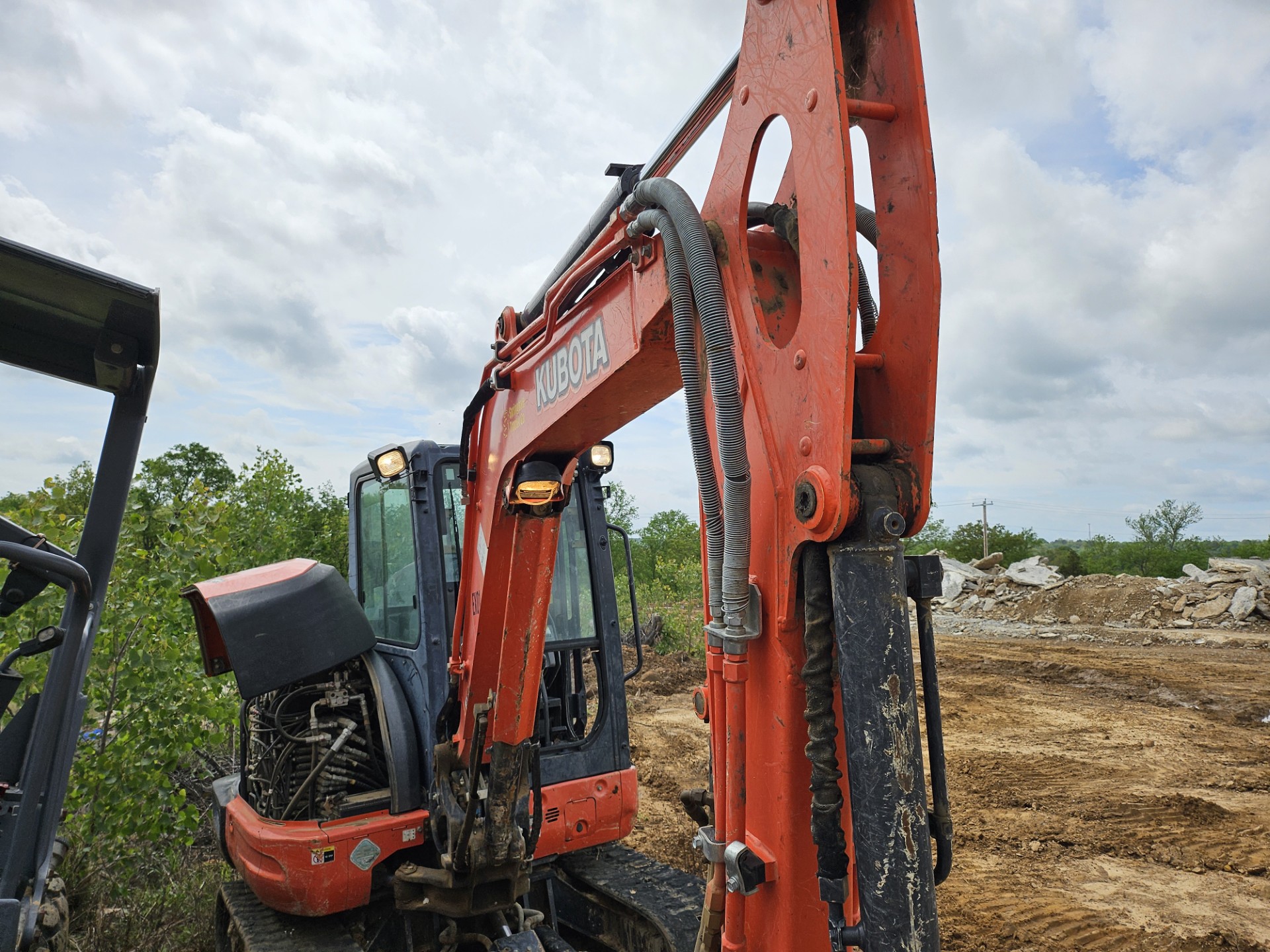

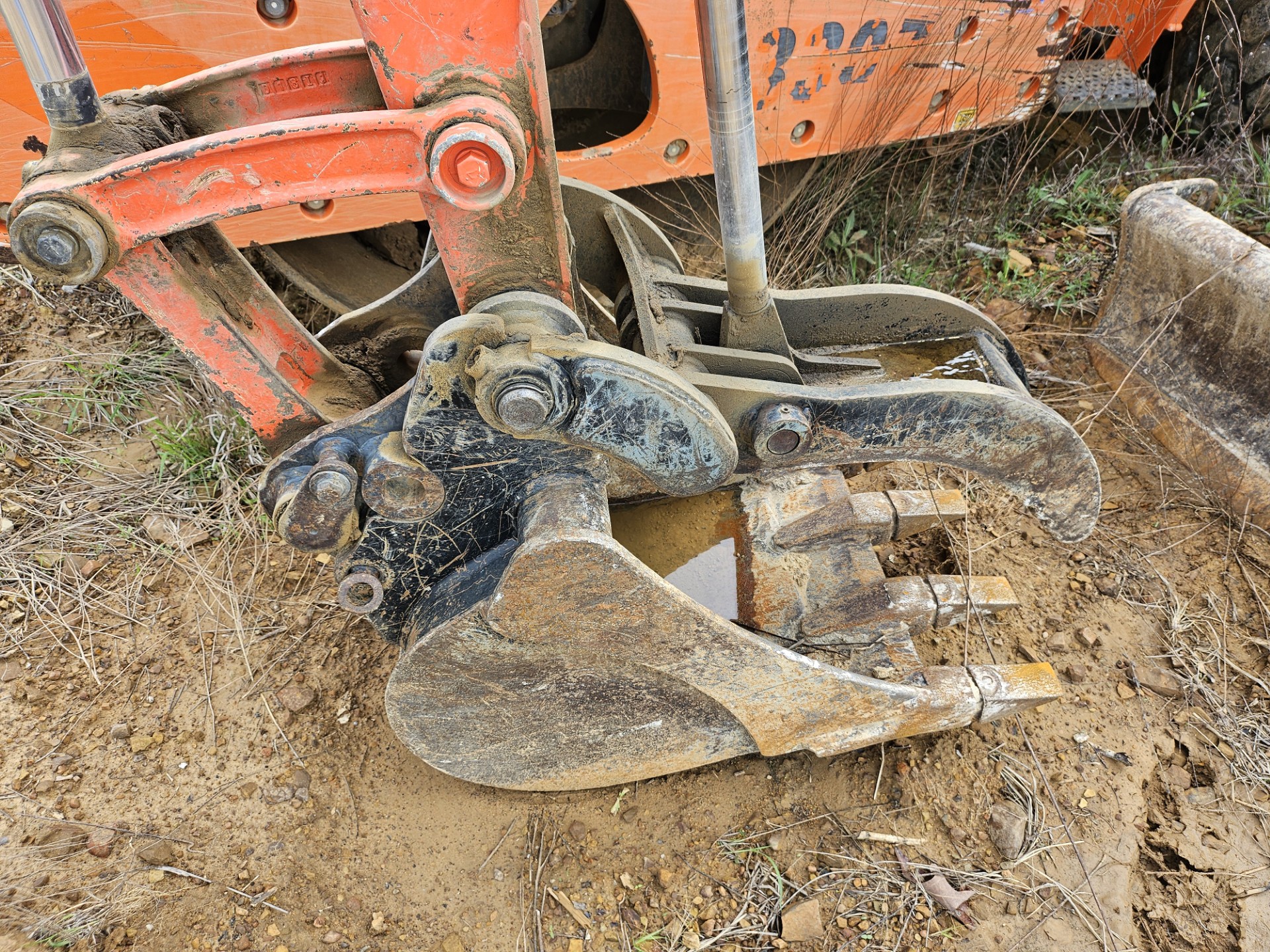

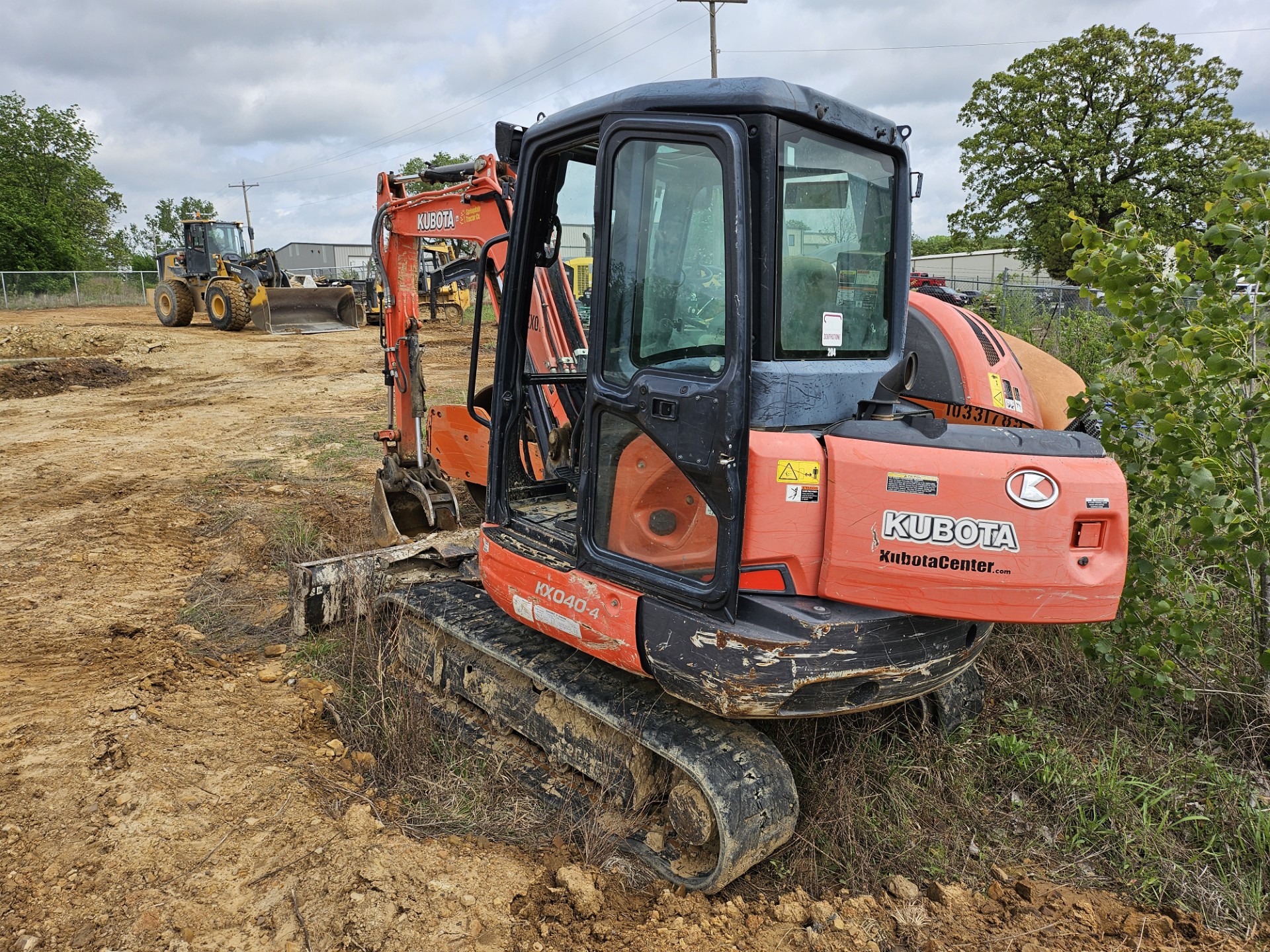

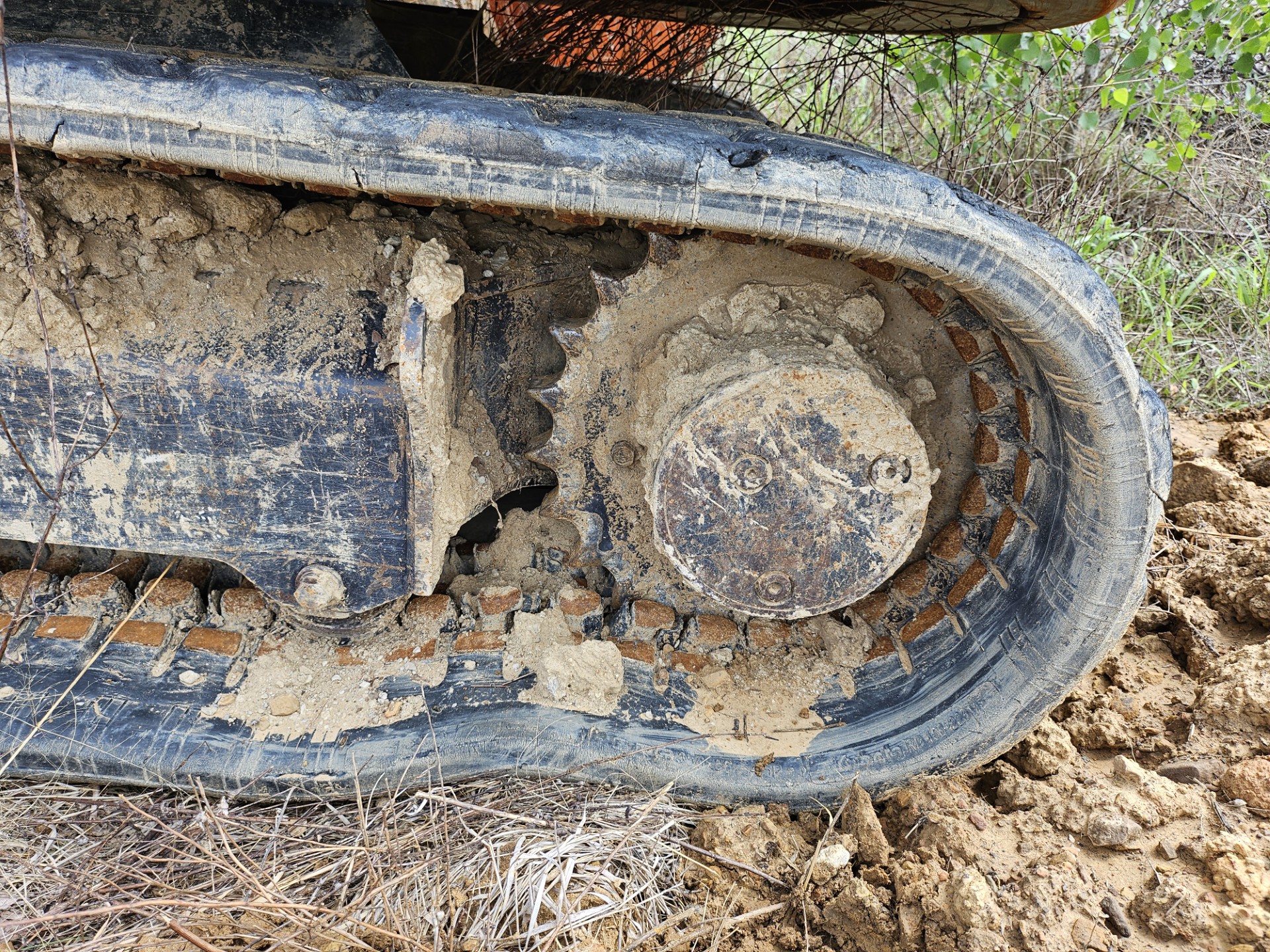

This 2019 Kubota KX040-4 mini excavator can dig trenches, excavate in confined areas, and backfill. It has rubber tracks, an enclosed cab, auxiliary hydraulics, a digging bucket, and a backfill blade. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | kubota |
| Model | kx040_4 |

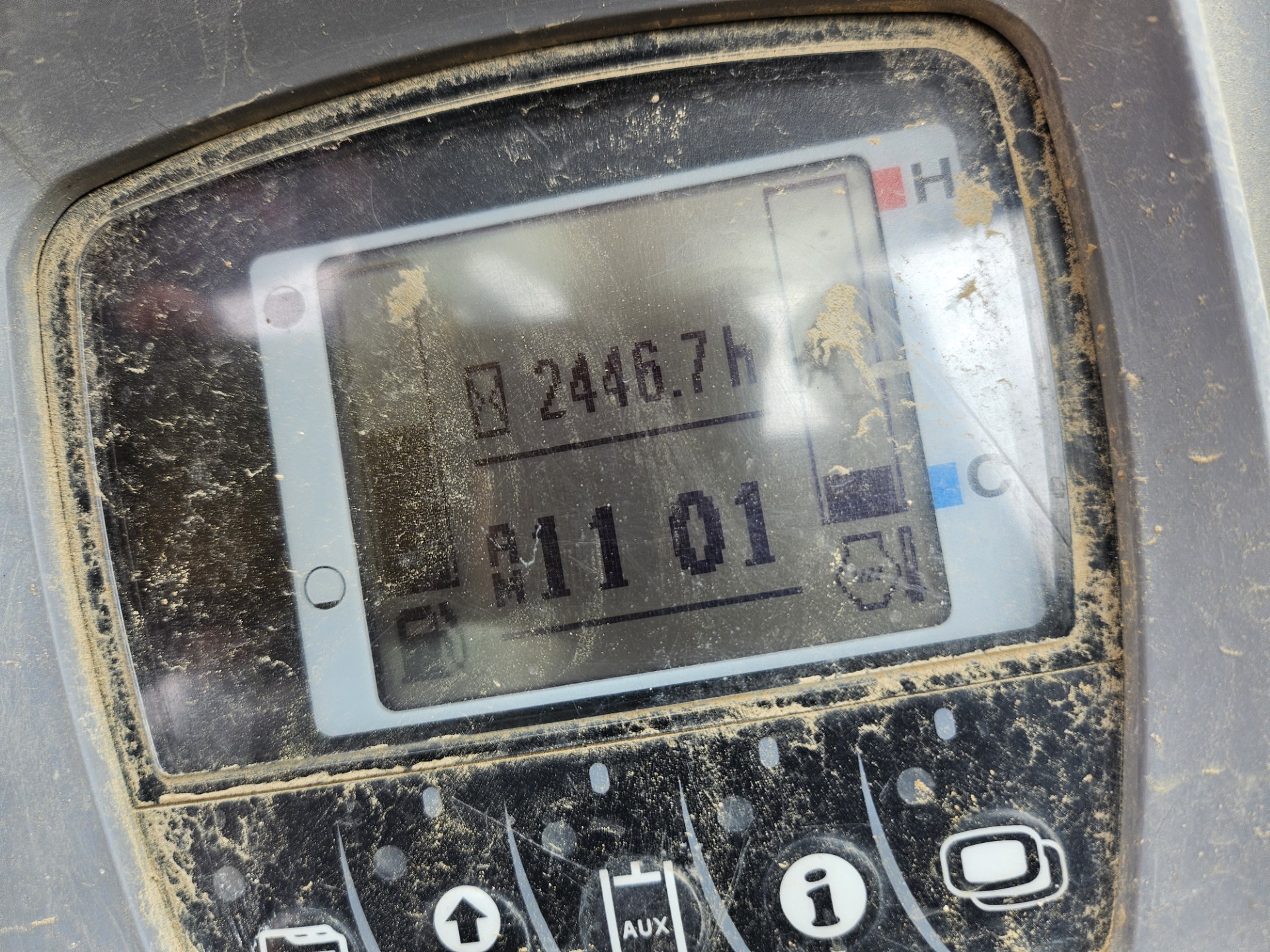

| Hours | 2447 |
| Serial Number | JKUK0404V01H***** |
| Condition | Used |
| Max Vertical Wall Digging Depth | 7.4 ft in |
| Max Digging Depth | 11.23 ft in |
| Max.Dumping Height | 12.77 ft in |
| Max. Breakoutarm | 4112 lb |
| Max Digging Height | 17.51 ft in |
| Max. Breakout Force Bucket | 9535 lb |
| Mximum Dig Radius | 213 in |
| Operating Weight | 9017 lb |
| Fuel Capacity | 17 gal |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Hydraulic Pump Flow Capacity | 6.5 gal/min |
| Ground Pressure | 4.5 psi |
| Lighting | Front working |
| Battery Voltage | 12 VDC |
| Battery Capacity | 52 AH |
| Instrument Panel | Digital |
| Engine Shut-Off | Key |
| Swing Speed | 9.2 rpm |
| Maximum Drop Below Ground | 1.4 ft in |
| Maximum Lift Above Ground | 1.4 ft in |
| Height | 13.8 in |
| Width | 5.6 ft in |
| Angle Blade Swing Angle | 25 degrees |
| Angle Blade Width | 67 in |
| Angle Blade Height | 15.2 in |
| Max. Traction Force-Low Speed | 9747 lb |
| Parking Brake | Auto travel, house swivel |
Engine & Powertrain
| Radiator Core Type | Low noise, F shaped blades |
| Oil Filtration | Spin-on type |
| Epa | Tier 4 |
| Air Filter Type | Dual element, cyclonic |
| Number Of Cylinders | 3 |
| Cooling Method | Liquid |
| Engine Make | Kubota |
| Engine Model | D1803-CR-TE4 |
| Engine Type | Water cooled |
| Gross Power | 40.4 hp |
| Net Power | 38.9 hp |
| Power Measured @ | 2200 rpm |
| Displacement | 111.4 cu in |
| Aspiration | Turbo |
| Fuel Type | Diesel |
| Injection | Direct |
| Model Name | KX040-4A |
Undercarriage & Attachments
| Ground Pressure | 4.37 psi |
| Max Travel Speed | 3.1 mph |
Dimensions
| Length Of Track On Ground | 16.69 ft in |
| Ground Clearance | 1.09 ft in |
| Height To Top Of Cab | 8.16 ft in |
| Tail Swing Radius | 4.27 ft in |
| Width | 5.58 ft in |
| Height | 97.84 in |
| Shoe Width | 1.15 ft in |
2019 Kubota KX040-4 Mini Excavator
