Financing 1 / 7
Item Specifications
Category
Condition
Used
Item Number
#1207
Brand
Komatsu
Make
komatsu
Model
wa320_7
Year
2013
Industry
construction
Equipment Type
wheel loaders
Location
Sapulpa, OK

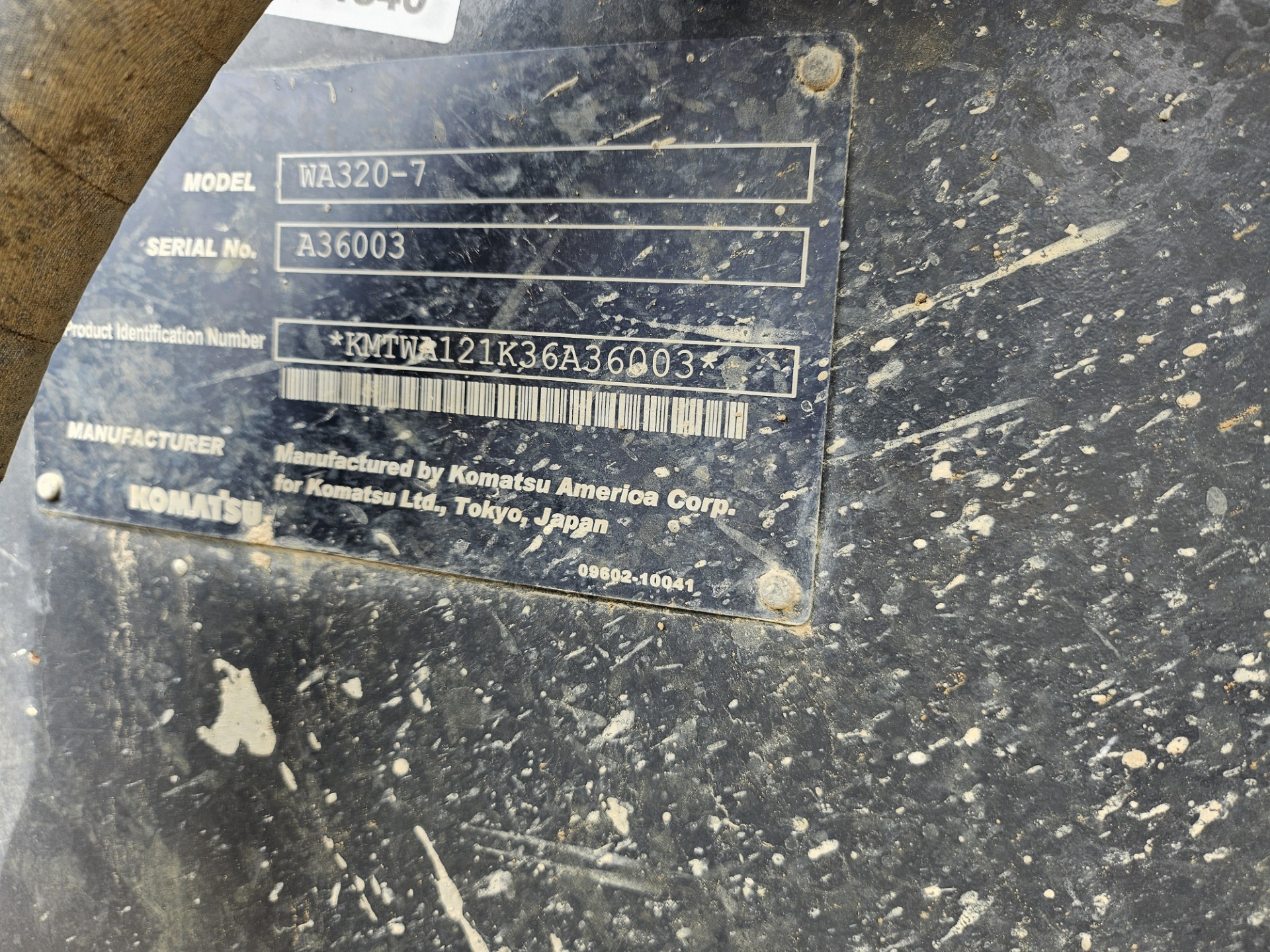

Serial
KMTWA121K36A*****
Hours
7444
Also Available In
OK
Item Description
This 2013 Komatsu WA320-7 wheel loader can move stockpiled material and load trucks. Its articulated steering helps it maneuver around a work area, while the enclosed cab and bucket support daily loading tasks. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2013 |
| Make | komatsu |
| Model | wa320_7 |
| Hours | 7444 |
| Serial Number | KMTWA121K36A***** |
| Condition | Used |
| Bore × stroke | 107 × 124 mm |
| Chassis system | 4-wheel drive |

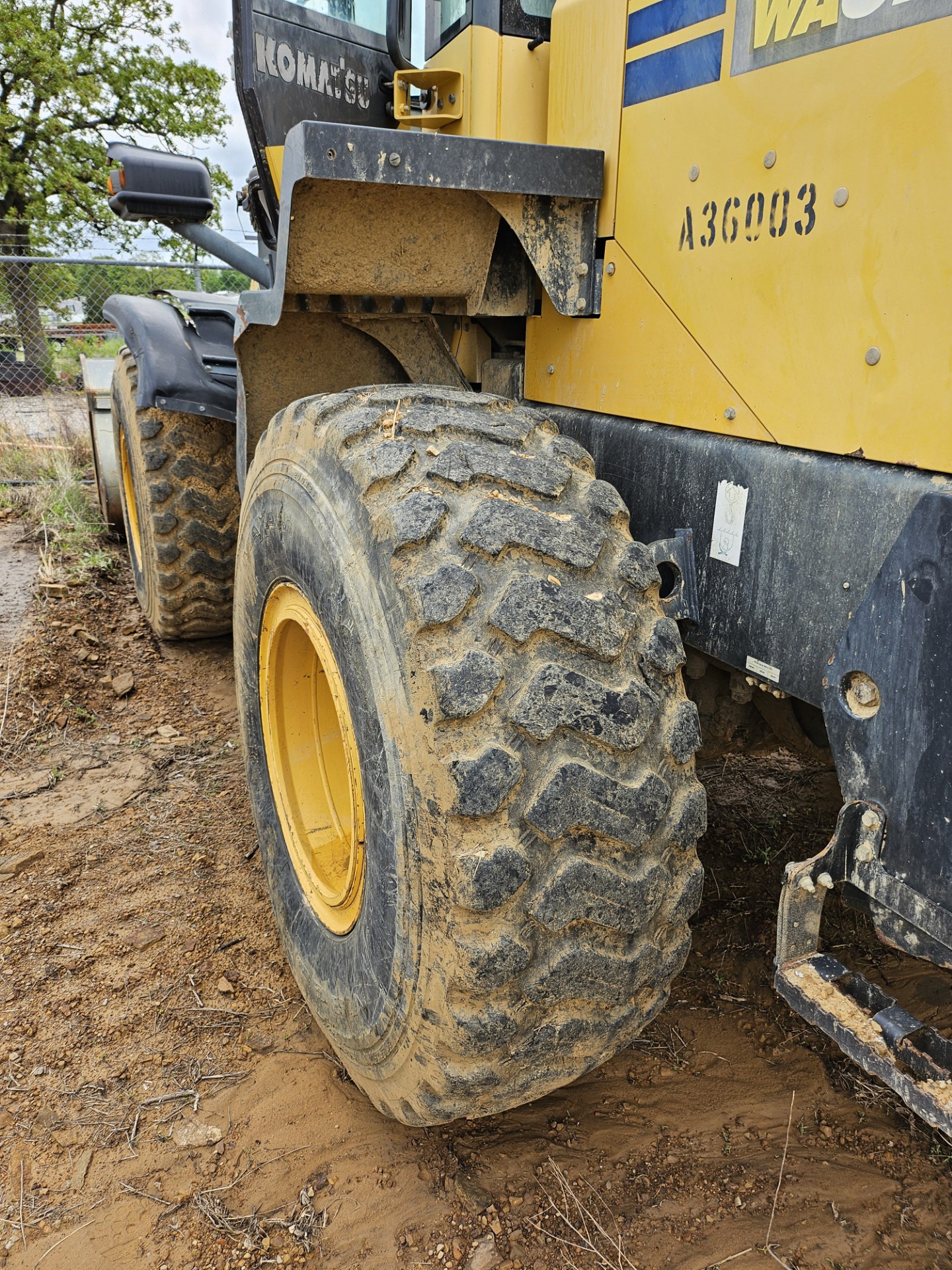

| Tyres | 20.5 R25 (standard) |
| Raise time | 6,1 s |
| Lowering time (empty) | 3,5 s |
| Dumping time | 1,9 s |
| Steering angle to either side | 40° |
| Smallest turn (outer edge of the tyre 20.5 R25) | 5.210 mm |
| Transfer | 5,8 ltr |
| LwA external | 105 dB(A) |
| LpA operator ear | 69 dB(A) |
Engine & Powertrain
| Engine Model | Komatsu SAA6D107E-2 |
| Rated engine speed | 2.100 rpm |
| Engine power ISO 14396 | 127 kW / 170 HP |
| Engine power ISO 9249 (net engine power) | 123 kW / 165 HP |
| No. of cylinders | 6 |
| Displacement | 6,69 ltr |
| Electrical system | 24 V |
| Battery | 2 × 110 Ah |
| Alternator | 60 A |
| Transmission drive system | Electronically controlled hydrostatic transmission |
| Boom cylinder bore diameter × stroke | 120 × 729 mm |
| Bucket cylinder bore diameter × stroke | 150 × 558 mm |
| Cooling system | 28 ltr |
| Fuel tank | 245 ltr |
| Engine oil | 23 ltr |
| Axle front | 27 ltr |
| Axle rear | 25,5 ltr |
| Engine emissions | Fully complies with EU Stage IIIB |
Working Range
| Speed ranges (forwards/backwards) | 4/4 |
| Max. travel speed 1. speed range | 1-13 km/h |
| Max. travel speed 2. speed range | 13 km/h |
| Max. travel speed 3. speed range | 19 km/h |
| Max. travel speed 4. speed range | 38 km/h |
| Hydraulic system type | Komatsu CLSS (Closed Centre Load Sensing System) |
| Hydraulic pump | Piston pump |
| Working pressure (max) | 310 kgf/cm² |
| Circulating capacity of the hydraulic pump | 180 ltr/min |
| Steering working pressure | 210 kgf/cm² |
| Steering pumping capacity | 180 ltr/min |
| Hydraulic system (refill) | 90 ltr |
| Static tipping load, straight (kg) | 11.465 |
| Static tipping load, 40° articulated (kg) | 9.850 |
| Break-out force hydraulic (kN) | 174 |
| Lifting capability hydr. at ground level (kN) | 162 |
| a Reach at 45° (mm) | 1.145 |
| e Digging depth (mm) | 150 |
Undercarriage & Attachments
| Bucket capacity (heaped, ISO 7546) - Earthmoving w. teeth, direct (m³) | 2,7 |
Dimensions
| Bucket weight (kg) | 1.325 |
| Operating weight (kg) | 15.585 |
| Turning radius at corner of tyres (mm) | 5.210 |
| Turning radius at bucket edge (mm) | 6.205 |
| b Dump height at 45° (mm) | 2.750 |
| c Hinge pin height (mm) | 4.010 |
| d Height top edge of bucket (mm) | 5.335 |
| f Max. loading height at 45° (mm) | 3.655 |
| A Overall length, bucket grounded (mm) | 7.825 |
| B Wheelbase (mm) | 3.030 |
| C Bucket width (mm) | 2.740 |
| D Width over tyres (mm) | 2.580 |
| E Track width (mm) | 2.050 |
| F Ground clearance (mm) | 425 |
| H Overall height (mm) | 3.200 |

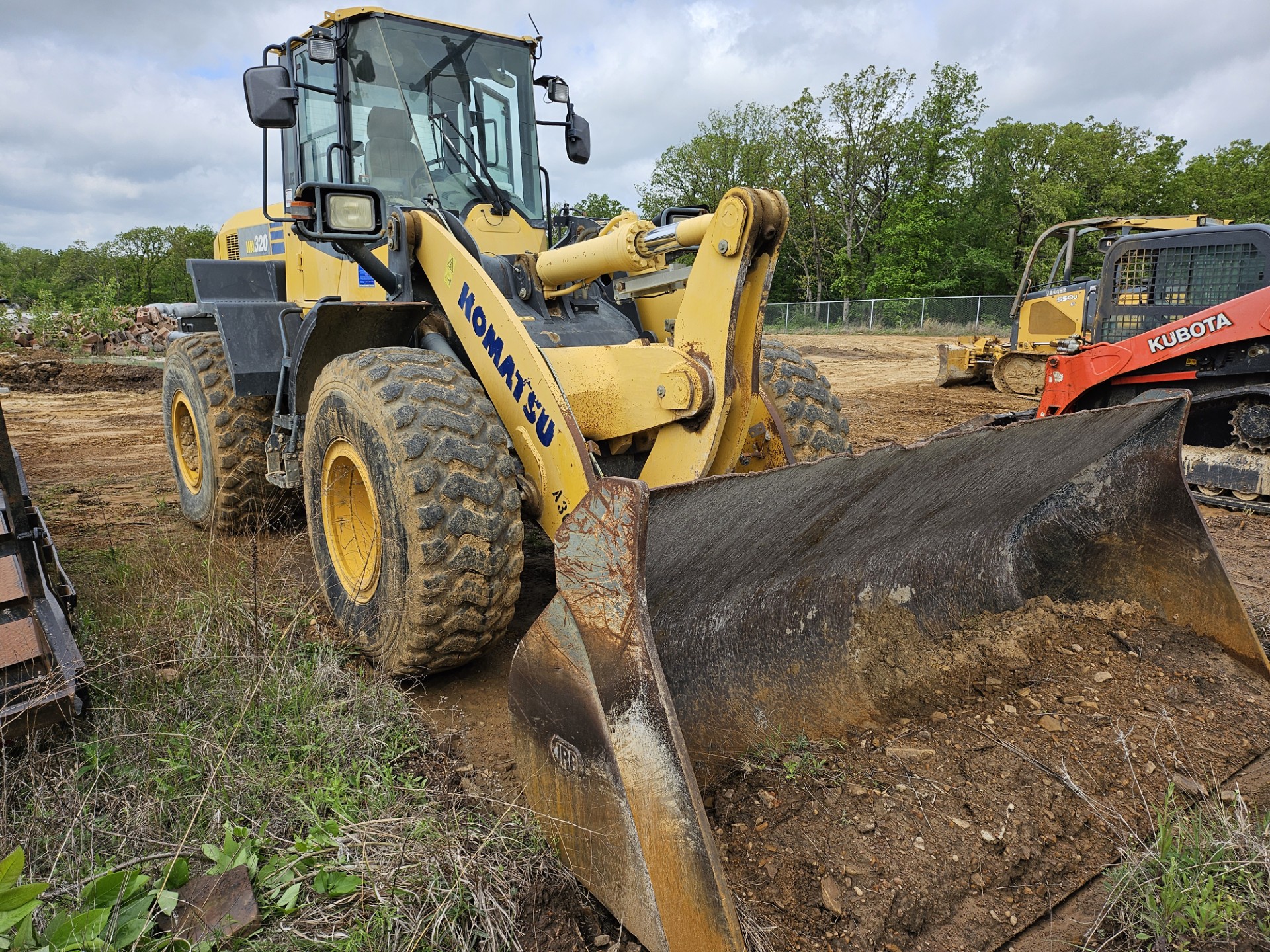

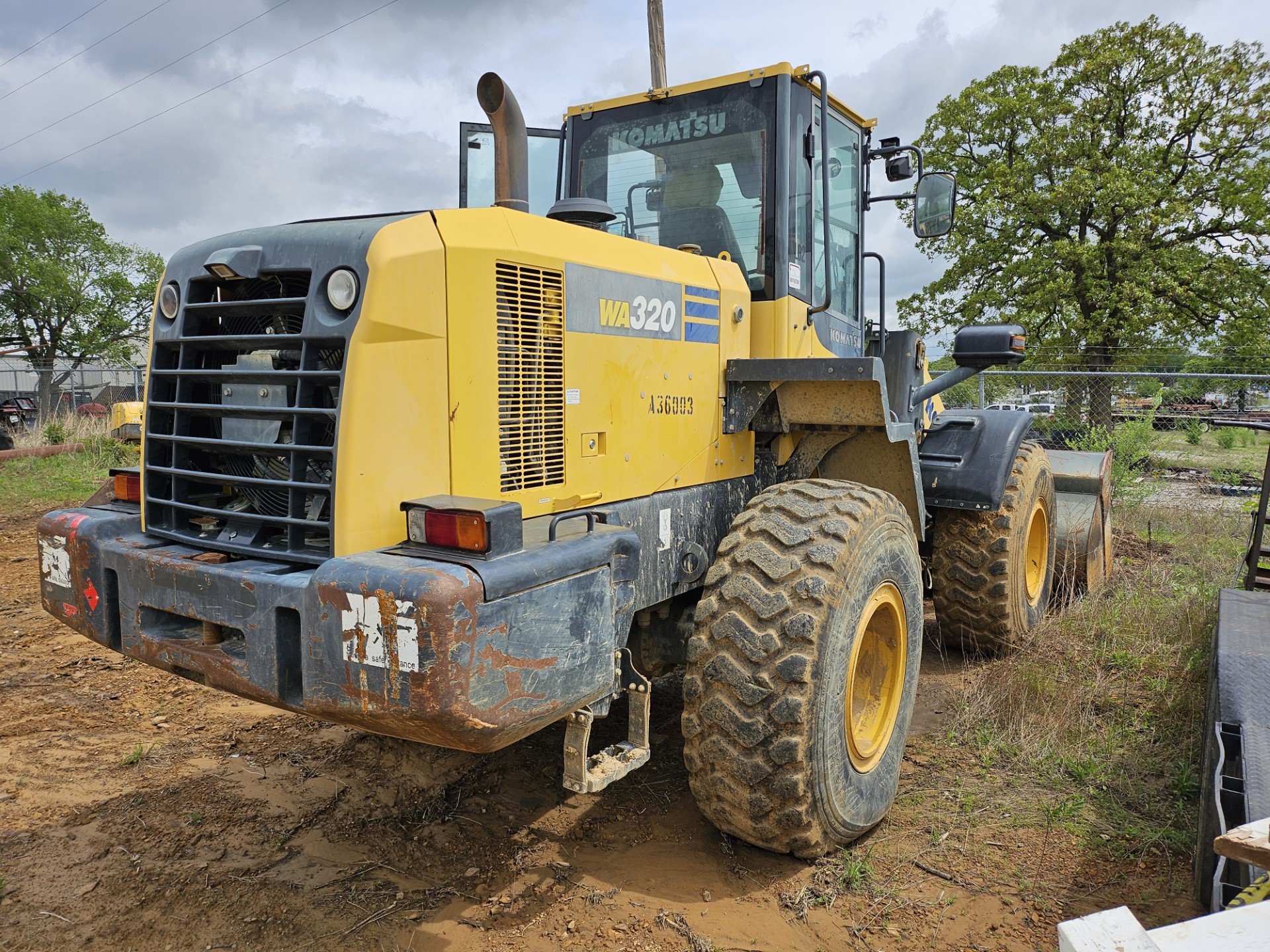

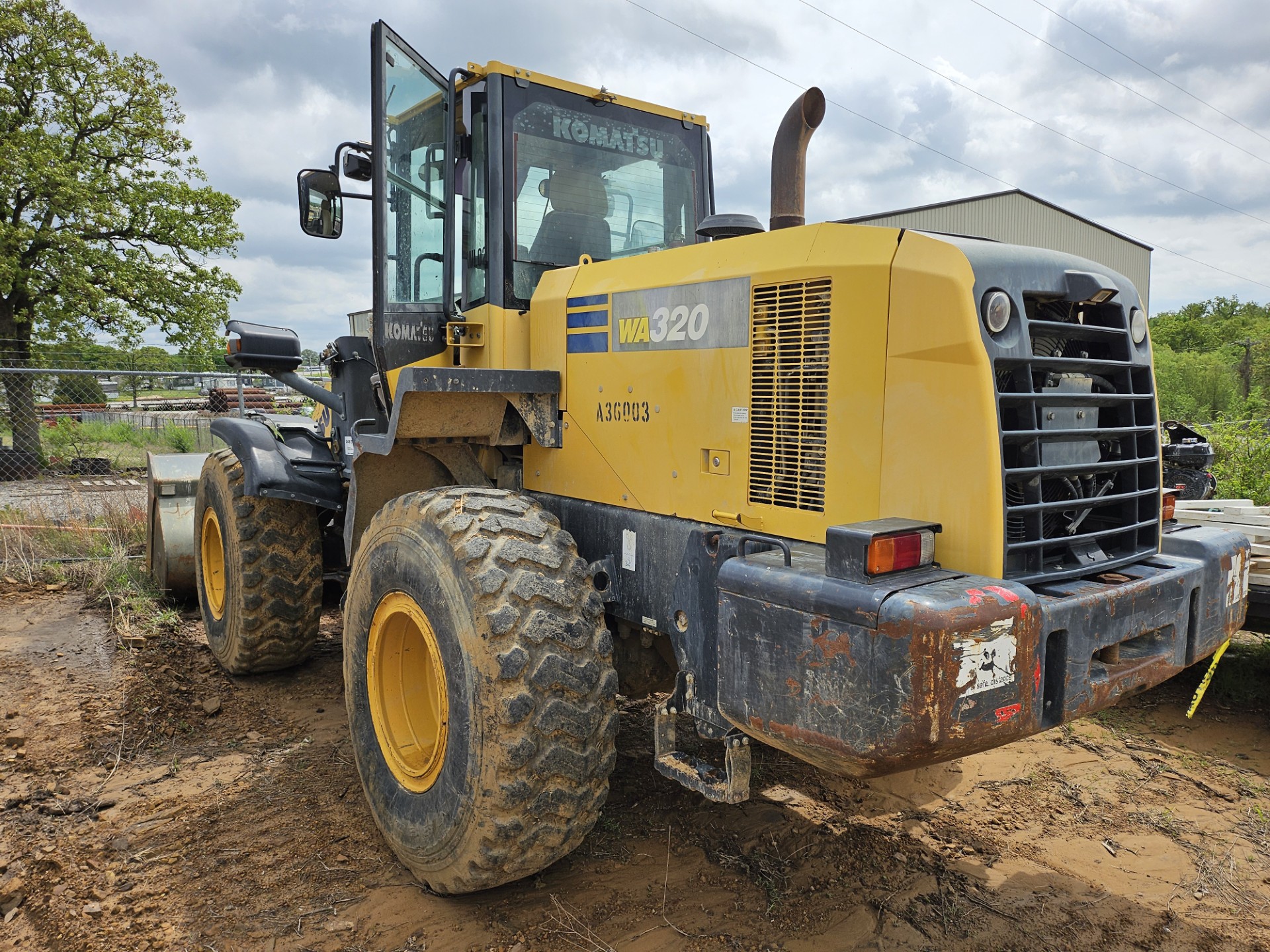

2013 Komatsu WA320-7 Wheel Loader
BUY NOW OR MAKE OFFERAvailable
Listing Price
BUY NOW OR MAKE OFFER
$89,000.00
Plus Buyer Fee ($8,900.00)
est. $1,474.99/mo
GET FINANCING
