Financing 1 / 6
Item Specifications
Category
Condition
Used
Item Number
#1206
Brand
Kubota
Make
kubota
Model
svl95-2
Year
2019
Industry
construction
Equipment Type
compact track loaders
Location
Sapulpa, OK
Serial
*****
Also Available In
OK
Item Description

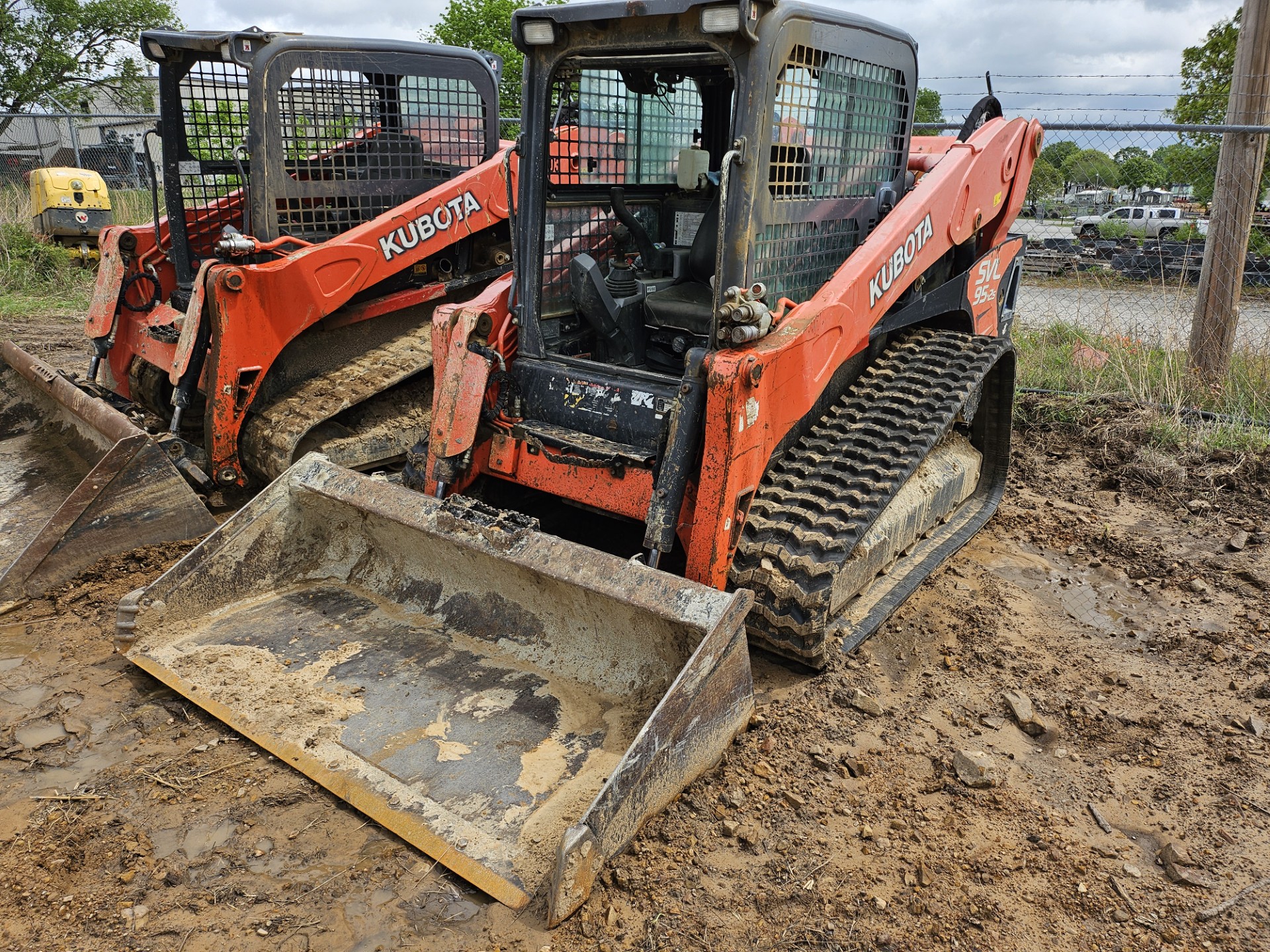

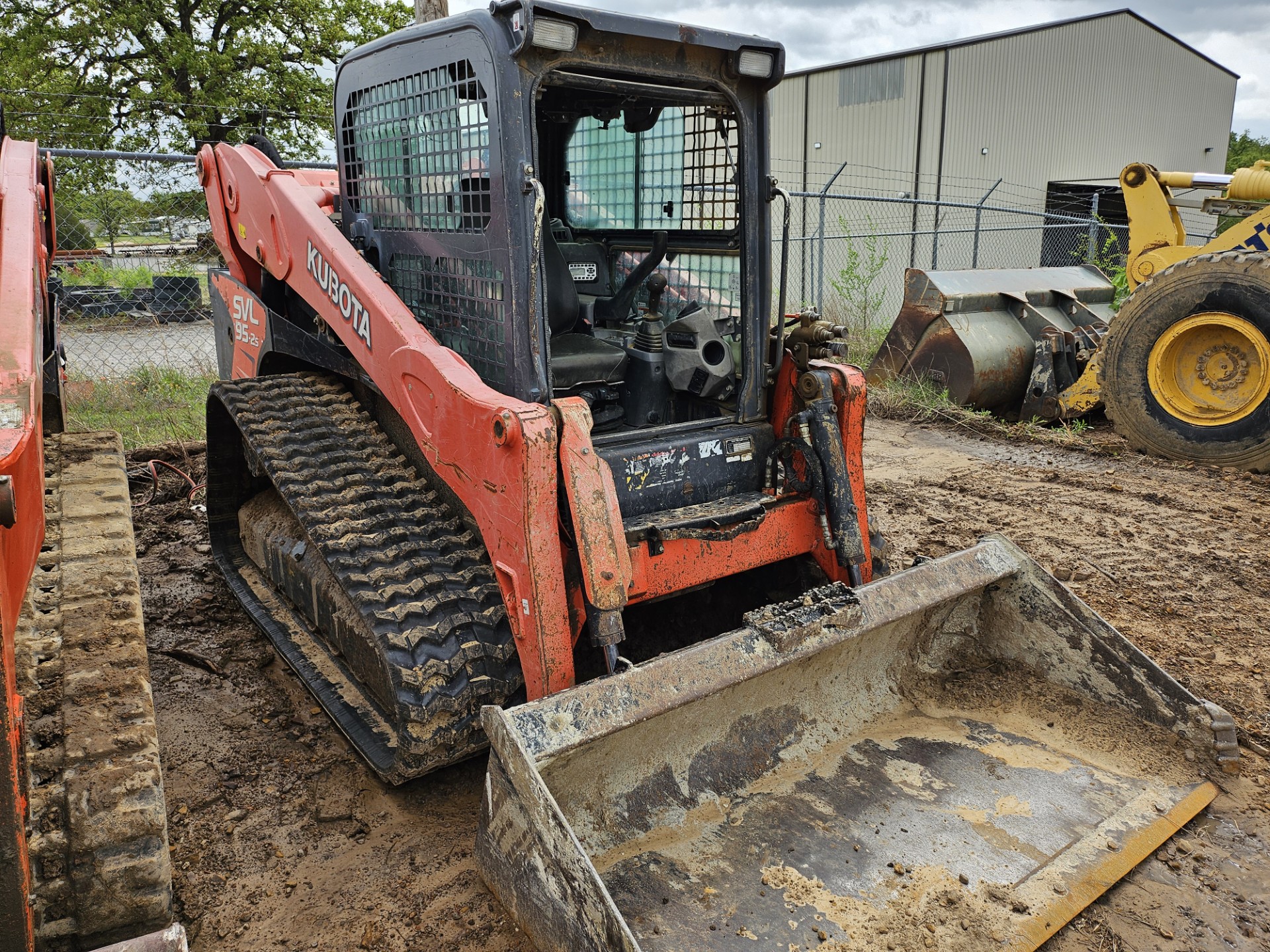

This 2019 Kubota SVL95-2SHFC compact track loader handles loading, grading, and material movement. Its rubber tracks provide traction on soft ground, and the enclosed cab and high-flow auxiliary hydraulics support attachment work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | kubota |
| Model | svl95-2 |
| Hours | 2247 |
| Serial Number | ***** |
| Condition | Used |
| Operating Weight | 11574.1 lb |
| Fuel Capacity | 28.8 gal |
| Hydraulic System Fluid Capacity | 10.1 gal |
| Lighting | 2 Front & rear working |
| Block Heater | Optional |
| Maximum Traction Force | 12178 lb |
| Ground Bearing Pressure | 4.5 psi |
| Max Travel Speed | 7.3 mph |
| Min Travel Speed | 5 mph |
| Lift Arm Path | Vertical |
| Tipping Angle | 3200 degrees |
| Bucket Breakout Force | 7961 lb |
| Maximum Operating Pressure | 3553 psi |
| Pump Flow | 40 gal/min |
| Parking Brake | Wet disc |
Engine & Powertrain
| Fuel | Diesel |
| Epa | Tier 4 Final |
| Air Filter Type | Dual element |
| Cold Start Aid | Standard |
| Number Of Cylinders | 4 |
| Cooling Method | Liquid |
| Engine Make | Kubota |
| Engine Model | V3800CR-TIE F4 |
| Engine Type | Diesel |
| Injection Pump Type | Direct |
| Gross Power | 96.4 hp |
| Power Measured @ | 2400 rpm |
| Displacement | 230 cu in |
| Bore | 4 in |
| Stroke | 4.8 in |
| Oil Filter | Spin-on type |
| Model Name | SVL95-2SHFC |
| Aspiration | Turbocharged |
Dimensions
| Width Over Tracks | 1.48 ft in |
| Height To Top Of Cab | 6.95 ft in |
| Ground Clearance | 11.54 in |
| Length Of Track On Ground | 5.47 ft in |
| Overall Length | 154.69 in |
| Overall Width | 6.44 ft in |
| Angle Of Departure | 31 degrees |
2019 Kubota SVL95-2 Compact Track Loader
BUY NOW OR MAKE OFFERAvailable
