Financing 1 / 5
Item Specifications
Category
Condition
Used
Item Number
#1202
Brand
Case
Make
case
Model
721g
Year
2019
Industry
construction
Equipment Type
wheel loaders
Location
San Benito, TX
Serial
***
Hours
5,970
Item Description
This 2019 Case 721G wheel loader loads trucks, moves stockpiles, and handles bulk material. Its four-wheel drive supports jobsite travel, and ride control helps steady the machine while carrying a load. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | case |
| Model | 721g |
| Hours | 5,970 |
| Serial Number | *** |
| Condition | Used |
| Bucket Capacity - Heaped | 3.27 yd3 |
| Breakout Force | 32147.68 lb |
| Total Cycle Time | 8.8 sec |
| Def Tank Capacity | 15.6 gal |
| Operating Weight | 32491.8 lb |
| Fuel Capacity | 65 gal |
| Cooling System Fluid Capacity | 7.6 gal |
| Transmission Fluid Capacity | 9 gal |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 9.3 gal |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 degrees |
| Differential Lock | F: LSD / R: LSD |
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.5 mph |
| Steering Pump Type | Articulation |
| Maximum System Pressure | 3625 psi |
| Pump Flow Capacity | 31.8 gal/min |
| Pump Type | Piston |
| Service Brake | Wet Multi Disc |
Engine & Powertrain
| Number Of Cylinders | 6 |
| Rated Engine Speed | 2000 rpm |
| Engine Model | FPT F4HFE613T |
| Net Power | 179 hp |
| Gross Power | 195 hp |
| Max Torque | 700.7 lb ft |
| Displacement | 411 cu in |
| Torque Rise | 37 % |
| Emissions | Tier 4 |
| Alternator | 120 amps |
Working Range
| Tipping Load | 23651.2 lb |
Dimensions
| Ground Clearance | 1.26 ft in |
| Length With Bucket On Ground | 25.34 ft in |
| Width Over Tires | 8.4 ft in |
| Height To Top Of Cab | 11.09 ft in |
| Wheelbase | 10.68 ft in |
| Hinge Pin - Max Height | 13.05 ft in |
| Reach At Max Lift And Dump | 5.43 ft in |
| Turning Radius Outside Tires | 18.86 ft in |
| Dump Reach @ Full Height, 45° Dump: Bucket | 3.69 ft in |

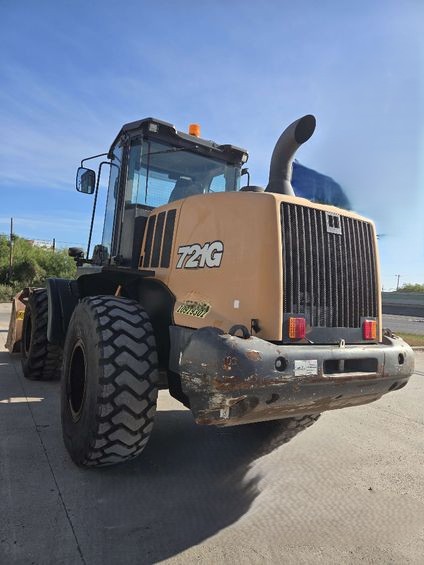

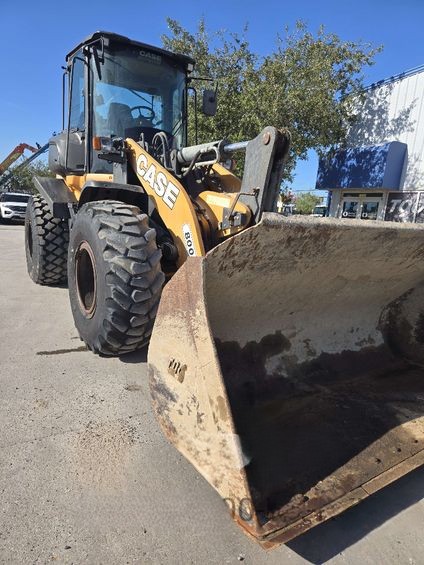

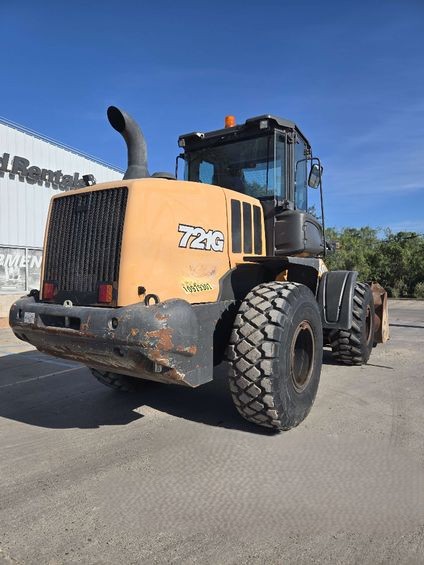

2019 Case 721G Wheel Loader
BUY NOW OR MAKE OFFERAvailable
