Item Specifications
Category
Condition
Used
Item Number
#1195
Make
takeuchi
Model
tb250_2r
Year
2019
Industry
construction
Equipment Type
mini excavators
Location
Pharr, TX
Serial
1251*****
Also Available In
TX
Item Description
This 2019 Takeuchi TB250-2R compact excavator can dig trenches, excavate around utilities, and backfill. It has rubber tracks for travel across finished surfaces, a dozer blade for backfilling, and auxiliary hydraulics for attachments. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | takeuchi |
| Model | tb250_2r |
| Hours | 2,590 |
| Serial Number | 1251***** |
| Condition | Used |
| Traction Force | 12,320 lb (5,588 kg) |
Engine & Powertrain
| Engine Make/Model | Yanmar / 4TNV88C-PTB |
| Engine Displacement | 133.6 cu in (2.2 L) |
| Horsepower @ 2,400 rpm | 39.0 hp (29.1 kW) |
| Maximum Torque @ 1,440 rpm | 106.9 ft-lb (144.9 Nm) |
| Engine Lubrication Capacity | 7.8 qt (7.4 L) |
| Cooling System Capacity | 7.4 qt (7.0 L) |
| Fuel Tank Capacity | 18.5 gal (70.0 L) |
Working Range
| Slew Speed | 9.5 rpm |
| Max Travel Speed - Low Range | 1.7 mph (2.8 km/hr) |
| Max Travel Speed - High Range | 3.2 mph (5.2 km/hr) |
| Total Hydraulic Flow | 40.9 gpm (155.3 Lpm) |
| Auxiliary Flow - Primary Circuit | 24.2 gpm (91.7 Lpm) |
| Hydraulic System Pressure | 3,481 psi (24.0 MPa) |
| Hydraulic Reservoir Capacity | 25.1 gal (95.0 L) |
| Maximum Reach (A) | 20 ft 1.0 in (6,120 mm) |
| Maximum Reach at Ground Level (B) | 19 ft 7.6 in (5,985 mm) |
| Maximum Digging Depth (C) | 12 ft 4.8 in (3,780 mm) |
| Maximum Vertical Digging Depth (D) | 9 ft 9.5 in (2,985 mm) |
| Front Swing Radius (G) | 7 ft 7.7 in (2,330 mm) |
| Tail Swing (Slew) Radius (I) | 4 ft 5.5 in (1,360 mm) |
Undercarriage & Attachments
| Maximum Bucket Breakout Force | 10,430 lb (4,731 kg) |
| Maximum Arm Digging Force | 5,261 lb (2,386 kg) |
| Front Swing Radius with Boom Offset (H) | 6 ft 0.8 in (1,850 mm) |
Dimensions
| Operating Weight - Canopy | 10,957 lb (4,970 kg) |
| Operating Weight - Cab | 11,288 lb (5,120 kg) |
| Arm Length | 5 ft 9.2 in (1,760 mm) |
| Ground Pressure - Canopy | 4.2 psi (29.0 kPa) |
| Ground Pressure - Cab | 4.4 psi (30.0 kPa) |
| Maximum Dig Height (E) | 18 ft 6.6 in (5,655 mm) |
| Maximum Dumping Height (F) | 13 ft 3.3 in (4,045 mm) |
| Transport Length (J) | 18 ft 0.3 in (5,495 mm) |
| Transport Height (K) | 8 ft 5.2 in (2,570 mm) |

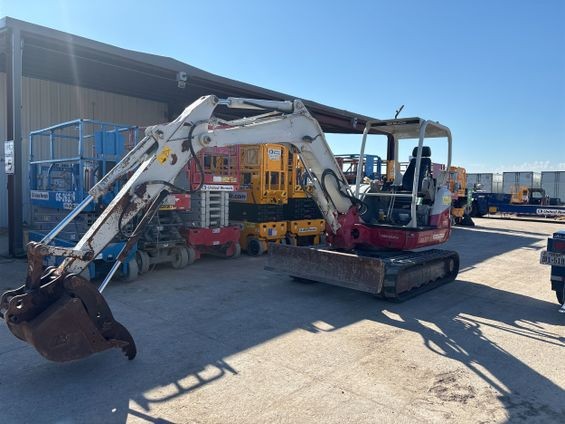

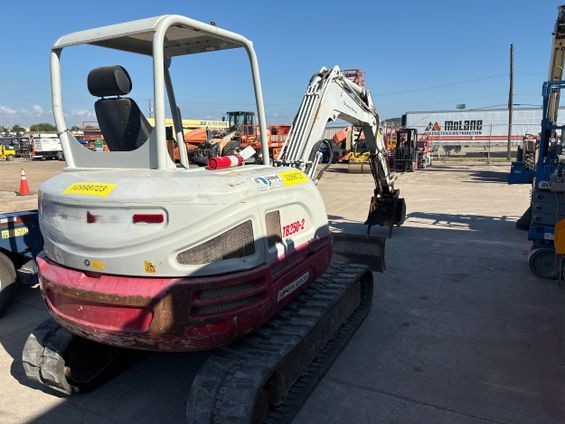

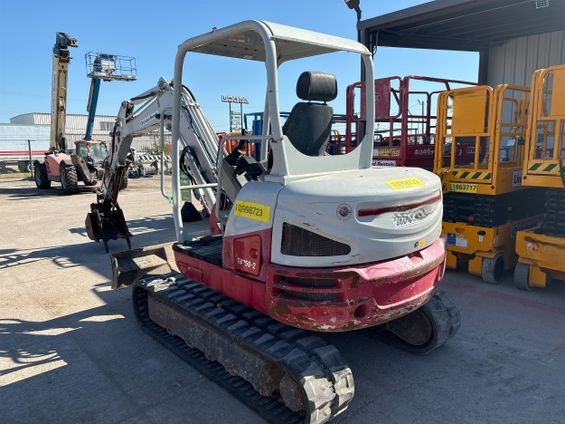

2019 Takeuchi TB250-2R Mini Excavator
