Item Specifications
Category
Condition
Used
Item Number
#1194
Brand
John Deere
Make
deere
Model
550j-lt
Year
2005
Industry
construction
Equipment Type
dozers
Location
Sapulpa, OK
Serial
T0550JX1*****
Also Available In
OK
Item Description

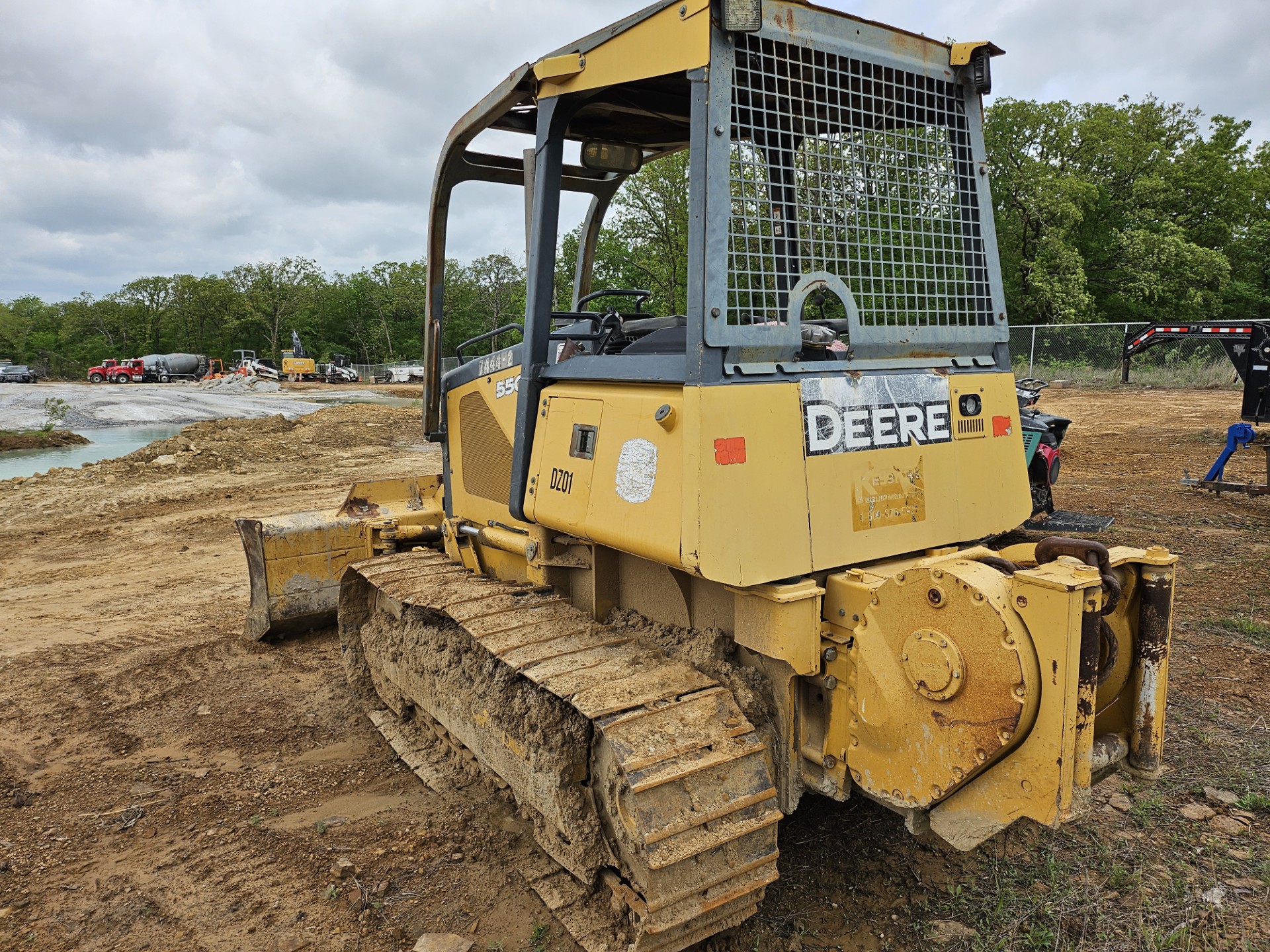

This 2005 Deere 550J-LT crawler dozer can clear ground, shape grades, and push material. Its six-way blade supports grading, while the rear winch, open rollover protection, and sweeps suit clearing work. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2005 |
| Make | deere |
| Model | 550j-lt |
| Hours | 3405 |
| Serial Number | T0550JX1***** |
| Condition | Used |
| Manufacturer and Model | John Deere 4045T |
| SAE Net Rated Power at 2,200 rpm | 60 kW (80 hp) |
| Air Cleaner | Dual safety element dry type, evacuator valve |
| Slope Operation (maximum angle) | 45 deg. |
| Final Drives | Heavy-duty triple-reduction final drives attach directly to the mainframe |
| Standard Lights | 3 total: grille mounted (2) and rear mounted (1), and rear reflectors (2) |
| Shoes (each side) | 40 |
| Ground Contact Area (Standard) | 19 974 cm2 (3,096 sq. in.) |
| Final Drive (each) | 6.6 L (7 qt.) |
Engine & Powertrain
| Non-Road Emission Standard | EPA Tier 2/EU Stage II |
| Cylinders | 4 |
| Displacement | 4.5 L (276 cu. in.) |
| Net Peak Torque at 1,200 rpm | 358 Nm (263 lb.-ft.) |
| Cooling Type | Blower-type cooling fan |
| Engine Coolant Rating | -37 deg. C (-34 deg. F) |
| Electrical Voltage | 12 volt |
| Battery Capacity | 950 CCA |
| Battery Reserve | 190 min. |
| Alternator Rating | 65 amp |
| Fuel Tank | 178 L (47 gal.) |
| Cooling System with Recovery Tank | 16 L (17 qt.) |
| Engine Oil with Filter | 14 L (15 qt.) |
| Transmission Reservoir with Filter | 43 L (11.3 gal.) |
Working Range
| Travel Speeds (forward and reverse) | 0-8.0 km/h (0-5.0 mph) |
| Hydraulics Type | Open-center hydraulic system with gear pump |
| Pump Flow at 2,200 rpm | 56.8 L/min. (15 gpm) |
| System Relief Pressure | 20 684 kPa (3,000 psi) |
| Hydraulic Reservoir and Filter | 32.2 L (8.5 gal.) |
Undercarriage & Attachments
| Track Gauge (standard) | 1549 mm (61 in.) |
| Track Rollers (single flange, each side) | 6 |
| Track Pitch | 160 mm (6.29 in.) |
Dimensions
| Grouser Width (closed center, single bar) | 457 mm (18 in.) |
| Track Length on Ground (Standard) | 2184 mm (86 in.) |
| Ground Pressure (Standard) | 37.9 kPa (5.5 psi) |
| Operating Weight (with ROPS, standard equipment, full fuel tank, 79-kg operator; Tier 2/Stage II) | 7718 kg (17,016 lb.) |
2005 Deere 550J-LT Dozer
BUY NOW OR MAKE OFFERAvailable
