Financing 1 / 5
Item Specifications
Category
Condition
Used
Item Number
#1188
Make
jlg
Model
1255
Year
2017
Industry
aerial
Equipment Type
telehandlers
Location
Brownsville, TX
Serial
01600*****
Also Available In
TX
Item Description
This 2017 JLG 1255 telehandler lifts and places materials on construction sites. Its extending boom provides forward reach, and four-wheel drive and multiple steering modes help it maneuver around the jobsite. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2017 |
| Make | jlg |
| Model | 1255 |
| Hours | 5,734 |
| Serial Number | 01600***** |
| Condition | Used |
| Frame Leveling | 10 Degrees |
| Gross Power Basic | 127 hp / 95 kW |
Engine & Powertrain
| Engine Make and Model | Deutz TCD 3.6L L4 |
| No. of Cylinders | 4 |
| Displacement | 220-cu in / 3.6 L |
| Maximum Torque @ 1500 rpm | 360-lb/ft / 488 Nm |
| Fuel Tank Capacity | 38.3 gal / 145 L |
Working Range
| Rated Capacity | 12,000-lb / 5,443-kg |
| Maximum Forward Reach | 42-ft / 12.8-m |
| Load at Max Reach | 3,000-lb / 1,361-kg |
| Top Travel Speed (4-Speed) | 20 mph / 30 kph |
| Drawbar Pull (loaded) | 25,400-lb / 113-kN |
| Hydraulic System Capacity (Implement) | 49.9 gal / 189 L |
Undercarriage & Attachments
| Lift Speed (boom retracted) Up | 16 seconds |
| Lift Speed (boom retracted) Down | 13 seconds |
| Boom Speed Extended | 18 seconds |
| Boom Speed Retracted | 15 seconds |
| Standard Tires | 400/75-28 |
Dimensions
| Maximum Lift Height | 55-ft / 16.76-m |
| Load at Max Height | 5,000-lb / 2,268-kg |
| Outside Turning Radius | 14-ft / 4.3-m |
| Operating Weight | 33,468-lb (15,181-kg) lb |

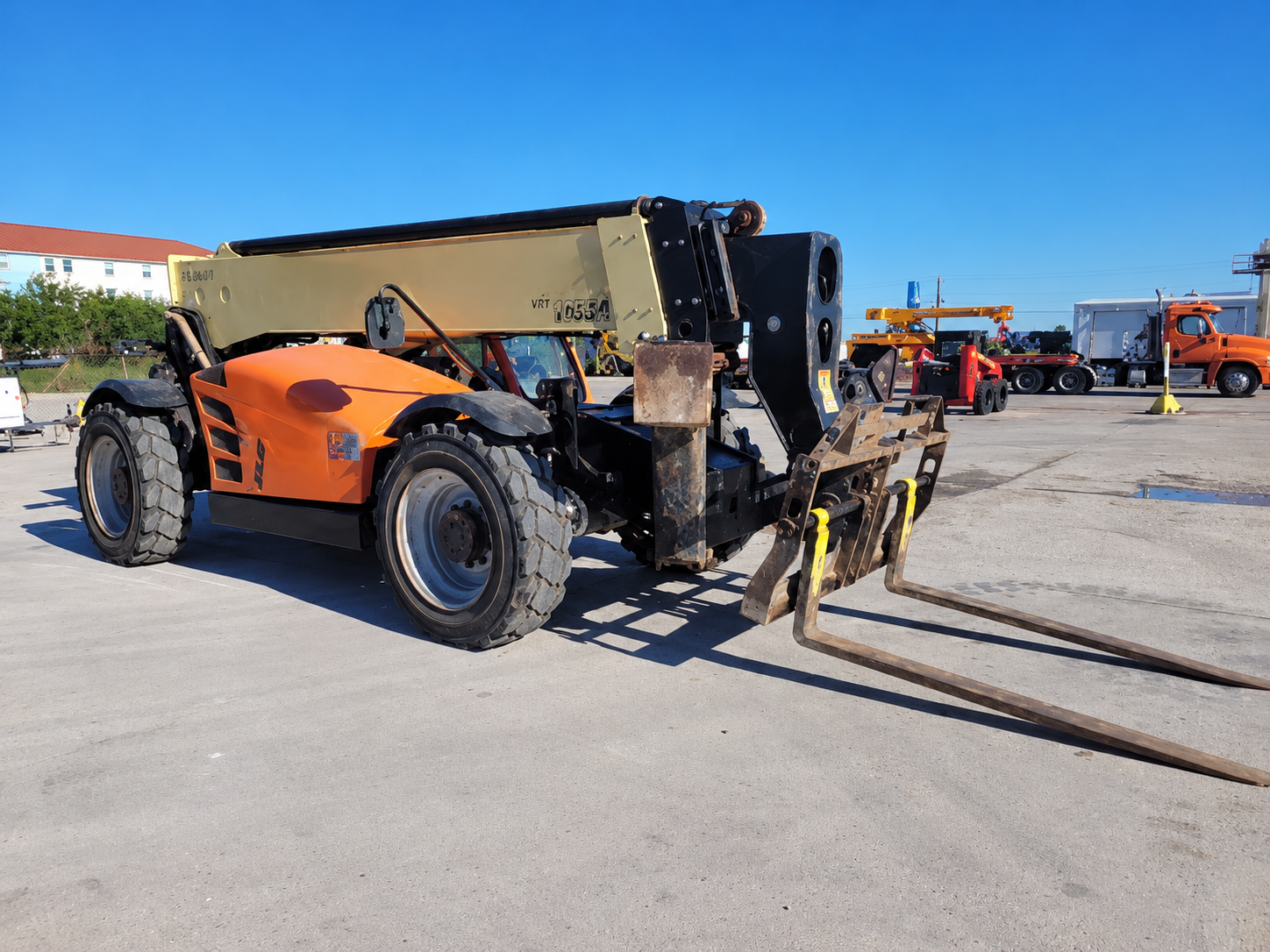

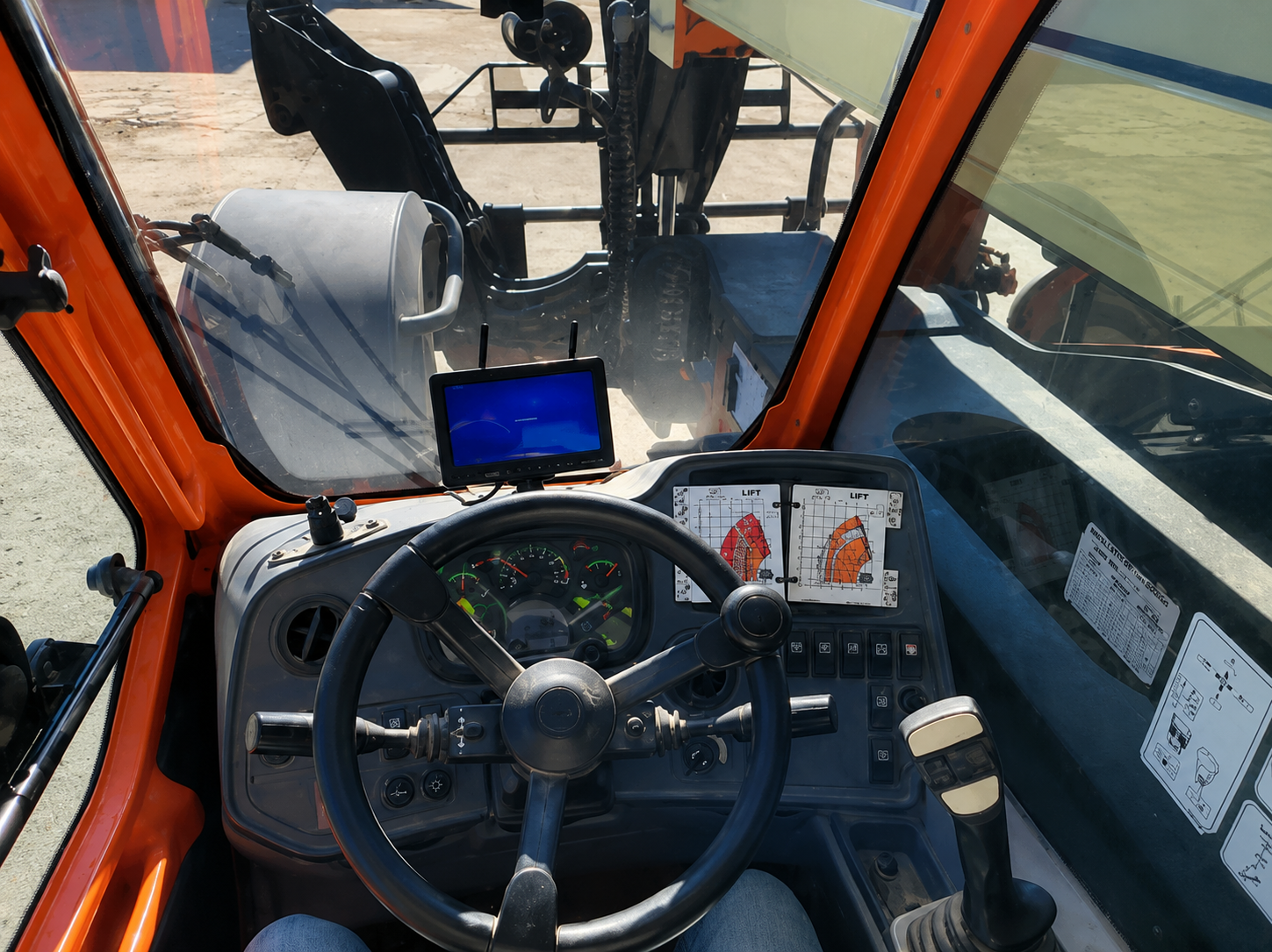

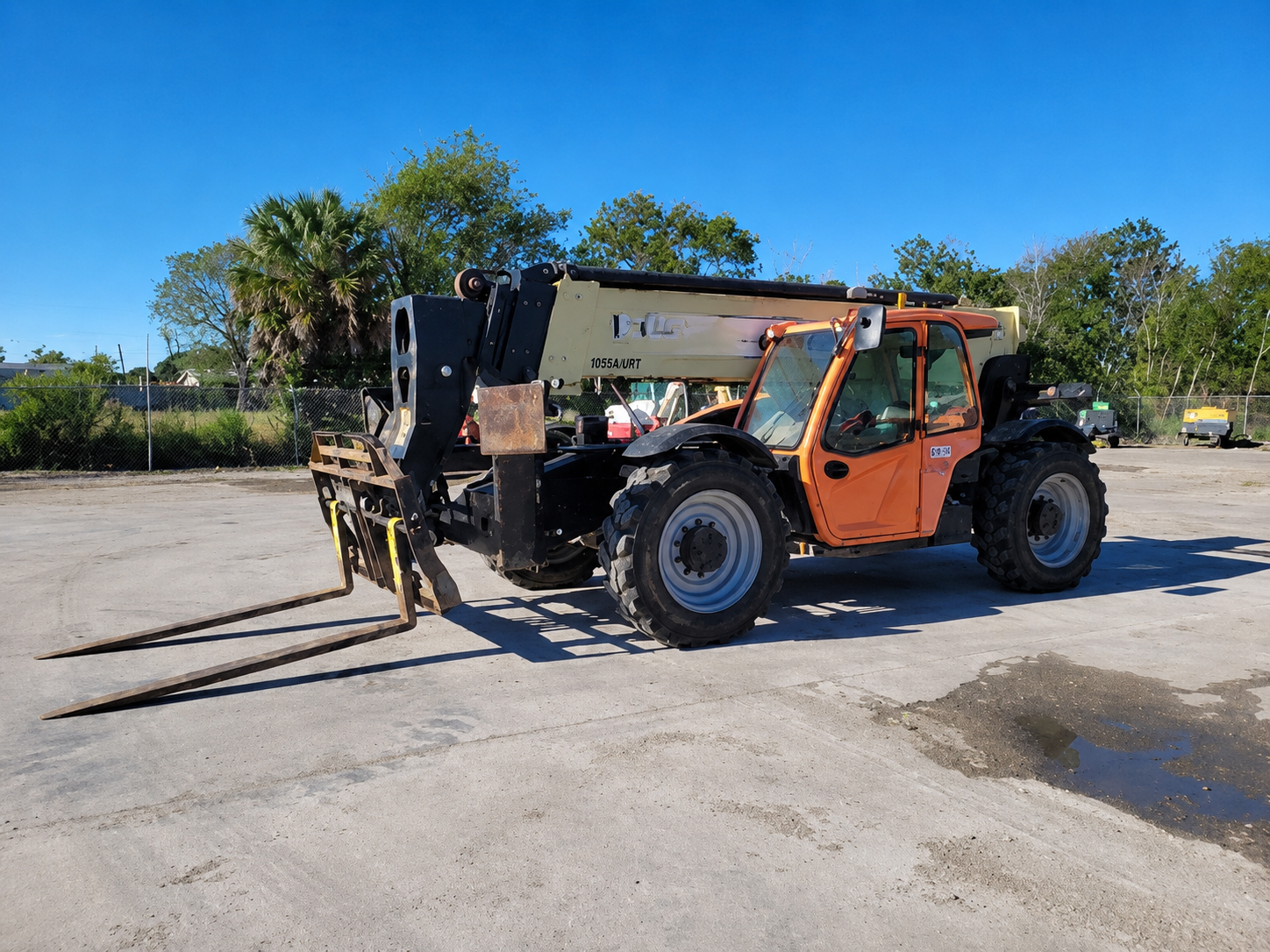

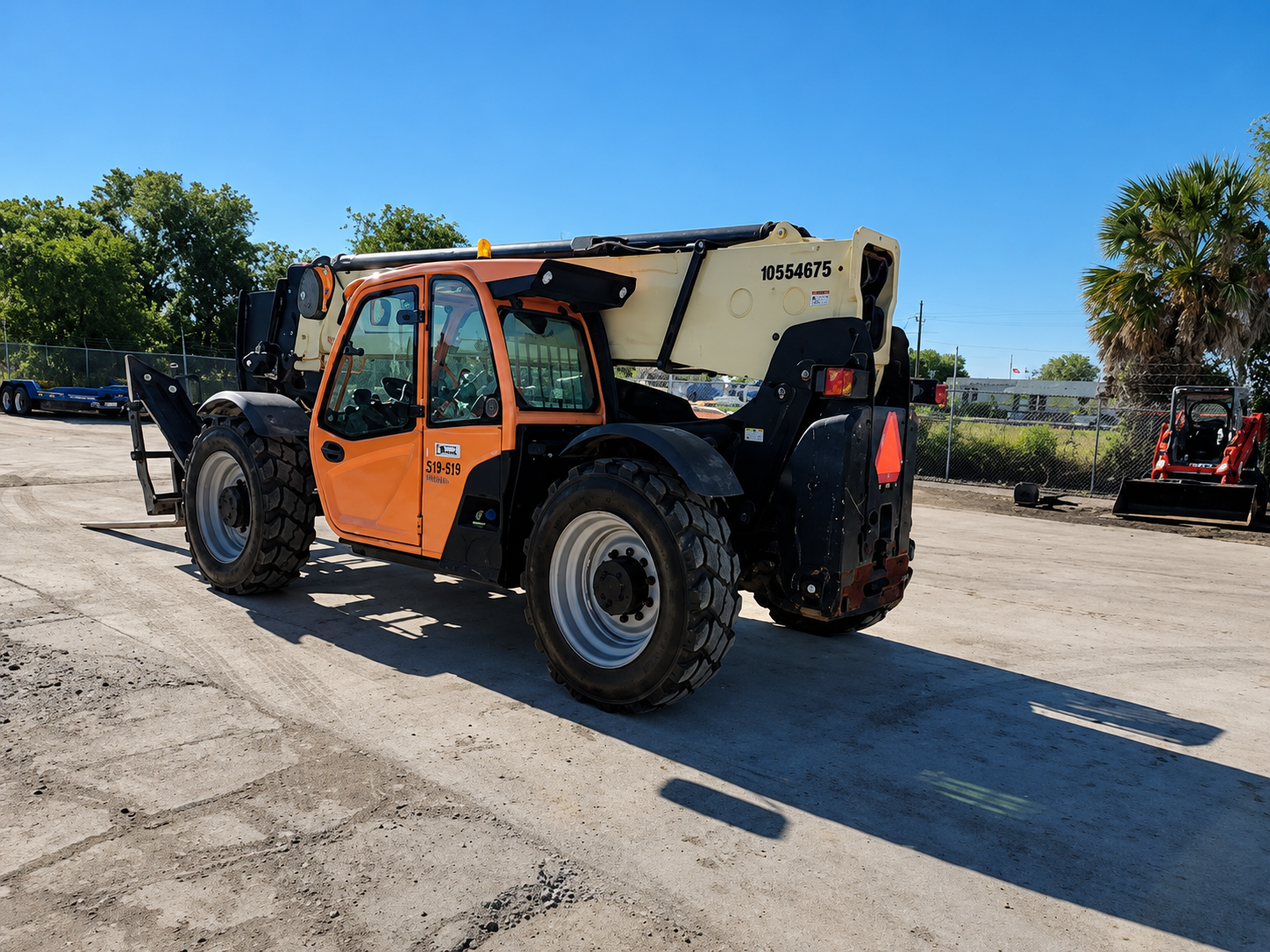

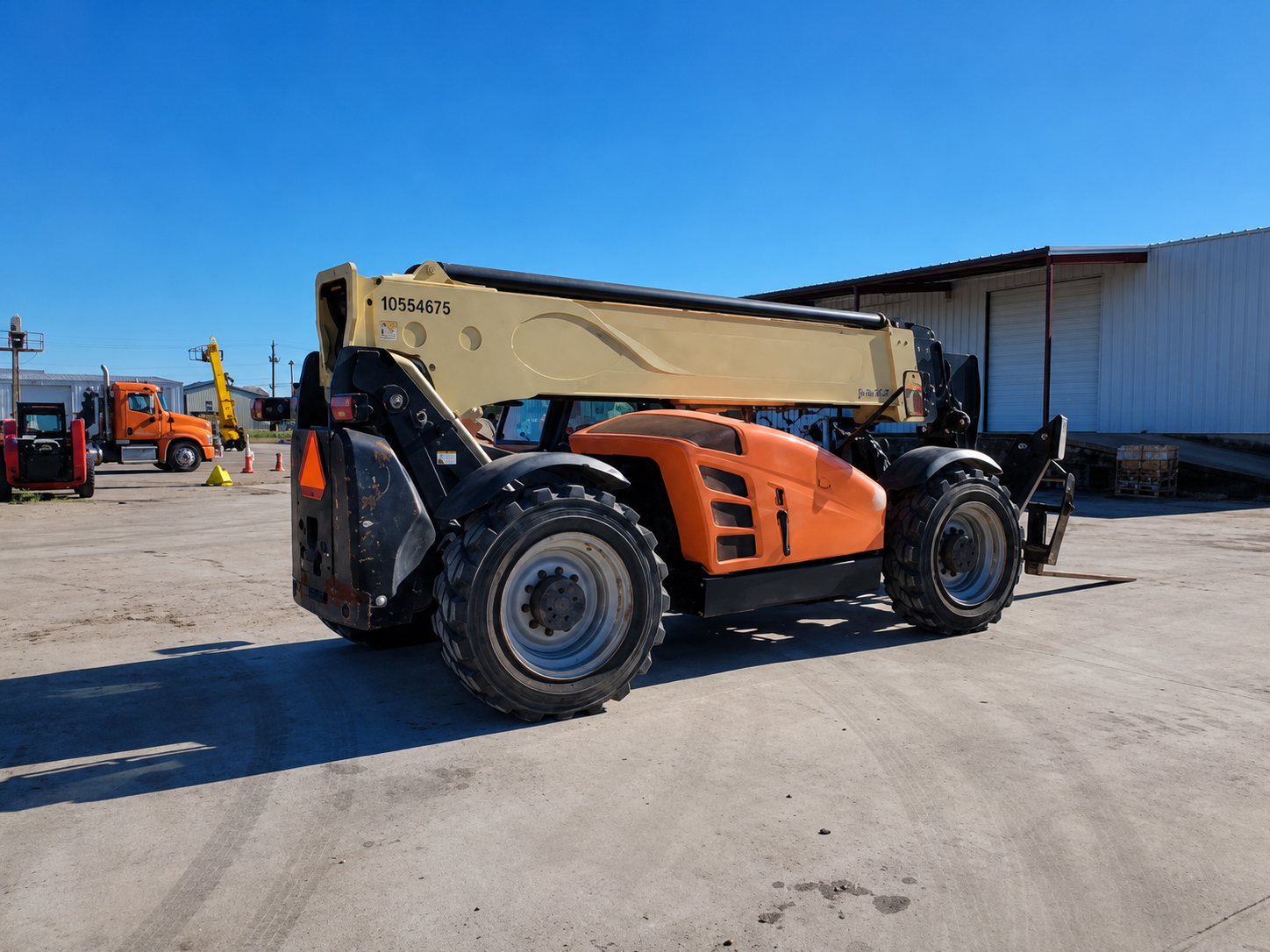

2017 JLG 1255 Telehandler
BUY NOW OR MAKE OFFERAvailable
