Item Specifications
Category
Condition
Used
Item Number
#1185
Make
ditch_witch
Model
rt45
Year
2018
Industry
construction
Equipment Type
trenchers
Location
Ingleside, TX
Serial
DWPRT45XEJ00*****
Also Available In
TX
Item Description
This 2018 Ditch Witch RT45 trencher cuts trenches for utilities, drainage, and irrigation work. Its diesel engine and hydrostatic drive support trenching and travel around the jobsite, while auxiliary hydraulics allow attachment operation. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2018 |
| Make | ditch_witch |
| Model | rt45 |
| Hours | 1,114 |
| Serial Number | DWPRT45XEJ00***** |
| Condition | Used |
| Tread (W4) | 46 in / 1.17 m |
| Manufacturer's gross power rating, Tier 4 | 48.8 hp |
| Manufacturer's gross power rating, Tier 4i | 42.2 hp |
Engine & Powertrain
| Engine, Tier 4 | Deutz® D2.9 L4, 2.9 L, Diesel |
| Emissions compliance, Tier 4 | EPA Tier 4 |
| Engine, Tier 4i | Deutz® D2011L3i, 2.3 L, Diesel |
| Emissions compliance, Tier 4i | EPA Tier 4i |
| Digging chain speed, max (2,600 rpm engine speed) | 460 fpm / 140 m/min |
Working Range
| Rated speed, Tier 4 | 2,600 rpm |
| Rated speed, Tier 4i | 2,300 rpm |
| Forward speed, max | 4.7 mph / 7.6 km/h |
| Reverse speed, max | 2.7 mph / 4.4 km/h |
| Fluid capacities - Fuel tank | 13 gal / 49 L |
| Fluid capacities - Hydraulic system | 13 gal / 49 L |
Dimensions
| Height (H1) | 86 in / 2.18 m |
| Length, transport (L2) | 155 in / 3.9 m |
| Width, transport (W2) | 64 in / 1.6 m |
| Basic unit weight | 3,240 lb / 1470 kg |
| Wheelbase (L4) | 48 in / 1.22 m |
| Ground clearance, min (standard tire) | 7 in / 180 mm |
| Ground clearance, min (optional tire) | 8.5 in / 215 mm |

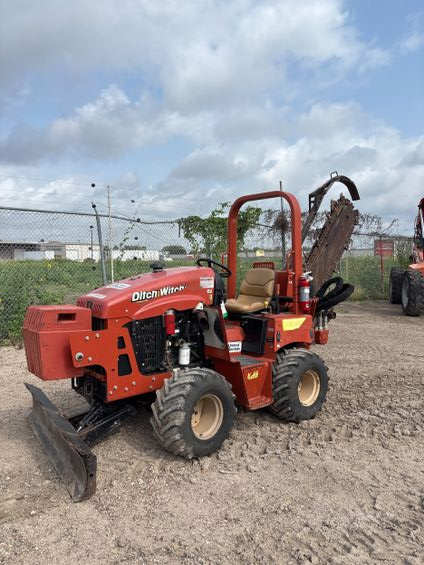

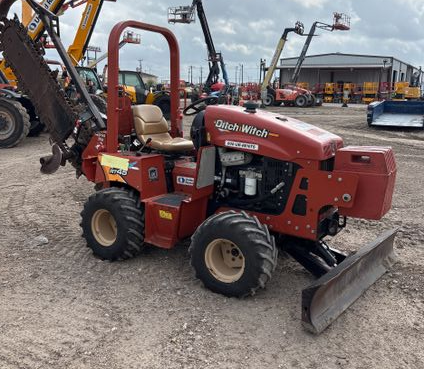

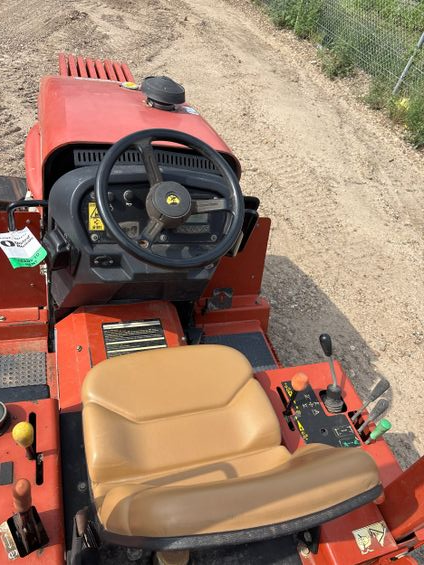

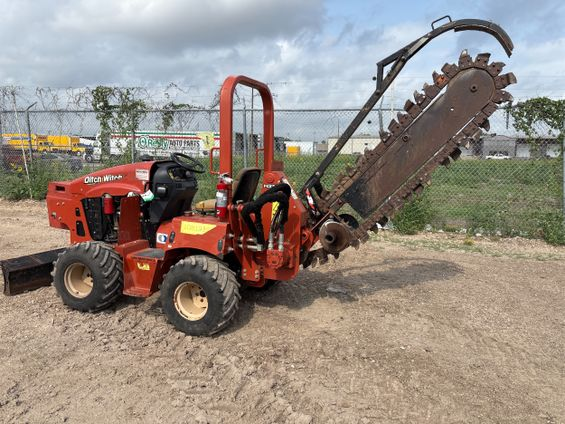

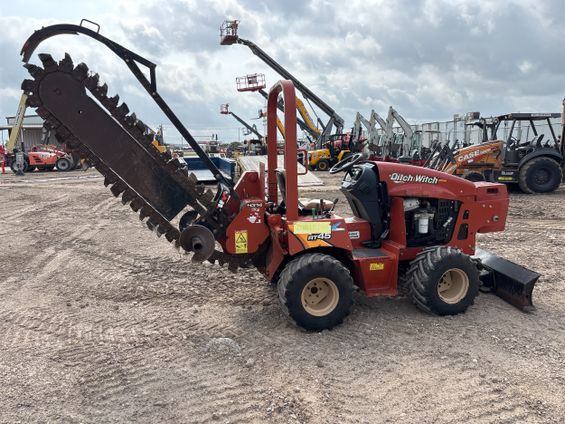

2018 Ditch Witch RT45 Trencher
