Item Specifications
Category
Condition
Used
Item Number
#1184
Make
doosan
Model
p425-hp375wcut4
Year
2021
Industry
construction
Equipment Type
air compressors
Location
Corpus Christi, TX
Serial
501945UD*****
Hours
4,454
Also Available In
TX
Item Description

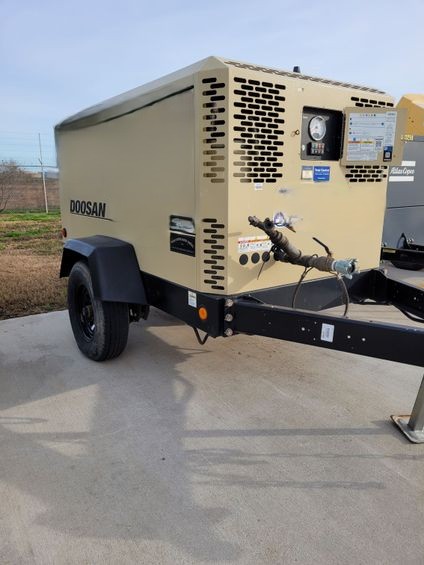

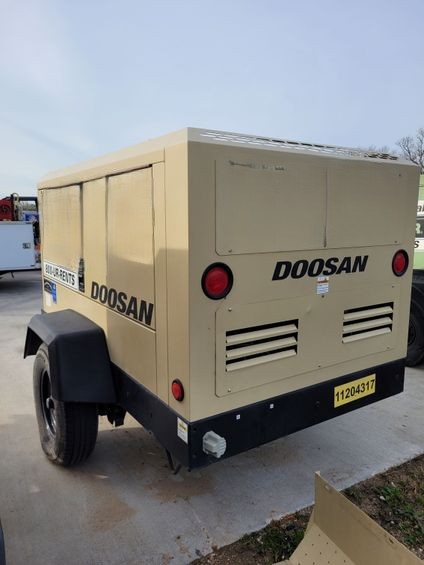

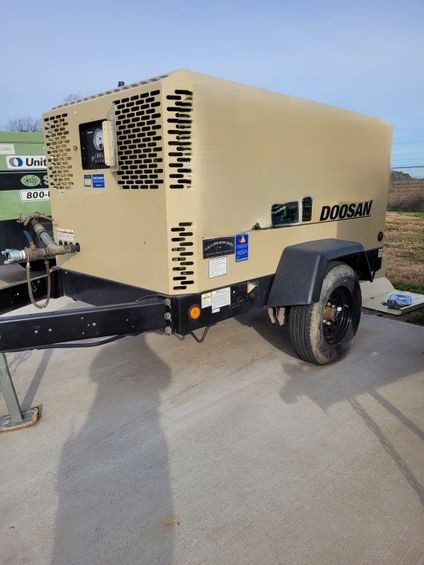

This 2021 Doosan P425/HP375WCUT4 air compressor supplies compressed air for pneumatic tools and job site work. Its Cummins diesel engine allows operation where electrical power is unavailable. Low- and high-pressure modes accommodate different air requirements. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2021 |
| Make | doosan |
| Model | p425-hp375wcut4 |
| Hours | 4,454 |
| Serial Number | 501945UD***** |
| Condition | Used |
| Air Discharge Outlet Size – in (mm) | 1.25 (31.8) |
| Air Discharge Outlet Quantity | 1 |
Engine & Powertrain
| Fuel Tank Capacity – gal (L) | 60 (227) |
| Engine Make/Model | Cummins/QSB4.5 |
| Emissions Tier Level | Tier 4 Final (T4F) |
| Number of Cylinders | 4 |
| Displacement – cu in (L) | 272 (4.5) |
| Electrical - volts | 24 |
Working Range
| Free-Air Delivery – cfm (m3/min), LOW PRESSURE | 425 (12.0) |
| Free-Air Delivery – cfm (m3/min), HIGH PRESSURE | 375 (10.6) |
| Rated Operating Pressure – psig (bar), LOW PRESSURE | 100 (6.9) |
| Rated Operating Pressure – psig (bar), HIGH PRESSURE | 150 (10.3) |
| Pressure Range – psig (bar) | 80 - 175 (5.5 - 12.1) |
| Rated Speed – rpm | 2200 |
| Idle Speed – rpm | 1950 |
| Bhp @ Rated Speed (kW), LOW PRESSURE | 130 (97) |
| Bhp @ Rated Speed (kW), HIGH PRESSURE | 138 (102.9) |
| Hours of Operation @ Full Load, LOW PRESSURE | 10.9 |
| Hours of Operation @ Full Load, HIGH PRESSURE | 10.6 |
Dimensions
| Dimensions With Running Gear: Length – in (mm) | 152.5 (3874) |
| Dimensions With Running Gear: Width – in (mm) | 78.2 (1986) |
| Dimensions With Running Gear: Height – in (mm) | 69.9 (1775) |
| Dimensions With Running Gear: Track Width – in (mm) | 66.6 (1692) |
| Dimensions With Running Gear: Tire Size – in | 15 |
| Dimensions With Running Gear: Shipping Weight – w/o fuel – lb (kg) | 4470 (2027) |
| Dimensions With Running Gear: Working Weight – w fuel – lb (kg) | 5030 (2281) |
| Dimensions Without Running Gear: Length – in (mm) | 104.2 (2647) |
| Dimensions Without Running Gear: Width – in (mm) | 60.7 (1542) |
| Dimensions Without Running Gear: Height – in (mm) | 61 (1549) |
| Dimensions Without Running Gear: Shipping Weight – w/o fuel – lb (kg) | 4207 (1908) |
| Dimensions Without Running Gear: Working Weight – w fuel – lb (kg) | 4767 (2162) |
2021 Doosan P425/HP375WCUT4 Air Compressor
