Item Specifications
Category
Condition
Used
Item Number
#1181
Brand
Case
Make
case
Model
580n_ep
Year
2020
Industry
construction
Equipment Type
backhoe loaders
Location
Corpus Christi, TX
Serial
JJGN58EPHKC7*****
Also Available In
TX
Item Description
This 2020 Case 580N EP backhoe loader handles excavation, loading, and material movement on construction and utility jobs. Its front loader moves material, while the rear backhoe digs trenches and foundations. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2020 |
| Make | case |
| Model | 580n_ep |
| Hours | 1,761 |
| Serial Number | JJGN58EPHKC7***** |
| Condition | Used |
Engine & Powertrain
| Engine - Model | FPT F5HFL463D |
| Emissions Certification | Tier 4 Final |
| Engine - Type | Diesel 4-stroke, Turbocharged |
| Engine - Cylinders | 4 |
| Engine - Bore/Stroke | 3.90 x 4.33 in (99 x 110 mm) |
| Engine - Displacement | 207 in3 (3.4 L) |
| Engine speeds - Rated speed, full load | 2200 RPM |
| Engine speeds - Low idle | 900 – 1000 RPM |
| Engine speeds - High idle, no load | 2330 – 2430 RPM |
| Horsepower @ 2200 RPM - Gross | 74 hp (55 kW) |
| Horsepower @ 2200 RPM - Net w/ viscous fan | 72 hp (54 kW) |
| Horsepower @ 2200 RPM - Net | 68 hp (51 kW) |
| Maximum torque @ 1400 RPM - Gross | 233 lb·ft (316 N·m) |
| Maximum torque @ 1400 RPM - Net w/ viscous fan | 228 lb·ft (310 N·m) |
| Maximum torque @ 1400 RPM - Net | 220 lb·ft (298 N·m) |
Working Range
| Hydraulics - Main relief pressure, Standard | 3,350 +/- 50 psi (231 +/- 3.5 bar) |
| Hydraulics - Loader flow @ rated engine RPM | 28.5 gpm @ 3,350 psi (108.0 L/min @ 231 bar) |
| Hydraulics - Backhoe flow @ rated engine RPM | 28.5 gpm @ 3,350 psi (108 L/min @ 231 bar) |
| Service Capacities - Fuel tank | 30.0 gal (114.0 L) |
| Service Capacities - Hydraulic system, Total | 112 qt (106.0 L) |
| Service Capacities - Engine oil w/ filter | 19.0 qt (18.0 L) |
| Backhoe Operational Data - Digging depth, Maximum (Standard Backhoe) | 15 ft 0 in (4.58 m) |
| Backhoe Operational Data - Digging depth, Maximum (Extendahoe, Extended) | 18 ft 6 in (5.63 m) |
| Backhoe Operational Data - Swing arc | 180° |
Undercarriage & Attachments
| Other Specifications - Rear tires, 2/4WD | 19.5 L x 24.0, 10-ply rating |

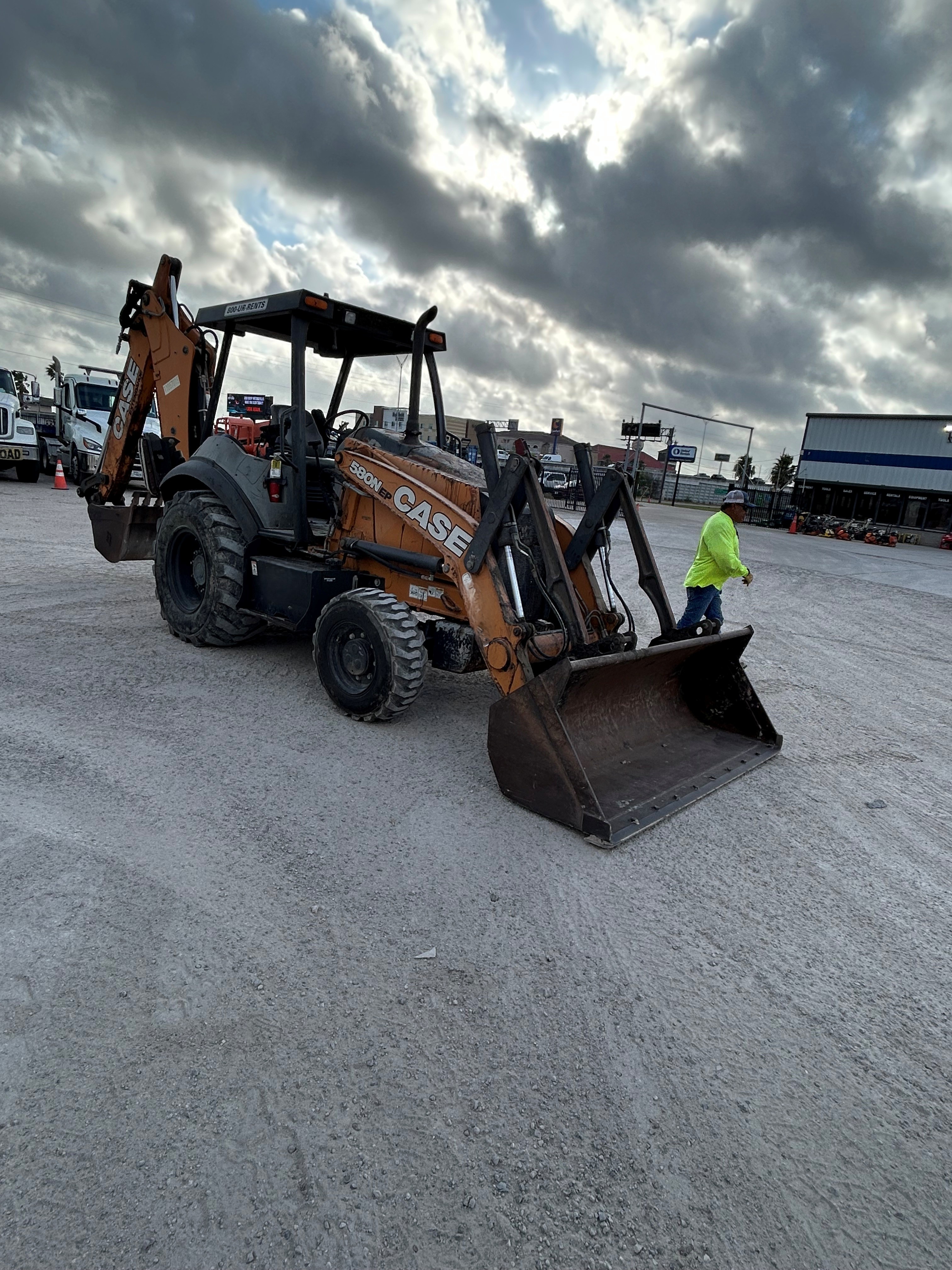

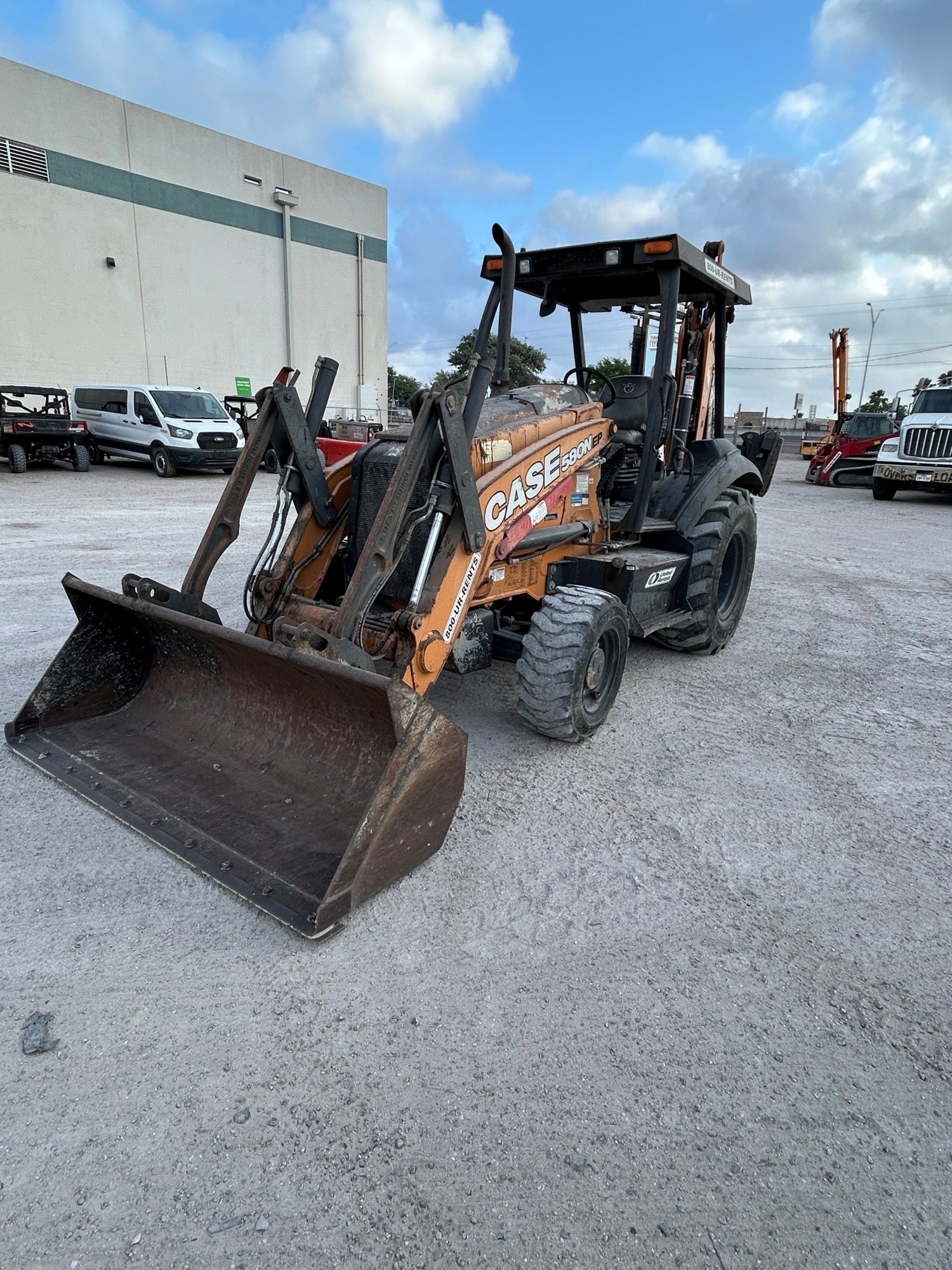

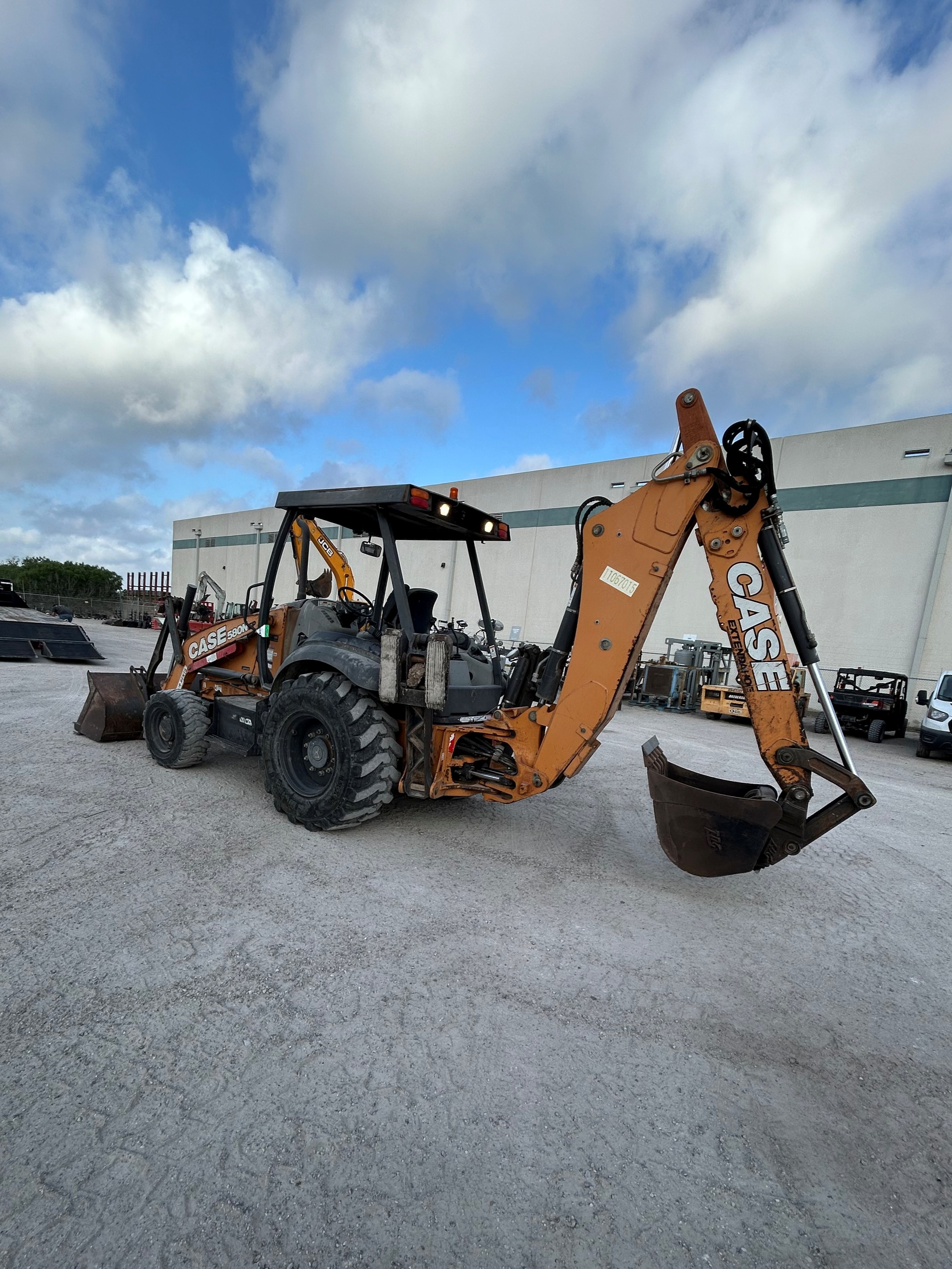

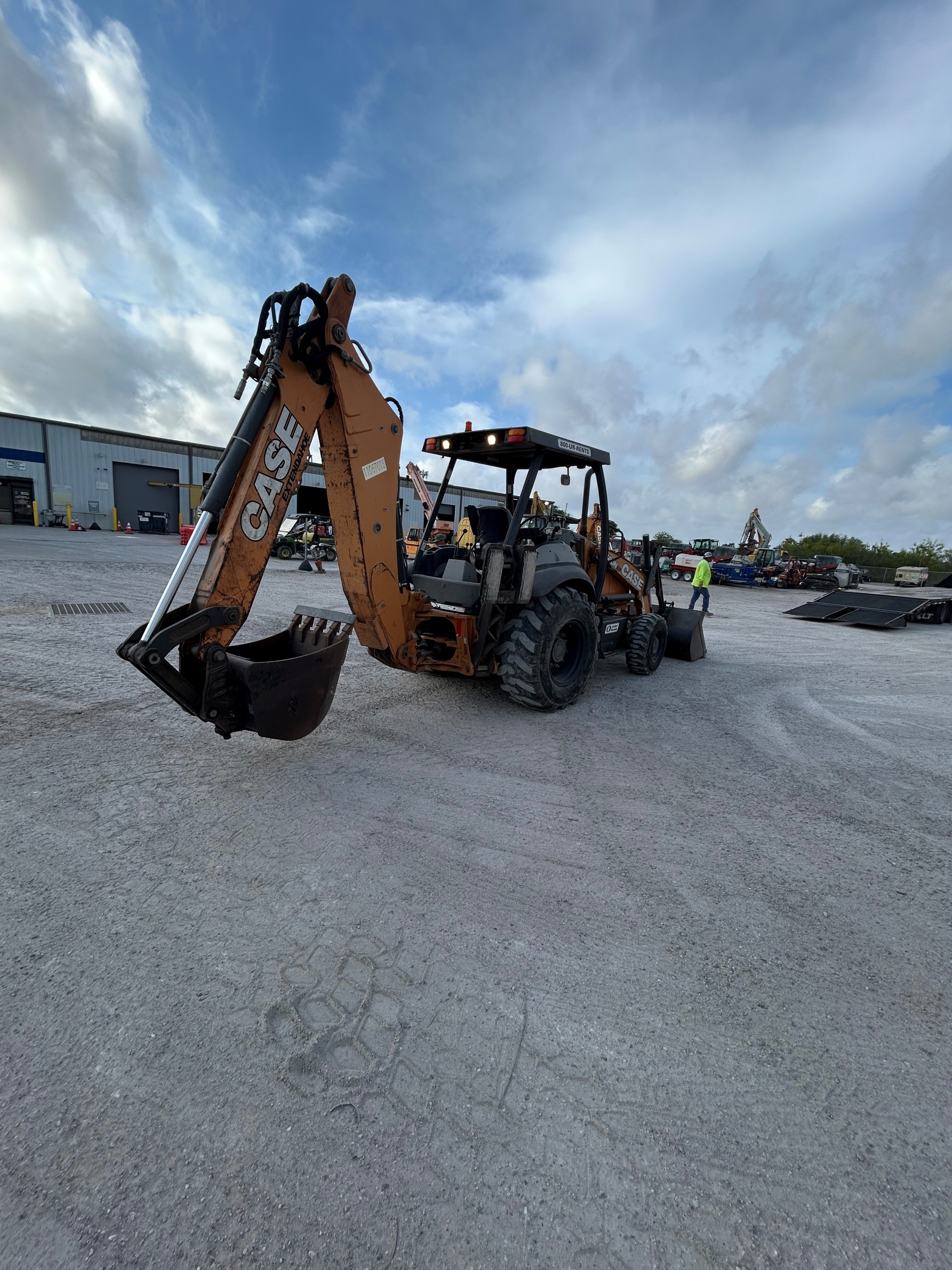

2020 Case 580N EP Backhoe Loader
