Item Specifications
Category
Condition
Used
Item Number
#1144
Brand
Case
Make
case
Model
650l_lt
Year
2013
Industry
construction
Equipment Type
dozers
Location
Jasper, TX
Also Available In
TX
Item Description
This Case 650L LT dozer is suited to grading, clearing, and moving soil on construction sites. Its tracked undercarriage provides traction on uneven ground. The blade can be lifted, angled, and tilted to shape the work surface. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2013 |
| Make | case |
| Model | 650l_lt |

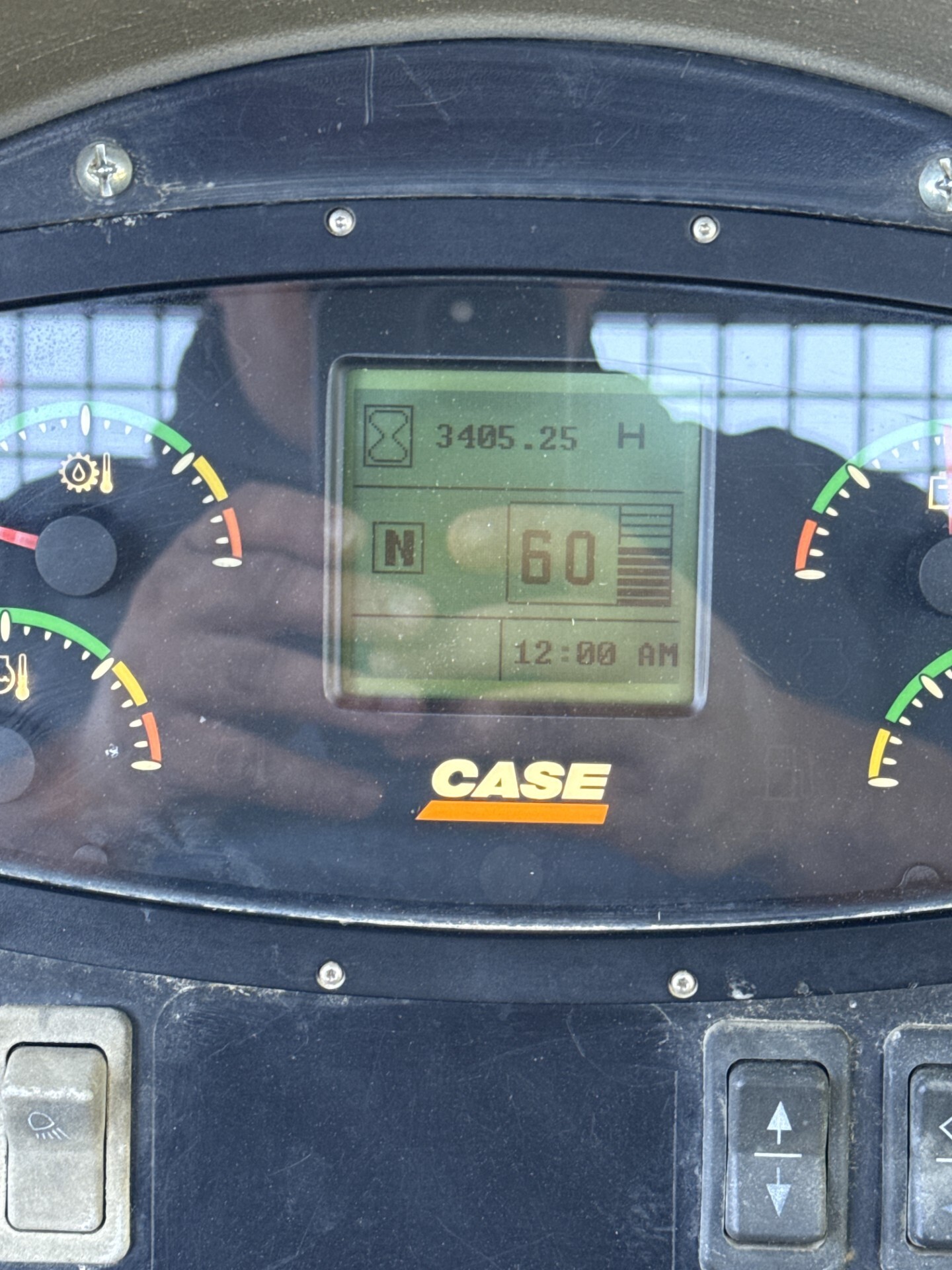

| Hours | 3,390 |
| Condition | Used |
| Fan - Diameter | 20 in (500 mm) |
| Fan - Ratio | 1.1:1 |
Engine & Powertrain
| Engine - Model | Case Family IV 445TA/EG7a diesel |
| Emissions Certification | Tier 3 Certified |
| Engine - Cylinders | 4 |
| Engine - Displacement | 274 in3 (4.5 L) |
| Engine - Fuel injection | Common rail |
| Engine - Fuel | #2 Diesel |
| Engine - Air intake | Cross-flow |
| Engine - Cooling | Liquid |
| Engine speeds - High idle, no load | 2160 +/- 50 RPM |
| Engine speeds - Rated, full load | 2000 RPM |
| Horsepower @ 2000 RPM (SAE J1349) - Net | 74 hp (55 kW) |
| Horsepower @ 2000 RPM (SAE J1349) - Gross | 80.5 hp (60 kW) |
| Drivetrain - Pump | Variable axial piston |
| Drivetrain - Motor | Variable bent axis piston |
| Drivetrain - Max. drawbar pull | 36,000 lb (160.5 kN) |
| Drivetrain - Transmission oil filter | 4 micron, spin-on replaceable |
| Drivetrain - Travel speed | 5.5 mph (9 kph) |
| Drivetrain - Steering brakes | Hydrostatic |
| Drivetrain - Final drive | 2 helical gear reduction to planetary output, Ratio 61:1 |
| Electrical - Alternator | 90 amp |
| Electrical - Battery | 12-volt low-maintenance, 700 cold-cranking amps @ 0 F (-18 C) |
| Electrical - System | 12 Volts |
Working Range
| Pump operating angle ratings - Side-to-side | 45° |
| Pump operating angle ratings - Fore and aft | 45° |
| Hydraulics - Pump flow @ 2000 RPM @ 3,000 psi (20,684 kPa) | 20.3 gpm (78.8 L/min) |
| Hydraulics - Lift cylinder - Quantity | Two (2) |
| Hydraulics - Lift cylinder - Bore diameter | 3.50 in (89 mm) |
| Hydraulics - Lift cylinder - Rod diameter | 1.75 in (44.5 mm) |
| Hydraulics - Lift cylinder - Stroke | 15.5 in (394 mm) |
| Hydraulics - Angle cylinder - Quantity | Two (2) |
| Hydraulics - Angle cylinder - Bore diameter | 3.50 in (89 mm) |
| Hydraulics - Angle cylinder - Rod diameter | 1.75 in (44.5 mm) |
| Hydraulics - Angle cylinder - Stroke | 13.5 in (342 mm) |
| Hydraulics - Tilt cylinder - Quantity | One (1) |
| Hydraulics - Tilt cylinder - Bore diameter | 3.50 in (89 mm) |
| Hydraulics - Tilt cylinder - Rod diameter | 1.75 in (44.5 mm) |
| Hydraulics - Tilt cylinder - Stroke | 5.4 in (137 mm) |
| Service Capacities - Fuel tank | 41 gal (155 L) |
| Service Capacities - Engine oil w/ filter | 13 qt (12.3 L) |
| Service Capacities - Engine oil w/o filter | 12.2 qt (11.5 L) |
| Service Capacities - Engine cooling system | 22.6 qt (21.4 L) |
| Service Capacities - Hydraulic reservoir | 16.5 gal (72.7 L) |
Undercarriage & Attachments
| Undercarriage - Track link pitch | 6.29 in (160 mm) |
| Undercarriage - Pin diameter | 2.06 in (52 mm) |
| Undercarriage - Bushing diameter, CLT track | 2.125 in (54 mm) |
| Undercarriage - Bushing diameter, CELT track | 2.75 in (70 mm) |
| Undercarriage - Bolt diameter | 0.625 in (16 mm) |
| Undercarriage - Track shoes per side | 39 |
| Undercarriage - Track rollers per side | 6 |
| Undercarriage - Carrier rollers per side | 1 |
| Undercarriage - Track roller rail diameter | 6.1 in (155 mm) |
Dimensions
| Dimensions (LT) - SAE blade capacity | 1.58 yd3 (1.21 m3) |
| Dimensions (LT) - A. Blade height | 33.1 in (841 mm) |
| Dimensions (LT) - B. Blade lift above ground | 33.6 in (853 mm) |
| Dimensions (LT) - C. Blade depth below ground | 20.9 in (531 mm) |
| Dimensions (LT) - Blade angle both directions | 25° |
| Dimensions (LT) - D. Cast reach | 11.2 in (284 mm) |
| Dimensions (LT) - E. Cut reach | -1.6 in (-41 mm) |
| Dimensions (LT) - Blade tilt, each end, up to 9 deg | 14.2 in (361 mm) |
| Dimensions (LT) - Track gauge | 56 in (1.42 m) |
| Dimensions (LT) - Maximum shoe width | 16 in (406 mm) |
| Dimensions (LT) - F. Length of track on ground | 84 in (2.12 m) |
| Dimensions (LT) - Area of track on ground | 2,630 in2 (1.70 m2) |
| Dimensions (LT) - Ground pressure | 6.2 psi (42.6 kPa) |
| Dimensions (LT) - H. Ground clearance | 14.4 in (366 mm) |
2013 Case 650L LT Dozer
