Financing 1 / 5
Item Specifications
Category
Condition
Used
Item Number
#1139
Brand
JLG
Make
jlg
Model
600s
Year
2017
Industry
aerial
Equipment Type
telescopic boom lifts
Location
Corpus Christi, TX
Serial
03002*****
Also Available In
TX
Item Description
This 2017 JLG 600S telescopic boom lift provides access for construction, maintenance, and industrial work at height. Its extending boom offers outward reach, while platform rotation helps position workers at the task. The lift is suited to work across large outdoor sites. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings
Specifications
General
| Year | 2017 |
| Make | jlg |
| Model | 600s |
| Hours | 3,468 |
| Serial Number | 03002***** |
| Condition | Used |
| Max Platform Height | 60.24 ft in |
| Max Horizontal Reach | 50.2 ft in |
| Platform Inner Length | 96.07 in |
| Platform Inner Width | 35.83 in |
| Platform Railing Height | 59.68 ft in |
| Platform Rotation | 160 degrees |
| Platform Capacity - Unrestricted | 600 lb |
| Platform Capacity - Restricted | 1000 lb |
| Max Platform Weight Capacity | 1000.9 lb |
| Operating Weight | 21461 lb |
| Fuel Capacity | 39.9 gal |
| Hydraulic System Fluid Capacity | 34 gal |
| Max Speed | 4.3 mph |
| Tire Size | 41/181.1 X 22.5 |
| Tire Fill/Type | Lug Tread |
Engine & Powertrain
| Fuel Tank | 31 gal |
| Diesel Engine Type | Deutz TD2.9L4 Tier 4 Final |
| Diesel Engine Power | 67 hp |
| Dual Fuel Engine Type | Ford MSG425-DF |
| Dual Fuel Engine Power | 84 hp |
| Maximum Ground Bearing Pressure | 78 psi |
| Engine Make | 2349 |
| Engine Model | F4M2011 |
| Gross Power | 64.4 hp |
| Fuel Type | Diesel |
| System Voltage | 12 V |
Working Range
| Axle Oscillation | 0.7 ft in |
| Swing | 360 degrees |
Dimensions
| Overall Length | 343 in |
| Overall Width | 8.2 ft in |
| Overall Height - Mast Lowered | 8.44 ft in |
| Wheelbase | 8.08 ft in |
| Ground Clearance | 11 in |
| Platform Dimension B | 8.01 ft in |
| Overall Height | 8.2 ft in |
| Turning Radius | 19.7 ft in |
| Tailswing Radius | 4 ft in |
| Platform Dimension A | 2.99 ft in |

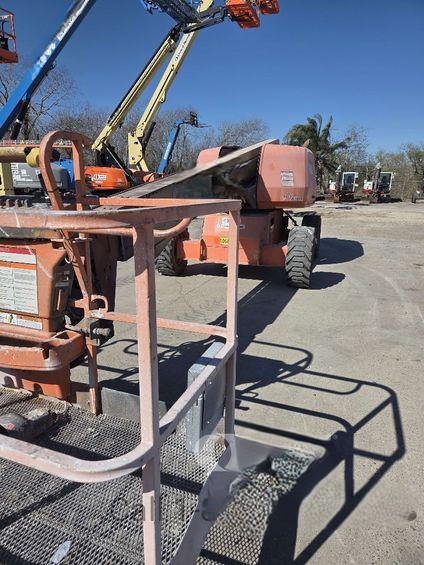

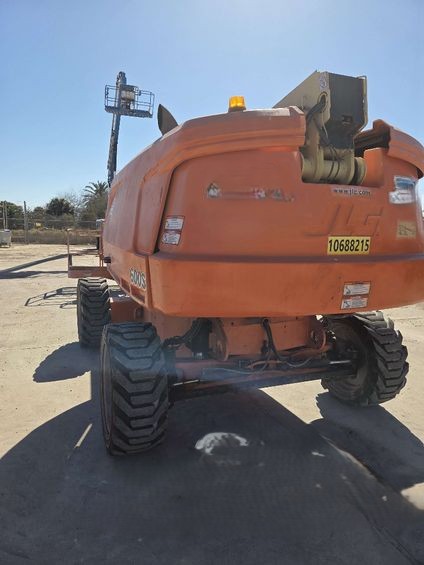

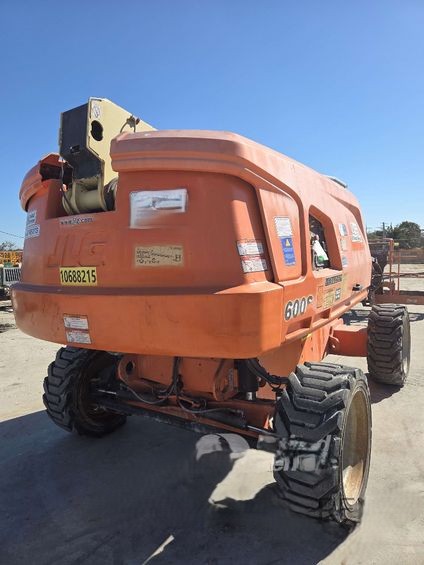

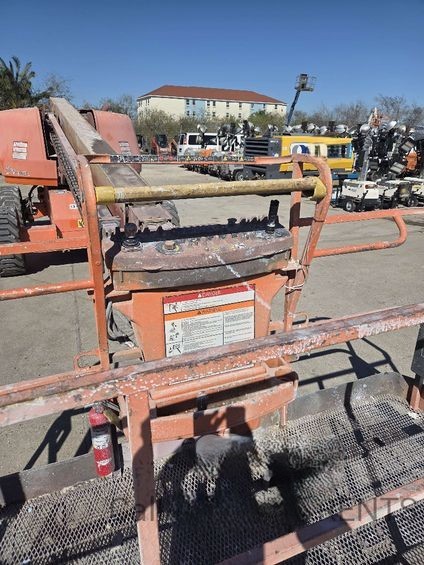

2017 JLG 600S Telescopic Boom Lift
BUY NOW OR MAKE OFFERAvailable
