Item Specifications
Category
Condition
Used
Item Number
#1138
Make
skyjack
Model
sjiii_4626
Year
2006
Industry
aerial
Equipment Type
aerial lifts scissor electric
Location
Choteau, OK
Also Available In
OK
Item Description

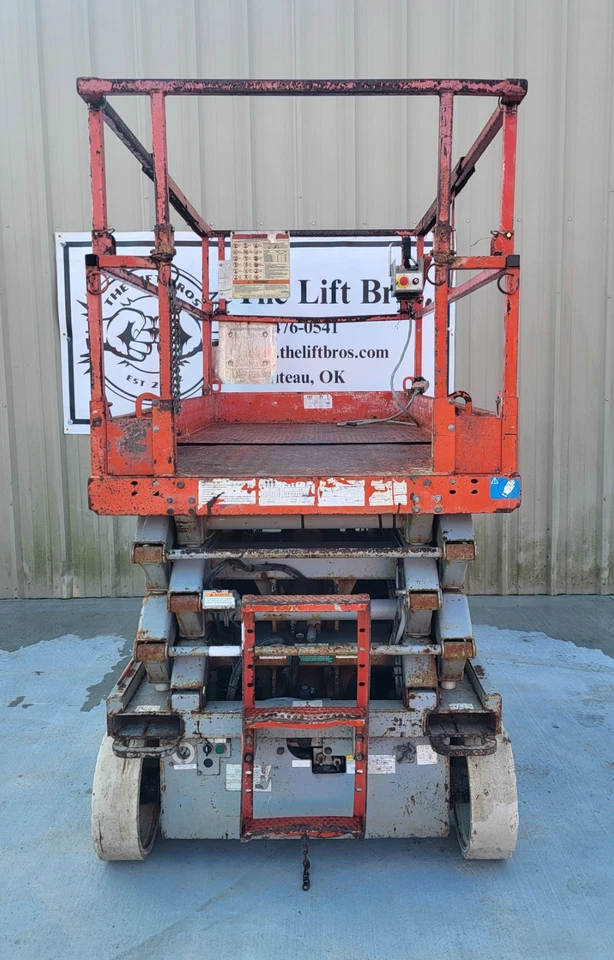

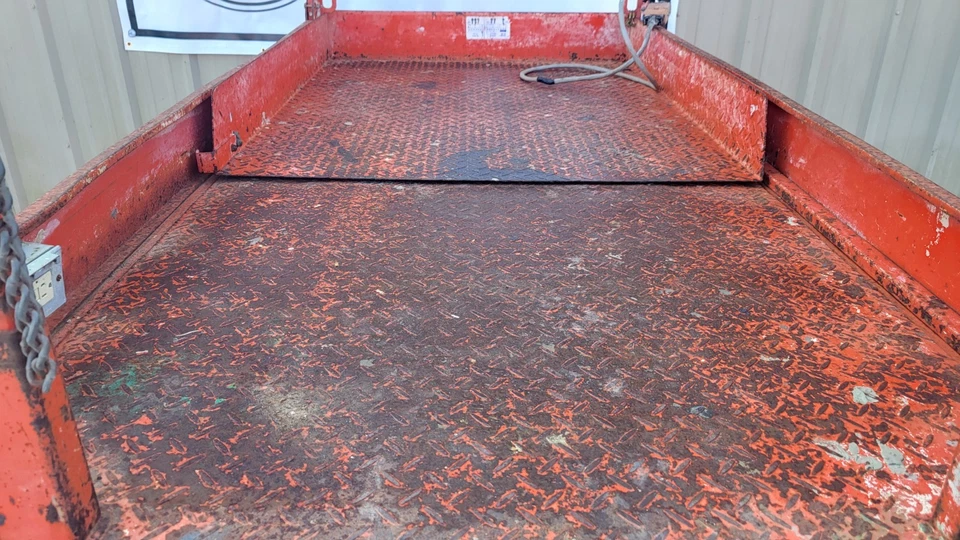

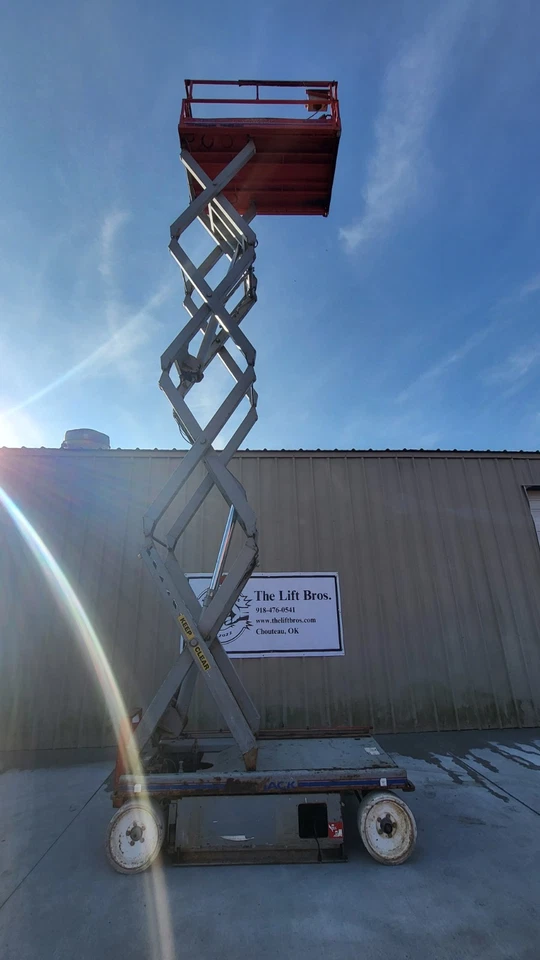

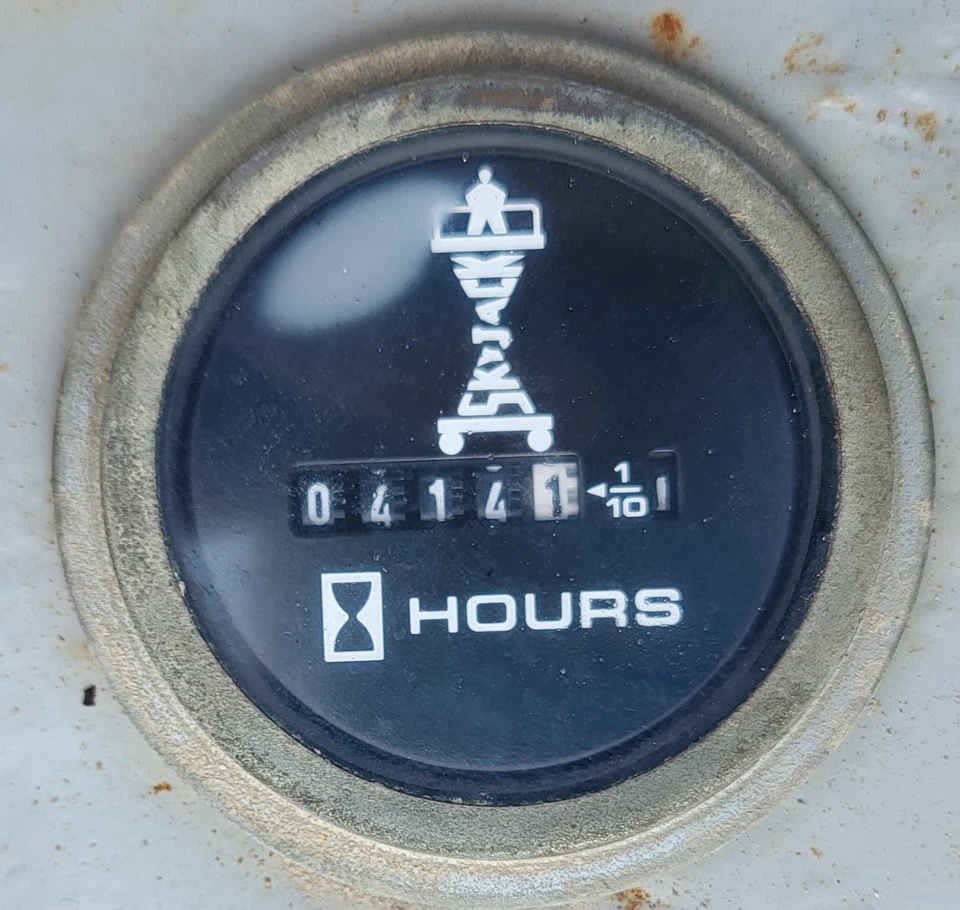

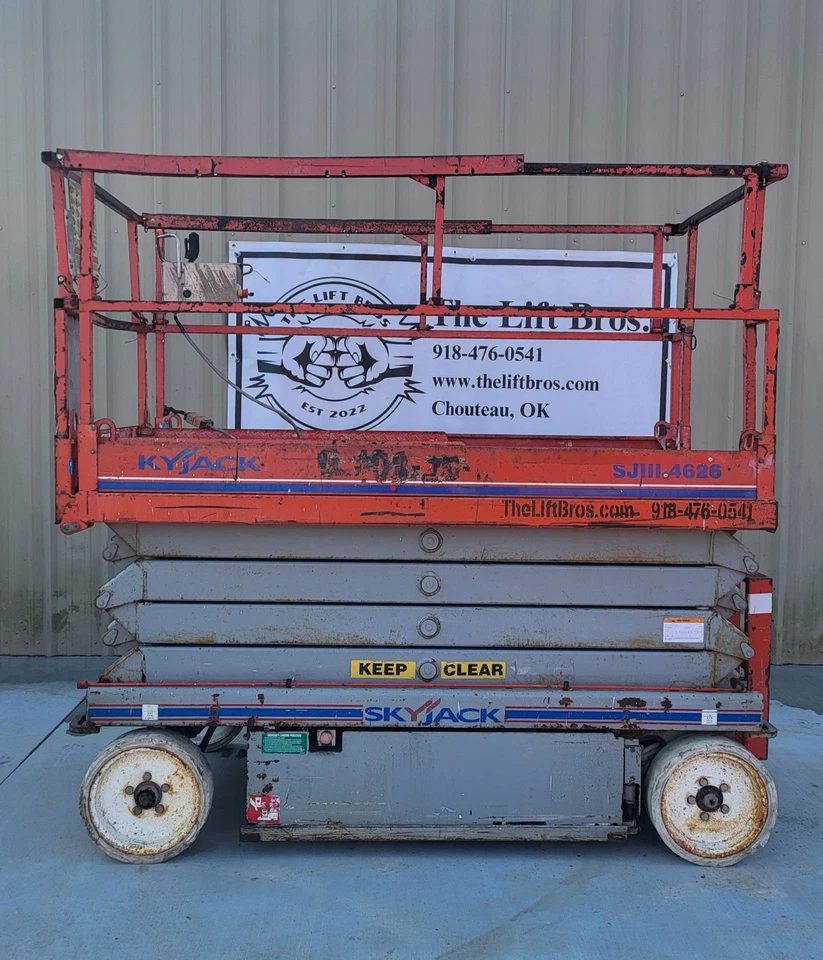

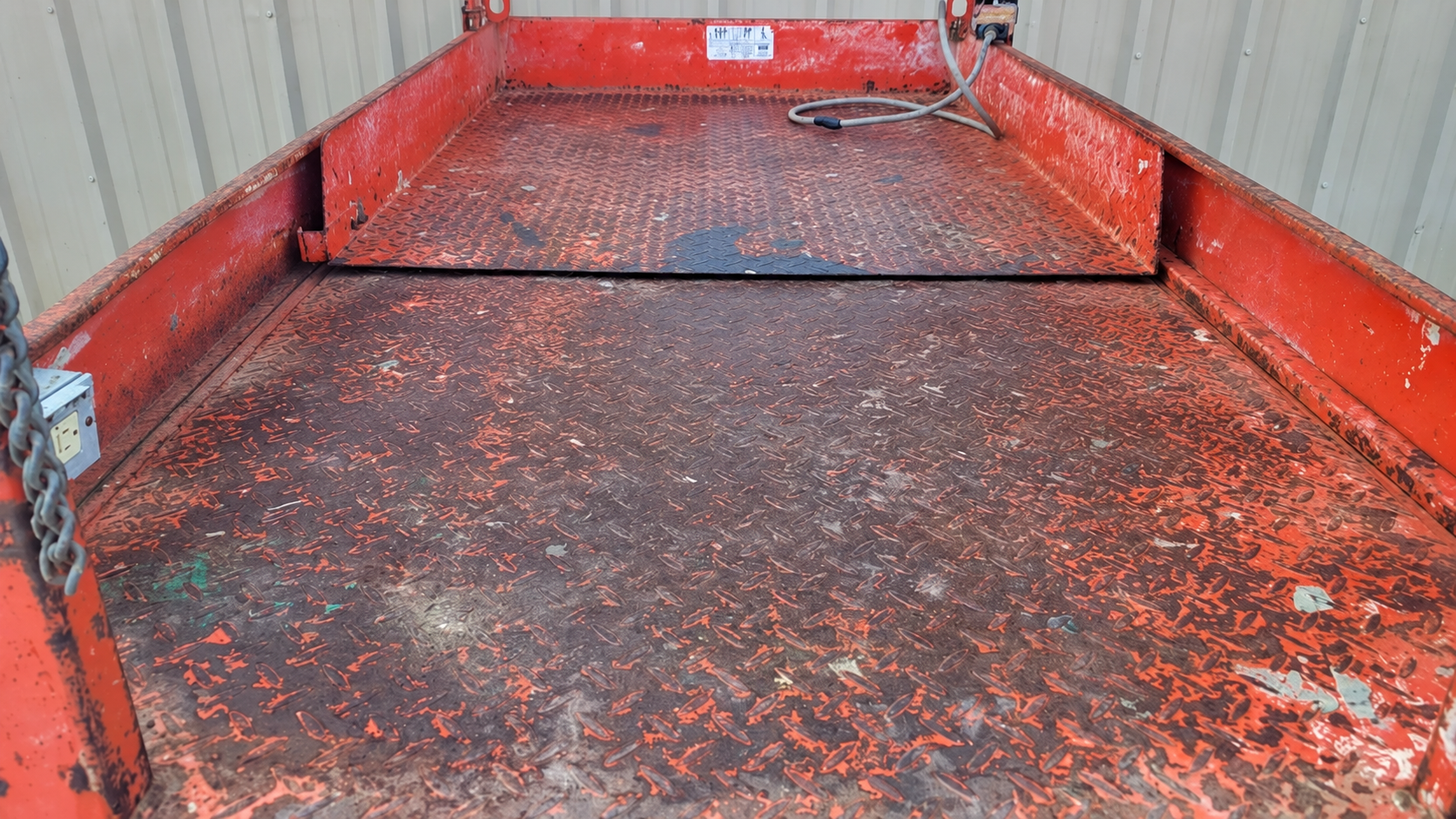

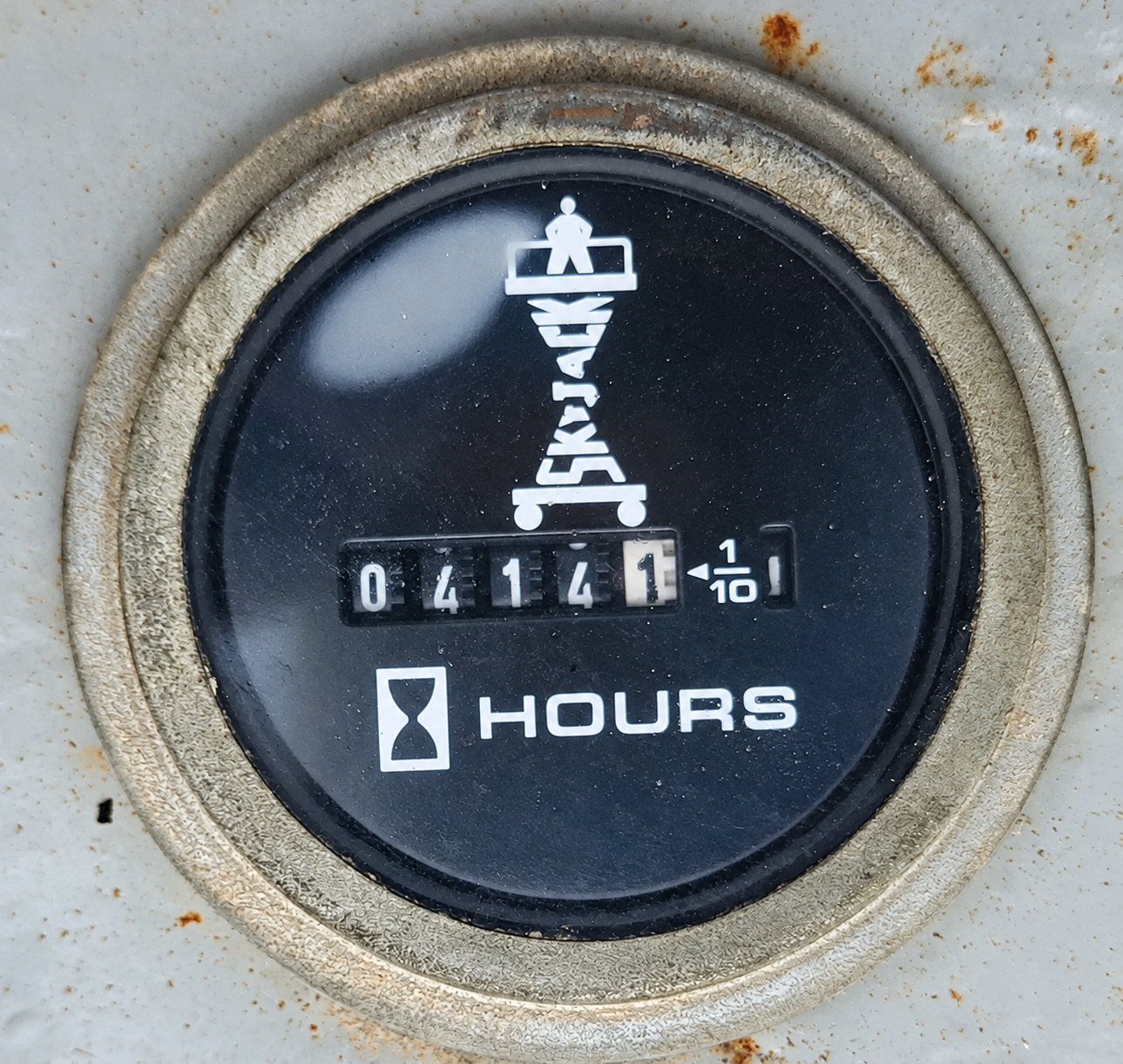

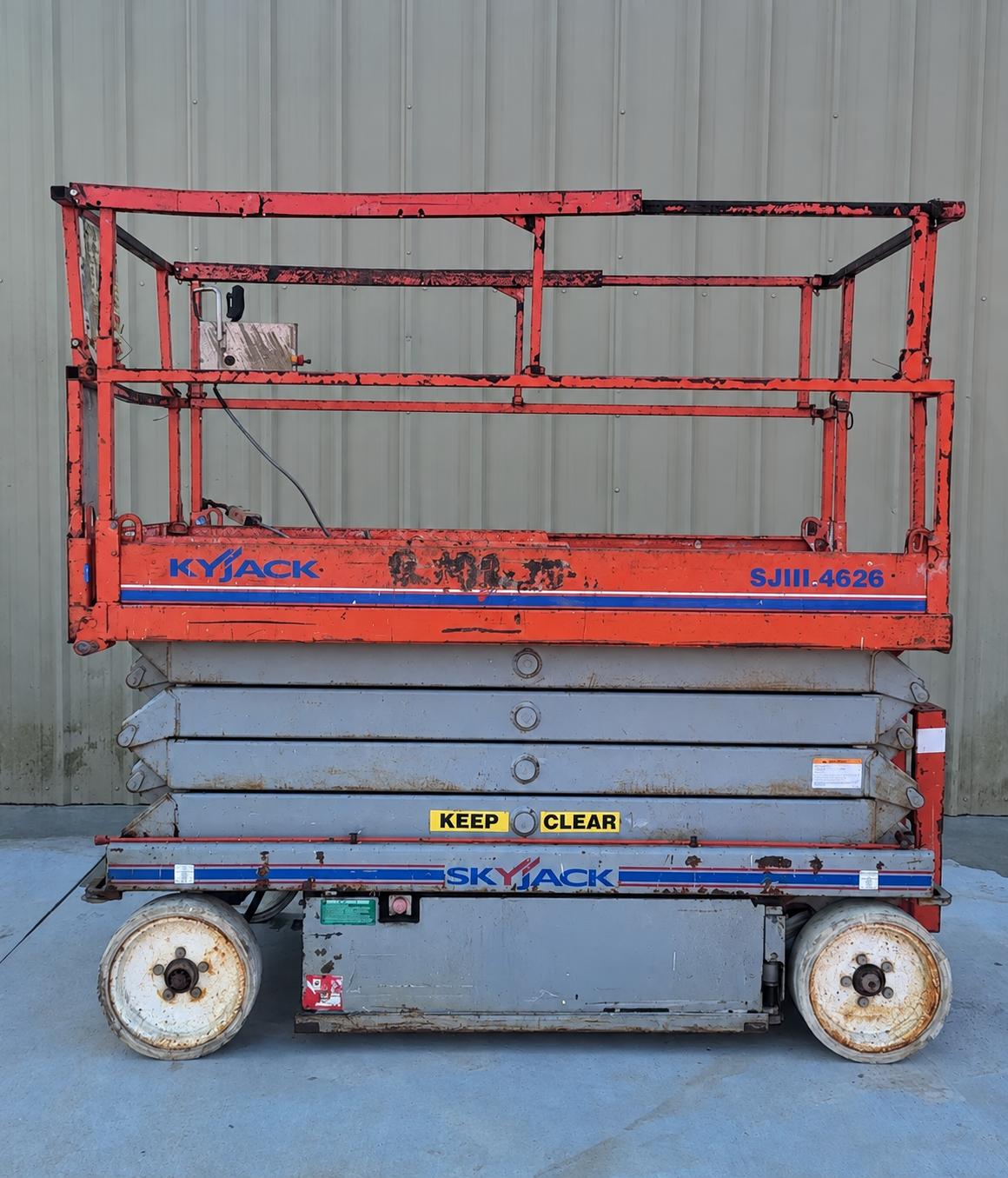

This 2006 Skyjack SJIII 4626 scissor lift provides elevated access for maintenance, installation, and construction work. Its roll-out deck gives workers more room to position themselves at the work area. Solid non-marking tires suit finished floors, and the lift can be driven while raised within its operating limits. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2006 |
| Make | skyjack |
| Model | sjiii_4626 |
| Condition | Used |
| Extension Deck (Roll Out) | 4' (1.22 m) |
| Maximum # of Persons | 3 |
| Wind Rating | 28 mph (12.5 m/s) |
Working Range
| Gradeability | 30% |
| Lift Time (With Rated Load) | 54 sec |
| Lower Time (With Rated Load) | 32 sec |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
| Drive Speed (Raised) | 0.6 mph (1 km/h) |
| Capacity (Overall) | 1,000 lbs (454 kg) |
| Distributed Capacity (Main Platform) | 700 lbs (318 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) |
| Local Floor Load (With Rated Load) | 235 psi (1620 kPa) |
| Overall Floor Load (With Rated Load) | 191 psf (9 kPa) |
Undercarriage & Attachments
| Tire Type | Solid, N/M |
| Tire Size | 16 x 5 x 12 |
Dimensions
| Work Height | 32' (9.75 m) |
| Raised Platform Height | 26' (7.92 m) |
| Lowered Platform Height | 45" (1.14 m) |
| Overall Width | 46" (1.17 m) |
| Overall Length | 91" (2.31 m) |
| Stowed Height (Rails Up) | 84.5" (2.15 m) |
| Stowed Height (Rails Down) | 70.5" (1.79 m) |
| Platform Width (Inside Dimension) | 42" (1.07 m) |
| Platform Length (Inside Dimension) | 84" (2.13 m) |
| Ground Clearance (Stowed) | 3.5" (8.89 cm) |
| Ground Clearance (Raised) | 0.75" (1.91 cm) |
| Wheelbase | 69" (1.75 m) |
| Weight | 4,700 lbs (2,132 kg) |
| Turning Radius (Inside) | 47.5" (1.21 m) |
| Turning Radius (Outside) | 93.5" (2.37 m) |
| Maximum Drive Height | Full Height |
Skyjack SJIII 4626
