Item Specifications
Category
Condition
Used
Item Number
#1133
Make
genie
Model
gr-20
Industry
aerial
Equipment Type
vertical mast lifts personnel lifts
Location
Choteau, OK
Also Available In
OK
Item Description

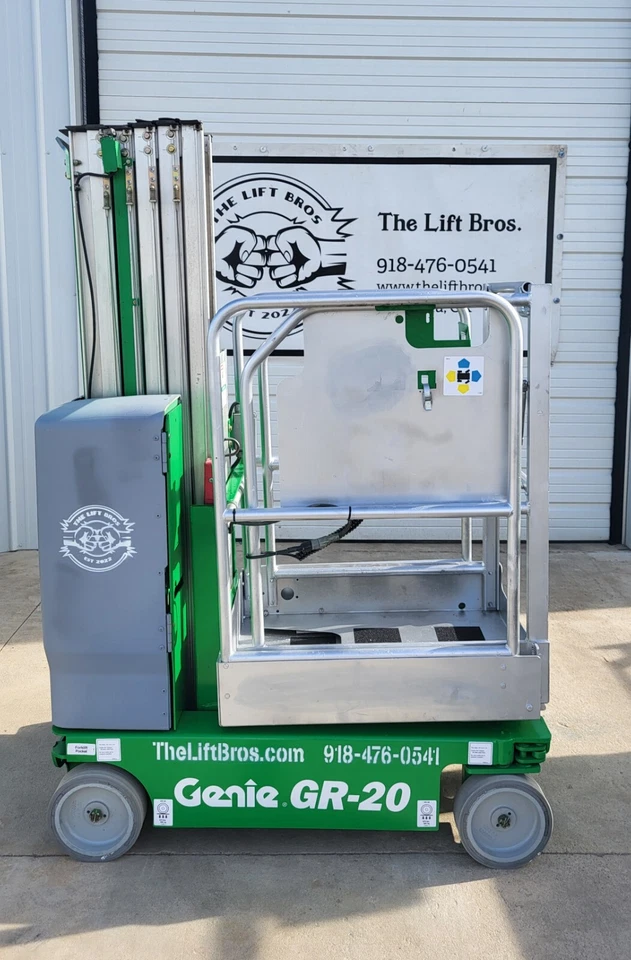

This Genie GR-20 vertical mast lift provides access for overhead maintenance and installation work indoors. Its compact size helps it maneuver through narrow work areas, while solid non-marking tires suit finished floors. The platform can be driven while raised within its operating limits. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Make | genie |
| Model | gr-20 |
| Condition | Used |

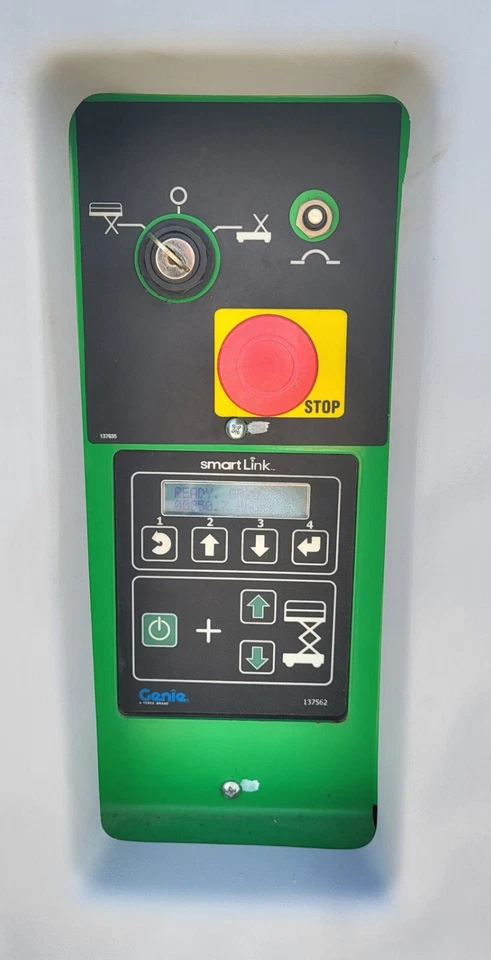

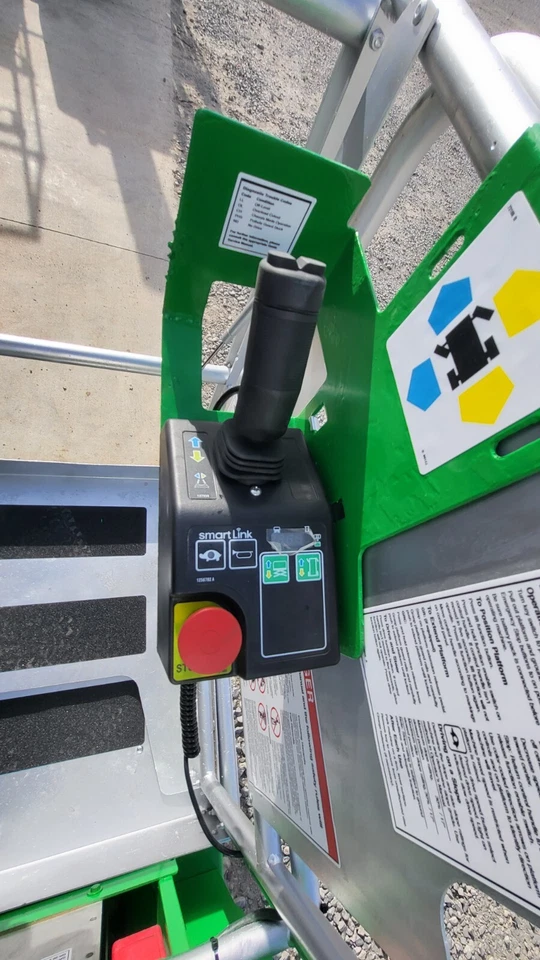

| Controls | 24V DC proportional |
| Tyres | solid non-marking |
| Power source | 24V (four 6V 225 Ah batteries) |
| Vibration | <2.5 m/s^2 |
| Standards Compliance | ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10 |
Working Range
| Max platform occupancy (indoor/outdoor) | 1 / - |
| Lift capacity | 350 lbs (159 kg) |
| Drive speed - stowed | 2.5 mph (4.0 km/h) |
| Drive speed - raised | 0.5 mph (0.8 km/h) |
| Gradeability | 30% |
| Raise / lower speed | 24 / 21 sec |
| Hydraulic system capacity | 2.2 gal (8.33 L) |
| Sound pressure level (ground workstation) | <70 dBA |
Dimensions
| Working height | 25 ft 8 in (8.02 m) |
| Platform height | 19 ft 9 in (6.02 m) |
| Platform dimensions (length x width) | 55 x 29.5 in (1.40 m x 75 cm) |
| Platform dimensions, standard with extension | 6 ft 6 in (1.98 m) |
| Height - stowed | 1.35 m / 4 ft 5 in |
| Length - stowed | 2 ft 7.5 in (80 cm) |
| Width | 2.5 in (6.4 cm) |
| Turning radius - inside | zero |
| Weight | 2,529 lbs (1,148 kg) |

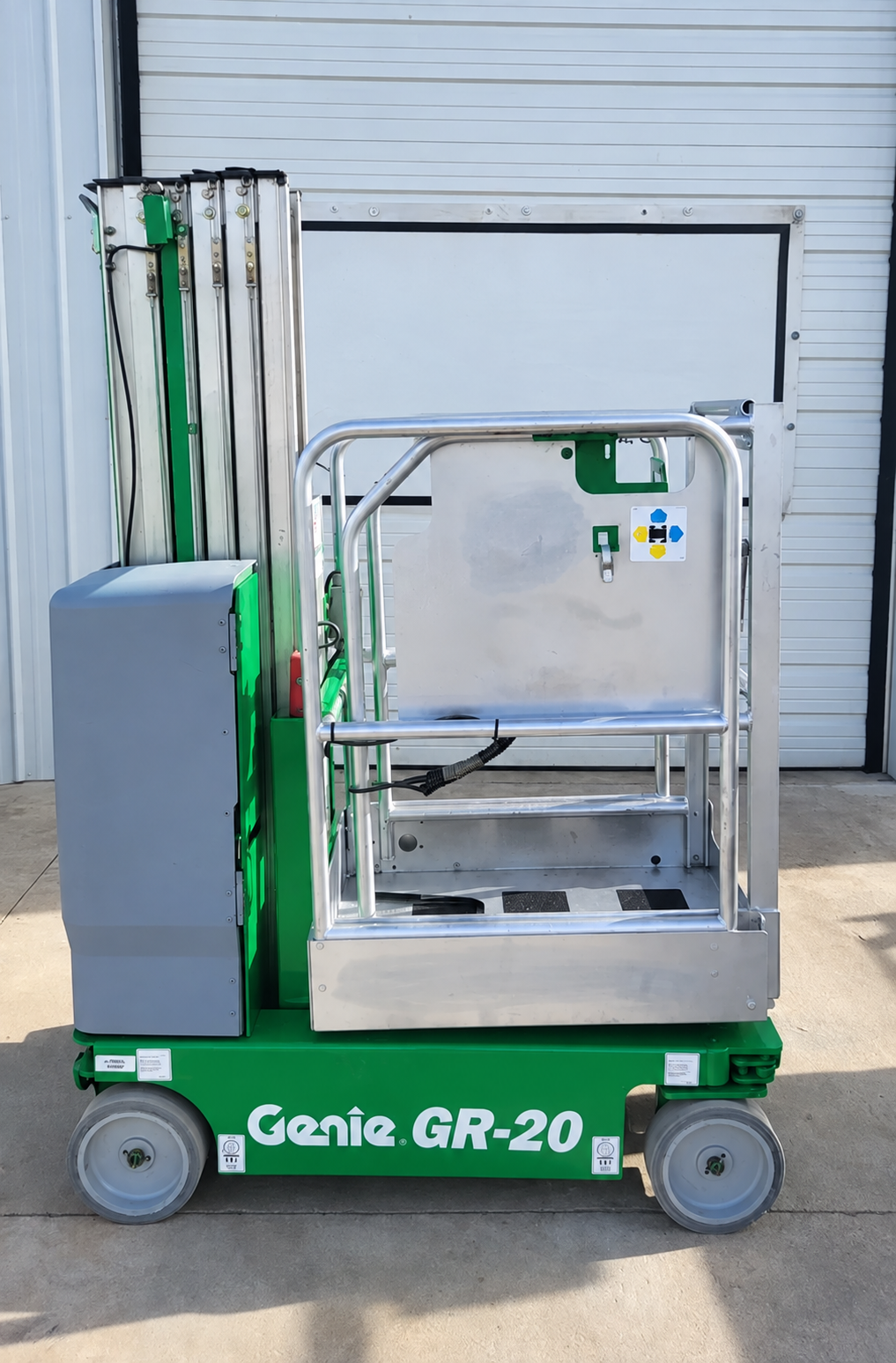

Genie GR-20 Electric Vertical Mast Lift
