Item Specifications
Category
Condition
Used
Item Number
#1129
Make
genie
Model
z_45_25j_ic
Year
2017
Industry
aerial
Equipment Type
aerial lifts articulating boom
Location
San Benito, TX
Serial
Z4525N-*****
Also Available In
TX
Item Description
This 2017 Genie Z-45/25J IC articulating boom lift provides access for overhead construction and maintenance work. Its boom and jib help position the platform over or around obstacles. Turntable and platform rotation allow further adjustment at the work area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2017 |
| Make | genie |
| Model | z_45_25j_ic |
| Hours | 3,145 |
| Serial Number | Z4525N-***** |
| Condition | Used |
| Turntable rotation | 355 deg non-continuous |
| Power source | Ford LRG 425 EFI, 4 cylinder gas/LPG, 82 hp (61.1 kW) |
| Auxiliary power unit | 12 V DC proportional |
| Standards Compliance | ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10 |
Engine & Powertrain
| Fuel tank capacity | 17 gal (64.4 L) |
Working Range
| Horizontal reach max | 25 ft 1 in (7.65 m) |
| Lift capacity | 500 lbs (227 kg) |
| Platform rotation | 160 deg |
| Gradeability - 4WD | 30% |
| Drive speed - stowed | 3.0 mph (4.8 km/h) |
| Drive speed - raised | 0.68 mph (1.1 km/h) |
Dimensions
| Working height max | 51 ft 8 in (15.92 m) |
| Platform height max | 45 ft 8 in (13.92 m) |
| Up and over clearance - at platform | 23 ft 11 in (7.29 m) |
| Platform length (A) | 6 ft (1.83 m) |
| Platform width (B) | 6 ft 7 in (1.83 m) |
| Height - stowed (C) | 22 ft (6.70 m) |
| Weight | 16,800 lbs (7,620 kg) |

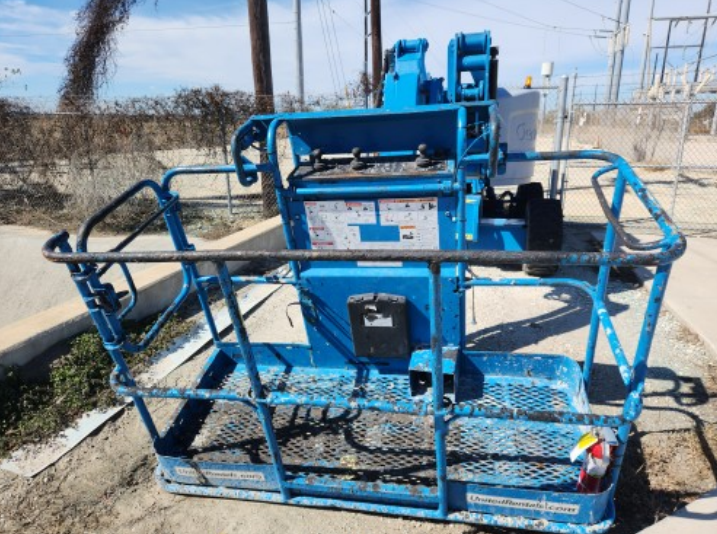

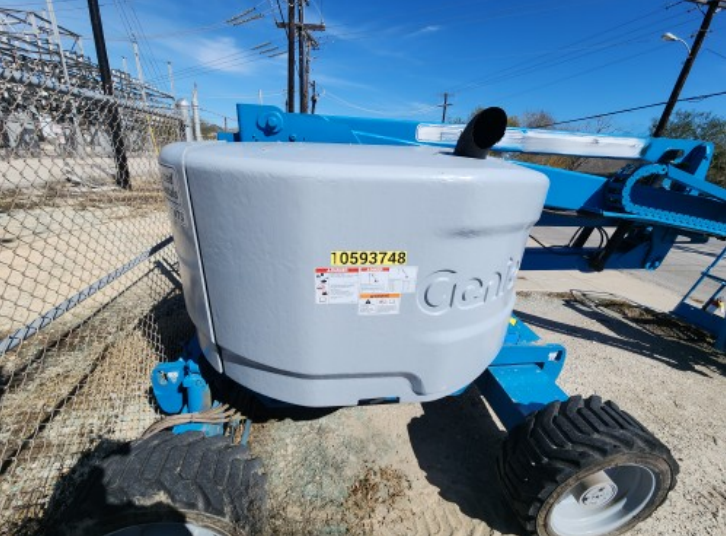

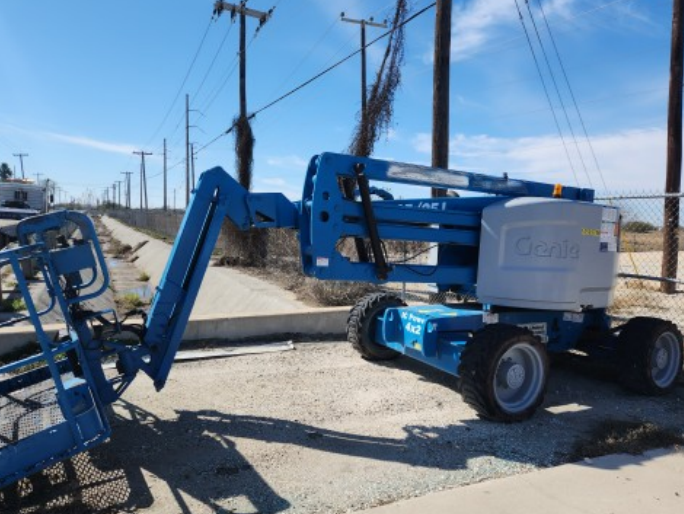

2017 Genie Z-45/25J IC Articulating Boom Lift
BUY NOW OR MAKE OFFERAvailable
