Item Specifications
Category
Condition
Used
Item Number
#1115
Make
takeuchi
Model
tb240
Year
2019
Industry
construction
Equipment Type
mini excavators
Location
Corpus Christi, TX
Serial
1240*****
Also Available In
TX
Item Description
This 2019 Takeuchi TB240 mini excavator is suited to trenching, digging, and site preparation. Its compact size helps it work in confined areas, and the front blade can assist with backfilling. Auxiliary hydraulics can support compatible attachments. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2019 |
| Make | takeuchi |
| Model | tb240 |
| Hours | 3163 |
| Serial Number | 1240***** |
| Condition | Used |
| Traction Force | 9,533 lb (4,324 kg) |
Engine & Powertrain
| Engine Make / Model | Yanmar / 4TNV88C |
| Engine Displacement | 133.6 cu in (2.2 L) |
| Horsepower @ 2,200 rpm | 35.8 hp (26.7 kW) |
| Maximum Torque @ 1,430 rpm | 102.6 ft-lb (139.1 Nm) |
Working Range
| Slew Speed | 9.6 rpm |
| Max Travel Speed - Low Range | 1.8 mph (2.9 km/hr) |
| Max Travel Speed - High Range | 3.3 mph (5.3 km/hr) |
| Fluid Capacities - Engine Lubrication | 7.8 qt (7.4 L) |
| Fluid Capacities - Cooling System | 9.5 qt (9.0 L) |
| Fluid Capacities - Fuel Tank Capacity | 18.5 gal (70.0 L) |
| Fluid Capacities - Fuel Consumption (65% of Full Load) | 1.2 gal/hr (4.8 L/hr) |
| Fluid Capacities - Hydraulic Reservoir Capacity | 10.8 gal (41.0 L) |
| Fluid Capacities - Hydraulic System Capacity | 19.5 gal (74.0 L) |
| Hydraulic System - Total Hydraulic Flow | 30.6 gpm (115.8 Lpm) |
| Hydraulic System - Auxiliary Hydraulic Flow | 17.1 gpm (64.9 Lpm) |
| Hydraulic System - System Operating Pressure | 3,481 psi (24.0 MPa) |
| TB240 Lifting Capacities at Ground Level - Lift Point Radius 9 ft (2,743 mm), Over Front Blade Down | 3,683 lb (1,670 kg) |
| TB240 Lifting Capacities at Ground Level - Lift Point Radius 12 ft (3,657 mm), Over Front Blade Down | 2,462 lb (1,116 kg) |
| TB240 Lifting Capacities at Ground Level - Lift Point Radius 9 ft (2,743 mm), Over Side | 2,019 lb (915 kg) |
| TB240 Lifting Capacities at Ground Level - Lift Point Radius 12 ft (3,657 mm), Over Side | 1,356 lb (615 kg) |
| A Maximum Reach | 18 ft 2.3 in (5,545 mm) |
| B Maximum Reach at Ground Level | 17 ft 9.6 in (5,425 mm) |
| C Maximum Digging Depth | 11 ft 4.4 in (3,465 mm) |
| D Maximum Vertical Digging Depth | 8 ft 8.9 in (2,665 mm) |
| G Front Swing Radius | 6 ft 8.2 in (2,037 mm) |
| I Tail Swing (Slew) Radius | 4 ft 5.7 in (1,365 mm) |
Undercarriage & Attachments
| Maximum Bucket Breakout Force | 9,959 lb (4,517 kg) |
| Maximum Arm Digging Force | 4,110 lb (1,864 kg) |
| H Front Swing Radius with Boom Offset | 5 ft 4.0 in (1,626 mm) |
Dimensions
| Operating Weight - Canopy | 8,570 lb (3,890 kg) |
| Operating Weight - Cab | 8,990 lb (4,080 kg) |
| Arm Length | 5 ft 3 in (1,600 mm) |
| Ground Pressure - Canopy | 4.4 psi (30.2 kPa) |
| Ground Pressure - Cab | 4.6 psi (31.6 kPa) |
| E Maximum Dig Height | 17 ft 2.5 in (5,244 mm) |
| F Maximum Dumping Height | 12 ft 6.7 in (3,828 mm) |
| J Transport Length | 16 ft 8.2 in (5,020 mm) |
| K Transport Height | 8 ft 2.6 in (2,505 mm) |
| L Ground Clearance | 11.6 in (295 mm) |
| M Undercarriage Length | 6 ft 11.0 in (2,110 mm) |
| N Track Width (Rubber) | 13.8 in (350 mm) |
| O Undercarriage Width | 5 ft 8.5 in (1,740 mm) |

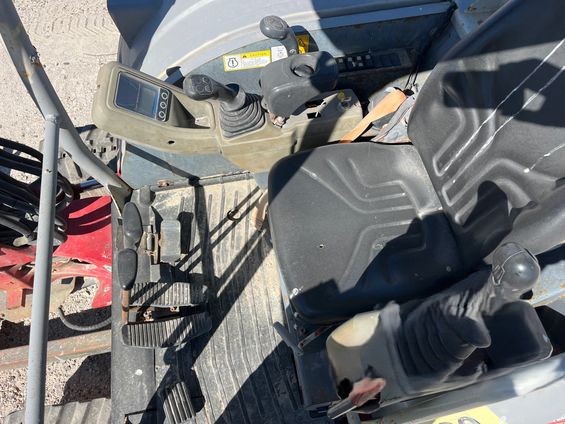

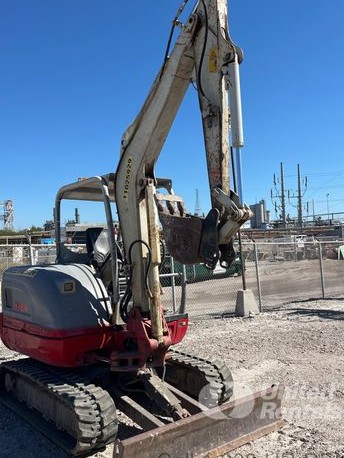

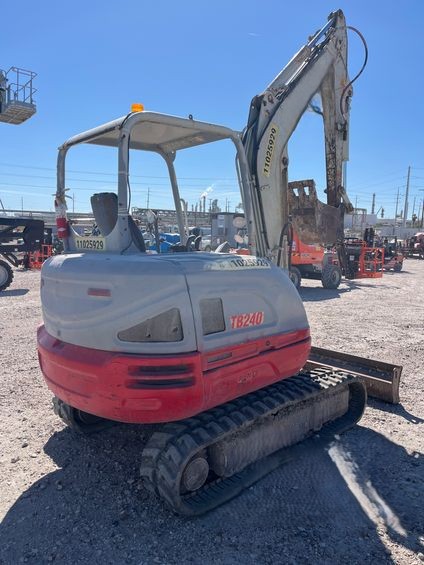

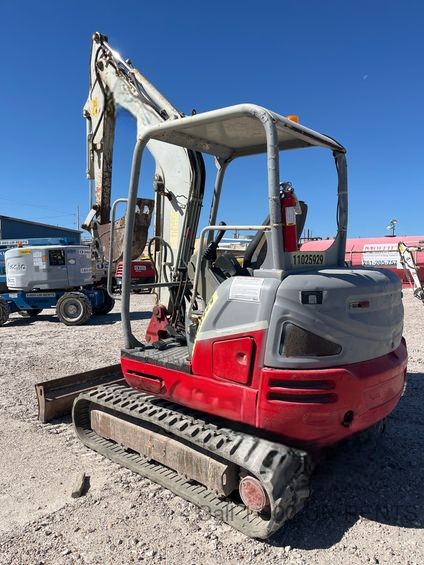

2019 Takeuchi TB240 Mini Excavator
