Item Specifications
Category
Condition
Used
Item Number
#1095
Make
takeuchi
Model
tl12v2_cr
Year
2022
Industry
construction
Equipment Type
compact track loaders
Location
Laredo, TX
Serial
4120*****
Also Available In
TX
Item Description
This 2022 Takeuchi TL12V2-CR compact track loader is suited to loading, moving material, and site preparation. Its tracked undercarriage helps it travel across uneven ground, while the lift arms support loading tasks. Auxiliary hydraulics can operate compatible attachments. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2022 |
| Make | takeuchi |
| Model | tl12v2_cr |
| Hours | 3,836 |
| Serial Number | 4120***** |
| Condition | Used |
| Traction Force | 14,010 lb (6,353 kg) |
| D Dump Angle | 46.8° |
| E Rollback Angle | 30° |
| J Departure Angle | 30° |
Engine & Powertrain
| Engine Make / Model | Kubota / V3800-TIF4B |
| Engine Displacement | 230 cu in (3.8 L) |
| Horsepower @ 2,400 rpm | 111.3 hp (83.0 kW) |
| Maximum Torque @ 1,500 rpm | 284 ft-lb (385.0 Nm) |
Working Range
| Tipping Load | 11,737 lb (5,324 kg) |
| Rated Operating Capacity @ 35%* | 4,107 lb (1,863 kg) |
| Operating Load @ 50% of Tip Load | 5,868 lb (2,662 kg) |
| Travel Speed - Low | 5.0 mph (8.1 km/hr) |
| Travel Speed - High | 7.3 mph (11.6 km/hr) |
| Hydraulic System - Auxiliary Flow - Primary Circuit | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Auxiliary Flow - High Flow (optional) | 40.4 gpm (153.0 Lpm) |
| Hydraulic System - Auxiliary Flow - 2nd Circuit (optional) | 23.2 gpm (88.0 Lpm) |
| Hydraulic System - Hydraulic System Pressure | 3,481 psi (24.0 MPa) |
| Fluid Capacities - Engine Lubrication | 13.9 qt (13.2 L) |
| Fluid Capacities - Cooling System | 19.0 qt (18.0 L) |
| Fluid Capacities - DEF Fluid Tank Capacity | 4.8 gal (18.0 L) |
| Fluid Capacities - Fuel Tank Capacity | 31.6 gal (119.5 L) |
| Fluid Capacities - Fuel Consumption (65% of Full Load) | 3.8 gal/hr (14.4 L/hr) |
| Fluid Capacities - Hydraulic Reservoir Capacity | 13.2 gal (50.0 L) |
| Fluid Capacities - Hydraulic System Capacity | 20.6 gal (78.0 L) |
| C Dump Reach Fully Raised | 3 ft 0.4 in (924 mm) |
Undercarriage & Attachments
| Bucket Breakout Force | 7,874 lb (3,571 kg) |
| Lift Arm Breakout Force | 7,109 lb (3,225 kg) |
Dimensions
| Operating Weight - Canopy | 12,860 lb (5,835 kg) |
| Operating Weight - Cab | 13,190 lb (5,985 kg) |
| Ground Pressure | 4.8 psi (33.0 kPa) |
| A Max. Lift Height to Bucket Pin | 10 ft 10 in (3,302 mm) |
| B Dump Height Fully Raised | 8 ft 1.0 in (2,459 mm) |
| F Track Ground Contact Length | 5 ft 7.6 in (1,717 mm) |
| G Machine Length | 10 ft 6.2 in (3,205 mm) |
| H Transport Length | 13 ft 3.3 in (4,045 mm) |
| I Transport Height | 7 ft 7.7 in (2,330 mm) |
| K Clearance Circle with Bucket | 8 ft 2.6 in (2,505 mm) |
| L Clearance Circle without Bucket | 5 ft 3.4 in (1,610 mm) |
| M Clearance Circle Rear | 6 ft 0.8 in (1,848 mm) |
| N Track Width | 17.7 in (450 mm) |
| O Ground Clearance | 12.6 in (320 mm) |
| P Overall Width without Bucket | 6 ft 5.2 in (1,960 mm) |

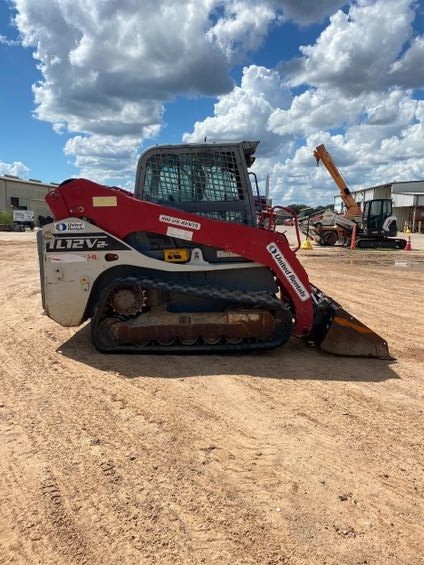

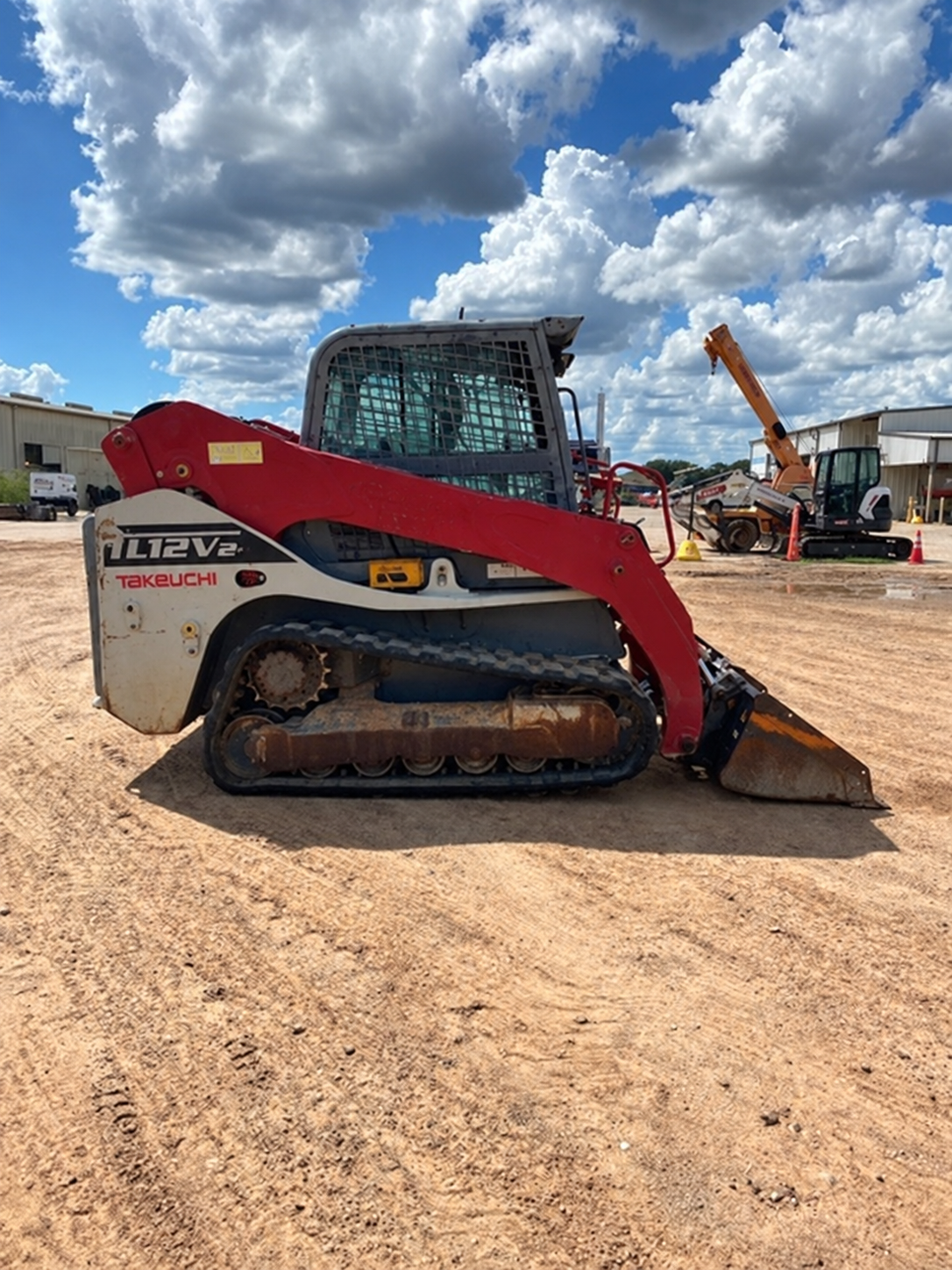

2022 Takeuchi TL12V2-CR Compact Track Loader
