Item Specifications
Category
Condition
Used
Item Number
#1073
Make
jlg
Model
1932rs
Year
2006
Industry
aerial
Equipment Type
aerial lifts scissor electric
Location
Choteau, OK
Also Available In
OK
Item Description
This 2006 JLG 1932RS electric scissor lift provides access for overhead maintenance and installation work. Its compact size helps it maneuver through narrow areas, while solid non-marking tires suit finished floors. The deck extension adds room for positioning at the work area. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2006 |
| Make | jlg |
| Model | 1932rs |
| Condition | Used |
| Power Source | 24V DC |
| Batteries | 4 x 6V, 220 AH |
| Charger | 25 amp |
| Drive | Electric, Friction |
| Guard Rail Type | Fixed |
Working Range
| Platform Capacity | 500 lb (227 kg) |

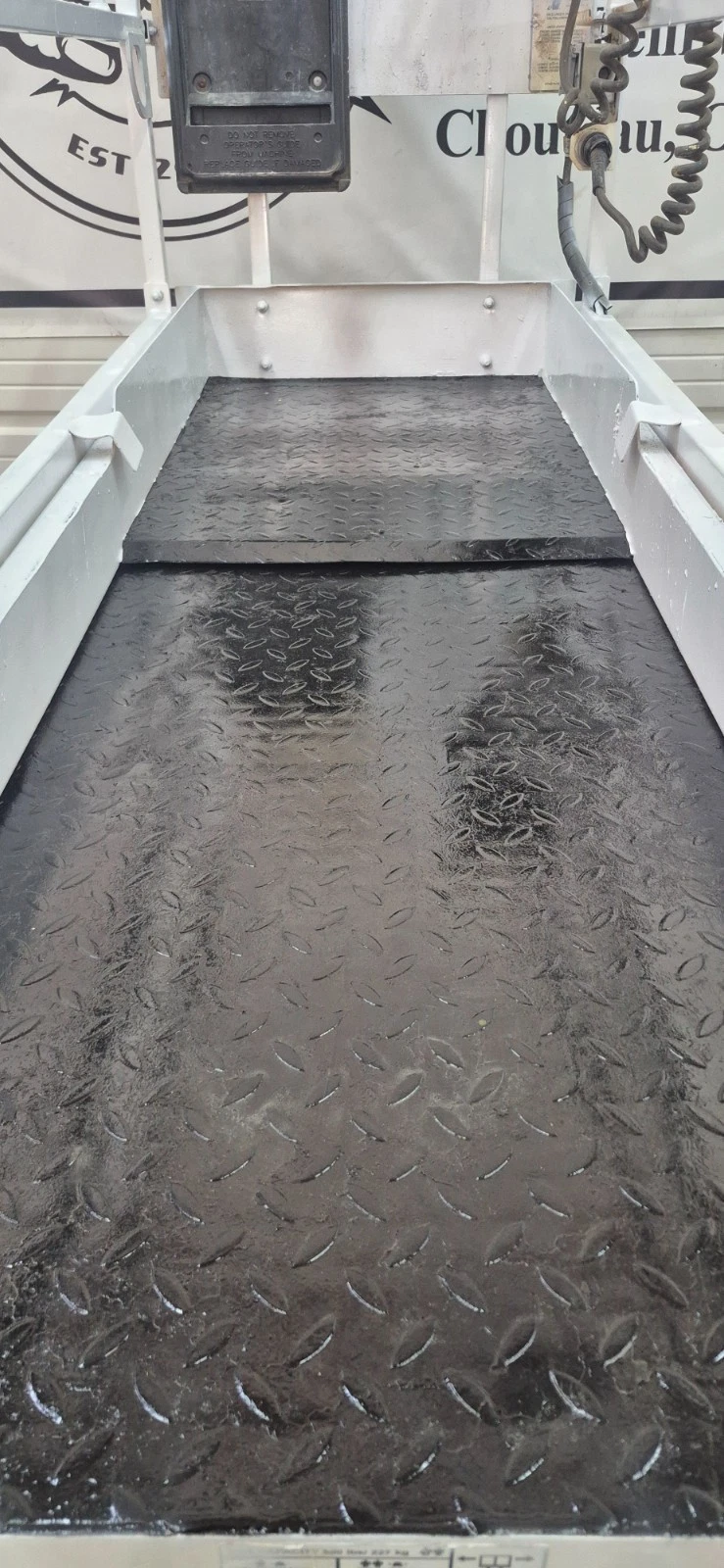

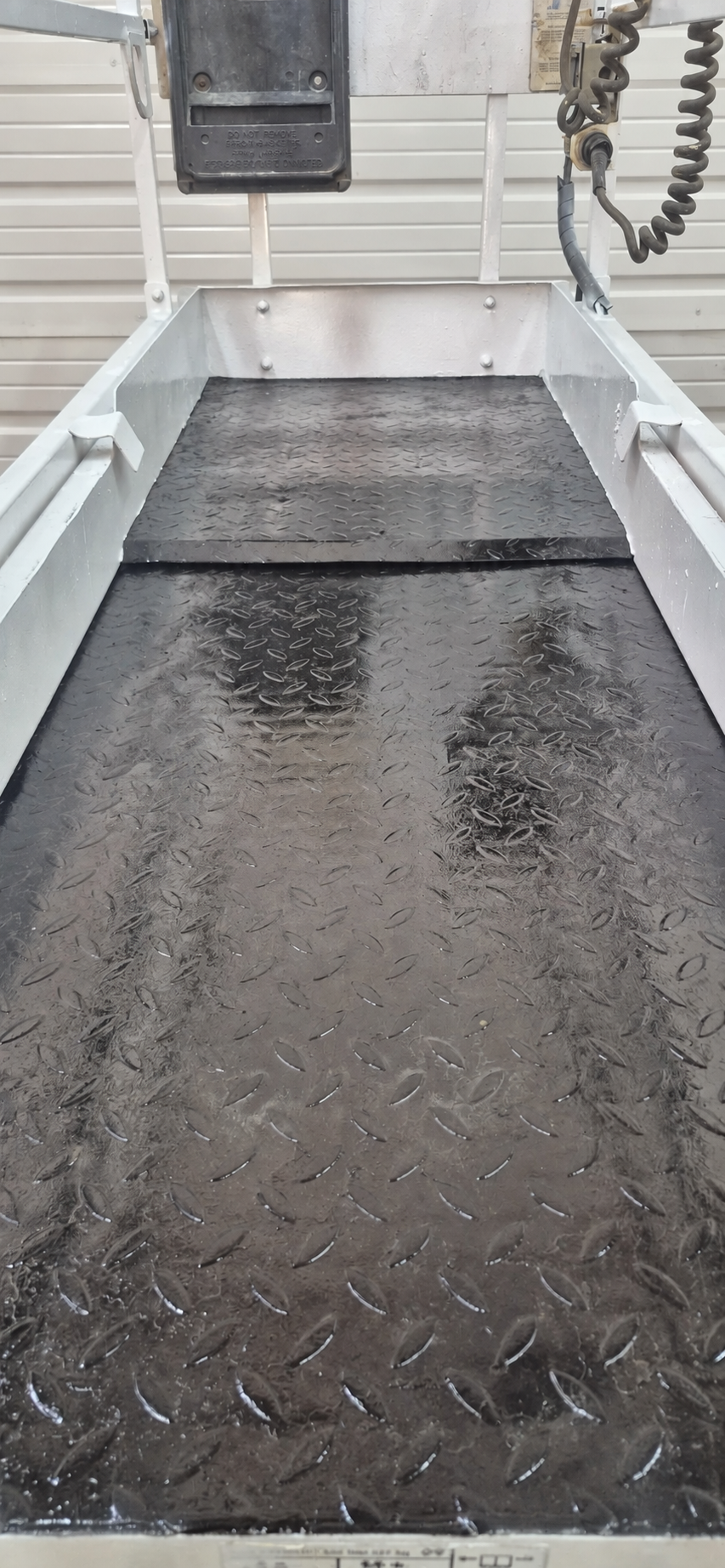

| Capacity on Deck Extension | 250 lb (113 kg) |
| Lift/Lower Time | 25/26 sec |
| Drive Speed, Lowered | 2.5 mph (4 km/h) |
| Gradeability | 25% |
Undercarriage & Attachments
| Tire Size (Solid, Non-Marking) | 12.5 x 4 in (3.18 x 10 cm) |
Dimensions
| Platform Height - Elevated | 19 ft (5.8 m) |
| Platform Railing Height | 3 ft 4.2 in (1.016 m) |
| Overall Height With Rails Lowered | 6 ft 7.4 in (2.02 m) |
| Overall Machine Length | 6 ft 9.4 in (2.07 m) |
| Wheelbase | 55 in (1.39 m) |
| Ground Clearance (Midframe) | 3.1 in (7.87 cm) |
| Maximum Drive Height | 19 ft (5.8 m) |
| Weight | 3,450 lb (1,565 kg) |
| Ground Bearing Pressure | 143 psi (10.05 kg/cm2) |
| Turning Radius (Outside) | 7 ft 3 in (2.2 m) |

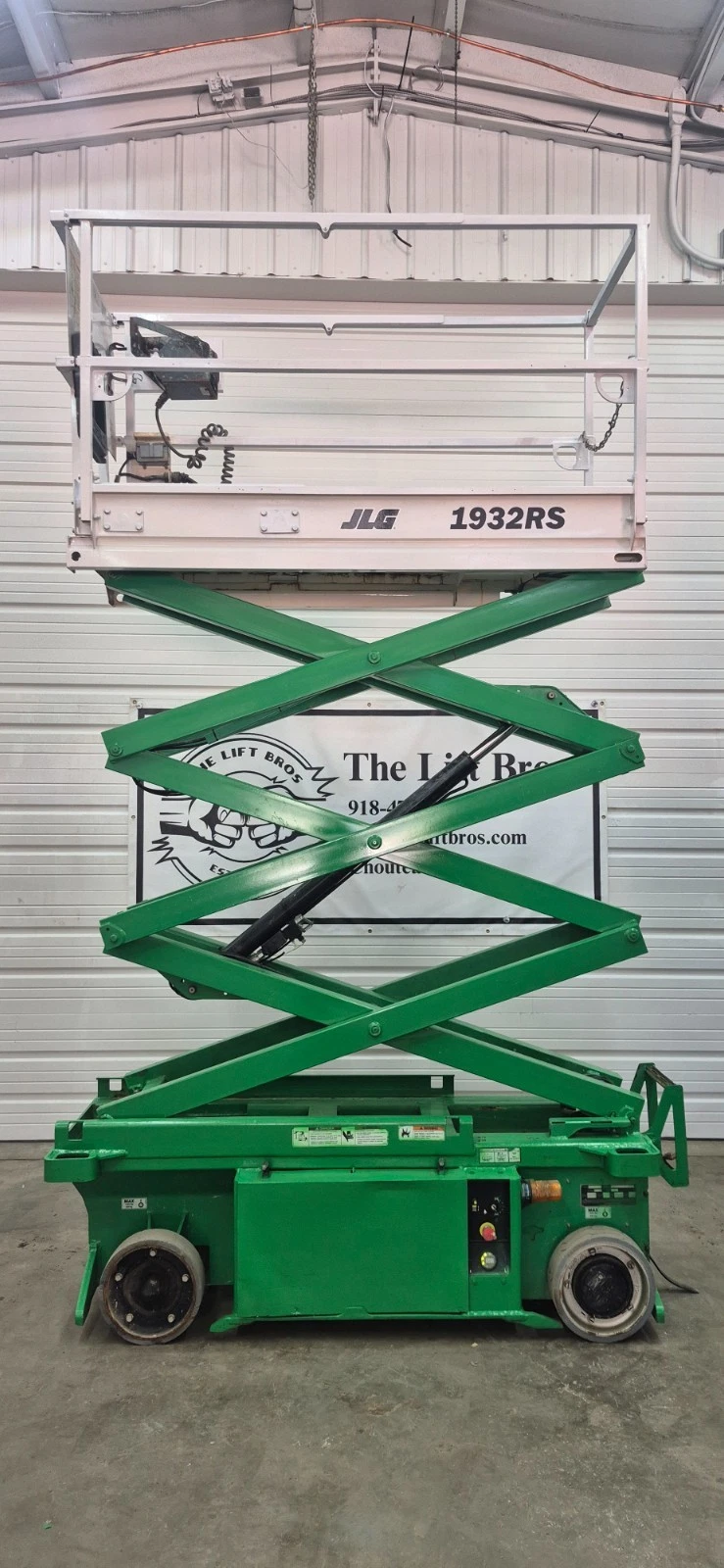

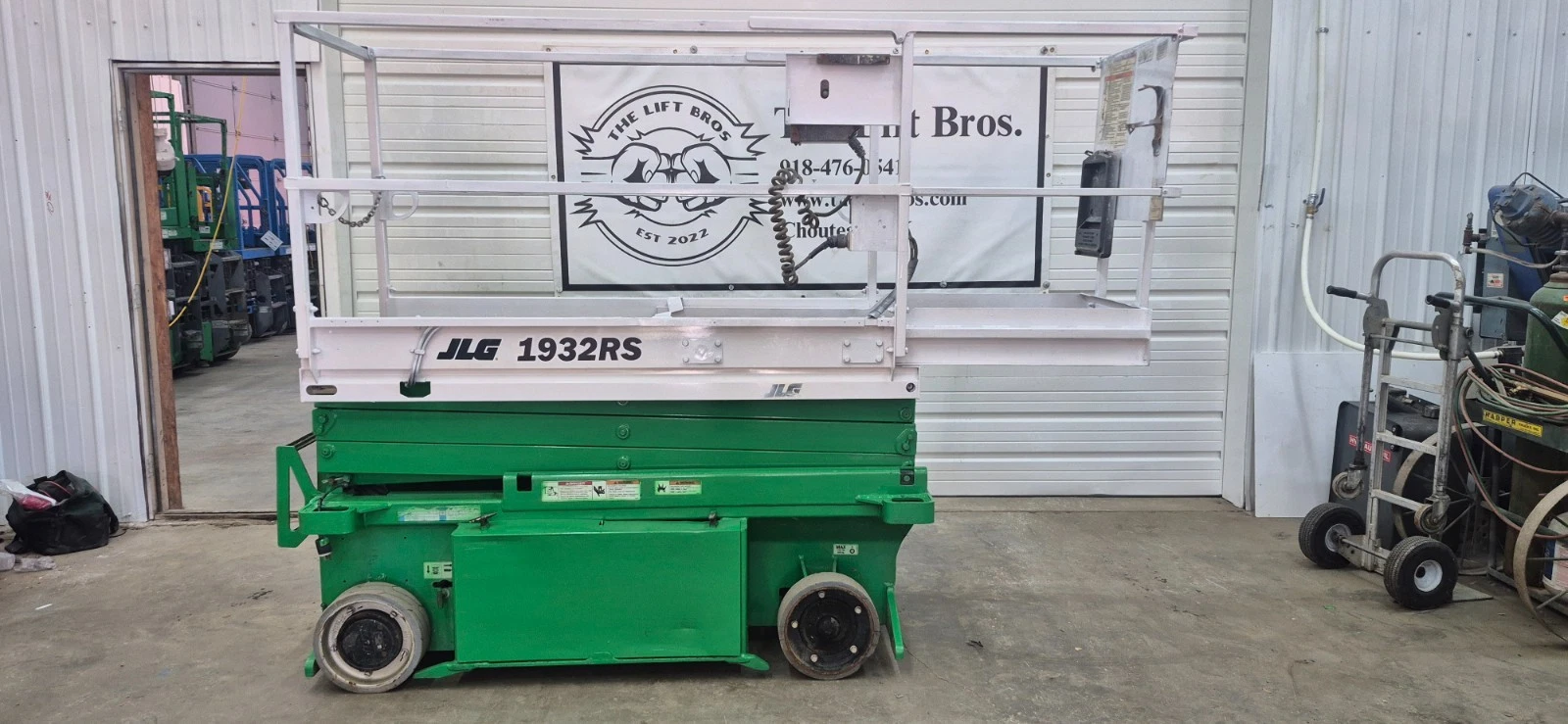

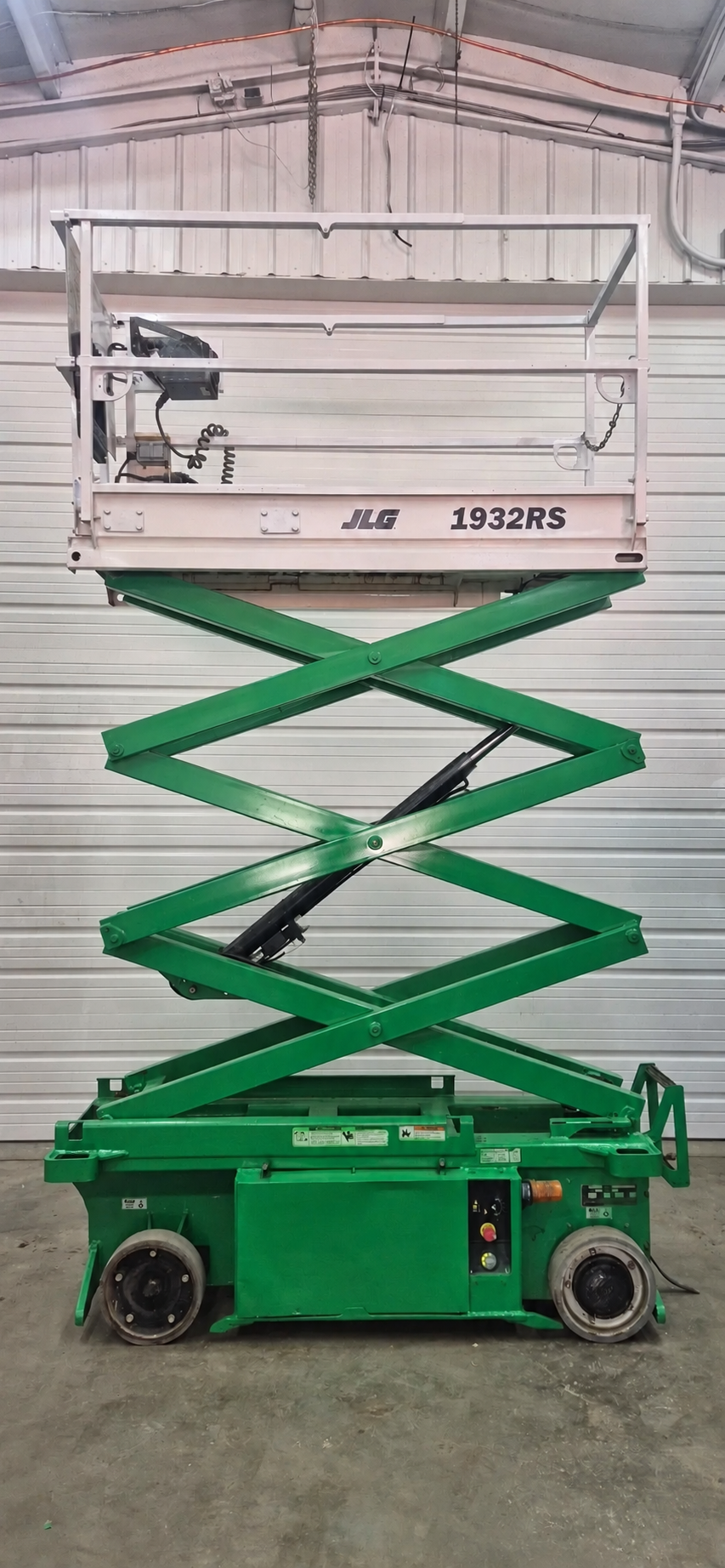

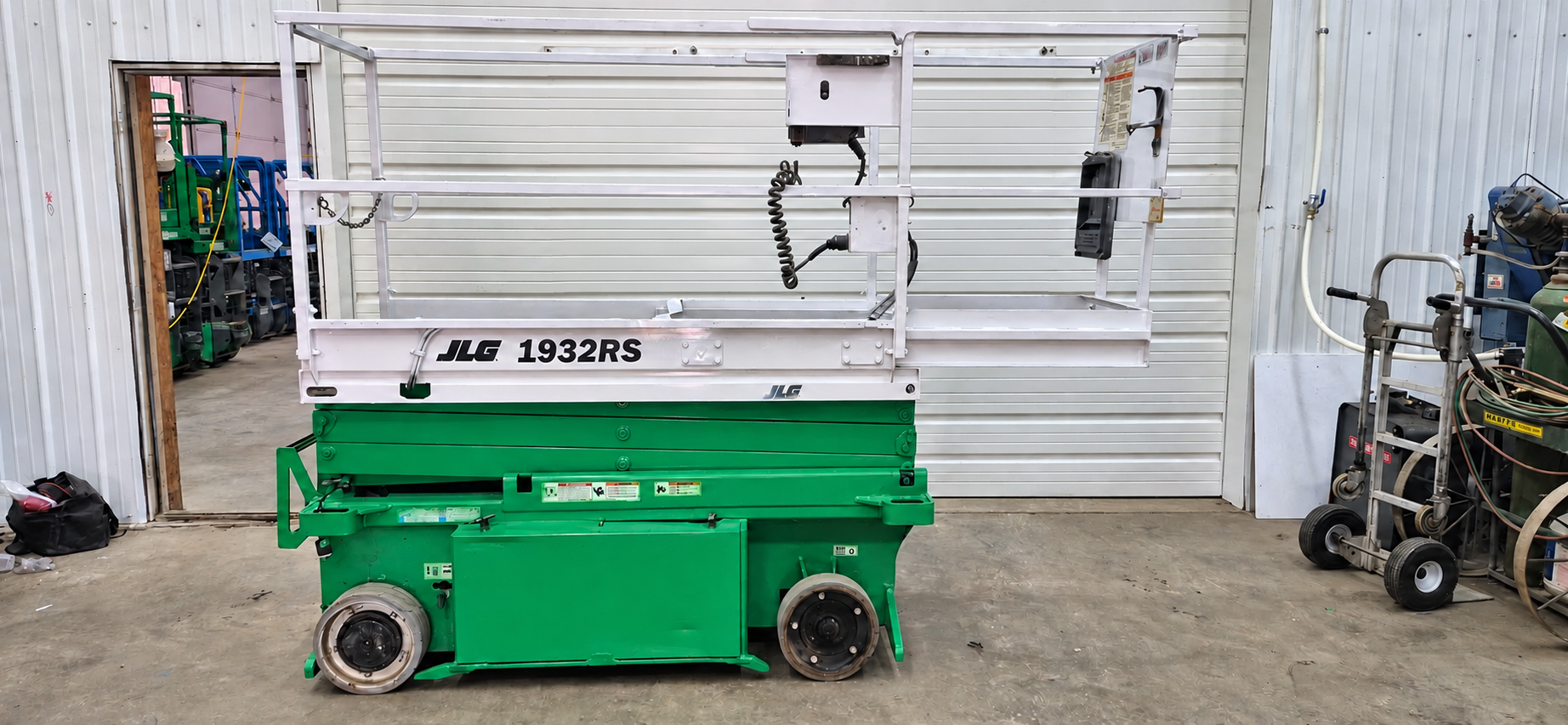

2006 JLG 1932RS Electric Scissor Lift
