Item Specifications
Category
Condition
Used
Item Number
#1046
Make
jlg
Model
1932
Year
2015
Industry
aerial
Equipment Type
aerial lifts scissor electric
Location
Choteau, OK
Also Available In
OK
Item Description

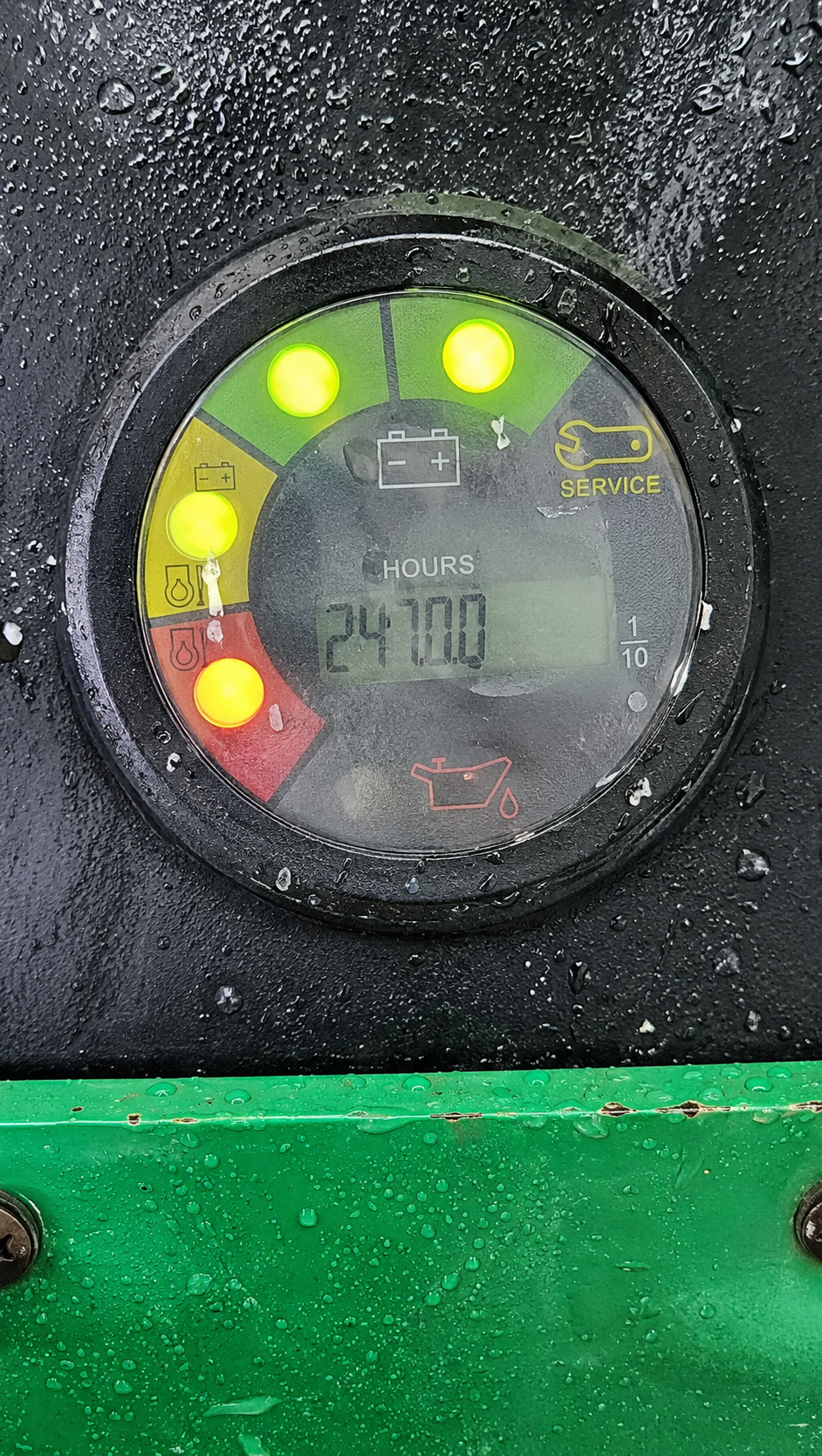

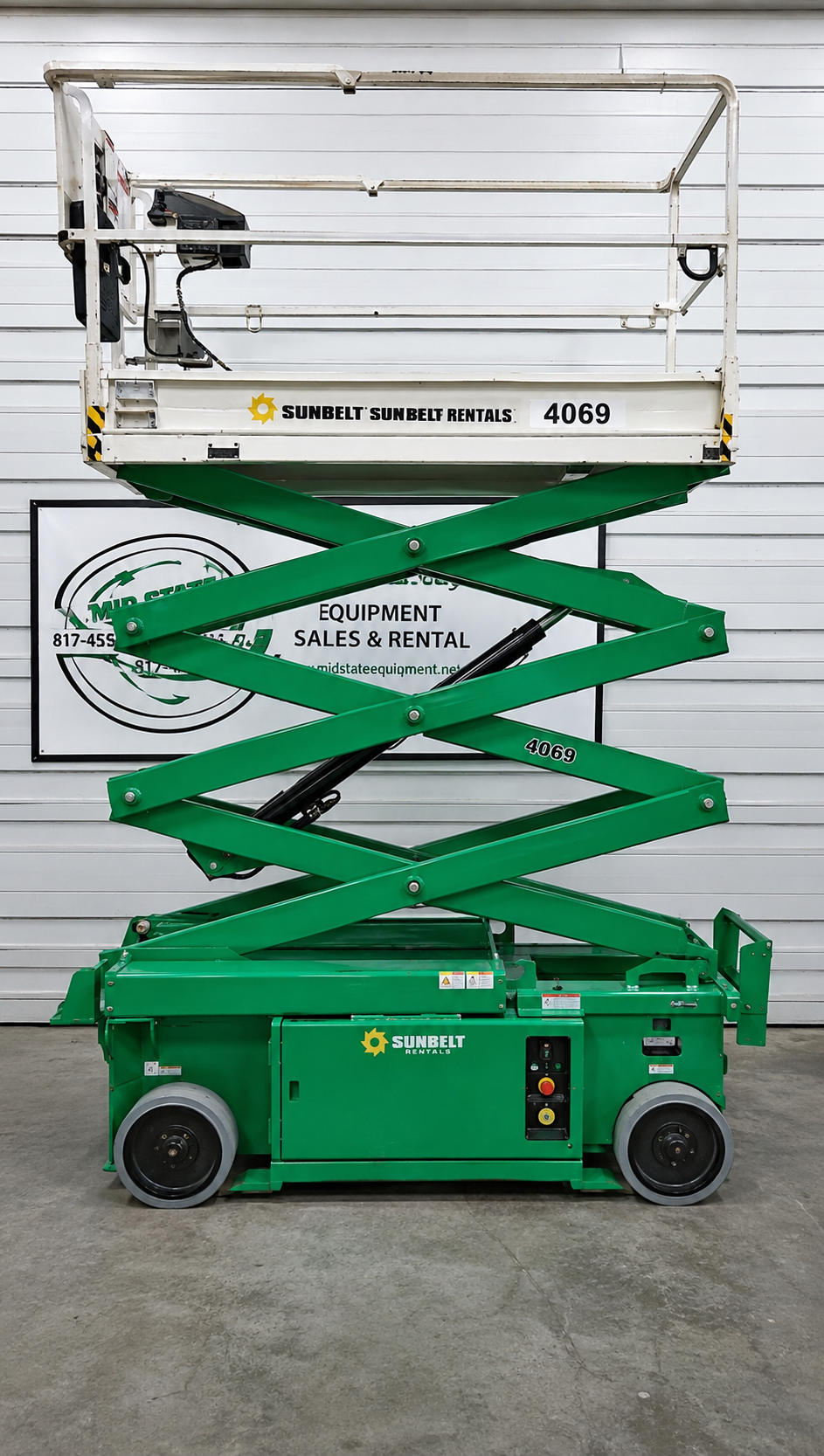

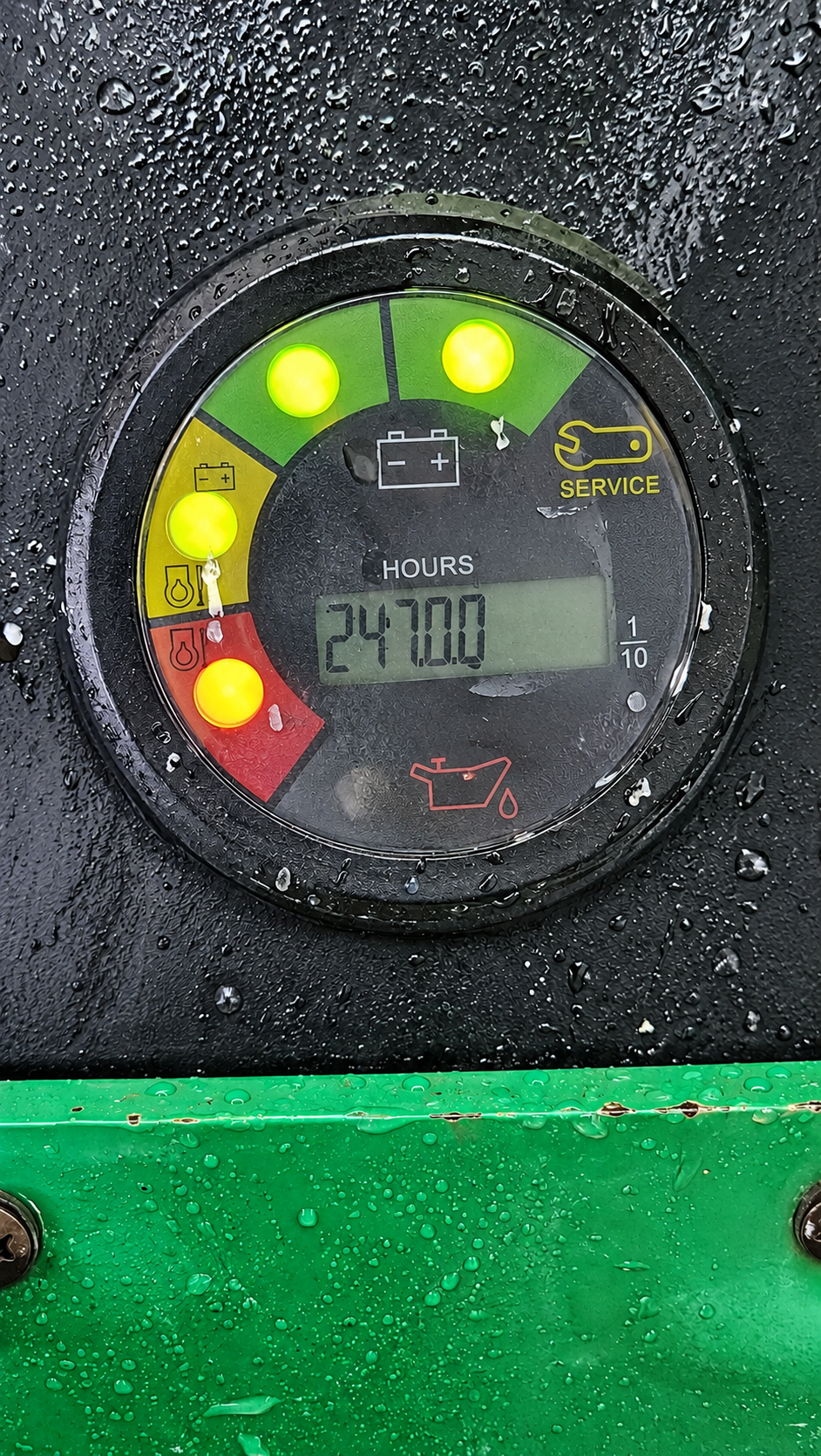

This 2015 JLG 1932 electric scissor lift provides elevated access for maintenance, installation, and facility work. Its narrow profile helps it move through confined work areas, and the platform extension provides additional room to reach the task. The lift can be driven while raised within its operating limits. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Year | 2015 |
| Make | jlg |
| Model | 1932 |
| Condition | Used |
| Number of Occupants (Indoor/Outdoor) | 2 / 1 |
| Power Source | 24V DC |
| Batteries | 4 x 6V, 220 amp-hr |
| Charger | 27 Amp |
Working Range
| Platform Capacity | 507 lb / 230 kg |
| Capacity on Platform Extension | 265 lb / 120 kg |
| Lift/Lower Time (No Load) | 22/29 seconds |
| Lift/Lower Time (Rated Load) | 27/28 seconds |
| Drive Speed (Lowered) | 3.0 mph / 4.8 km/h |
| Drive Speed (Raised) | 0.5 mph / 0.8 km/h |
| Gradeability | 25% |
Dimensions
| Platform Height (Elevated) | 19 ft / 5.8 m |
| Weight | 3,450 lb / 1,565 kg |
| Max. Ground Bearing Pressure | 114 psi / 8.01 kg/cm2 |
| Turning Radius (Outside) | 66 in / 1.7 m |
| Platform Height (Lowered) | 38.6 in / 1.0 m |
| Overall Width | 32 in / 81 cm |
| Overall Length | 68.7 in / 1.7 m |
| Wheelbase | 53 in / 1.3 m |

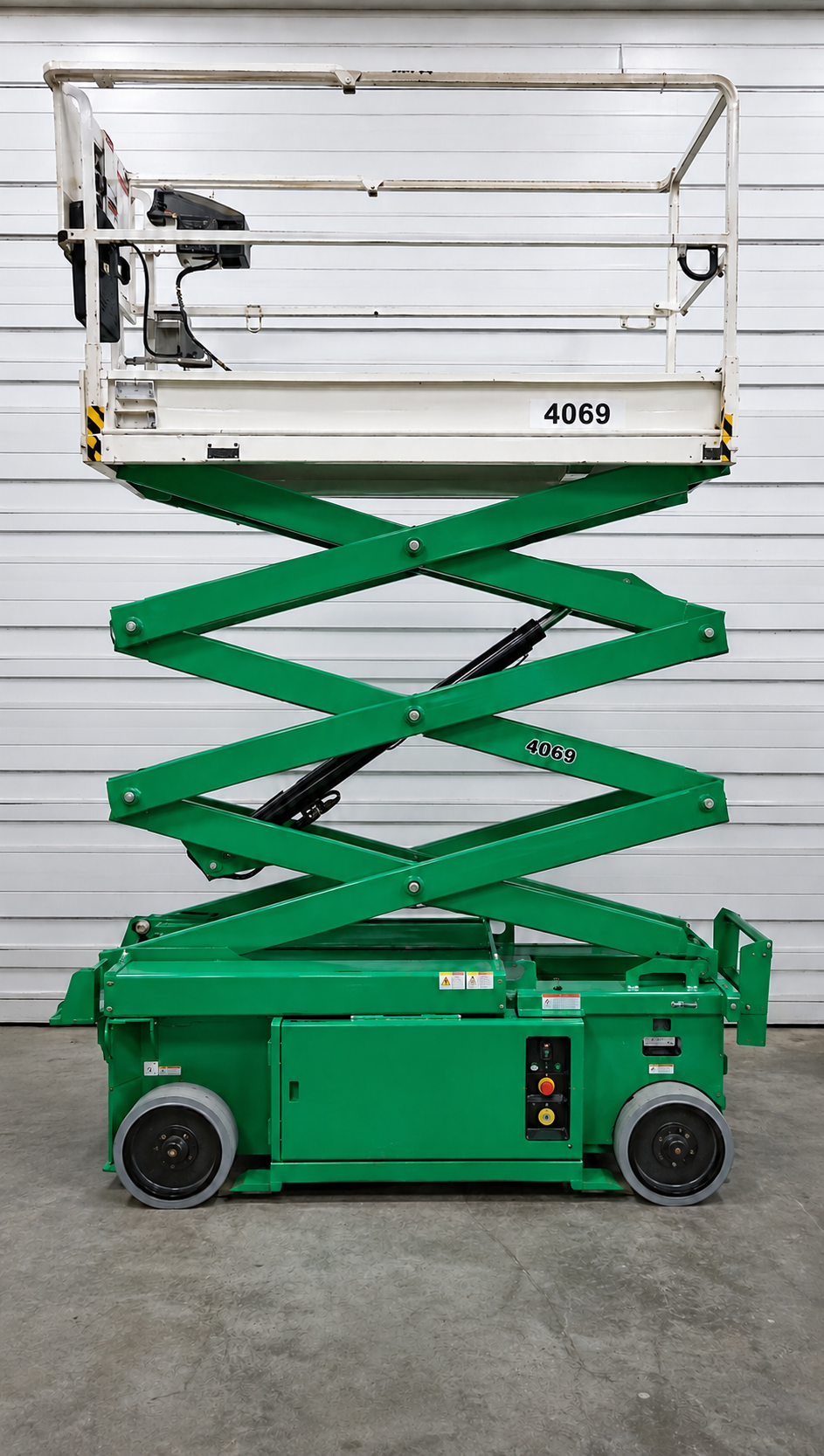

2015 JLG 1932 Electric Scissor Lift
