Item Specifications
Category
Condition
Used
Item Number
#1004
Make
genie
Model
gs_2046
Industry
aerial
Equipment Type
aerial lifts scissor electric
Location
Choteau, OK
Item Description

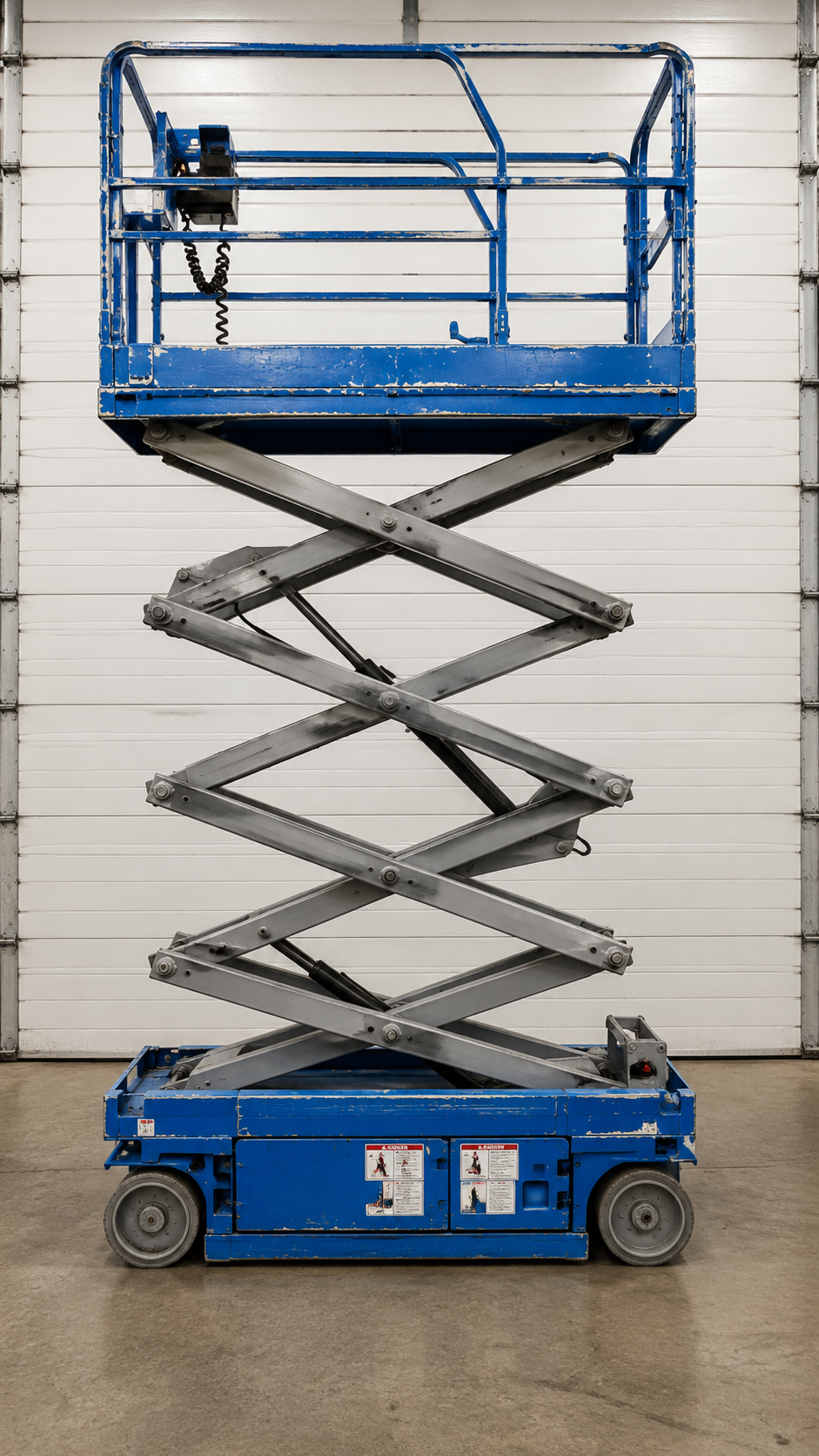

This Genie GS-2046 electric scissor lift provides elevated access for maintenance, installation, and warehouse work. Its solid non-marking tires suit finished floors, and the slide-out deck extends the platform work area. The compact machine can maneuver through indoor spaces and can also be operated outdoors within its rated limits. Mileage and/or engine hours are approximate and subject to change. Please contact your sales representative for the most current readings.
Specifications
General
| Make | genie |
| Model | gs_2046 |
| Condition | Used |
| Tilt sensor activation (front to back/side to side) | 3deg/1.5deg |
| Power | 24V DC (1 x 24V 90Ah) |
| Vibrations | <8ft 2in/s2 (<2.5m/s2) |
Working Range
| Slide-out platform extension deck - length | 3ft (0.91m) |
| Max. platform occupancy (in/out) | 2/1 |
| Lift capacity | 1,200lb (544kg) |
| Lift capacity - extension deck extended | 250lb (113kg) |
| Drive speed - stowed | 2.0mph (3.2km/h) |
| Drive speed - raised | 0.5mph (0.8km/h) |
| Gradeability - stowed | 25% |
| Lifting speed - raise/lower | 32/26 sec |
| Hydraulic tank capacity (hydraulic drive) | 4.5gal (17L) |
| Occupied floor pressure | 183psf (8.63kPa) |
| Sound Pressure level (ground workstation) | <70dBA |
| Sound Pressure level (platform workstation) | <70dBA |
Undercarriage & Attachments
| Tires | Solid non-marking |
| Tire load max. | 2,017lb (915kg) |
| Tire contact pressure | 139.5psi (938kPa) |
Dimensions
| Working height max. - indoor | 26ft 1in (8.13m) |
| Working height max. - outdoor | 22ft 4in (6.98m) |
| Platform height max. - indoor | 20ft 1in (6.13m) |
| Platform height max. - outdoor | 16ft 4in (4.98m) |
| Platform height - stowed | 3ft 6in (1.07m) |
| Platform length - outside | 7ft 5in (2.26m) |
| Platform length - outside, extended | 10ft 5in (3.18m) |
| Platform width - outside | 3ft 10in (1.18m) |
| Guardrail height | 3ft 7in (1.10m) |
| Toeboard height | 6in (15cm) |
| Machine Height - stowed (folding rails) | 7ft 2in (2.18m) |
| Machine Height - stowed (rails lowered) | 5ft 2in (1.57m) |
| Length machine - stowed | 8ft (2.44m) |
| Length machine - stowed, extended | 10ft 11in (3.33m) |
| Width | 3ft 10in (1.18m) |
| Wheelbase | 6ft 1in (1.85m) |
| Ground clearance (center) - pothole guards retracted | 5in (12cm) |
| Ground clearance - pothole guards deployed | 0.9in (2.30cm) |
| Max. platform drive height | 20ft 1in (6.13m) |
| Turning radius - inside/outside | 0/7ft 6in (0/2.29m) |
| Weight | 3,913lb (1,775kg) |
| Weight max. (adding all possible options) | 4,120lb (1,869kg) |
Genie GS-2046 Electric Scissor Lift
